Tutorial No 5

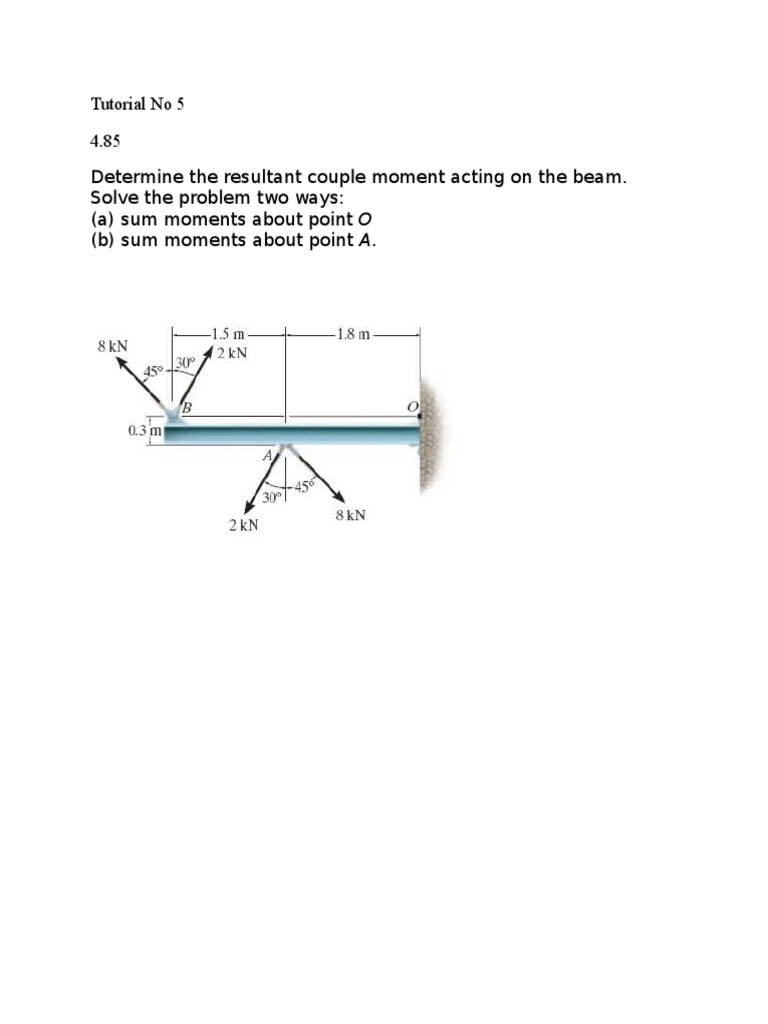

4.85
Determine the resultant couple moment acting on the beam.
Solve the problem two ways:
(a) sum moments about point O
(b) sum moments about point A.

4.90
Two couples act on the frame. If d=1.2m , determine the resultant
couple moment. Compute the result by resolving each force into x
and y components and
(a) finding the moment of each couple (Eq. 413)
(b) summing the moments of all the force components about
point B.

4.106
Replace the force system acting on the beam by an equivalent
force and couple moment at point B.

4.115
Handle forces F1and F2 are applied to the electric drill. Replace
this force system by an equivalent resultant force and couple
moment acting at point O. Express the results in Cartesian vector
form.

4.125
Replace the force system acting on the frame by an equivalent
resultant force and specify where the resultants line of action
intersects member AB, measured from point A.

4.145
Replace the distributed loading with an equivalent resultant force,
and specify its location on the beam measured from point A

4.154
Replace the distributed loading with an equivalent resultant force,
and specify its location on the beam measured from point A.
