Output Module
From OpenMotics

Contents
1 Technical Specifications
2 Firmware
2.1 Current version
2.2 Older versions
2.3 Help
3 Hardware

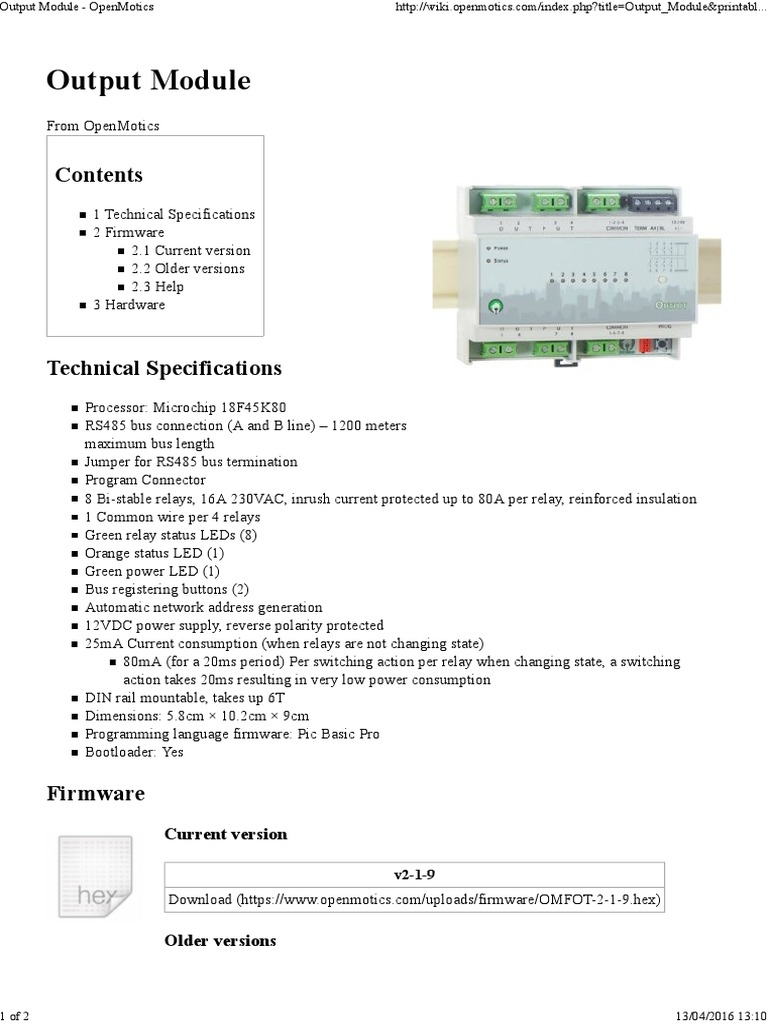

Technical Specifications
Processor: Microchip 18F45K80
RS485 bus connection (A and B line) 1200 meters
maximum bus length
Jumper for RS485 bus termination
Program Connector
8 Bi-stable relays, 16A 230VAC, inrush current protected up to 80A per relay, reinforced insulation
1 Common wire per 4 relays
Green relay status LEDs (8)
Orange status LED (1)
Green power LED (1)
Bus registering buttons (2)
Automatic network address generation
12VDC power supply, reverse polarity protected
25mA Current consumption (when relays are not changing state)
80mA (for a 20ms period) Per switching action per relay when changing state, a switching
action takes 20ms resulting in very low power consumption
DIN rail mountable, takes up 6T
Dimensions: 5.8cm 10.2cm 9cm
Programming language firmware: Pic Basic Pro
Bootloader: Yes

Firmware

Current version
v2-1-9

Download (https://www.openmotics.com/uploads/firmware/OMFOT-2-1-9.hex)

Older versions

13/04/2016 13:10

Output Module - OpenMotics

2 of 2

http://wiki.openmotics.com/index.php?title=Output_Module&printabl...

v2-1-2

Download (https://www.openmotics.com/uploads/firmware/OMFOT-2-1-2.hex)

Help
How do I program a module?
Documentation
Explanation of the Output buttons on the module

Hardware

This module consists of the following PCBs (Printed Circuit Boards):

OMHOT
The main PCB that houses all module specific components

OMHT6
Generic top panel PCB with all front panel interface components
