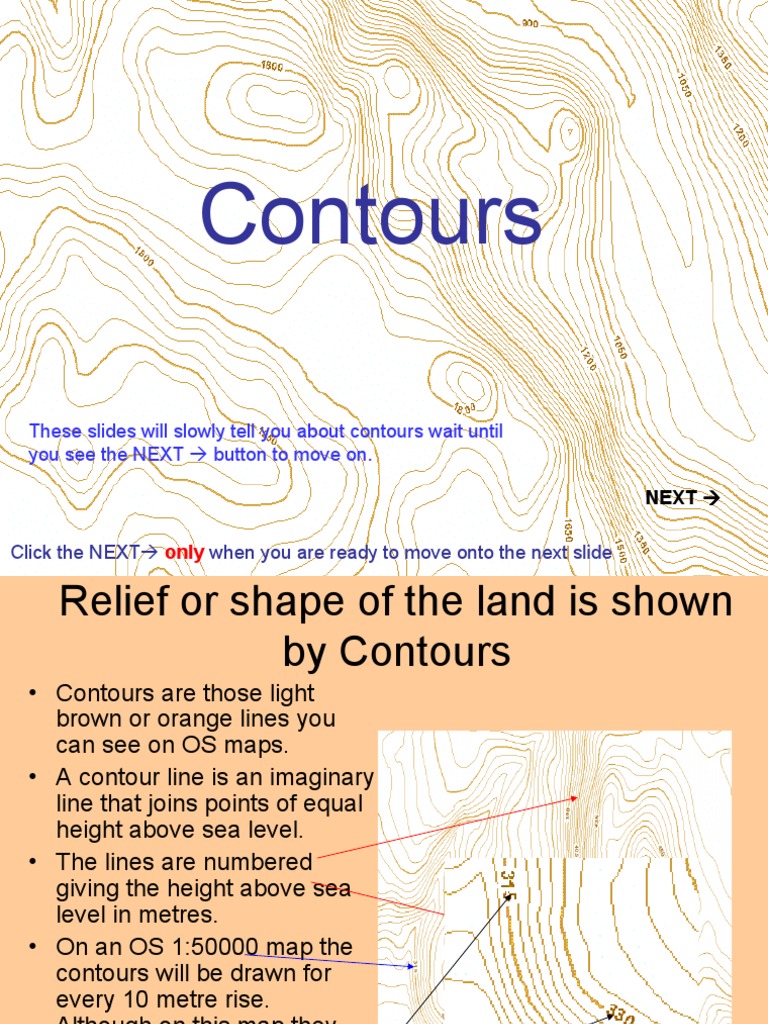

Contours

These slides will slowly tell you about contours wait until
you see the NEXT  button to move on.

NEXT 

Click the NEXT only when you are ready to move onto the next slide
 Relief or shape of the land is shown
by Contours XXXX
xxxxxx
• Contours are those light
brown or orange lines you XXXXX
can see on OS maps.
• A contour line is an imaginary
line that joins points of equal
height above sea level.
• The lines are numbered
giving the height above sea
level in metres.
• On an OS 1:50000 map the
contours will be drawn for
every 10 metre rise.
Although on this map they
are every 3m so always
remember to check.
NEXT 
 What use are contours?
• They can be used to learn about the
shape of the land (the relief).
• A map with only a few contour lines will be
flat (and often low lying)
• If a map has lots of contours it is a
mountainous or hilly area.
• The actual pattern of the lines will tell you
more detail about the area too.
XXX NEXT 
XXX
XXX
 • It is important to remember that the closer
together the contour lines the steeper the
slope.
XXXX

Steep slopes

XXXX

Area that is
flatter with
only a gentle
slope
XXXX

•Let’s have a look at why that is. NEXT 

 • This is the side view of a hill.
Let’s see where this hill reaches these heights

Now let’s plot those points XXXX

Now if we plotted those points on paper.

300m
250m
200m
150m
100m
Sea level

See how these lines are closer together on the steeper slope NEXT 
Let’s look at some other examples

NEXT 
 Think where is the steepest slope on this island?

Click here to see if you’re right

xxx

200

150

100

50

XXXX
XXXX
 Steepest slope –
contour lines are closest
together

xxx Sparrow point

227

200

. 76
150

100

50

Sometimes spot heights can be shown as a dot with a note of

XXXX
the height of that particular place. XXXX
A trigonometrical point (or trig point) shows the highest point in an
area (in meters) and is shown as a blue triangle NEXT 
You can spot other features by the
shape and pattern of the contours

NEXT 
A valley may look like this…
150

120

90

Often with a river running down through the valley

NEXT 
However a spur can look very similar !

90

120

150

But here the heights are increasing in the opposite

direction – always double check which way the
NEXT 
contours are increasing or decreasing.
 Valley Spur

150
90

120
120

90 15
0

NEXT 
 Now Try your hand at a short test or
click on the return button to re-run this
presentation.

For test
click here RETURN
