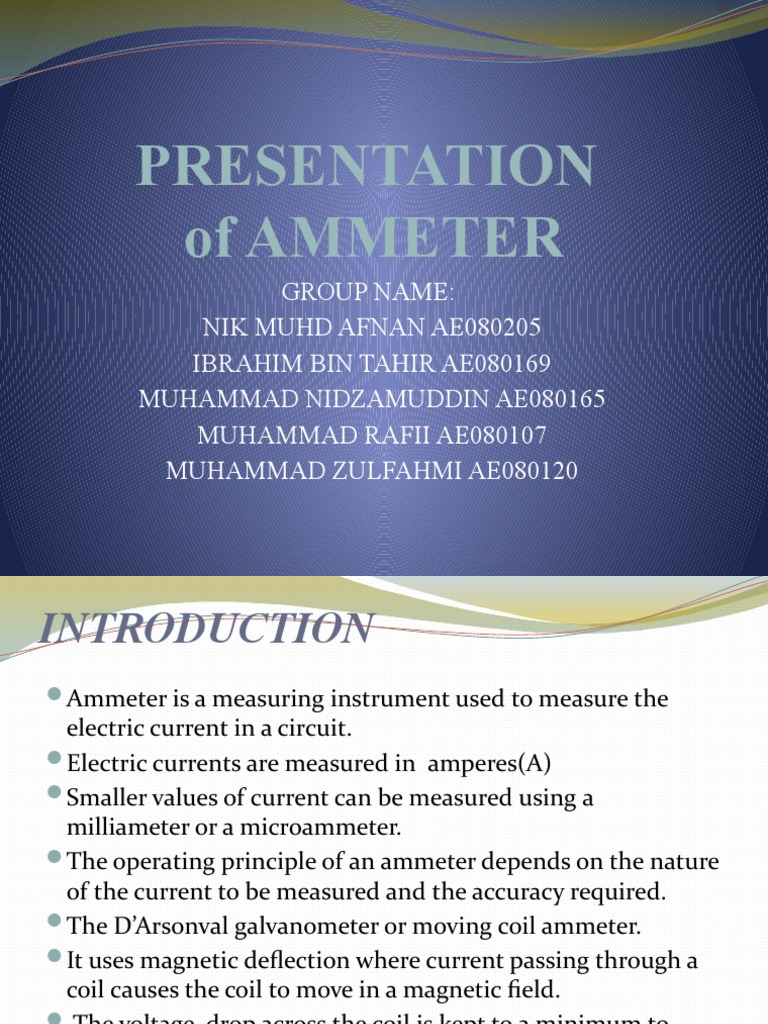

Presentation of Ammeter
of AMMETER
GROUP NAME:
NIK MUHD AFNAN AE080205
IBRAHIM BIN TAHIR AE080169
MUHAMMAD NIDZAMUDDIN AE080165
MUHAMMAD RAFII AE080107
MUHAMMAD ZULFAHMI AE080120
INTRODUCTION
Ammeter is a measuring instrument used to measure the
electric current in a circuit.
Electric currents are measured in amperes(A)
Smaller values of current can be measured using a
milliameter or a microammeter.
The operating principle of an ammeter depends on the nature
of the current to be measured and the accuracy required.
The D’Arsonval galvanometer or moving coil ammeter.
It uses magnetic deflection where current passing through a
coil causes the coil to move in a magnetic field.
The voltage drop across the coil is kept to a minimum to
minimize resistance across the ammeter in any circuit into
which it is inserted.
TYPE OF AMMETER
HOW AMMETER WORKS
ANALOG VS DIGITAL
AMMETER
Analog Ammeter
Needle and Calibrated scale to indicate value
Usually requires simple mental calculation
Measure ampere or current flow in a circuit
Provide information on current draw as well circuit continuity
Detect has lowered the circuit resistance
High resistance or poor connection in the circuit unintentional
ground or defective component
No current indicate an open circuit or loss power
Always be connected in series with the circuit
It is connected by attaching the positive lead to the positive or
battery side of the circuit and the negative to negative or ground
side of circuit.
Digital Ammeter
Display those values on a digital display
Usually simpler to read and many will adjust to the
proper range required for the
Auto ranging meter require the operator to select the
proper range.
Often capable of measuring smaller current
All the way down to micro amps
Easy to use because they give a specific value
Elimination need to interpret the analog meter needle
on its scale
Always connected in parallel
HOW TO USE AMMETER
To measure current in a circuit is to break the circuit
open and insert an "ammeter" in series (in-line) with
the circuit
Because measuring current in this manner requires
the meter be made part of the circuit.
When an ammeter is placed in series with a circuit, it
ideally drops no voltage as current goes through it.
Consequently, an ammeter will act as a short circuit if
placed in parallel (across the terminals of) a
substantial source of voltage,potentially damaging the
meter.
APPLICATION
