CV Series

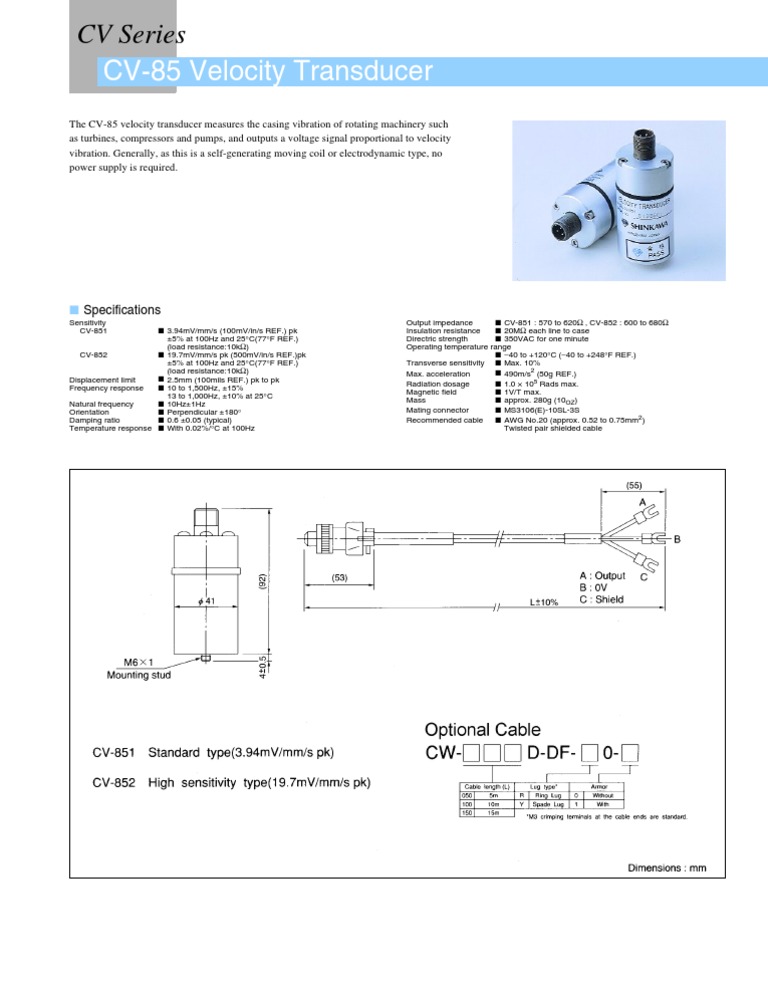

CV-85 Velocity Transducer

The CV-85 velocity transducer measures the casing vibration of rotating machinery such
as turbines, compressors and pumps, and outputs a voltage signal proportional to velocity
vibration. Generally, as this is a self-generating moving coil or electrodynamic type, no
power supply is required.

■ Specifications
Sensitivity Output impedance ■ CV-851 : 570 to 620Ω , CV-852 : 600 to 680Ω
CV-851 ■ 3.94mV/mm/s (100mV/in/s REF.) pk Insulation resistance ■ 20MΩ each line to case
±5% at 100Hz and 25°C(77°F REF.) Directric strength ■ 350VAC for one minute
(load resistance:10kΩ) Operating temperature range
CV-852 ■ 19.7mV/mm/s pk (500mV/in/s REF.)pk ■ −40 to +120°C (−40 to +248°F REF.)
±5% at 100Hz and 25°C(77°F REF.) Transverse sensitivity ■ Max. 10%
(load resistance:10kΩ) Max. acceleration ■ 490m/s2 (50g REF.)
Displacement limit ■ 2.5mm (100mils REF.) pk to pk
Radiation dosage ■ 1.0 × 105 Rads max.
Frequency response ■ 10 to 1,500Hz, ±15%
Magnetic field ■ 1V/T max.
13 to 1,000Hz, ±10% at 25°C
Mass ■ approx. 280g (10OZ)
Natural frequency ■ 10Hz±1Hz
Orientation ■ Perpendicular ±180° Mating connector ■ MS3106(E)-10SL-3S
Damping ratio ■ 0.6 ±0.05 (typical) Recommended cable ■ AWG No.20 (approx. 0.52 to 0.75mm2)
Temperature response ■ With 0.02%/°C at 100Hz Twisted pair shielded cable
