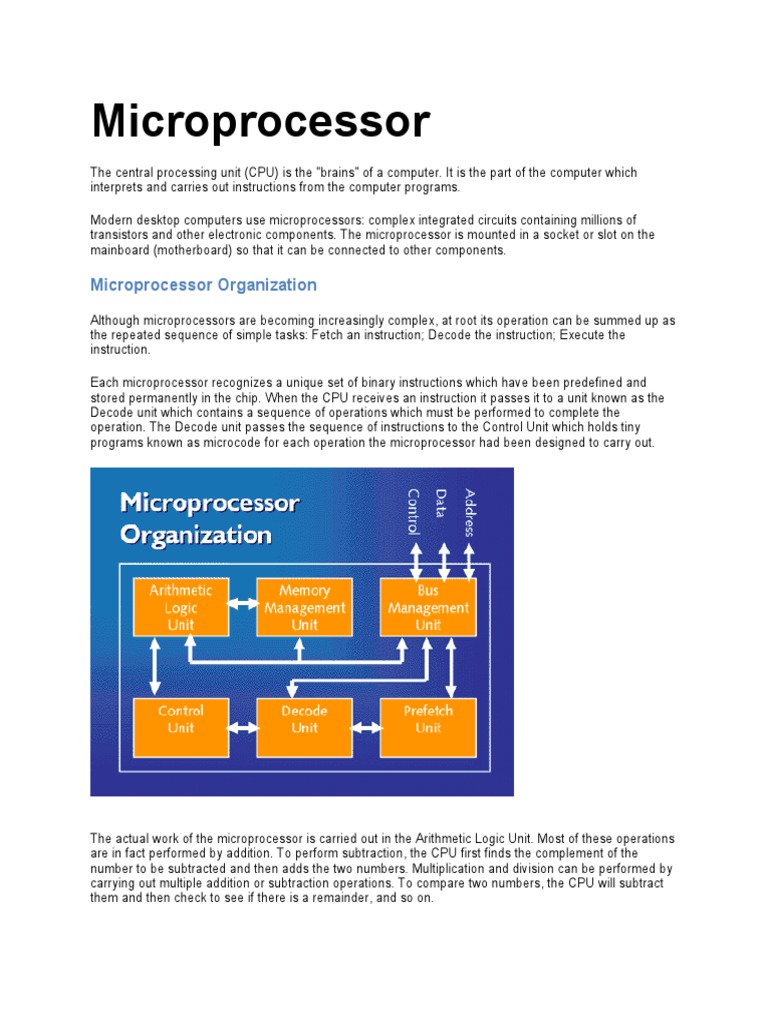

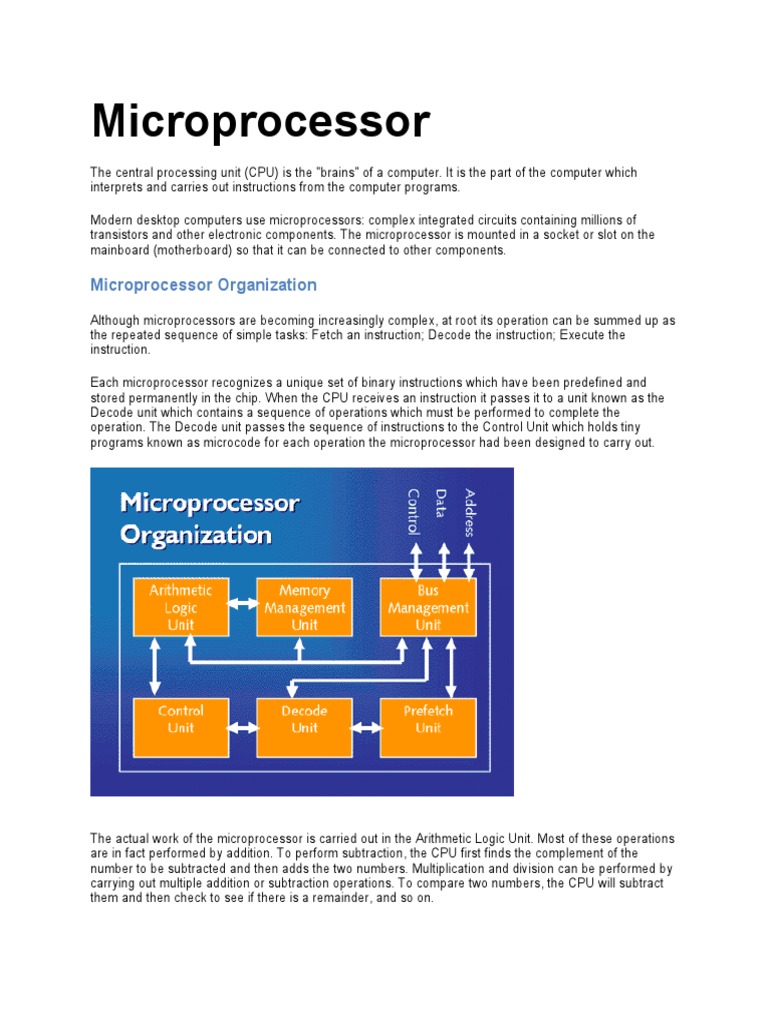

Microprocessor

The central processing unit (CPU) is the "brains" of a computer. It is the part of the computer which
interprets and carries out instructions from the computer programs.

Modern desktop computers use microprocessors: complex integrated circuits containing millions of
transistors and other electronic components. The microprocessor is mounted in a socket or slot on the
mainboard (motherboard) so that it can be connected to other components.

Microprocessor Organization

Although microprocessors are becoming increasingly complex, at root its operation can be summed up as
the repeated sequence of simple tasks: Fetch an instruction; Decode the instruction; Execute the
instruction.

Each microprocessor recognizes a unique set of binary instructions which have been predefined and
stored permanently in the chip. When the CPU receives an instruction it passes it to a unit known as the
Decode unit which contains a sequence of operations which must be performed to complete the
operation. The Decode unit passes the sequence of instructions to the Control Unit which holds tiny
programs known as microcode for each operation the microprocessor had been designed to carry out.

The actual work of the microprocessor is carried out in the Arithmetic Logic Unit. Most of these operations
are in fact performed by addition. To perform subtraction, the CPU first finds the complement of the
number to be subtracted and then adds the two numbers. Multiplication and division can be performed by
carrying out multiple addition or subtraction operations. To compare two numbers, the CPU will subtract
them and then check to see if there is a remainder, and so on.
In order to carry out its operations, the processor has storage locations, called registers, for the numbers
and instructions it is operating on. For example, to add two numbers, the first number mign be loaded into
Register A, the second into Register B and the result stored in Register C. To speed up the operations of
the processor, the Prefetch unit looks ahead in the program to find the next instructions and preloads
them into registers, to cut down on time wasted waiting for the next instruction.

The microprocessor connects to the external components of the computer via "buses": sets of parallel
conductors used to move data in the form of electrical pulses. There are three types of buses: the data
bus carries the binary-coded information and instructions; the address bus carries binary-coded numbers
which identify storage locations in main memory, much like the postal code on a letter; the control bus
carries timing signals, read-write signals, interrupt requests and similar signals between the
microprocessor and external devices.

To manage the flow of data into and out of the CPU, two other units are required: the Memory
Management Unit, and the Bus Management Unit. To summarize, the essential sections of a
microprocessor are:

 Arithmetic Logic Unit: executes all logic and arithmetic operations as specified by the
instruction set
 Control Unit: contains the microcode that tells the ALU how to function.
 Decode Unit: translates instruction into control signals and microcode directions then
queues them until requested by the Control Unit.
 Prefetch Unit: queues instruction to assure that the microprocessor is in continuous
operation.
 Memory Management Unit: converts internal logic addresses into external memory
addresses.
 Bus Management Unit: manages the flow of information between the microprocessor
and data storage locations (main disk, CD-ROM, etc.) and peripherals ( printer, monitor,
etc.)

Many of the refinements in modern microprocessors are designed to improve processor utilization and
eliminate wasted clock cycles. The addition of cache memory—high-speed memory used for temporary
storage of instructions and data; multiple "pipelines" so that more than one sequence of instructions can
be performed at one time; Branch-prediction units which attempt to predict which branch of a program will
be executed next so that the cache memory and extra piplines can be used efficiently.
Microprocessor
The central processing unit (CPU) is the "brains" of a computer. It is the part of the computer which
interprets and carries out instructions from the computer programs.

Modern desktop computers use microprocessors: complex integrated circuits containing millions of
transistors and other electronic components. The microprocessor is mounted in a socket or slot on the
mainboard (motherboard) so that it can be connected to other components.

Topics:

 Microprocessor Organization
 Microprocessor Specifications
 Microprocessor Manufacturing

Microprocessor Organization

Although microprocessors are becoming increasingly complex, at root its operation can be summed up as
the repeated sequence of simple tasks: Fetch an instruction; Decode the instruction; Execute the
instruction.

Each microprocessor recognizes a unique set of binary instructions which have been predefined and
stored permanently in the chip. When the CPU receives an instruction it passes it to a unit known as the
Decode unit which contains a sequence of operations which must be performed to complete the
operation. The Decode unit passes the sequence of instructions to the Control Unit which holds tiny
programs known as microcode for each operation the microprocessor had been designed to carry out.
The actual work of the microprocessor is carried out in the Arithmetic Logic Unit. Most of these operations
are in fact performed by addition. To perform subtraction, the CPU first finds the complement of the
number to be subtracted and then adds the two numbers. Multiplication and division can be performed by
carrying out multiple addition or subtraction operations. To compare two numbers, the CPU will subtract
them and then check to see if there is a remainder, and so on.

In order to carry out its operations, the processor has storage locations, called registers, for the numbers
and instructions it is operating on. For example, to add two numbers, the first number mign be loaded into
Register A, the second into Register B and the result stored in Register C. To speed up the operations of
the processor, the Prefetch unit looks ahead in the program to find the next instructions and preloads
them into registers, to cut down on time wasted waiting for the next instruction.

The microprocessor connects to the external components of the computer via "buses": sets of parallel
conductors used to move data in the form of electrical pulses. There are three types of buses: the data
bus carries the binary-coded information and instructions; the address bus carries binary-coded numbers
which identify storage locations in main memory, much like the postal code on a letter; the control bus
carries timing signals, read-write signals, interrupt requests and similar signals between the
microprocessor and external devices.

To manage the flow of data into and out of the CPU, two other units are required: the Memory
Management Unit, and the Bus Management Unit. To summarize, the essential sections of a
microprocessor are:

 Arithmetic Logic Unit: executes all logic and arithmetic operations as specified by the
instruction set
 Control Unit: contains the microcode that tells the ALU how to function.
 Decode Unit: translates instruction into control signals and microcode directions then queues
them until requested by the Control Unit.
 Prefetch Unit: queues instruction to assure that the microprocessor is in continuous operation.
 Memory Management Unit: converts internal logic addresses into external memory addresses.
  Bus Management Unit: manages the flow of information between the microprocessor and data
storage locations (main disk, CD-ROM, etc.) and peripherals ( printer, monitor, etc.)

Many of the refinements in modern microprocessors are designed to improve processor utilization and
eliminate wasted clock cycles. The addition of cache memory—high-speed memory used for temporary
storage of instructions and data; multiple "pipelines" so that more than one sequence of instructions can
be performed at one time; Branch-prediction units which attempt to predict which branch of a program will
be executed next so that the cache memory and extra piplines can be used efficiently.

Microprocessor Specifications
There are several attributes of a microprocessor which determine its power and capabilities:

External Data Bus

The earliest microprocessors could handle data only in bytes (8 bits). As the width of the data bus
increases, the width of the data bus determines how much information can be moved in or out of the
processor in one operation. It also determines the number and length of instructions which can be used.

Address bus

The width of the address bus determines how much memory can be addressed. The Intel 8086 had a 20
bit address bus. Since a 20 bit binary number can represent 2 different numbers, the 8086 could address
1MB of memory. The 386 and 486 could address 4GB of memory using a 32-bit address bus, and the
Pentium class processors have a 36-bit address bus capable of connecting 64GB of memory.

Internal data bus

The width of the internal data bus and the storage registers may differ from the external data bus. The
386SX processor, for example had the same internal 32-bit registers as other 386s, but only a 16-bit
external bus. The Pentium class processors, have an external 64-bit data bus, but the internal registers
are only 32-bit. For this reason the Pentium processors are referred to as 32-bit. Workstation processors
like the SPARC and Alpha are 64-bit, as is the next generation of Intel chips, the Itanium.

Cache Memory

As processor speeds increased, the speed of main memory (RAM) could not keep up. To minimize size
and cost, RAM memory uses Dynamic RAM (DRAM). Static RAM (SRAM) is much faster, but also more
expensive, so it is used in small quantities as a temporary storage location for data on the microprocessor
or closely connected to it. This high-speed memory is known as cache memory. It is operated by a cache
controller which attempts to identify which data or instructions will be needed next and load them into the
cache so that the processor will not have to stand idle while waiting for data to be retrieved from RAM.
Today's microprocessors have cache memory in two levels, referred to as Level 1 (L1)and Level 2 (L2).
The L2 cache was originally mounted on separate chips outside the CPU, and operated at a lower speed
than the processor, but improvements in manufacturing technology have permitted the L2 cache to be
moved onto the processor chip where it operates at the same speed as the processor. In processors like
the Pentium III, an additional external bus operating at processor speed connects the L2 cache; this is
known as the backside bus in contrast to the frontside bus which connects to main memory.
Clock Speed

An oscillator mounted on the motherboard generates a series of electrical pulses which the computer
uses to synchronize the operations of its many components. Each complete change in the signal, from
positive to negative and back again is known as a cycle, and the number of cycles per second, or
frequency, is measured in Hertz.

1 000 Hz = 1 kilohertz = 1KHz

1 000 000 Hz = 1 Megahertz = 1 MHz

1 000 000 000 Hz = 1 Gigahertz = 1 GHz.

The speed of the processor is often a multiple of the external bus speed: for example a 500 MHz chip
installed on a 100MHz mainboard will operate at 5x the bus speed.

MIPS

The clock speed does not relate directly to the speed at which the CPU processes instructions. Early
microprocessors required as many as 10 clock cycles to complete a single instruction. Modern
microprocessors with what is called 'superscalar" architecture have dual or multiple 'pipelines' so that
more than one instruction can be executed at once. Therefore, a more accurate measure of processor
speed is MIPS (Millions of Instructions per Second), although the number of actual instructions processed
rarely reaches the theoretical maximum.

Power consumption

Power consumption is an often overlooked measure of microprocessor performance. Much of the power
consumed is given off as heat, which must be dissipated, or it will cause malfunctions. Low power
consumption is also a critical factor in extending the life of batteries in notebook computers.

The formula for power consumption is Volts x Amps = Watts. However, a decrease in operating voltage
also produces a drop in amperage (Ohm's Law). Older chips functioned at 5 volts, while Pentium class
chips operate in the range of 2 volts. This results in a power saving of 84% without any other
improvements in the circuitry.
Microprocessor
The central processing unit (CPU) is the "brains" of a computer. It is the part of the computer which
interprets and carries out instructions from the computer programs.

Modern desktop computers use microprocessors: complex integrated circuits containing millions of
transistors and other electronic components. The microprocessor is mounted in a socket or slot on the
mainboard (motherboard) so that it can be connected to other components.

Topics:

 Microprocessor Organization
 Microprocessor Specifications
 Microprocessor Manufacturing

Microprocessor Organization

Although microprocessors are becoming increasingly complex, at root its operation can be summed up as
the repeated sequence of simple tasks: Fetch an instruction; Decode the instruction; Execute the
instruction.

Each microprocessor recognizes a unique set of binary instructions which have been predefined and
stored permanently in the chip. When the CPU receives an instruction it passes it to a unit known as the
Decode unit which contains a sequence of operations which must be performed to complete the
operation. The Decode unit passes the sequence of instructions to the Control Unit which holds tiny
programs known as microcode for each operation the microprocessor had been designed to carry out.
The actual work of the microprocessor is carried out in the Arithmetic Logic Unit. Most of these operations
are in fact performed by addition. To perform subtraction, the CPU first finds the complement of the
number to be subtracted and then adds the two numbers. Multiplication and division can be performed by
carrying out multiple addition or subtraction operations. To compare two numbers, the CPU will subtract
them and then check to see if there is a remainder, and so on.

In order to carry out its operations, the processor has storage locations, called registers, for the numbers
and instructions it is operating on. For example, to add two numbers, the first number mign be loaded into
Register A, the second into Register B and the result stored in Register C. To speed up the operations of
the processor, the Prefetch unit looks ahead in the program to find the next instructions and preloads
them into registers, to cut down on time wasted waiting for the next instruction.

The microprocessor connects to the external components of the computer via "buses": sets of parallel
conductors used to move data in the form of electrical pulses. There are three types of buses: the data
bus carries the binary-coded information and instructions; the address bus carries binary-coded numbers
which identify storage locations in main memory, much like the postal code on a letter; the control bus
carries timing signals, read-write signals, interrupt requests and similar signals between the
microprocessor and external devices.

To manage the flow of data into and out of the CPU, two other units are required: the Memory
Management Unit, and the Bus Management Unit. To summarize, the essential sections of a
microprocessor are:

 Arithmetic Logic Unit: executes all logic and arithmetic operations as specified by the
instruction set
 Control Unit: contains the microcode that tells the ALU how to function.
 Decode Unit: translates instruction into control signals and microcode directions then queues
them until requested by the Control Unit.
 Prefetch Unit: queues instruction to assure that the microprocessor is in continuous operation.
 Memory Management Unit: converts internal logic addresses into external memory addresses.
  Bus Management Unit: manages the flow of information between the microprocessor and data
storage locations (main disk, CD-ROM, etc.) and peripherals ( printer, monitor, etc.)

Many of the refinements in modern microprocessors are designed to improve processor utilization and
eliminate wasted clock cycles. The addition of cache memory—high-speed memory used for temporary
storage of instructions and data; multiple "pipelines" so that more than one sequence of instructions can
be performed at one time; Branch-prediction units which attempt to predict which branch of a program will
be executed next so that the cache memory and extra piplines can be used efficiently.

Microprocessor Specifications

There are several attributes of a microprocessor which determine its power and capabilities:

 Width of external data bus in bits

 Width of address bus in bits
 Width of internal data bus in bits
 Cache Memory
 Clock Speed in Megahertz (MHz)
 MIPS (Million Instructions per Second)
 Power Consumption (Watts)

External Data Bus

The earliest microprocessors could handle data only in bytes (8 bits). As the width of the data bus
increases, the width of the data bus determines how much information can be moved in or out of the
processor in one operation. It also determines the number and length of instructions which can be used.

Address bus

The width of the address bus determines how much memory can be addressed. The Intel 8086 had a 20
bit address bus. Since a 20 bit binary number can represent 2 different numbers, the 8086 could address
1MB of memory. The 386 and 486 could address 4GB of memory using a 32-bit address bus, and the
Pentium class processors have a 36-bit address bus capable of connecting 64GB of memory.

Internal data bus

The width of the internal data bus and the storage registers may differ from the external data bus. The
386SX processor, for example had the same internal 32-bit registers as other 386s, but only a 16-bit
external bus. The Pentium class processors, have an external 64-bit data bus, but the internal registers
are only 32-bit. For this reason the Pentium processors are referred to as 32-bit. Workstation processors
like the SPARC and Alpha are 64-bit, as is the next generation of Intel chips, the Itanium.

Cache Memory

As processor speeds increased, the speed of main memory (RAM) could not keep up. To minimize size
and cost, RAM memory uses Dynamic RAM (DRAM). Static RAM (SRAM) is much faster, but also more
expensive, so it is used in small quantities as a temporary storage location for data on the microprocessor
or closely connected to it. This high-speed memory is known as cache memory. It is operated by a cache
controller which attempts to identify which data or instructions will be needed next and load them into the
cache so that the processor will not have to stand idle while waiting for data to be retrieved from RAM.
Today's microprocessors have cache memory in two levels, referred to as Level 1 (L1)and Level 2 (L2).
The L2 cache was originally mounted on separate chips outside the CPU, and operated at a lower speed
than the processor, but improvements in manufacturing technology have permitted the L2 cache to be
moved onto the processor chip where it operates at the same speed as the processor. In processors like
the Pentium III, an additional external bus operating at processor speed connects the L2 cache; this is
known as the backside bus in contrast to the frontside bus which connects to main memory.

Clock Speed

An oscillator mounted on the motherboard generates a series of electrical pulses which the computer
uses to synchronize the operations of its many components. Each complete change in the signal, from
positive to negative and back again is known as a cycle, and the number of cycles per second, or
frequency, is measured in Hertz.

1 000 Hz = 1 kilohertz = 1KHz

1 000 000 Hz = 1 Megahertz = 1 MHz

1 000 000 000 Hz = 1 Gigahertz = 1 GHz.

The speed of the processor is often a multiple of the external bus speed: for example a 500 MHz chip
installed on a 100MHz mainboard will operate at 5x the bus speed.

MIPS

The clock speed does not relate directly to the speed at which the CPU processes instructions. Early
microprocessors required as many as 10 clock cycles to complete a single instruction. Modern
microprocessors with what is called 'superscalar" architecture have dual or multiple 'pipelines' so that
more than one instruction can be executed at once. Therefore, a more accurate measure of processor
speed is MIPS (Millions of Instructions per Second), although the number of actual instructions processed
rarely reaches the theoretical maximum.

Power consumption

Power consumption is an often overlooked measure of microprocessor performance. Much of the power
consumed is given off as heat, which must be dissipated, or it will cause malfunctions. Low power
consumption is also a critical factor in extending the life of batteries in notebook computers.

The formula for power consumption is Volts x Amps = Watts. However, a decrease in operating voltage
also produces a drop in amperage (Ohm's Law). Older chips functioned at 5 volts, while Pentium class
chips operate in the range of 2 volts. This results in a power saving of 84% without any other
improvements in the circuitry.
Microprocessor Manufacturing
