Embedded Systems: Campus Training On

12/07/21 09:06 PM

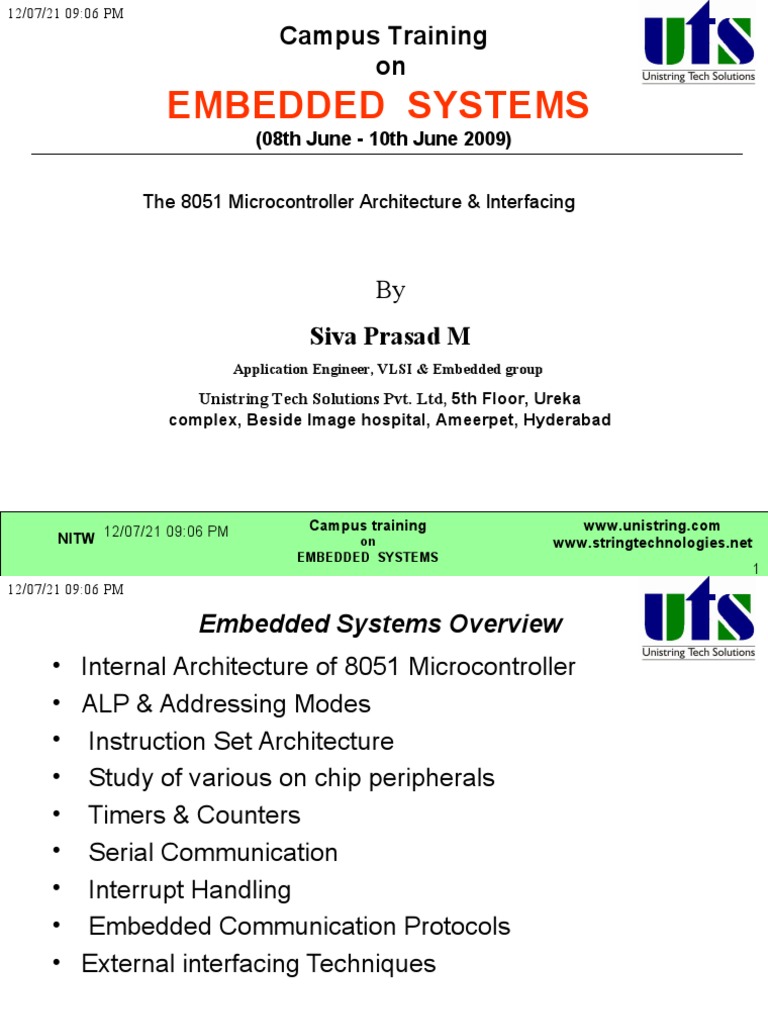

Campus Training
on
EMBEDDED SYSTEMS
(08th June - 10th June 2009)
The 8051 Microcontroller Architecture & Interfacing
By
Siva Prasad M
Application Engineer, VLSI & Embedded group
Unistring Tech Solutions Pvt. Ltd, 5th Floor, Ureka

complex, Beside Image hospital, Ameerpet, Hyderabad
Campus training www.unistring.com

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 1
www.stringtechnologies.net
EMBEDDED SYSTEMS
1
12/07/21 09:06 PM
Embedded Systems Overview

• Internal Architecture of 8051 Microcontroller
• ALP & Addressing Modes
• Instruction Set Architecture
• Study of various on chip peripherals
• Timers & Counters
• Serial Communication
• Interrupt Handling
• Embedded Communication Protocols
• External interfacing Techniques
String Technologies, Hyd

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 2
EMBEDDED SYSTEMS
2
12/07/21 09:06 PM
Microcontroller
• Microcontroller is a device which integrates number of
components of a microprocessor system onto a single chip. It
typically includes:-
 CPU (Central Processing unit)
 RAM & ROM
 I/O inputs & outputs – Serial & Parallel
 Timers
 Interrupt Controller
By including the features that are specific to the task
(Control) , Cost is relatively low.Microcontroller are a “one chip
solutions” which drastically reduces parts count and design
costs.

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 3
EMBEDDED SYSTEMS
3
12/07/21 09:06 PM
Microcontroller

12/07/21
NITW 09:06 PM String Technologies,
on Hyd 4
EMBEDDED SYSTEMS
4
12/07/21 09:06 PM
Microcontroller

12/07/21
on Hyd 5
EMBEDDED SYSTEMS
5
12/07/21 09:06 PM
I/O Interfaces
• In an embedded system I/O interfaces are responsible for controlling or
monitoring the functionality. Following are the typical interfaces found in an
embedded system
• Digital Interface
– Digital input and output lines
• Analog interface
– Analog input and output channels
• Serial interface
– RS-232, RS-485, I2C,CAN,SPI
• LAN Interface
• Display Interface
– LCD,LED String Technologies, Hyd

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 6
EMBEDDED SYSTEMS
6
12/07/21 09:06 PM
Microcontroller interfaces

12/07/21
NITW 09:06 PM on 7
12/07/21 09:06 PM EMBEDDED SYSTEMS
7
12/07/21 09:06 PM
Microcontroller interfaces

12/07/21
NITW 09:06 PM on 8
12/07/21 09:06 PM EMBEDDED SYSTEMS
8
12/07/21 09:06 PM
Major 8 bit Controller Family
• Motorola 6811
• Intel 8051
• Microchip 16Fxx
• Zilog Z80

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 9
EMBEDDED SYSTEMS
9
12/07/21 09:06 PM
8051 Basic Component
• 4K bytes internal ROM
• 128 bytes internal RAM
• Four 8-bit I/O ports (P0 - P3).
• Two 16-bit timers/counters
• One serial interface
CPU RAM ROM

A single chip
I/O Serial
Port
Timer COM Microcontroller
Port

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 10
EMBEDDED SYSTEMS
10
12/07/21 09:06 PM
Companies Producing 8051
• Intel
• Atmel
• Philips
• Siemens
• Dallas
• Maxim
• Sharp and many more…

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 11
EMBEDDED SYSTEMS
11
12/07/21 09:06 PM
8051 Architecture

12/07/21
on Hyd 12
EMBEDDED SYSTEMS
12
12/07/21 09:06 PM
A typical 8051 contains:
 CPU with Boolean processor;
 5 interrupts: 2 are external, 2 priority levels;
 2 16-bit timer/counters;
 programmable full-duplex serial port (baud rate
provided by one of the timers);

 32 I/O lines (four 8-bit ports);
 RAM and ROM/EPROM in some models.


NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 13
EMBEDDED SYSTEMS
13
12/07/21 09:06 PM
Block Diagram
External interrupts
4K ROM
Interrupt program 128 bytes Timer0 Counter
Control code
RAM Timer1 Inputs
CPU
Bus Serial
4 I/O Ports Port
OSC Control
String Technologies, Hyd TXD RXD

P0 P2 P1 P3
Address/Data

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 14
EMBEDDED SYSTEMS
14
12/07/21 09:06 PM
Features
• It provides many functions (CPU, RAM, ROM, I/O, interrupt logic, timer,
etc.) in a single package
• 8-bit data bus - It can access 8 bits of data in one operation (hence it is an 8-
bit microprocessor)
• 16-bit address bus - It can access 216 memory locations - 64 kB each of
RAM and ROM
• On-chip RAM - 128 bytes ("Data Memory")
• On-chip ROM - 4 kB ("Program Memory")
• Four byte bi-directional input/output port
• UART (serial port)
• Two 16-bit timers
• Two-level interrupt priority
• Power saving mode

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 15
EMBEDDED SYSTEMS
15
8051 Architecture
12/07/21 09:06 PM

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 16
EMBEDDED SYSTEMS
16
12/07/21 09:06 PM
P1.0 1 40 Vcc
P1.1 2 39 P0.0(AD0
8051 P1.2 3 38 ) 0.1(AD1)
P
Foot Print P1.3

P1.4
4
5
37
36
P0.2(AD2
) 0.3(AD3)
P
P1.5 6 35 P0.4(AD4)
P1.6 7 34 P0.5(AD5)
P1.7 8 33 P0.6(AD6)
RST 9 8051 32 P0.7(AD7)
(RXD)P3.0 10 31 EA/VPP
(TXD)P3.1 11 (8031) 30 ALE/PROG
(INT0)P3.2 12 (8751) 29 PSEN
(INT1)P3.3 13 28 P2.7(A15)
(T0)P3.4 14 (8951) 27 P2.6(A14
(T1)P3.5 15 26 )P2.5(A13
(WR)P3.6 16 25 )P2.4(A12
(RD)P3.7 17 24 )P2.3(A11
XTAL2 18 23 )
P2.2(A10)
XTAL1 19 22 P2.1(A9)
GND 20 21 P2.0(A8)

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 17
EMBEDDED SYSTEMS
17
12/07/21 09:06 PM
Important Pins (IO Ports)
• One of the most useful features = four I/O ports (P0 -

P3)
• Port 0 ： P0 （ P0.0 ～ P0.7 ）
– 8-bit R/W - General Purpose I/O
– low byte address and data bus for external memory
• Port 1 ： P1 （ P1.0 ～ P1.7 ）
– Only 8-bit R/W - General Purpose I/O
• Port 2 ： P2 （ P2.0 ～ P2.7 ）
– 8-bit R/W - General Purpose I/O
– high byte address for external memory
• Port 3 ： P3 （ P3.0 ～ P3.7 ）
– General Purpose I/O
– Timers(T0,T1) – ext. int (INT0, INT1) – Serial (TXD, RXD)- RD,WR
• Each port can be used
as input or output (bi-direction)

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 18
EMBEDDED SYSTEMS
18
12/07/21 09:06 PM
Port 3 Alternate Functions

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 19
EMBEDDED SYSTEMS
19
12/07/21 09:06 PM
Hardware Structure of I/O Pin
Read latch Vcc

B2
Internal
Pull-Up
Internal CPU D Q P1.X
bus P1.X pin
Write to latch Clk Q M1
B1
Read pin

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 20
EMBEDDED SYSTEMS
20
12/07/21 09:06 PM
Pins of 8051
• Vcc （ pin 40) :

– Vcc provides supply voltage to the chip.
– The voltage source is +5V.
• GND （ pin 20 ） - ground
• XTAL1 and XTAL2 （ pins 19,18 ）

– These 2 pins provide external clock.
– Way 1 ： using a quartz crystal oscillator.
– Way 2 ： using a TTL oscillator.

NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 21
EMBEDDED SYSTEMS
21
12/07/21 09:06 PM
Pins of 8051
• RST （ pin 9 ）： reset

– It is an input pin and is active high (normally low).
• The high pulse must be high at least for 2 machine cycles.
– It is a power-on reset.
• High logical state on this input halts the MCU and
clears all the registers.
• Bringing this pin back to logical state zero starts the
program a new as if the power had just been turned on.
In another words, positive voltage impulse on this pin
resets the MCU.
– Way 1 ： Power-on reset circuit
– Way 2 ： Power-on reset with debounce


NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 22
EMBEDDED SYSTEMS
22
12/07/21 09:06 PM
XTAL Connection to 8051

Using a quartz crystal oscillator
We can observe the frequency on the XTAL2 pin.
C2
XTAL2
30pF
C1
XTAL1
30pF
GND

12/07/21
on Hyd 23
EMBEDDED SYSTEMS
23
12/07/21 09:06 PM
XTAL Connection to
External Clock Source
NC XTAL2
Using a TTL oscillator

EXTERNAL
XTAL2 is unconnected. OSCILLATOR
SIGNAL XTAL1
GND

12/07/21
on Hyd 24
EMBEDDED SYSTEMS
24
12/07/21 09:06 PM
(Address - 0E0h)
• 8 - Bit Register
• Used for operations such as
• Addition
• Subtraction
• Multiplication
• Division &
• Bit Manipulations
• Used for Data Transfer Between 8051 & External memory.

• Used to store Results obtained from Arithmetic as well as logical Operations
and This is Bit Addressable Register

12/07/21
on Hyd 25
EMBEDDED SYSTEMS
25
12/07/21 09:06 PM
(Address - 0F0h)
• Used for direct Multiplication & Division operations with Accumulator.

• Can be used as general purpose storage location with its direct address 0F0h.
• Bit Addressable Register.

12/07/21
on Hyd 26
EMBEDDED SYSTEMS
26
12/07/21 09:06 PM
(Address - 0D0h)
• Consists of 5 FLAGS
• 4 MATH FLAGS
• Carry
•Auxiliary Carry
• Parity
• Overflow
• 1 USER DEFINED FLAG

12/07/21
on Hyd 27
EMBEDDED SYSTEMS
27
12/07/21 09:06 PM
Bit Flag Description
7 CY Carry flag; used in arithmetic, jump,

rotate and Boolean instructions.
6 AC Auxiliary carry; used for BCD
arithmetic
5 F0 User defined flag 0
4 RS1 Register bank select bit-1
3 RS0 Register bank select bit-0

12/07/21
on Hyd 28
EMBEDDED SYSTEMS
28
12/07/21 09:06 PM
RS1 RS0 Bank Select

0 0 Bank - 0
0 1 Bank - 1
1 0 Bank - 2
1 1 Bank - 3
Bit Flag Description
2 OV Overflow flag; used in arithmetic

instructions
1 - Reserved for future use
0 P Parity flag; shows parity of register A;

‘1’ => Odd parity; ‘0’ => Even Parity

12/07/21
on Hyd 29
EMBEDDED SYSTEMS
29
12/07/21 09:06 PM
(Address - 81h)
• 8 - Bit Register.
• Stack Pointer is Initialized to 07h at RESET condition.
• Instructions such as PUSH and POP modify SP.
• UP - GROWING stack.
• Can be reinitialized to any desired location by the user.

12/07/21
on Hyd 30
EMBEDDED SYSTEMS
30
12/07/21 09:06 PM
(Direct Address - NIL)
• Used to hold the Address of external Data Memory.
• Can be used as two individual 8 - bit registers such as
• Data Pointer High (DPL) - Address 82h
• Data Pointer Low (DPH) - Address 83h

12/07/21
on Hyd 31
EMBEDDED SYSTEMS
31
12/07/21 09:06 PM
(Direct Address - NIL)
• Used to hold the Address of the next instruction to be executed
• Not directly accessible to the programmer.
• No internal address.

12/07/21
on Hyd 32
EMBEDDED SYSTEMS
32
12/07/21 09:06 PM
• Group of registers used for specific purposes in 8051 microcontroller

mainly to
• Configure
• Control, &
• operate.
• Uses address locations from 80h to 0ffh.

12/07/21
on Hyd 33
EMBEDDED SYSTEMS
33
12/07/21 09:06 PM
• Accumulator - A*
• Register B - B*
• Program Counter - PC
• Data Pointer - DPTR
• Stack Pointer - SP
• Program Status Word - PSW
• Ports - P0* , P1* , P2* , P3* .
• Timer Load Registers - TL0/1 & TH0/1
• Timer Config. & Ctrl Reg. - TCON*, TMOD

12/07/21
on Hyd 34
EMBEDDED SYSTEMS
34
12/07/21 09:06 PM
• Serial Comm. Control Register - SCON*

• Serial Comm. Buffer Register - SBUF
• Program Control Register - PCON
• Interrupt Enable Register - IE*
• Interrupt Priority Register - IP*
NOTE:
Registers marked with * are both Bit as well as Byte Addressable

12/07/21
on Hyd 35
EMBEDDED SYSTEMS
35
12/07/21 09:06 PM
• External bus of 8051 is grouped into 4 ports

namely:
• Port - 0
• Port - 1
• Port - 2
• Port - 3
• These ports supports all the three types of
buses namely:
• Address Bus,
• Data Bus, &
• Control Bus.

12/07/21
on Hyd 36
EMBEDDED SYSTEMS
36
12/07/21 09:06 PM
• These ports supports all the three types of

buses namely:
• Address Bus,
• Data Bus, &
• Control Bus.

12/07/21
on Hyd 37
EMBEDDED SYSTEMS
37
12/07/21 09:06 PM
• All the ports are Bi - directional.

• All the ports are Bit as well as Byte addressable.
• The addresses of the ports are as shown below:
PORTS ADDRESS
PORT 0 080h
PORT 1 090h
PORT 2 0A0h
PORT 3 0B0h

12/07/21
on Hyd 38
EMBEDDED SYSTEMS
38
12/07/21 09:06 PM
8051 BLOCK DIAGRAM

I/O
Port 0
A0-A7
ALU PSW SFR
D0-D7
Port 1
I/O
A B
Port 2
I/O
A8-A15
DPTR
PC
DPH ROM
I/O
Port 3
DPL INT
CNTR
SERIAL
RD/WR
Tuesday,
12/07/21
NITW 09:06
December
PM 7, on 39
2021 EMBEDDED SYSTEMS
12/07/21 09:06 PM
~EA
ALE System Timing BYTE / BIT SFR
ADDRESSIBLE
PSEN IE
System Interrupt
XTAL1
Timers RB3 IP
XTAL2
PCON
RESET RB2
Data Buffers SBUF
VCC Memory Controls RB1
SCON
GND
RB0 TCON
TMOD
TL0
TH0
TL1
TH1
INTERNAL RAM STRUCTURE

Tuesday,
12/07/21
NITW 09:06
December
PM 7, on 40
12/07/21 09:06 PM
A* B* IP* IE* TMOD TCON*

E0 F0 B8 A8 89 88
MATH REGISTERS INTERRUPT REGISTERS TIMER CONTROL REG
THO TLO TH1 TL1

8C 8A 8D 8B
TIMER / COUNTER REGISTERS
SCON* SBUF PCON PSW*

98 99 87 D0
SERIAL DATA REGISTERS FLAGS
SP
81

Tuesday,
12/07/21
NITW 09:06
December
PM 7, on 41
12/07/21 09:06 PM
DPTR
DPH DPL PC
83 82
PORT 0* PORT 1* PORT 2* PORT 3*

LATCH LATCH LATCH LATCH
80 90 A0 B0

Tuesday,
12/07/21
NITW 09:06
December
PM 7, on 42
12/07/21 09:06 PM
TIMERS & COUNTERS

THE TIMER CONTROL (TCON)
7 6 5 4 3 2 1 0
TF1 TR1 TF0 TR0 IE1 IT1 IE0 IT0
7 TF1 Timer 1 Overflow flag. Set when timer rolls from all 1s to 0. Cleared when processor
vectors to execute interrupt service routine located at program address 001Bh.
8 TR1 Timer 1 run control bit. Set to 1 by program to enable timer to count; cleared to 0 by program to
halt timer. Does not reset timer.
9 TF0 Timer 0 Over flow flag. Set when timer rolls from all 1s to 0. Cleared when processor
vectors to execute interrupt service routine located at program address 000Bh.
10 TR0 Timer 0 run control bit. Set to 1 by program to enable timer to count; cleared to 0 by program to
halt timer. Does not reset timer.
11 IE1 External interrupt 1 Edge flag. Set to 1 when a high-to-low edge signal is received on port 3 pin
3.3 (INT 1). Cleared when processor vectors to interrupt service routine located at program
address 0013h. Not related to timer operations.
12 IT1 External interrupt 1 signal type control bit. Set to 1 by program to enable external interrupt 1 to
be triggered by a falling edge signal. Set to 0 by program to enable a low-level signal or external
interrupt 1 to generate an interrupt.
13 IE0 External interrupt 0 Edge flag. Set to 1 when a high-to-low edge signal is received on port 3 pin
3.2 (INT 0). Cleared when processor vectors to interrupt service routine located at program
address 0003h. Not related to timer operations.
0 IT0 External interrupt 0 signal type control bit. Set to 1 by program to enable external interrupt 0 to
be triggered by a falling edge Campus
signal. Set training
to 0 by program to enable a low-levelwww.unistring.com
signal or external
12/07/21
Tuesday,
NITW 09:06
December
PM 7,0 to generate an interrupt. on
interrupt 43
12/07/21 09:06 PM
THE TIMER MODE CONTROL (TMOD)

7 6 5 4 3 2 1 0
Gate C/T M1 M0 Gate C/T M1 M0

Timer 1 Timer 0
7/3 Gate OR gate enable bit which controls Run/ Stop of timer
6/2 C/T Set to 1 by program to make timer act as counter
5/1 M1 Mode select bit 1
4/0 M0 Mode select bit 0
M1 M0 Mode
0 0 0
0 1 1
1 0 2
1 1 3

Tuesday,
12/07/21
NITW 09:06
December
PM 7, on 44
12/07/21 09:06 PM
• 8051 supports two types of memories. They are:

• Internal Memory
• External Memory

12/07/21
on Hyd 45
EMBEDDED SYSTEMS
45
12/07/21 09:06 PM
INTERNAL MEMORY ORGANIZATION

• On - Chip memory in built to the
Microcontroller.
• It has separate
• on - chip DATA Memory - 128 bytes RAM
• on - chip PROGRAM Memory - 4Kbytes of ROM

12/07/21
on Hyd 46
EMBEDDED SYSTEMS
46
12/07/21 09:06 PM
INTERNAL RANDOM ACCESS MEMORY (RAM)
• 128 bytes of internal memory is grouped as:

• Register Bank
• Bit Addressable Area
• Scratch Pad Area

12/07/21
on Hyd 47
EMBEDDED SYSTEMS
47
12/07/21 09:06 PM
Internal Data Memory
Accessible by Accessible by direct

indirect addressing Addressing(SFR Area)
(80-FF)=128 bytes (80-FF)=128 bytes
Accessible by direct
& indirect addressing
(00-7F)=128 bytes

12/07/21
on Hyd 48
EMBEDDED SYSTEMS
48
12/07/21 09:06 PM
Lower 128 bytes of internal RAM
Scratch Pad Area

(30-7F)
SP=07
Bit & Byte Addressable RS1=0
Area (20-2F) RS0=0
Bank3(18-1F)
Bank2 (10-17)
Bank1(08-0F)
Bank0 (00-07)

12/07/21
on Hyd 49
EMBEDDED SYSTEMS
49
12/07/21 09:06 PM
REGISTER BANK
REGISTER BANK 0 REGISTER BANK 1 REGISTER BANK 2 REGISTER BANK 3

RB0 07h RB0 0Fh RB0 17h RB0 1Fh
RB0 00h RB0 08h RB0 10h RB0 18h

12/07/21
on Hyd 50
EMBEDDED SYSTEMS
50
12/07/21 09:06 PM
• To select the register banks, there are 2 bits

present in PSW:
• RS0
• RS1

12/07/21
on Hyd 51
EMBEDDED SYSTEMS
51
12/07/21 09:06 PM
BIT ADDRESSABLE AREA
• 16 eight bit locations, ranging from 20h to 2Fh

are bit addressable.
16 locations * 8 bits = 128 bits
i.e.., 128 bits can be individually addressed.

12/07/21
on Hyd 52
EMBEDDED SYSTEMS
52
12/07/21 09:06 PM
• These bits can be addressed as

20.0h to 2F.7h
or
00h to 7Fh.

12/07/21
on Hyd 53
EMBEDDED SYSTEMS
53
12/07/21 09:06 PM
SCRATCH PAD AREA
• Locations from 30h to 7Fh are available as

Scratch Pad area.
• Can store data such as partial results and such

variables.
i.e., as general purpose locations

12/07/21
on Hyd 54
EMBEDDED SYSTEMS
54
12/07/21 09:06 PM
Thus,
4 - register banks => 32 bytes
1 bit addressable area => 16 bytes
1 scratch pad area => 80 bytes
128 bytes of
INTERNAL RAM

12/07/21
on Hyd 55
EMBEDDED SYSTEMS
55
12/07/21 09:06 PM
INTERNAL READ ONLY MEMORY (ROM)
0FFFh
4 Kbytes of
Internal
ROM
0000h
12/07/21
on Hyd 56
EMBEDDED SYSTEMS
56
12/07/21 09:06 PM
EXTERNAL MEMORY ORGANIZATION
• 8051 Microcontroller supports up-to

• 64 Kbytes of Data Memory
• 64 Kbytes of Program Memory

12/07/21
on Hyd 57
EMBEDDED SYSTEMS
57
12/07/21 09:06 PM
• 8051 Microcontroller is interfaced and accessed to external memory using

16 address lines available on PORT0 and PORT 2.
• Address and Data lines are multiplexed using PORT0.
• De - multiplexing of the address and data lines are done by ALE signal

12/07/21
on Hyd 58
EMBEDDED SYSTEMS
58
12/07/21 09:06 PM
DATA MEMORY ORGANIZATION
• 8051 Microcontroller supports

• 64 Kbytes of External Data Memory
• 128bytes of Internal Data Memory

12/07/21
on Hyd 59
EMBEDDED SYSTEMS
59
12/07/21 09:06 PM
External Memory Interface
ADD-H
8051 Memory
Latch ADD-L

12/07/21
on Hyd 60
EMBEDDED SYSTEMS
60
12/07/21 09:06 PM
• External Data Memory is accessed using

16 - bit address lines.
RD bar and WR bar are used as strobe signals
• Address range : 0000h to 0FFFFh
- External Memory
00h to 7Fh
- Internal Memory
12/07/21
on Hyd 61
EMBEDDED SYSTEMS
61
12/07/21 09:06 PM
FFFFh
FFh
SFR’s
Direct
Addressing
64 Kbytes
only
80h of
External
7Fh Direct Memory
& In Direct
Addressing
only
00h
0000h

12/07/21
on Hyd 62
EMBEDDED SYSTEMS
62
12/07/21 09:06 PM
Program Memory
64K FFFFH
4K External
0FFFH ROM
EA=0
Internal
ROM
EA=1
0000H 0000H
Campus training PSEN www.unistring.com

12/07/21
on Hyd 63
EMBEDDED SYSTEMS
63
12/07/21 09:06 PM
Data Memory
64K FFFFH
128 bytes
External
7FH RAM
Internal
RAM
00H 0000H
Campus training WR RD www.unistring.com

12/07/21
on Hyd 64
EMBEDDED SYSTEMS
64
12/07/21 09:06 PM
Internal RAM allocation

7FH
General RS1 RS0 Register Bank Address

purpose RAM 0 0 0 00H-07H
0 1 1 08H-0FH
30H 2FH 1 0 2 10H-17H
Mixed Bit/Byte 1 1 3 18H-1FH

Addressable
1FH 20H
Register Bank3
18H 17H
Register Bank2
0FH 10H
Register Bank1 String Technologies, Hyd

08H 07H Stack
Pointer
Register Bank0 Campus training www.unistring.com
NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 65
00H
EMBEDDED SYSTEMS
65
12/07/21 09:06 PM
Internal RAM and SFR region
FFH FFH
Upper Accessible
Accessible SFR
128 by Indirect by Direct
addressing addressing
only Ports,
only
Timers,
Control
Registers,
80H 80H
Accumulator
7FH
,Stack
Pointer,
Accessible
Etc,.
by Direct &
Lower Indirect
128 addressing
00H
NITW 12/07/21
12/07/21 09:06 PM09:06 PM on 66
EMBEDDED SYSTEMS
66
12/07/21 09:06 PM
SFR Memory map
FF
F8
F7
F0 B
EF
E8
E7
E0 ACC
DF
D8
D7
D0 PSW
CF
C8
C7
C0
IP BF
B8
P3 B7
B0
IE AF
A8
P2 A7
A0
SCON SBUF 9F
98
P1 97
90
TCON TMOD TL0 TL1 TH0 TH1 8F
88
P0 SP DPL DPH PCON 87
80
12/07/21
on Hyd 67
EMBEDDED SYSTEMS
67
12/07/21 09:06 PM
8051 Memory Structure
External
External
(64Kb)
indirect direct
(128) (128)
EA bar=0 EA bar=1 direct

External Internal & indirect
(128)

12/07/21
on Hyd 68
EMBEDDED SYSTEMS
68
12/07/21 09:06 PM
Embedded system design methodology

with Host and Target development setup

12/07/21
NITW 09:06 PM on 69
EMBEDDED SYSTEMS
69
12/07/21 09:06 PM
Host – target approach

• A host target embedded
development setup will be
used

12/07/21
NITW 09:06 PM on 70
EMBEDDED SYSTEMS
70
12/07/21 09:06 PM
Keil uVision IDE

12/07/21
NITW 09:06 PM on 71
EMBEDDED SYSTEMS
71
12/07/21 09:06 PM
Write your feedback on your forms

12/07/21
on Hyd 72
EMBEDDED SYSTEMS
72

Embedded Systems: Campus Training On

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Embedded Systems: Campus Training On

Uploaded by

Copyright:

Available Formats

12/07/21 09:06 PM

The 8051 Microcontroller Architecture & Interfacing

Unistring Tech Solutions Pvt. Ltd, 5th Floor, Ureka

Campus training www.unistring.com

Embedded Systems Overview

String Technologies, Hyd

Campus training www.unistring.com

Campus training www.unistring.com

Campus training www.unistring.com

Campus training www.unistring.com

Campus training www.unistring.com

Campus training www.unistring.com

Campus training www.unistring.com

Major 8 bit Controller Family

String Technologies, Hyd

Campus training www.unistring.com

CPU RAM ROM

Campus training www.unistring.com

Companies Producing 8051

Campus training www.unistring.com

Campus training www.unistring.com

A typical 8051 contains:

 CPU with Boolean processor;

 5 interrupts: 2 are external, 2 priority levels;

 programmable full-duplex serial port (baud rate

provided by one of the timers);

 RAM and ROM/EPROM in some models.

Campus training www.unistring.com

String Technologies, Hyd TXD RXD

Campus training www.unistring.com

String Technologies, Hyd

Campus training www.unistring.com

String Technologies, Hyd

Campus training www.unistring.com

Foot Print P1.3

Campus training www.unistring.com

Important Pins (IO Ports)

• One of the most useful features = four I/O ports (P0 -

Campus training www.unistring.com

Port 3 Alternate Functions

String Technologies, Hyd

Campus training www.unistring.com

Hardware Structure of I/O Pin

Read latch Vcc

Write to latch Clk Q M1

Campus training www.unistring.com

• Vcc （ pin 40) :

• GND （ pin 20 ） - ground

• XTAL1 and XTAL2 （ pins 19,18 ）

Campus training www.unistring.com

• RST （ pin 9 ）： reset

– Way 1 ： Power-on reset circuit

– Way 2 ： Power-on reset with debounce

Campus training www.unistring.com

XTAL Connection to 8051

Campus training www.unistring.com

Using a TTL oscillator

Campus training www.unistring.com

• Used for Data Transfer Between 8051 & External memory.

Campus training www.unistring.com

• Used for direct Multiplication & Division operations with Accumulator.

Campus training www.unistring.com
