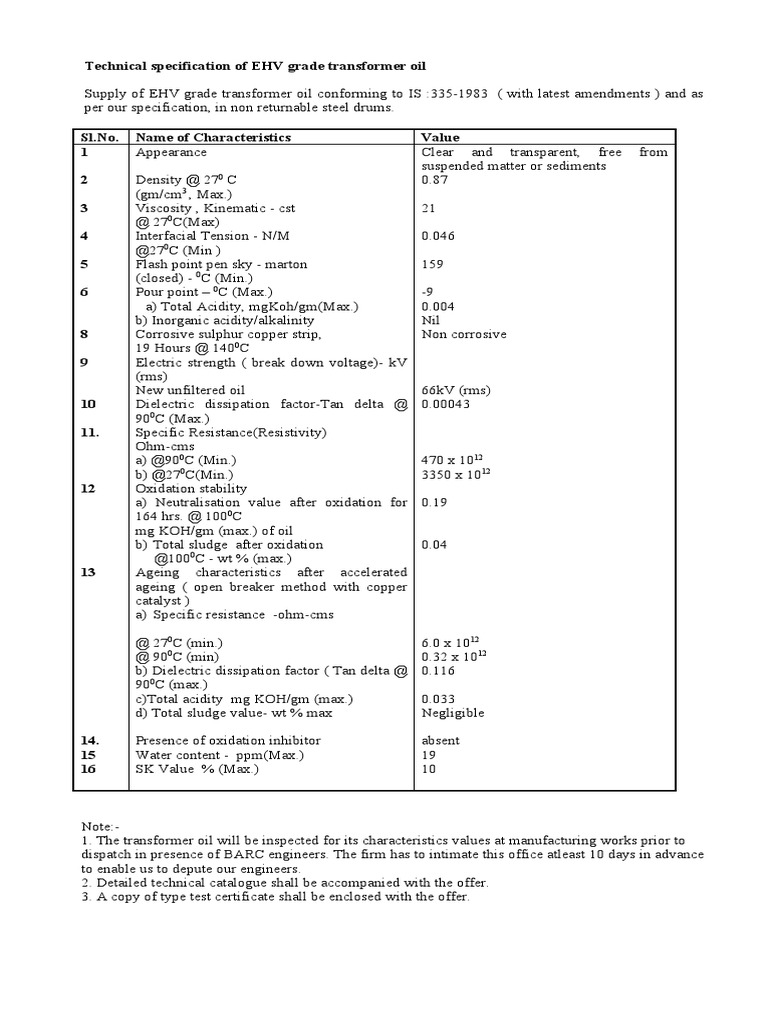

Technical specification of EHV grade transformer oil

Supply of EHV grade transformer oil conforming to IS :335-1983 ( with latest amendments ) and as
per our specification, in non returnable steel drums.

Sl.No. Name of Characteristics Value

1 Appearance Clear and transparent, free from
suspended matter or sediments
2 Density @ 270 C 0.87
(gm/cm3 , Max.)
3 Viscosity , Kinematic - cst 21
@ 270C(Max)
4 Interfacial Tension - N/M 0.046
@270C (Min )
5 Flash point pen sky - marton 159
(closed) - 0C (Min.)
6 Pour point – 0C (Max.) -9
a) Total Acidity, mgKoh/gm(Max.) 0.004
b) Inorganic acidity/alkalinity Nil
8 Corrosive sulphur copper strip, Non corrosive
19 Hours @ 1400C
9 Electric strength ( break down voltage)- kV
(rms)
New unfiltered oil 66kV (rms)
10 Dielectric dissipation factor-Tan delta @ 0.00043
900C (Max.)
11. Specific Resistance(Resistivity)
Ohm-cms
a) @900C (Min.) 470 x 1012
b) @270C(Min.) 3350 x 1012
12 Oxidation stability
a) Neutralisation value after oxidation for 0.19
164 hrs. @ 1000C
mg KOH/gm (max.) of oil
b) Total sludge after oxidation 0.04
@1000C - wt % (max.)
13 Ageing characteristics after accelerated
ageing ( open breaker method with copper
catalyst )
a) Specific resistance -ohm-cms

@ 270C (min.) 6.0 x 1012

@ 900C (min) 0.32 x 1012
b) Dielectric dissipation factor ( Tan delta @ 0.116
900C (max.)
c)Total acidity mg KOH/gm (max.) 0.033
d) Total sludge value- wt % max Negligible

14. Presence of oxidation inhibitor absent

15 Water content - ppm(Max.) 19
16 SK Value % (Max.) 10

Note:-
1. The transformer oil will be inspected for its characteristics values at manufacturing works prior to
dispatch in presence of BARC engineers. The firm has to intimate this office atleast 10 days in advance
to enable us to depute our engineers.
2. Detailed technical catalogue shall be accompanied with the offer.
3. A copy of type test certificate shall be enclosed with the offer.
