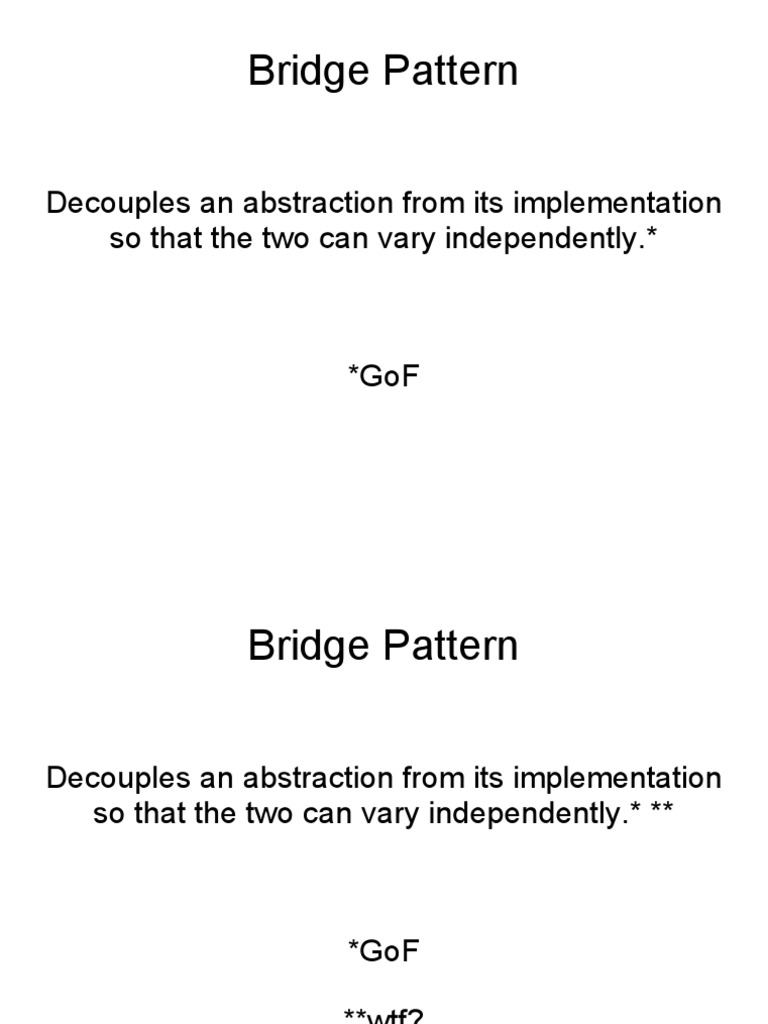

Bridge Pattern

Decouples an abstraction from its implementation

so that the two can vary independently.*

*GoF
 Bridge Pattern

Decouples an abstraction from its implementation

so that the two can vary independently.* **

*GoF

**wtf?
 Bridge Pattern
Separate a varying entity from a varying behavior
(separate an "abstraction" from its
"implementation"), so that these issues can vary
independently.

Sometimes we say it this way: separate what

something is from what it does, where both of
these things vary for different reasons.*

* Design Patterns Explained: A New Perspective on Object-

Oriented Design by Alan Shalloway and James R. Trott
 Client
UML!!!

Implementor
Abstraction
+OperationImp()
+Operation()

Concrete Implementor A Concrete Implementor B

+OperationImp() +OperationImp()

Refined Abstraction A Refined Abstraction B

+Operation() +Operation()
An Example
Circle
+draw()
 An Example
Shape
+draw()

Circle Rectangle

+draw() +draw()
 An Example
Shape
+draw()

Circle Rectangle

+draw() +draw()

Vector Rectangle Bitmap Rectangle

Vector Circle Bitmap Circle
+draw() +draw()
+draw() +draw()
 An Example
Shape
+draw()

Double Circle Circle Rectangle

+draw() +draw() +draw()

Vector DoubleCircle

+draw()

Vector Rectangle Bitmap Rectangle

Bitmap Double Circle Vector Circle Bitmap Circle
+draw() +draw()
+draw() +draw() +draw()
 Client
OMG! Bridge!

Drawing Implementation
Shape
+drawRect()
(protected ) myDrawImp +drawCircle()
+Draw()

Vector Draw Bitmap Draw

+drawRect() +drawRect()
+drawCircle() +drawCircle()

Rect Circle Double Circle

+Draw() +Draw() +Draw()
 Similar Patterns
● What patterns is it similar to?
– Strategy – but it supports varying the abstraction as
well as the implementation (behavior)
– Template – the abstraction can be handled like a
template
– It's kind of a combination of Strategy and Template
● What patterns does it frequently use?
– Adapter – often times the supported
implementations will have different interfaces
