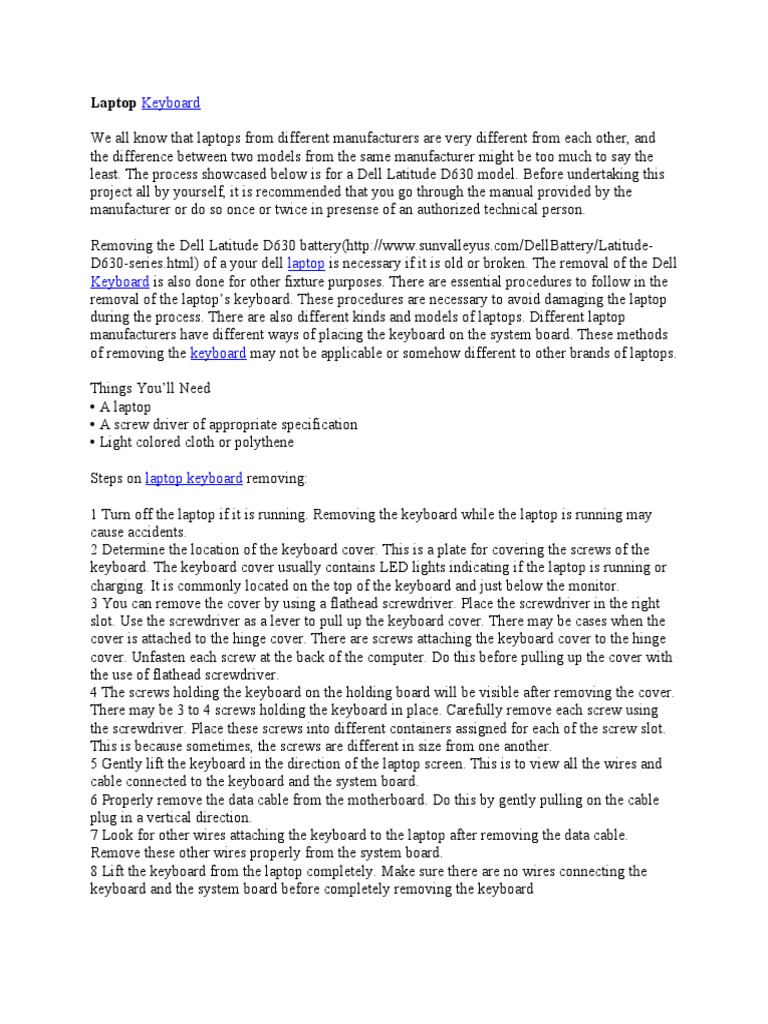

Laptop Keyboard
Laptop Keyboard
We all know that laptops from different manufacturers are very different from each other, and
the difference between two models from the same manufacturer might be too much to say the
least. The process showcased below is for a Dell Latitude D630 model. Before undertaking this
project all by yourself, it is recommended that you go through the manual provided by the
manufacturer or do so once or twice in presense of an authorized technical person.
1 Turn off the laptop if it is running. Removing the keyboard while the laptop is running may
cause accidents.
2 Determine the location of the keyboard cover. This is a plate for covering the screws of the
keyboard. The keyboard cover usually contains LED lights indicating if the laptop is running or
charging. It is commonly located on the top of the keyboard and just below the monitor.
3 You can remove the cover by using a flathead screwdriver. Place the screwdriver in the right
slot. Use the screwdriver as a lever to pull up the keyboard cover. There may be cases when the
cover is attached to the hinge cover. There are screws attaching the keyboard cover to the hinge
cover. Unfasten each screw at the back of the computer. Do this before pulling up the cover with
the use of flathead screwdriver.
4 The screws holding the keyboard on the holding board will be visible after removing the cover.
There may be 3 to 4 screws holding the keyboard in place. Carefully remove each screw using
the screwdriver. Place these screws into different containers assigned for each of the screw slot.
This is because sometimes, the screws are different in size from one another.
5 Gently lift the keyboard in the direction of the laptop screen. This is to view all the wires and
cable connected to the keyboard and the system board.
6 Properly remove the data cable from the motherboard. Do this by gently pulling on the cable
plug in a vertical direction.
7 Look for other wires attaching the keyboard to the laptop after removing the data cable.
Remove these other wires properly from the system board.
8 Lift the keyboard from the laptop completely. Make sure there are no wires connecting the
keyboard and the system board before completely removing the keyboard
Please pay attention to the following tips when removing it from your dell notebook.
• Be careful while removing the bezel else you might end up making dents on your laptop
surface.
• Use a light colored polythene or cloth to keep all the fasteners such that they are easily
accessible to you.
• Pull off the keyboard connecting cable gently.
