    Manuel S.

    Enverga University Foundation


    Lucena City, Philippines

    Granted Autonomous Status


    CHED CEB Res. 076-2009

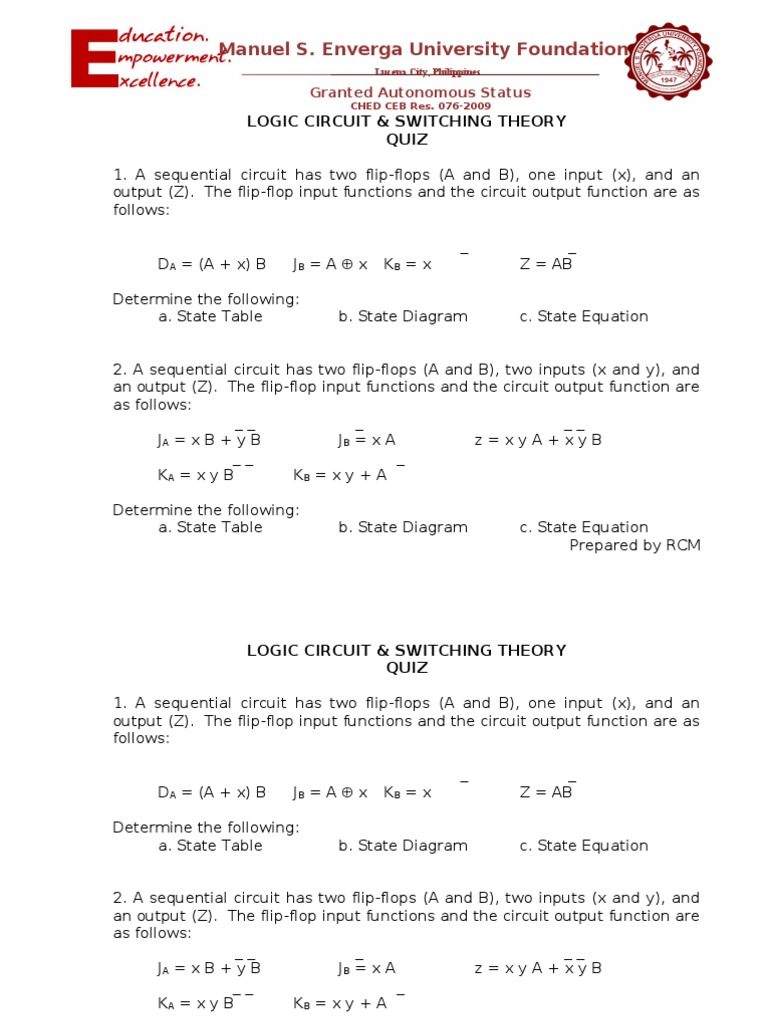

    LOGIC CIRCUIT & SWITCHING THEORY
    QUIZ

    1. A sequential circuit has two flip-flops (A and B), one input (x), and an
    output (Z). The flip-flop input functions and the circuit output function are as
    follows:

    _ _
    DA = (A + x) B JB = A ⊕ x KB = x Z = AB

    Determine the following:


    a. State Table b. State Diagram c. State Equation

    2. A sequential circuit has two flip-flops (A and B), two inputs (x and y), and
    an output (Z). The flip-flop input functions and the circuit output function are
    as follows:
    __ _ __
    JA = x B + y B JB = x A z=xyA+xyB
    __ _
    KA = x y B KB = x y + A

    Determine the following:


    a. State Table b. State Diagram c. State Equation
    Prepared by RCM

    LOGIC CIRCUIT & SWITCHING THEORY


    QUIZ

    1. A sequential circuit has two flip-flops (A and B), one input (x), and an
    output (Z). The flip-flop input functions and the circuit output function are as
    follows:

    _ _
    DA = (A + x) B JB = A ⊕ x KB = x Z = AB

    Determine the following:


    a. State Table b. State Diagram c. State Equation

    2. A sequential circuit has two flip-flops (A and B), two inputs (x and y), and
    an output (Z). The flip-flop input functions and the circuit output function are
    as follows:
    __ _ __
    JA = x B + y B JB = x A z=xyA+xyB
    __ _
    KA = x y B KB = x y + A

    Determine the following:


    a. State Table b. State Diagram c. State Equation

    COLLEGE OF ENGINEERING & TECHNICAL DEPARTMENT


    Manuel S. Enverga University Foundation
    University Site, Brgy. Ibabang Dupay, Lucena City, Philippines; Telephone No. (042) 710-3151
    Manuel S. Enverga University Foundation
    Lucena City, Philippines

    Granted Autonomous Status


    CHED CEB Res. 076-2009
    Prepared by RCM

    COLLEGE OF ENGINEERING & TECHNICAL DEPARTMENT


    Manuel S. Enverga University Foundation
    University Site, Brgy. Ibabang Dupay, Lucena City, Philippines; Telephone No. (042) 710-3151
