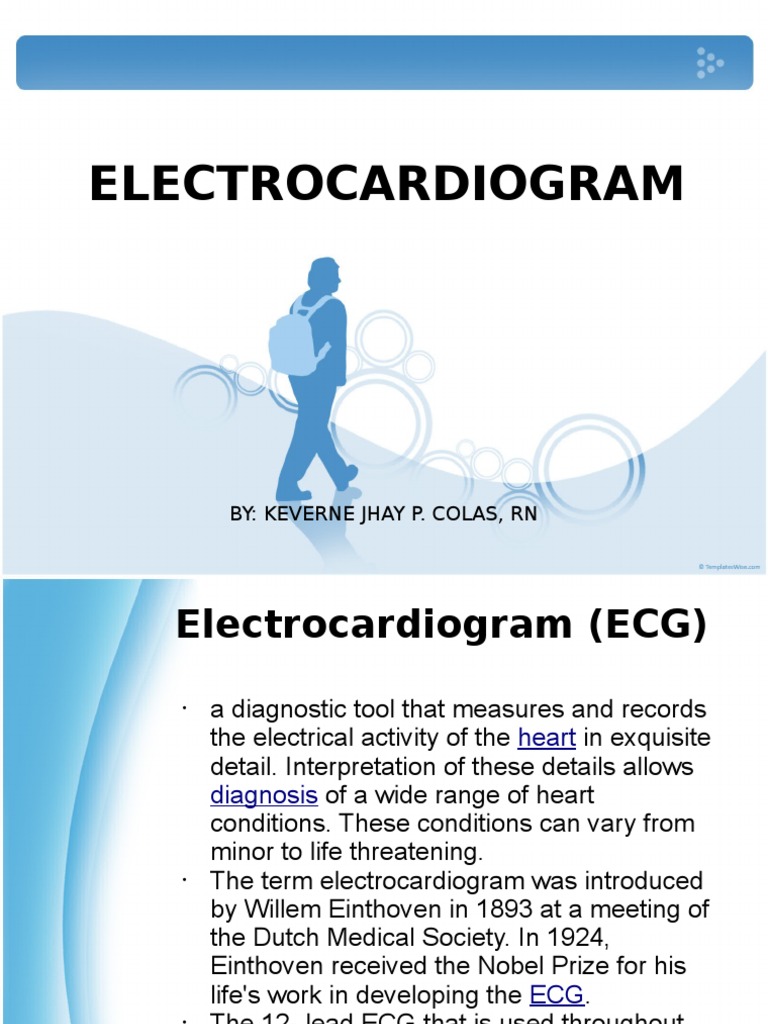

Electrocardiogram (ECG) • a diagnostic tool that measures and records the electrical activity of the heart in exquisite detail. Interpretation of these details allows diagnosis of a wide range of heart conditions. These conditions can vary from minor to life threatening. • The term electrocardiogram was introduced by Willem Einthoven in 1893 at a meeting of the Dutch Medical Society. In 1924, Einthoven received the Nobel Prize for his life's work in developing the ECG. • The 12- lead ECG that is used throughout the world was introduced in 1942. Reasons to Have an Heart problemsECG can produce a wide array of symptoms. Without the benefit of an ECG, it may be impossible to tell whether these symptoms are being caused by a heart problem or just mimicking one.
Common symptoms that frequently
require an ECG include the following: Chest pain or discomfort Shortness of breath The Heart • The heart itself is made up of 4 chambers, 2 atria and 2 ventricles. De-oxygenated blood returns to the right side of the heart via the venous circulation. It is pumped into the right ventricle and then to the lungs where carbon dioxide is released and oxygen is absorbed. The oxygenated blood then travels back to the left side of the heart into the left atria, then into the left ventricle from The Heart • Systolic blood pressure: v Is the pressure created in the arteries when the ventricles contract
• Diastolic blood pressure:
v When the ventricles starts to refill, the pressure from the arteries falls simultaneously the atriums contract creating pressure known as the diastolic pressure. The Heart Image: The passage of blood through the heart The Heart Image: The cardiac conduction system Role of the ECG The ECG machine is designed to recognise and Machine record any electrical activity within the heart. It prints out this information on ECG paper made up of small squares 1mm squared. Role of the ECG Machine Each electrical stimulus takes the form of a wave and so patterns emerge made up of a number of connected waves. A standard ECG is printed at 25mm per second or 25 small squares per second (see above). In this way it is possible to calculate the duration of individual waves. 10 small squares vertically is equal to Role of the ECG Machine Sinus Rhythm Sinus rhythm is the name given to the normal rhythm of the heart where electrical stimuli are initiated in the SA node, and are then conducted through the AV node and bundle of His, bundle branches and Purkinje fibres. Depolarisation and repolarisation of the atria and ventricles show up as 3 distinct waves on ECG. A unique labelling system is used to identify Sinus Rhythm The P Wave The first wave (p wave) represents atrial depolarisation The QRS Complex After the first wave there follows a short period where the line is flat. This is the point at which the stimulus is delayed in the bundle of His to allow the atria enough time to pump all the blood into the ventricles. As the ventricles fill, the growing pressure causes the valves between the atria and ventricles to close. At this point the electrical stimulus passes from the bundle of His into the bundle The Q Wave Q wave and represents depolarisation in the septum. The R Wave R wave represents the ventricular depolarisation The S Wave S wave represents depolarisation of the Purkinje fibres. The T Wave T wave represents ventricular repolarisation. The ST Segment There is a brief period between the end of the QRS complex and the beginning of the T wave where there is no conduction and the line is flat. This is known as the ST segment and it is a key indicator for both myocardial ischemia and necrosis if it goes up or down. V1: 4th intercostal space right sternal border V2: 4th intercostal space left sternal border V3: halfway between V2 and V4 V4: left 5th intercostal space,mid- clavicular line V5: horizontal to V4, anterior axillary line V6: horizontal to V5, mid-axillary line Points To Remember:
Ask the patient to remove all metalic objects
including watches, rings, neclaces, pocketed coins and phones etc… Let the patient relax before the procedure starts and ask them to lay still for a minute during the procedure. Explain the procedure and reassure them that no pain will be felt during the procedure. ~END~ =]
