Sectional View Worksheet

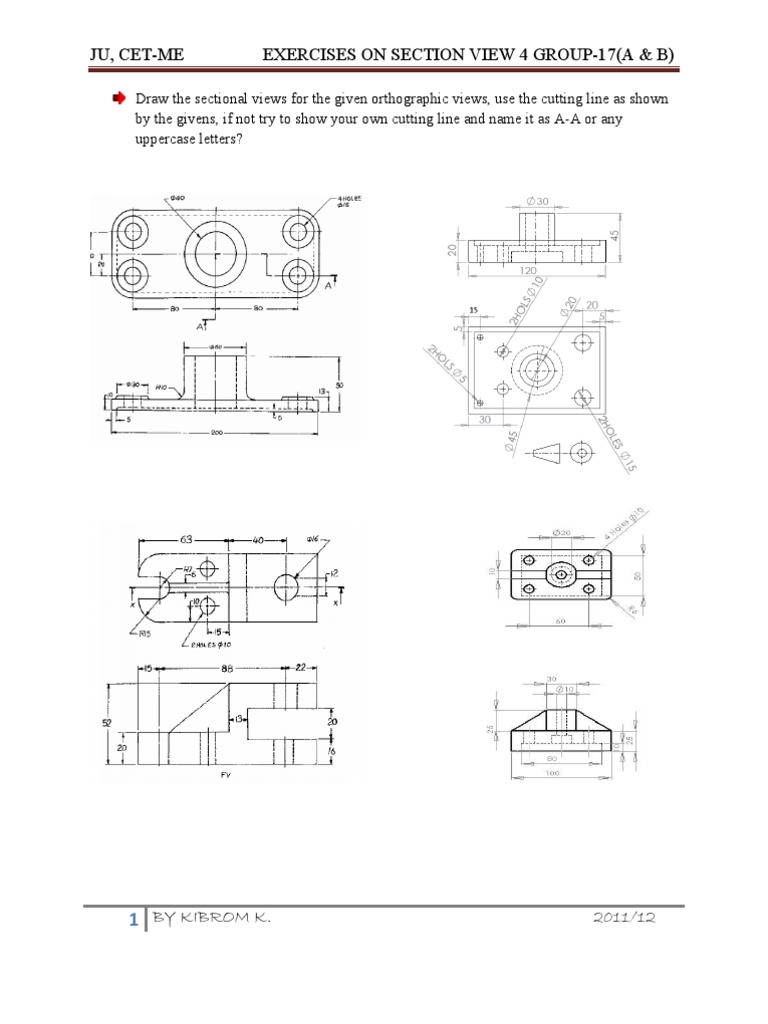

Draw the sectional views for the given orthographic views, use the cutting line as shown
by the givens, if not try to show your own cutting line and name it as A-A or any
uppercase letters?
1 BY KIBROM K. 2011/12
JU, CET-ME EXERCISES ON SECTION VIEW 4 GROUP-17(A & B)
♣ Draw the sectional view from the front? (Hint-using the pictorial drawing then find the
front view on the space provide).
2 BY KIBROM K. 2011/12
