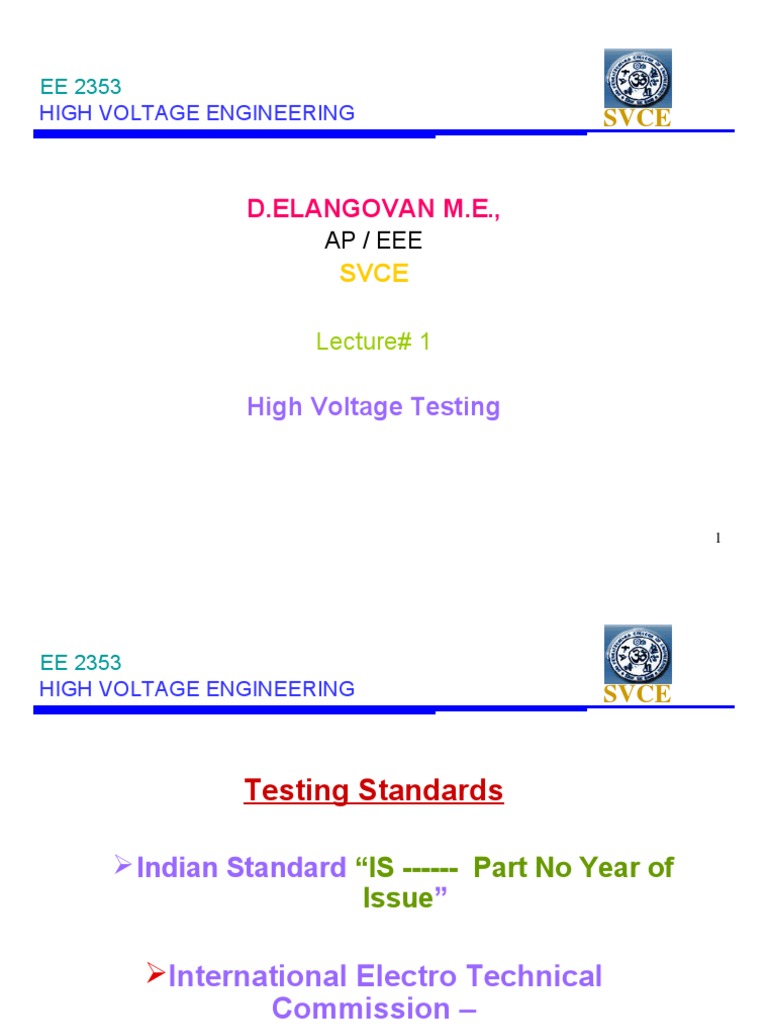

EE 2353

HIGH VOLTAGE ENGINEERING SVCE

D.ELANGOVAN M.E.,
AP / EEE
SVCE

Lecture# 1

High Voltage Testing

1
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Testing Standards

 Indian Standard “IS ------ Part No Year of

Issue”

International Electro Technical

Commission –
IEC ----- Part no Year

2
High Voltage Testing
SVCE
 HIGH VOLTAGE TESTING OF ELECTRICAL APPARATUS

 Insulators

 Bushings

 Isolators & Circuit Breakers

 Cables

 Transformers

 Surge Arrester

D.ELANGOVAN EE 1402 HIGH VOLTAGE ENGG 3

EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Testing of Insulators (IS 2544 – 1977) (IEC 383 1983)

Type test : Done on samples when New design

Changes in design

Routine Test : Reliability & quality of the individual

test objects

4
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Testing of Insulators

High voltage test

Power frequency test
Dry & wet Flashover Test
Dry & wet Withstand test
Impulse Test
Impulse Withstand voltage test
Impulse Flashover Test
pollution Testing
5
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

POWER FREQUENCY TESTS

Dry and wet flashover tests:

6
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

POWER FREQUENCY TESTS

Dry and wet flashover tests:
 A.c voltage of power frequency is applied across the
insulator and increased at a uniform rate of 2% per
second of 75%of their estimated test voltage.
If the test is conducted under normal conditions
without any rain –dry flashover test.
If the test is conducted under normal conditions of
rain –wet flashover test

7
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

POWER FREQUENCY TESTS

wet flashover tests:
 Test carried under artificial rain
 Spray the water by means of nozzles to the test object
 Water drops at an inclination of 45 degree to the
vertical

8
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

POWER FREQUENCY TESTS

Dry and wet Withstand tests: (one minute)

The test piece should withstand the specified

voltage which is applied under dry or wet conditions.

9
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Impulse Test -- Impulse Withstand Voltage Test

Std Impulse
Voltage
Insulators

No Flash over Two flashover One Flashover

Additional 10 10
Applications
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Impulse Test- Impulse Flashover Voltage Test

LI is a short duration pulse
For flashover Voltage should passing through peak,
Some charged particle should present at the vicinity
of the insulator
Both the conditions should satisfy
But presence of charged particle is statistical
phenomena

11
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Impulse Test- Impulse Flashover Voltage Test

Hence in order to determine the BDV/flashover of the
insulator one must specify the % probability

Normally 50% probability

12
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Impulse Test- Impulse Flashover Voltage Test

13
 SVCE
 To determine the 50% probability

Up and Down method

Within about 20 applications we can get 50% probability

value
EE 2353
HIGH VOLTAGE ENGINEERING SVCE

Impulse Test- Impulse Flashover Voltage Test

15
