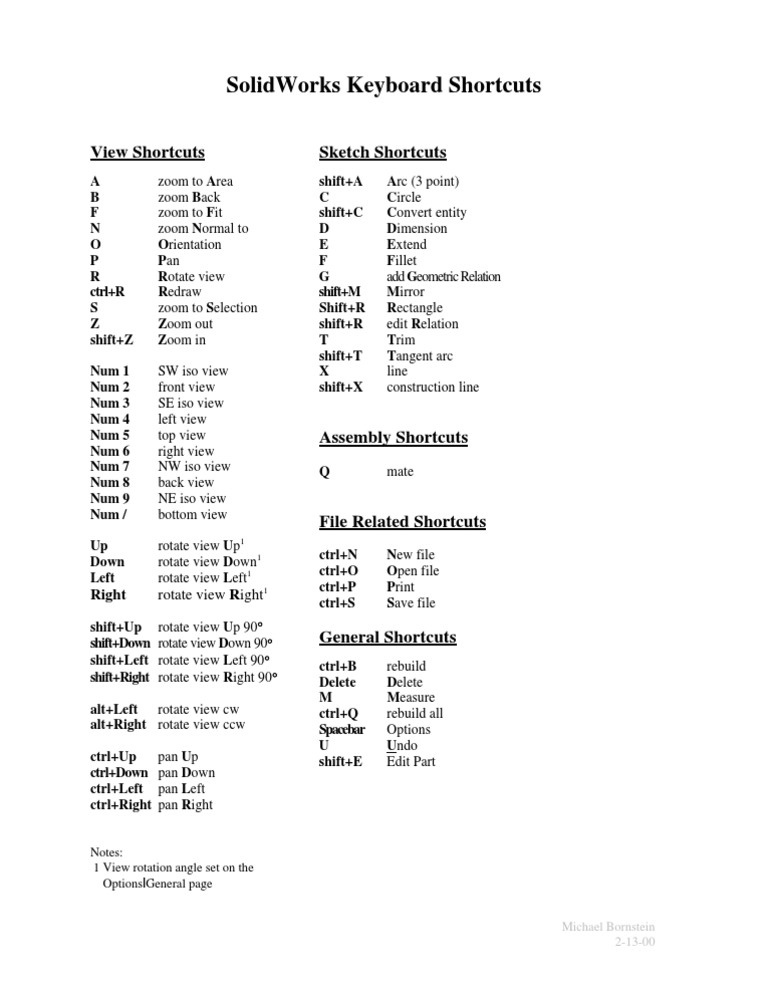

    SolidWorks Keyboard Shortcuts

    View Shortcuts Sketch Shortcuts


    A zoom to Area shift+A Arc (3 point)
    B zoom Back C Circle
    F zoom to Fit shift+C Convert entity
    N zoom Normal to D Dimension
    O Orientation E Extend
    P Pan F Fillet
    R Rotate view G add Geometric Relation
    ctrl+R Redraw shift+M Mirror
    S zoom to Selection Shift+R Rectangle
    Z Zoom out shift+R edit Relation
    shift+Z Zoom in T Trim
    shift+T Tangent arc
    Num 1 SW iso view X line
    Num 2 front view shift+X construction line
    Num 3 SE iso view
    Num 4 left view
    Num 5 top view Assembly Shortcuts
    Num 6 right view
    Num 7 NW iso view Q mate
    Num 8 back view
    Num 9 NE iso view
    Num / bottom view
    File Related Shortcuts
    1
    Up rotate view Up
    ctrl+N New file
    Down rotate view Down1
    ctrl+O Open file
    Left rotate view Left1
    ctrl+P Print
    Right rotate view Right1 ctrl+S Save file
    shift+Up rotate view Up 90°
    shift+Down rotate view Down 90° General Shortcuts
    shift+Left rotate view Left 90° ctrl+B rebuild
    shift+Right rotate view Right 90° Delete Delete
    M Measure
    alt+Left rotate view cw ctrl+Q rebuild all
    alt+Right rotate view ccw Spacebar Options
    U Undo
    ctrl+Up pan Up shift+E Edit Part
    ctrl+Down pan Down
    ctrl+Left pan Left
    ctrl+Right pan Right

    Notes:
    1 View rotation angle set on the
    Options|General page

    Michael Bornstein
    2-13-00
