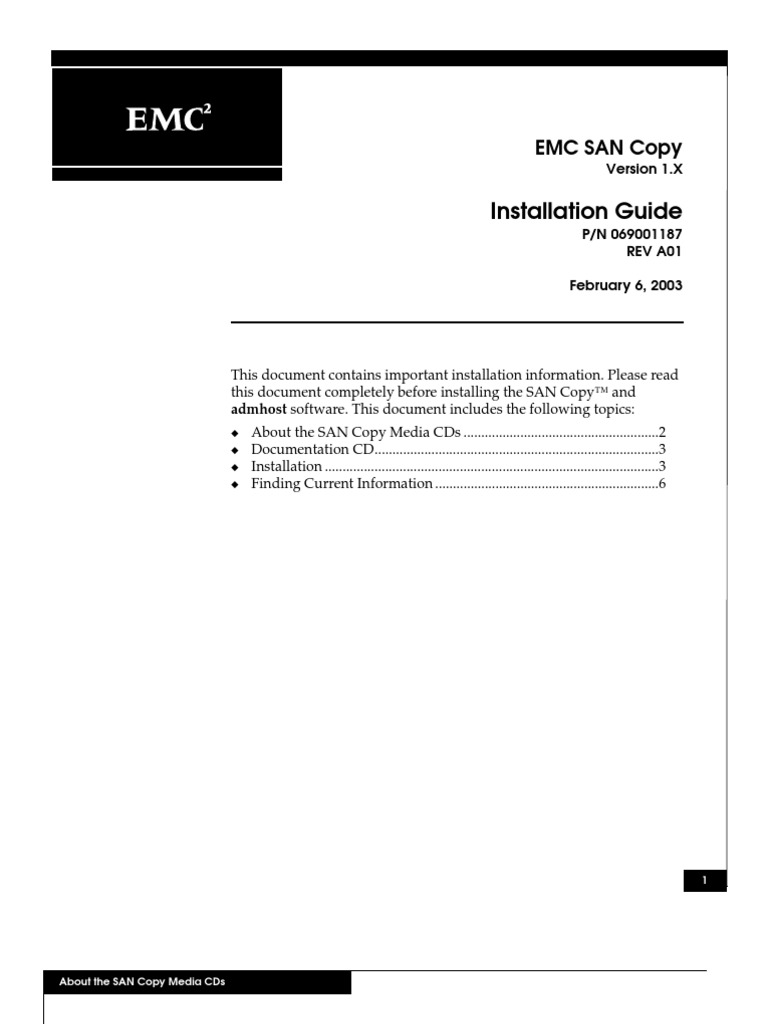

EMC SAN Copy

Version 1.X

Installation Guide
P/N 069001187 REV A01 February 6, 2003

This document contains important installation information. Please read this document completely before installing the SAN Copy and admhost software. This document includes the following topics:

About the SAN Copy Media CDs .......................................................2 Documentation CD................................................................................3 Installation ..............................................................................................3 Finding Current Information ...............................................................6

About the SAN Copy Media CDs

About the SAN Copy Media CDs

The following table lists the software media CDs that are required for installing SAN Copy and admhost. The SAN Copy and admhost CDs ship with the SAN Copy kit. The Manager CD ships with the Manager kit.
CD Title EMC SAN Copy Software v1.x.ya CD P/N 068090659 Files on CD .ndu Filesa SAN Copy_x.y.z.z.ndu Installed On Storage system Note: A service provider installs these files during storage system initialization. Storage systemb Note: A service provider installs these files during storage system initialization. Reference Document

Navisphere Manager Administrators Guide (see the section on installing software). Navisphere Manager Administrators Guide (see the section on installing software).
Follow the instructions on the InstallShield Wizard.

068090603 EMC Navisphere Manager v6.x.ya

.ndu UI Filesa ManagementUI_6.x.y.z.z.ndu SANCopyUI_6.x.y.z.z.ndu

Windows 2000 or Optional .exe Filesac Windows_ManagementServer_6.x.y.exe Windows NT server Note: A Java Plug-in must be Windows_UIs_6.x.y.exe installed on the client that runs the browser you will use to manage the storage system. For a list of supported Java Plug-ins, refer to the Manager Release Notes. EMC Admhost Software v1.x.ya 068090687

OS Directory/Admhost Packagec

Any Windows 2000 or Windows NT hosts with LUNs that will participate in a SAN Copy session.

See Installing admhost on Page 4.

a.In the CD, title, and filenames, x, y, and z are numbers that vary depending on your version. b.You can install these files on the same storage system as the SAN Copy driver or on another storage system that you will target with your browser. c.These files are optional. You should install these files only if you want to use a Windows PC or server as a portal.

EMC SAN Copy Installation Guide

Documentation CD

Documentation CD
In addition to this installation guide, the following documents are available on the EMC SAN Copy v1.X Documentation CD (P/N 068090659).

EMC SAN Copy Version 1.X For EMC ControlCenter Navisphere 6.X Administrators Guide (P/N 069001188) EMC SAN Copy Command Line Interface Administrators Guide (P/N 0690010189)

Installation
IMPORTANT - When you install new software on a storage system, do not remove or reboot an SP while installation is in progress. If you do, you risk leaving the storage system in a transient state where it cannot be restarted. Please wait for the entire upgrade process to complete and automatically reboot the SPs.

Installation Prerequisites for SAN Copy

To install and use the SAN Copy 1.X software (including the SAN Copy Graphical User Interface) on a CX600, CX400, or FC4700-Series storage system, you must have

Navisphere Manager 6.X installed on the SPs in at least one CX600, CX400, or FC4700-Series storage system in each domain. Access Logix must be installed. If you want to install SAN Copy on a storage system without Access Logix software installed (you acquired the storage system without Access Logix), then you must install Access Logix software that is compatible with the SAN Copy software you want to install, using Manager Software Installation.

Installing SAN Copy

If you ordered SAN Copy with a new storage system, it is installed when the storage system is initialized at your site. All CX600, CX400, and currently shipping FC4700-Series storage systems leave the factory with the Management Server Software installed on the storage system.

EMC SAN Copy Installation Guide

Installation

Installing SAN Copy .ndu Files To install SAN Copy on an existing storage system, follow the procedure in the software installation section of the EMC ControlCenter Navisphere Manager 6.X Administrators Guide (P/N 069001125). To do this, you will need all the ndu files listed in the EMC SAN Copy Software v1.x Media CD (see About the SAN Copy Media CDs table on Page 2). Installing SAN Copy GUI .ndu Files In addition to installing the SAN Copy ndu files mentioned above, you will also need to install the Management GUI and SAN Copy GUI ndu files. You can install these files on the same storage system as the SAN Copy driver or on another storage system that you will target with your browser. Both storage systems must be in the same EMC ControlCenter Navisphere domain. These files are provided on the Navisphere Manager v6.x Media CD (see About the SAN Copy Media CDs table on Page 2). Installing Optional .exe Files on a Windows Server (Portal) If you want to use a Windows PC or server as a portal in your Navisphere domain, you must install the Windows Management Server and Windows GUI executables on the portal. These executables are provided on the Navisphere Manager v6.x Media CD (see About the SAN Copy Media CDs table on Page 2).
When installing the Windows GUIs, you must select the SAN Copy GUI on the InstallShield Wizard.

Once you have installed these executables, refer to the EMC ControlCenter Navisphere Manager Version 6.X Installation Guide (P/N 069001172) for instructions on initializing the security and setting the management server settings for the server.

Installing admhost

The admhost utility is an executable program that you can run interactively via script. Currently, admhost is supported only on the following Microsoft Windows platforms: Windows NT only and Windows 2000. You must install admhost on each host from which you want to issue admhost commands.
For the supported versions of these operating systems, see the SAN Copy and admhost Release Notes.

EMC SAN Copy Installation Guide

Installation

The admhost commands can activate and deactivate the source and destination logical units being used in a SAN Copy session, and flush data from operating system buffers to ensure that the information on the source logical unit is current. To install admhost on a host, do the following: 1. Log in to the host as the administrator or as someone who has administrator privileges. 2. You cannot install admhost over an existing revision. If you think admhost is already installed, remove it using the sequence: Start Settings Control Panel Add/Remove Programs Navisphere Admhost and click Add/Remove. 3. Insert the admhost CD-ROM in the CD-ROM drive. 4. Run the setup program as follows: a. Select Start Run. A Run dialog box opens. b. In the Command Line field of the Run dialog box, enter For Windows 2000: drive:\win2k\setup For Windows NT: drive:\winnt\setup where drive is the CD-ROM drive letter (such as D:). For example, D:\win2k\setup 5. Click Next to continue. The License Agreement dialog box appears. 6. Click Yes to accept the agreement. The Setup Customer Information dialog box appears. 7. If your name and company name are not displayed correctly, type them and click Next. The Choose Destination Location dialog box appears. 8. Click Next to choose the default destination folder, C:\Program Files\EMC\Navisphere Admhost, or click Browse to select a different drive and/or destination folder. The Select Program Folder dialog box opens.

EMC SAN Copy Installation Guide

Finding Current Information

9. Click Next to select the default program folder to hold the program icons, or choose another folder. Setup installs the admhost files in the location you specified. 10. An Installation Wizard Complete dialog box appears. Click Finish to close the dialog box. 11. Remove the CD-ROM from its drive and store it safely. You have installed the admhost software on a Windows host.

Finding Current Information

To ensure that you have the most up-to-date information about the EMC SAN Copy software, EMC posts the release notes for this software on the EMC Powerlink website. We recommend that you download a copy of the release notes before you start the SAN Copy software. Accessing EMC Powerlink To access EMC Powerlink, use the following link: http://powerlink.emc.com After you log in, select Support (or Services) Document Library CLARiiON CLARiiON Fibre Channel Storage CLARiiON FC Software, and find the following release notes: EMC SAN Copy and Admhost Release Notes, P/N 085090685 You can view these documents with a PDF viewer, such as the latest version of Adobe Acrobat Reader. You can download a free copy of this reader from http://www.adobe.com/products/acrobat
Copyright 2003 EMC Corporation. All Rights Reserved. EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. THE INFORMATION IN THIS PUBLICATION IS PROVIDED "AS IS." EMC CORPORATION MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE INFORMATION IN THIS PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Use, copying, and distribution of any EMC software described in this publication requires an applicable software license.

Trademark Information
EMC2, EMC, CLARiiON, and Navisphere are registered trademarks and Access Logix, ControlCenter, SAN Copy, MirrorView, PowerPath, and SnapView are trademarks of EMC Corporation. All other trademarks used herein are the property of their respective owners.

EMC SAN Copy Installation Guide
