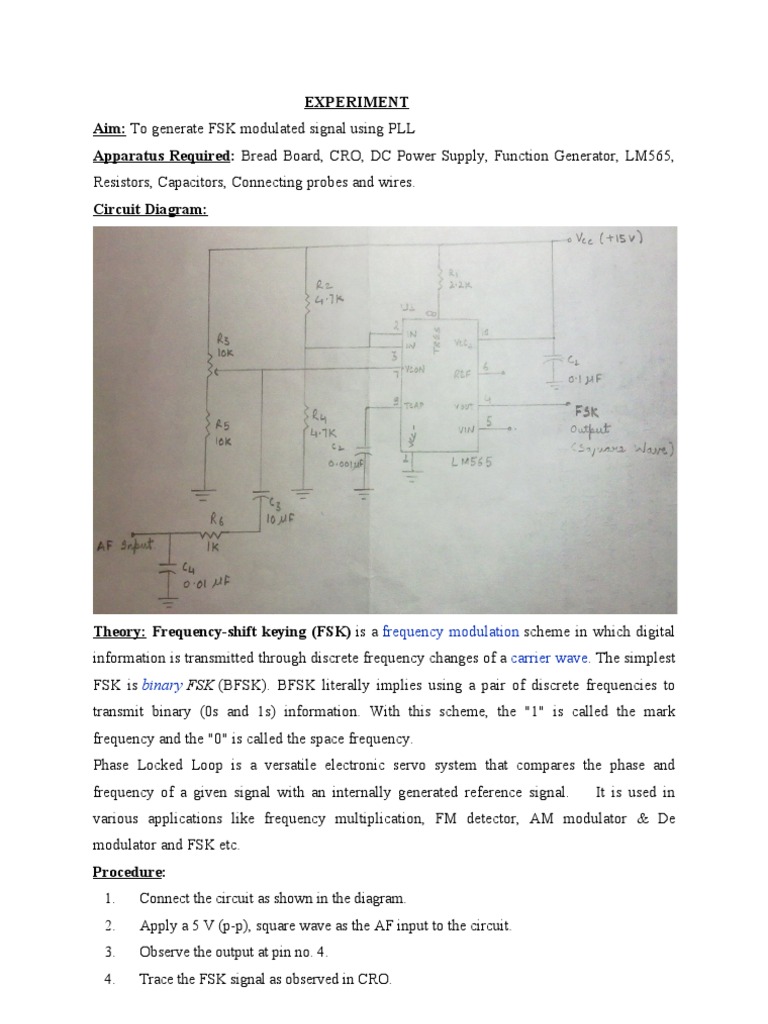

EXPERIMENT Aim: To generate FSK modulated signal using PLL Apparatus Required: Bread Board, CRO, DC Power Supply,

Function Generator, LM565, Resistors, Capacitors, Connecting probes and wires. Circuit Diagram:

Theory: Frequency-shift keying (FSK) is a frequency modulation scheme in which digital information is transmitted through discrete frequency changes of a carrier wave. The simplest FSK is binary FSK (BFSK). BFSK literally implies using a pair of discrete frequencies to transmit binary (0s and 1s) information. With this scheme, the "1" is called the mark frequency and the "0" is called the space frequency. Phase Locked Loop is a versatile electronic servo system that compares the phase and frequency of a given signal with an internally generated reference signal. modulator and FSK etc. Procedure: 1. 2. 3. 4. Connect the circuit as shown in the diagram. Apply a 5 V (p-p), square wave as the AF input to the circuit. Observe the output at pin no. 4. Trace the FSK signal as observed in CRO. It is used in various applications like frequency multiplication, FM detector, AM modulator & De

Observations:

Result:
