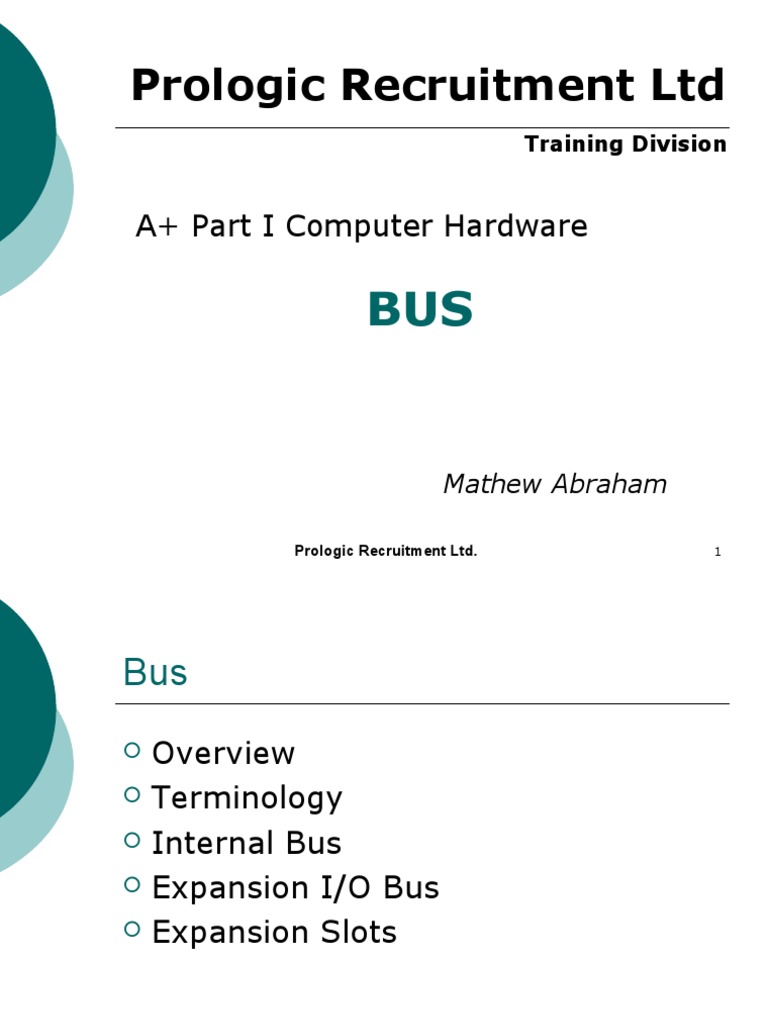

Bus Overview Terminology Internal Bus Expansion I/O Bus Expansion Slots
Prologic Recruitment Ltd. 2
overview Connectors on the motherboard through which data is transmitted from one part of a computer to another.
Prologic Recruitment Ltd. 3
Bus Internal Bus- connects all internal components to CPU and memory - Data Bus - Address Bus External Bus/Expansion Bus
- Allows peripheral components to
plug into existing bus
Prologic Recruitment Ltd. 4
Bus Width Refers how much information can travel on that bus in a given time.
Cloak Speed-speed at which
information can travel over the bus measure MHz
Prologic Recruitment Ltd. 5
Expansion (I/O) Bus ISA MCA EISA VL-BUS PCI AGP PCMCIA
Prologic Recruitment Ltd. 6
ISA Industry Standard Architecture - 8-Bit (XT) or 16-Bit(AT,ATX) - 16 MB MAX Addressible Memory - 8.33 MHz Clock Speed
Prologic Recruitment Ltd. 7
MCA (Micro Channel Architecture) IBM proprietary 32 Bit Bus 4 GB Max addressable memory 10 MHz Clock Speed Bus Mastering (communicate with each other bypassing CPU) Ps/2 (Mini-Din) Connector
Prologic Recruitment Ltd. 8
EISA (Extended ISA) 32 Bit Bus 4GB Addressable memory 8.33 MHz
Prologic Recruitment Ltd. 9
VL-BUS (VESA Local Bus)
Prologic Recruitment Ltd. 10
PCI (Peripheral Component Interconnect) Local Bus 32/64 Bit Bus (Mostly 32 Bit) 33 MHz (32bit or 66 MHz (64 Bit) 4GB Addressable Memory Can run on multiple platforms Intel Based & RISC Based Processors
Prologic Recruitment Ltd. 11
PCI
Prologic Recruitment Ltd. 12
AGP ( Accelerated Graphics Port) Fast Access to video Re-Introduction of the VL-Local Bus Runs at the same speed as memory Bus Considered a port Shares system memory with the CPU
Prologic Recruitment Ltd. 13
PCMCIA (PC CARD)
Personal Computer Memory Card
International Association Used In Laptops Type I – 3.3 mm (usually RAM)
