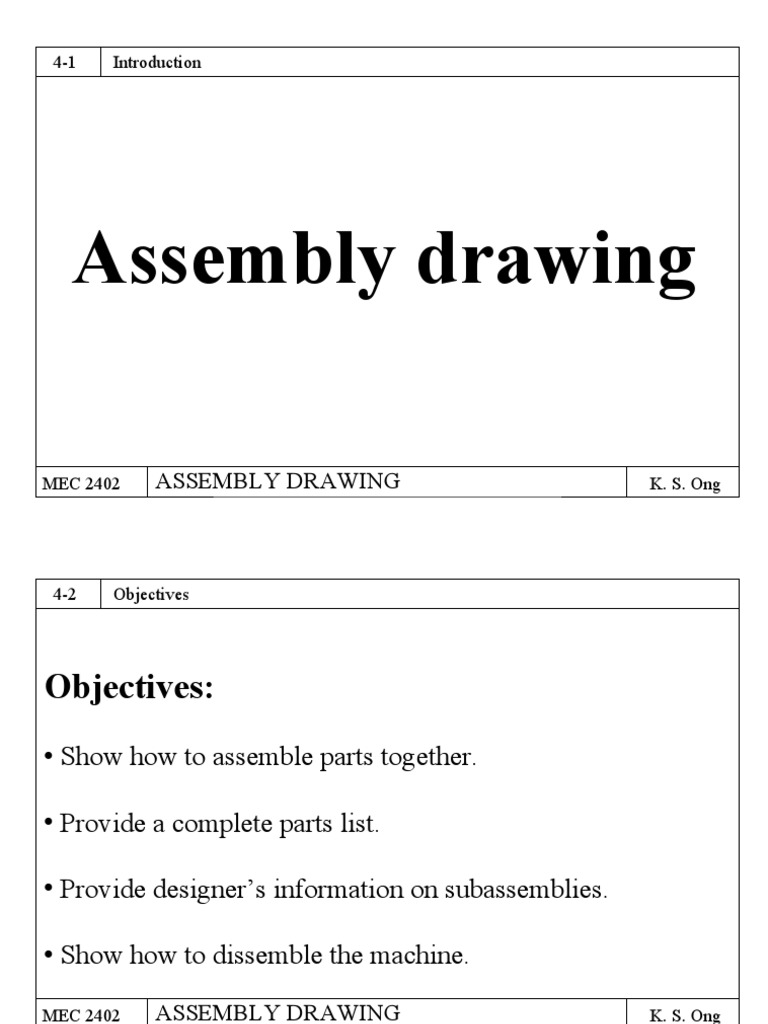

4-1 Introduction

Assembly drawing

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-2 Objectives

Objectives:
• Show how to assemble parts together.

• Provide a complete parts list.

• Provide designer’s information on subassemblies.

• Show how to dissemble the machine.

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-3 Information required

• Provide view(s) of the assembly showing at least some portion of

every different part used in the assembly.

•Each different part drawn must be identified once only and

unambiguously by a reference number.

•Ensure device is assembled correctly using notes or additional

drawings.

•Use notes or dimensions to indicate special assembly

requirements.

• List all parts with adequate descriptions.

MEC 2402 ASSEMBLY DRAWING K. S. Ong
 4-4 Typical assembly drawing

• It is often possible to show assembly with a single view.

• Use sections extensively.

• Use correct sectioning procedures to distinguish adjacent parts.

• Identify each part by a number within a 10 mm circle and leader line.

• Do not cross leaders.

• Arrange and number circles in an orderly fashion.

• Dimension only for assembly purpose, not for manufacture.

• Parts list must be included above title block. Parts listed upwards. Details to be shown:
Item no., description, quantity required per assembly, material or detail drawing no.

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-5 Typical assembly drawing of a diaphragm regulator

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-6 Sample problem 12.1

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-7 Sample solution to problem 12.1

MEC 2402 ASSEMBLY DRAWING K. S. Ong

 4-8 Tutorial

Attempt problems 12.1 and 12.2

MEC 2402 ASSEMBLY DRAWING K. S. Ong
