Associated scientific corp.

[i]

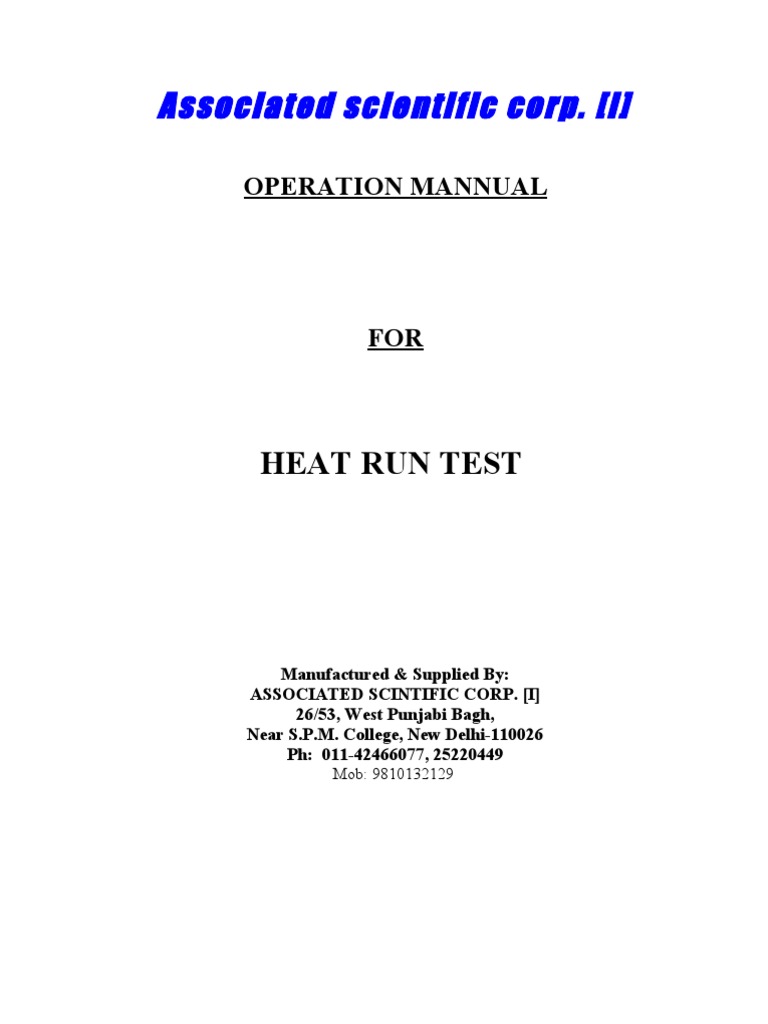

OPERATION MANNUAL

FOR

HEAT RUN TEST

Manufactured & Supplied By: ASSOCIATED SCINTIFIC CORP. [I] 26/53, West Punjabi Bagh, Near S.P.M. College, New Delhi-110026 Ph: 011-42466077, 25220449
Mob: 9810132129

Associated scientific corp. [i]

STUDY OF HEAT RUN TEST AIM : To perform Heat run test on a delta/Star connected three phase transformer and determine the efficiency and temperature rise of the windings. And find the equivalent circuit parameters. APPARATUS REQUIRED: S.No. 1 2 3 4 5 Name 3 Transformer 1 KVA
/

Range 1KVA 0-500 v 0-5A P.T.-100 with sensor Lamp Load 400/400V

Qty. 1 2 2 1 1

M.I. Voltmeter M.I. Ammeter Temperature indicator Lamp Load

THEORY: Heat Run Test on 3 transformer can be carried out on a Delta/Star 3 Transformer connected unit- For this test, Primary & Secondary winding connected in delta/Star. The Low Voltage winding (Primary) is excited at normal voltage and frequency & load the secondary side. The temperature changes after loading the transformer.

Associated scientific corp. [i]

CIRCUIT DIAGRA

Associated scientific corp. [i]

PROCEDURE: (i) (ii) (iii) (iv) (v) (vi) Connect the Circuit as per circuit diagram. Switch ON the M.C.B. Take the Reading of temperature Indicator Apply the Lamp Load provided on the Panel step by step for 5 minutes and take the reading of all the measuring instrument provided on the Panel. Switch OFF the Load. Plot the graph between temperature rise and time.

OBSERVATION TABLE: S.No. Primary Side VP IP IS Secondary Side IS Temperature (C)

Associated scientific corp. [i]

PANEL LAYOUT

Associated scientific corp. [i]

RESULT: (i) (ii) (iii) Temperature rise test on three phase transformer is conducted. A graph between temperature rise of windings and time is plotted. The Final temperature rise of the winding is .C. The Test is performed simulating the full load conditions without actually loading. Hence the power wastage is avoided. The method is a dummy test on the transformer.
