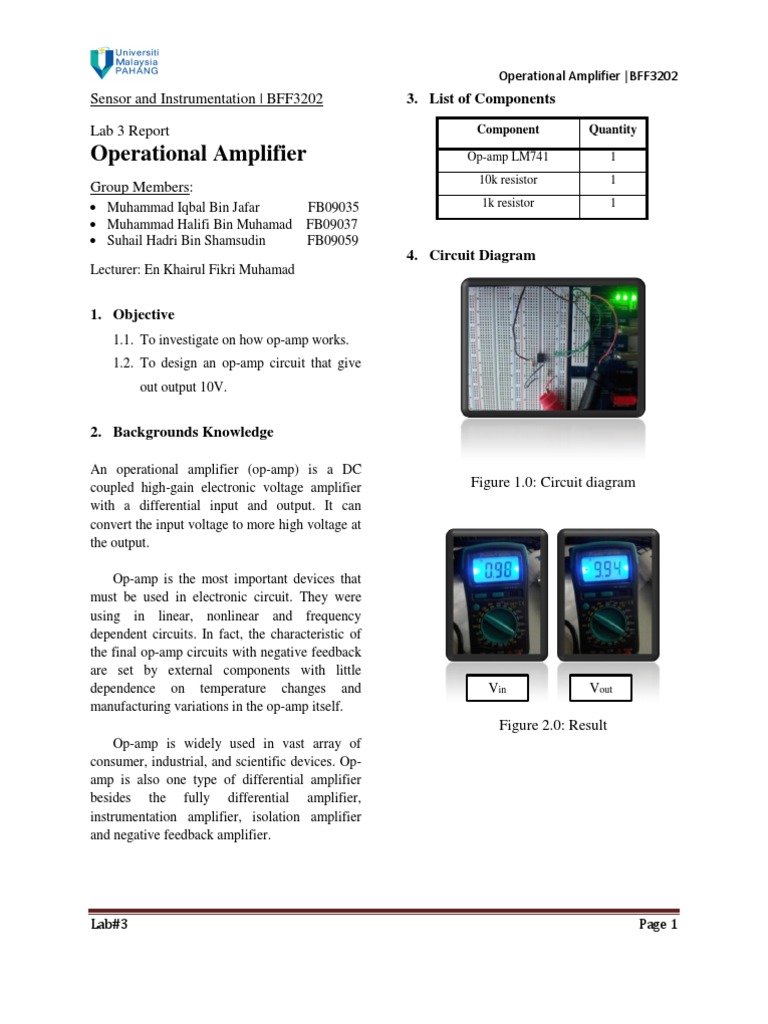

    Operational Amplifier |BFF3202

    Sensor and Instrumentation | BFF3202 Lab 3 Report

    3. List of Components
    Component Op-amp LM741 10k resistor Quantity 1 1 1

    Operational Amplifier
    Group Members:
    Muhammad Iqbal Bin Jafar Muhammad Halifi Bin Muhamad Suhail Hadri Bin Shamsudin Lecturer: En Khairul Fikri Muhamad FB09035 FB09037 FB09059

    1k resistor

    4. Circuit Diagram

    1. Objective
    1.1. To investigate on how op-amp works. 1.2. To design an op-amp circuit that give out output 10V.

    2. Backgrounds Knowledge
    An operational amplifier (op-amp) is a DC coupled high-gain electronic voltage amplifier with a differential input and output. It can convert the input voltage to more high voltage at the output. Op-amp is the most important devices that must be used in electronic circuit. They were using in linear, nonlinear and frequency dependent circuits. In fact, the characteristic of the final op-amp circuits with negative feedback are set by external components with little dependence on temperature changes and manufacturing variations in the op-amp itself. Op-amp is widely used in vast array of consumer, industrial, and scientific devices. Opamp is also one type of differential amplifier besides the fully differential amplifier, instrumentation amplifier, isolation amplifier and negative feedback amplifier.

    Figure 1.0: Circuit diagram

    Vin

    Vout

    Figure 2.0: Result

    Lab#3

    Page 1

    Operational Amplifier |BFF3202

    5. Procedure
    i. Experiment set up according to the circuit diagram. ii. Using the DC power supply, attach the output of the DC power supply to the Vin- pin of the op-amp. iii. Adjust the voltage and current of the DC power supply according to the calculation to meet the condition Vout: 10V. iv. Switch on the power supply. v. Observe the voltage at the Vout pin of the op-amp using the multi meter whether it meet the desired output.

    6. Analysis and Discussion


    In this experiment, we were set up an inverting amplifier. The formula are shown as

    Vout = -Vin (Rf/Rin)


    We were using 10k resistor as the Rf and 1k resistor as Rin. From the calculation to acquire 10V at the Output, we supply 1V at the Vin pin.

    7. Conclusion
    Base on this Vout = -Vin (Rf/Rin) , the Op-amp LM741 was amplified the voltage amplitude to the ratio 1:10.

    8. Reference
    I. II. http://en.wikipedia.org/wiki/Operati onal_amplifier Lab sheet BFF 3202 Electronic Lab _03 Operational Ampilifier.

    Lab#3

    Page 2
