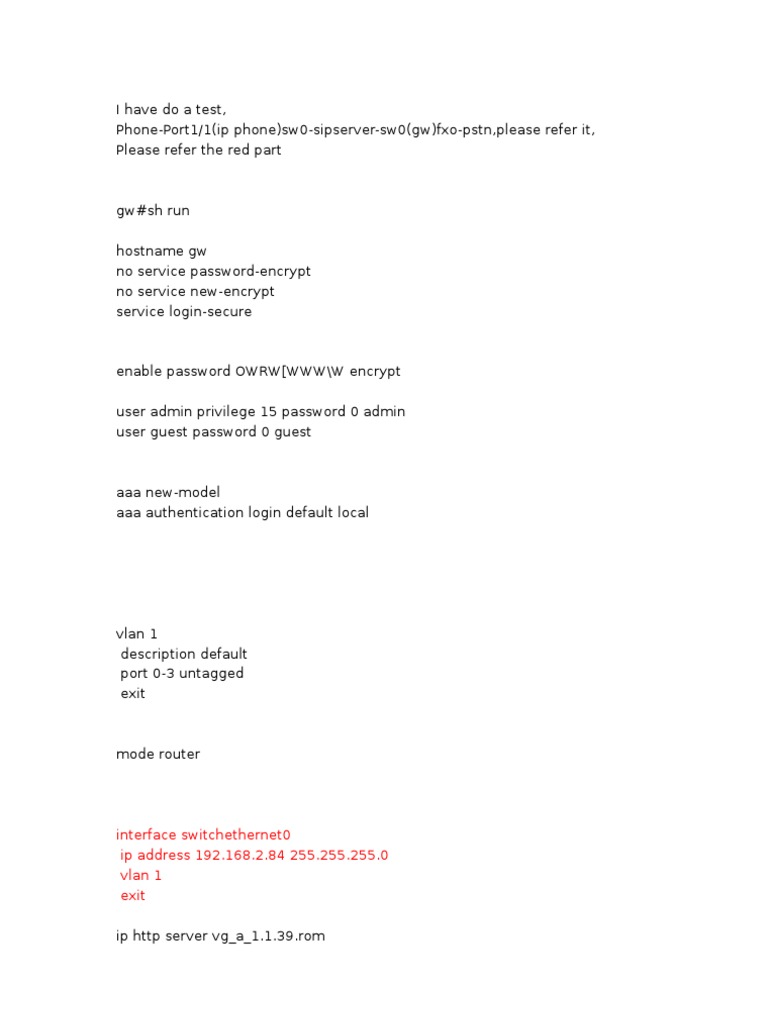

    I have do a test, Phone-Port1/1(ip phone)sw0-sipserver-sw0(gw)fxo-pstn,please refer it, Please refer the red part

    gw#sh run hostname gw no service password-encrypt no service new-encrypt service login-secure

    enable password OWRW[WWW\W encrypt user admin privilege 15 password 0 admin user guest password 0 guest

    aaa new-model aaa authentication login default local

    vlan 1 description default port 0-3 untagged exit

    mode router

    interface switchethernet0 ip address 192.168.2.84 255.255.255.0 vlan 1 exit ip http server vg_a_1.1.39.rom

    callrouting-conf dial-peer 100 voip destination-pattern xx. session-target sip-server exit

    fxo-card 2 channel 0 0 connection-plar 88 channel 0 0 callid enable channel 0 0 enable exit dialplan terminator # voicesrv-conf black-white-list exit call-transfer disable call-transfer consultation ivr enable ivr access-number 88 user-config enable prompt-language en exit interface loopback0 exit interface switchethernet0 sip-gateway voip interface sip-gateway voip proxy 192.168.2.11 sip-gateway voip registrar 192.168.2.11 exit

    ipphone#sh run Building Configuration...done

    hostname ipphone

    no service password-encrypt no service new-encrypt service login-secure

    enable password [WNXWWPWRW encrypt user admin privilege 15 password 0 admin aaa new-model aaa authentication login default local vlan 1 description default port 0-3 untagged exit

    mode router

    interface switchethernet0 ip address 192.168.2.90 255.255.255.0 vlan 1 exit

    ip http server vg_a_1.1.39.rom

    callrouting-conf

    dial-peer 2 pots destination-pattern 999 port 1/1 exit exit

    fxs-card 1 channel 0 3 callid enable channel 0 3 enable exit dialplan terminator # voicesrv-conf black-white-list exit interface switchethernet0 sip-gateway voip interface sip-gateway voip proxy 192.168.2.11 sip-gateway voip registrar 192.168.2.11 sip-gateway voip username maipu sip-gateway voip password maipu exit sip-gateway

    1/sh ver,and sh run 2/in the receiver do the test ter mon debug callr in debug dsp dm r debug dsp dm s 3/use the sipserver,dial from mp2000 to mp2000,and dial from pstn to mp2000,get the messge 4/use mp2000 dial mp2000 directly,get the message 4/please tell me the sipserver type and configuration,and other can show ip phone type regard
