Kirloskar Brothers Limited

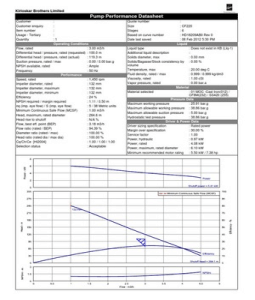

Pump Performance Datasheet

Customer Customer enquiry Item number Usage - Tertiary Quantity : : : : :1 Quote number Size Stages Based on curve number Date last saved : : CF220 :6 : HD18209AB0 Rev 0 : 08 Feb 2012 5:30 PM

Operating Conditions Flow, rated : 3.00 m3/h Differential head / pressure, rated (requested) : 100.0 m Differential head / pressure, rated (actual) : 119.3 m Suction pressure, rated / max : 0.00 / 0.00 bar.g NPSH available, rated : Ample Frequency : 50 Hz Performance Speed, rated : 1,450 rpm Impeller diameter, rated : 132 mm Impeller diameter, maximum : 132 mm Impeller diameter, minimum : 132 mm Efficiency : 24 % NPSH required / margin required : 1.11 / 0.50 m nq (imp. eye flow) / S (imp. eye flow) : 5 / 38 Metric units Minimum Continuous Safe Flow (MCSF) : 1.00 m3/h Head, maximum, rated diameter : 264.6 m Head rise to shutoff : N/A % Flow, best eff. point (BEP) : 3.18 m3/h Flow ratio (rated / BEP) : 94.39 % Diameter ratio (rated / max) : 100.00 % Head ratio (rated dia / max dia) : 100.00 % Cq/Ch/Ce [HI2004] : 1.00 / 1.00 / 1.00 Selection status : Acceptable

Liquid Liquid type : Does not exist in KB (LIq-1) Additional liquid description : Solids diameter, max : 0.00 mm Solids/Bagasse/Stock consistency by : 0.00 % volume Temperature, max : 20.00 deg C Fluid density, rated / max : 0.999 / 0.999 kg/dm3 Viscosity, rated : 1.00 cSt Vapor pressure, rated : 0.00 bar.a Material Material selected : 01 MOC -Cast Iron(012) / CF8M(232) / SS420 (255) Pressure Data Maximum working pressure : 25.91 bar.g Maximum allowable working pressure : 38.86 bar.g Maximum allowable suction pressure : 5.00 bar.g Hydrostatic test pressure : 38.86 bar.g Driver & Power Data Driver sizing specification : Rated power Margin over specification : 30.00 % Service factor : 1.00 Power, hydraulic : 0.97 kW Power, rated : 4.08 kW Power, maximum, rated diameter : 6.10 kW Minimum recommended motor rating : 5.50 kW / 7.38 hp
