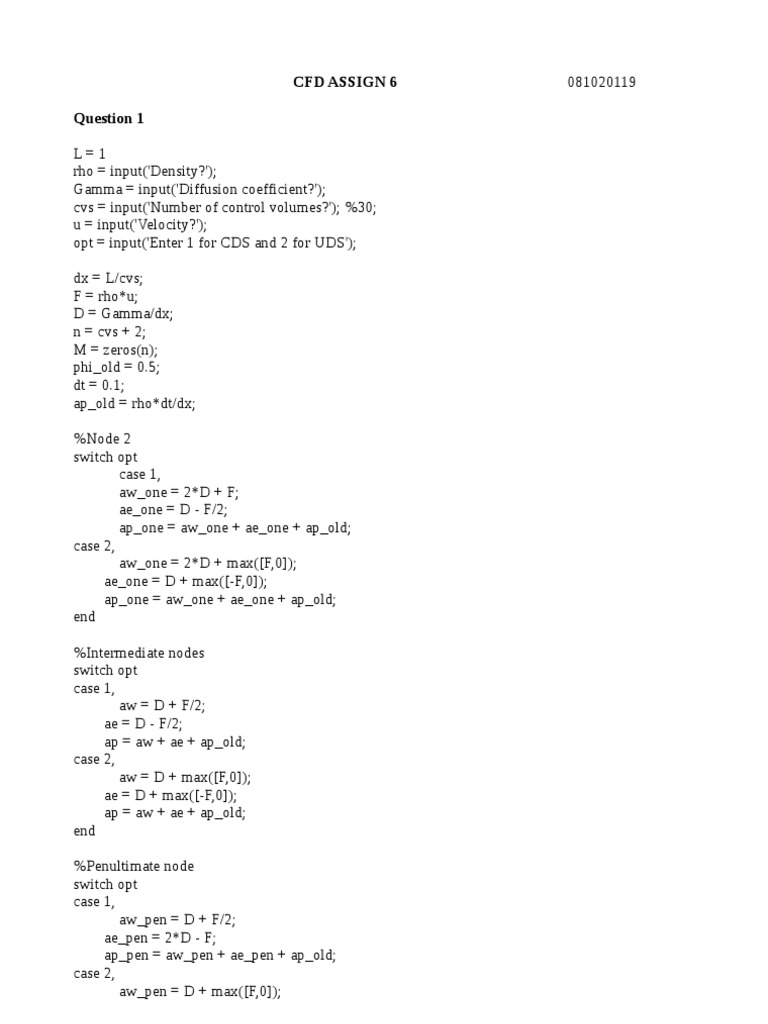

CFD ASSIGN 6

Question 1
L=1
rho = input('Density?');
Gamma = input('Diffusion coefficient?');
cvs = input('Number of control volumes?'); %30;
u = input('Velocity?');
opt = input('Enter 1 for CDS and 2 for UDS');
dx = L/cvs;
F = rho*u;
D = Gamma/dx;
n = cvs + 2;
M = zeros(n);
phi_old = 0.5;
dt = 0.1;
ap_old = rho*dt/dx;
%Node 2
switch opt
case 1,
aw_one = 2*D + F;
ae_one = D - F/2;
ap_one = aw_one + ae_one + ap_old;
case 2,
aw_one = 2*D + max([F,0]);
ae_one = D + max([-F,0]);
ap_one = aw_one + ae_one + ap_old;
end
%Intermediate nodes
switch opt
case 1,
aw = D + F/2;
ae = D - F/2;
ap = aw + ae + ap_old;
case 2,
aw = D + max([F,0]);
ae = D + max([-F,0]);
ap = aw + ae + ap_old;
end
%Penultimate node
switch opt
case 1,
aw_pen = D + F/2;
ae_pen = 2*D - F;
ap_pen = aw_pen + ae_pen + ap_old;
case 2,
aw_pen = D + max([F,0]);

081020119

ae_pen = 2*D + max([-F,0]);

ap_pen = aw_pen + ae_pen + ap_old;
end
%Node 1
M(1,1) = 1;
% Node 2
M(2,1) = -aw_one;
M(2,3) = -ae_one;
M(2,2) = ap_one;
% Intermediate nodes
for i= 3:n-2
M(i,i-1) = -aw;
M(i,i+1) = -ae;
M(i,i) = ap;
end
% Penultimate node
M(n-1,n-2) = -aw_pen;
M(n-1,n) = -ae_pen;
M(n-1,n-1) = ap_pen;
% Last node
M(n,n) = 1;
cnst = zeros(n,1);
phi_o = zeros(n,1);
phi_o(:) = phi_old;
res = 1;
t = 0;
while(res>0.0001)
cnst(1) = 0;
cnst(n) = 1;
for i = 2:n-1
cnst(i) = ap_old*phi_o(i);
end
% TDMA
new_M = zeros(n);
new_M(1,1) = M(1,1);
for i=2:n
new_M(i,i)=M(i,i)-(M(i-1,i)*M(i,i-1)/new_M(i-1,i-1));
end
for i=1:n-1
new_M(i,i+1)=M(i,i+1);
end

cnst_new=zeros(n,1);
cnst_new(1)=cnst(1);
for i=2:n
cnst_new(i)=cnst(i)-(cnst_new(i-1)*M(i,i-1)/new_M(i-1,i-1));
end
phi = zeros(n,1);
phi(n)=cnst_new(n)/new_M(n,n);
for i=n-1:-1:1
phi(i)=(cnst_new(i)-new_M(i,i+1)*phi(i+1))/new_M(i,i);
end
res = max(phi-phi_o);
phi_o = phi;
t = t+dt;
end
len = zeros(1,n);
len(2) = dx/2;
len(3) = 3*dx/2;
for i = 4:n-1
len(i) = dx+len(i-1);
end
len(n) = L;
phi_one = phi;
plot(len,phi,'o-',len,phi_one)
xlabel('Length')
ylabel('Phi')
legend('CDS',1)
grid on;

Question 2
rho = 1
Gamma = 1;
A = 10;
B = 2;
u = 1;
v = 4;
L = 20;
H = 20;
nv = 20;
mv = 20;
Tw = 100;
Te = 0;
Tb = 100;
Tt = 0;
opt = input('Enter 1 for CDS, 2 for UDS and 3 for Hybrid scheme:');
dx = L/nv;
dy = H/mv;
m = mv+2;
n = nv+2;

Dw = Gamma/dx*dy;
De = Gamma/dx*dy;
Dn = Gamma/dy*dx;
Ds = Gamma/dy*dx;
Fw = rho*u*dy;
Fe = rho*u*dy;
Fn = rho*v*dx;
Fs = rho*v*dx;
ap = zeros(m,n);
b = zeros(m,n);
b(:,:) = A*dx*dy;
aw = zeros(m,n);
ae = zeros(m,n);
an = zeros(m,n);
as = zeros(m,n);
ap(:,1) = 1;
ap(1,:) = 1;
ap(m,:) = 1;
ap(:,n) = 1;
b(1,:) = Tt;
b(:,1) = Tw;
b(:,n) = Te;
b(m,:) = Tb;
switch opt
case 1,
for i = 2:m-1
for j = 2:n-1
aw(i,j) = Dw + Fw/2;
ae(i,j) = De - Fe/2;
as(i,j) = Ds + Fs/2;
an(i,j) = Dn - Fn/2;
end
end
aw(2:m-1,2) = 2*Dw + Fw;
ae(2:m-1,n-1) = 2*De - Fe;
as(m-1,2:n-1) = 2*Ds + Fs;
an(2,2:n-1) = 2*Dn - Fn;
case 2 ,
for i = 2:m-1
for j = 2:n-1
aw(i,j) = Dw + max([Fw,0]);
ae(i,j) = De + max([-Fe,0]);
as(i,j) = Ds + max([Fs,0]);
an(i,j) = Dn + max([-Fn,0]);
end

end
aw(2:m-1,2) = 2*Dw + max([Fw,0]);
ae(2:m-1,n-1) = 2*De + max([-Fe,0]);
as(m-1,2:n-1) = 2*Ds + max([Fs,0]);
an(2,2:n-1) = 2*Dn + max([-Fn,0]);
case 3,
for i = 2:m-1
for j = 2:n-1
aw(i,j) = max([Fw,0,Dw+Fw/2]);
ae(i,j) = max([-Fe,0,De-Fe/2]);
as(i,j) = max([Fs,0,Ds+Fs/2]);
an(i,j) = max([-Fn,0,Dn-Fn/2]);
end
end
aw(2:m-1,2) = max([Fw,2*Dw+Fw,0]);
ae(2:m-1,n-1) = max([-Fe,2*De-Fe,0]);
as(m-1,2:n-1) = max([Fs,2*Ds+Fs,0]);
an(2,2:n-1) = max([-Fn,2*Dn-Fn,0]);
end
for i = 2:m-1
for j = 2:n-1
ap(i,j) = aw(i,j)+ae(i,j)+an(i,j)+as(i,j) + B*dx*dy ;
end
end
T = zeros(m+2,n+2);
T(m+1,2:n+1) = Tt;
T(2:m+1,2)= Tw;
T(2:m+1,n+1) = Te;
T(2,2:n+1) = Tb;
res = 1;
flag = 1;
Told = T;
while(res>0.0001)
sigma = 0;
Tnew = GS(ap,aw,ae,an,as,b,Told);
for i = 1:m
for j = 1:n
sigma = sigma + (Tnew(i,j) - Told(i,j))^2;
end
end
res(flag) = sqrt(sigma/(n*m));
flag =flag+1;
Told = Tnew;
end
Tfin = Tnew(2:m+1,2:n+1);
for i=1:m
Tfinal(i,:)=Tfin(size(Tfin,1)+1-i,:);
end

xvec = [0 0.5 1.5:19.5 20];

yvec = [0 0.5 1.5:19.5 20];
[X Y]=meshgrid(xvec,yvec);
contourf(X,Y,Tfinal)
xlabel('x')
ylabel('y')
title('Hybrid')
colorbar
print -djpeg 'Hybrid.jpg'
