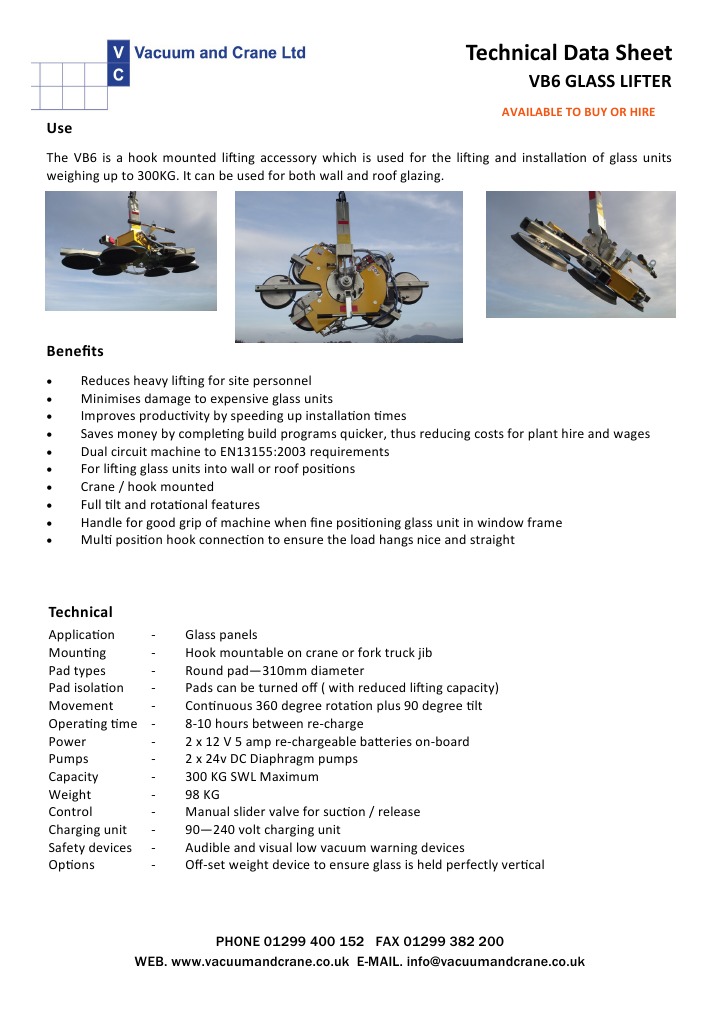

Technical Data Sheet

VB6 GLASS LIFTER

AVAILABLE TO BUY OR HIRE

Use
The VB6 is a hook mounted lifting accessory which is used for the lifting and installation of glass units weighing up to 300KG. It can be used for both wall and roof glazing.

Benefits

Reduces heavy lifting for site personnel Minimises damage to expensive glass units Improves productivity by speeding up installation times Saves money by completing build programs quicker, thus reducing costs for plant hire and wages Dual circuit machine to EN13155:2003 requirements For lifting glass units into wall or roof positions Crane / hook mounted Full tilt and rotational features Handle for good grip of machine when fine positioning glass unit in window frame Multi position hook connection to ensure the load hangs nice and straight

Technical
Application Mounting Pad types Pad isolation Movement Operating time Power Pumps Capacity Weight Control Charging unit Safety devices Options Glass panels Hook mountable on crane or fork truck jib Round pad310mm diameter Pads can be turned off ( with reduced lifting capacity) Continuous 360 degree rotation plus 90 degree tilt 8-10 hours between re-charge 2 x 12 V 5 amp re-chargeable batteries on-board 2 x 24v DC Diaphragm pumps 300 KG SWL Maximum 98 KG Manual slider valve for suction / release 90240 volt charging unit Audible and visual low vacuum warning devices Off-set weight device to ensure glass is held perfectly vertical

PHONE 01299 400 152 FAX 01299 382 200 WEB. www.vacuumandcrane.co.uk E-MAIL. info@vacuumandcrane.co.uk

Technical Data Sheet

VB6 GLASS LIFTER

Lifting Capability
Please refer to the table below for the safe working load for the VB6 depending on configuration Pad Shape and quantity Fitted with 4 round pads (310mm diameter) Fitted with 6round pads (310mm diameter) SWL 200 KG 300 KG

Dimensions of VB6

Length Width Depth

-1200mm - 800mm - 250mm
