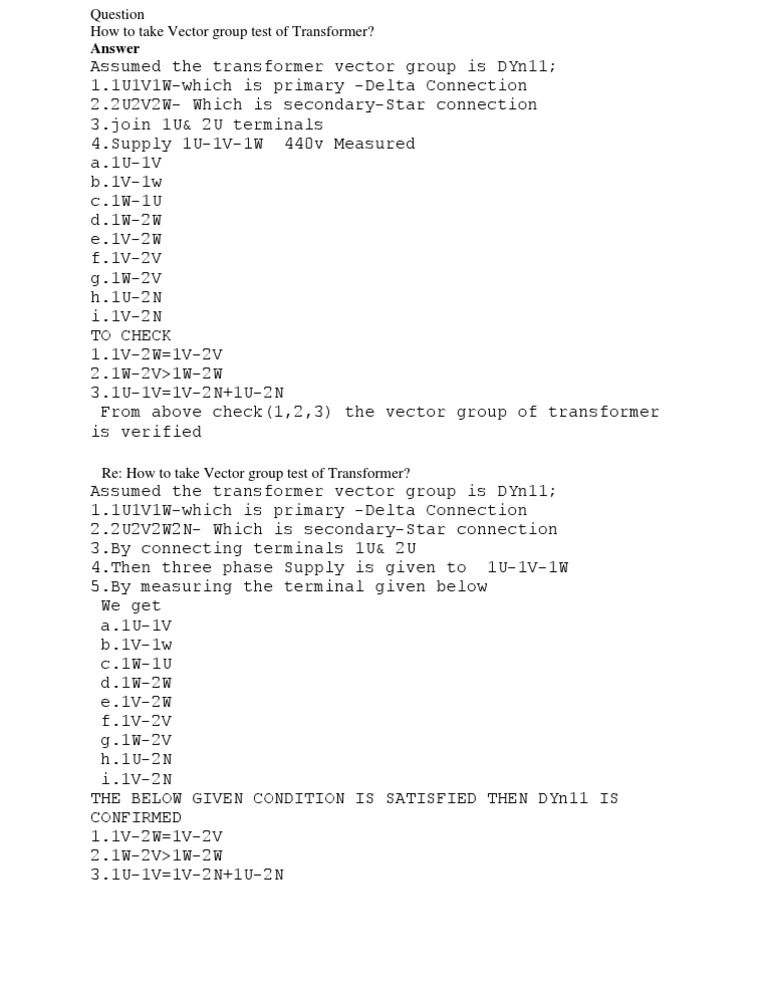

    Question How to take Vector group test of Transformer?

    Answer

    Assumed the transformer vector group is DYn11; 1.1U1V1W-which is primary -Delta Connection 2.2U2V2W- Which is secondary-Star connection 3.join 1U& 2U terminals 4.Supply 1U-1V-1W 440v Measured a.1U-1V b.1V-1w c.1W-1U d.1W-2W e.1V-2W f.1V-2V g.1W-2V h.1U-2N i.1V-2N TO CHECK 1.1V-2W=1V-2V 2.1W-2V>1W-2W 3.1U-1V=1V-2N+1U-2N From above check(1,2,3) the vector group of transformer is verified
    Re: How to take Vector group test of Transformer?

    Assumed the transformer vector group is DYn11; 1.1U1V1W-which is primary -Delta Connection 2.2U2V2W2N- Which is secondary-Star connection 3.By connecting terminals 1U& 2U 4.Then three phase Supply is given to 1U-1V-1W 5.By measuring the terminal given below We get a.1U-1V b.1V-1w c.1W-1U d.1W-2W e.1V-2W f.1V-2V g.1W-2V h.1U-2N i.1V-2N THE BELOW GIVEN CONDITION IS SATISFIED THEN DYn11 IS CONFIRMED 1.1V-2W=1V-2V 2.1W-2V>1W-2W 3.1U-1V=1V-2N+1U-2N
