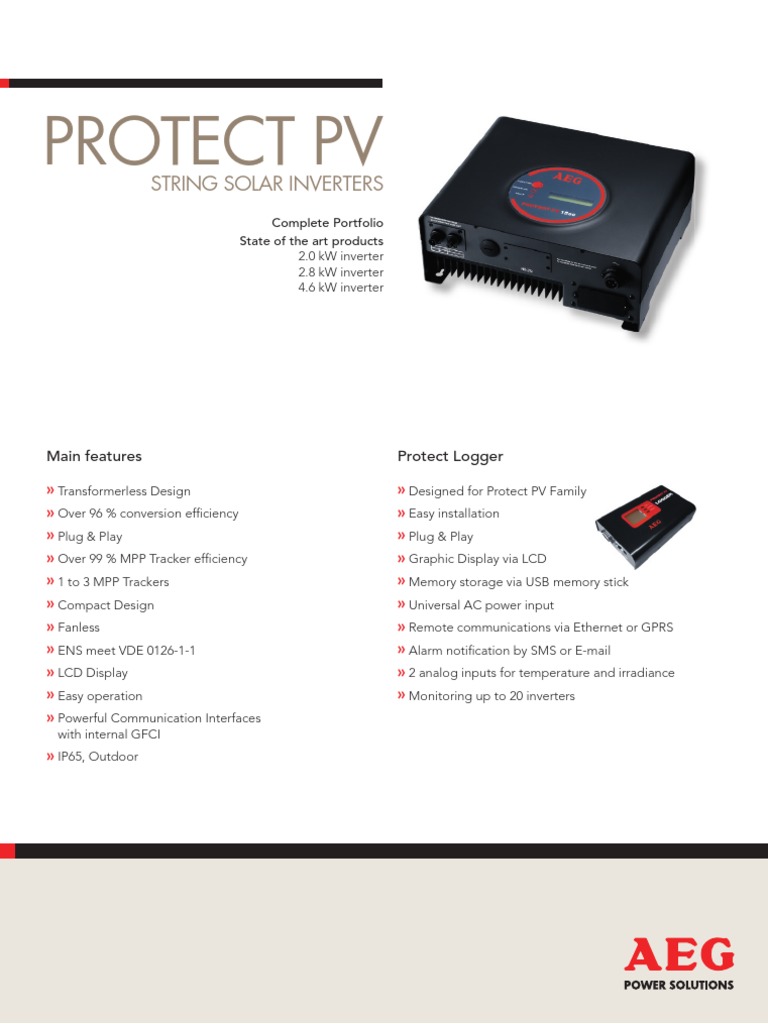

PROTECT PV

STRING SOLAR INVERTERS

Complete Portfolio State of the art products 2.0 kW inverter 2.8 kW inverter 4.6 kW inverter

Main features Transformerless Design Over 96 % conversion efciency Plug & Play Over 99 % MPP Tracker efciency 1 to 3 MPP Trackers Compact Design Fanless ENS meet VDE 0126-1-1 LCD Display Easy operation Powerful Communication Interfaces
with internal GFCI

Protect Logger Designed for Protect PV Family Easy installation Plug & Play Graphic Display via LCD Memory storage via USB memory stick Universal AC power input Remote communications via Ethernet or GPRS Alarm notication by SMS or E-mail 2 analog inputs for temperature and irradiance Monitoring up to 20 inverters

IP65, Outdoor

MODELL

Protect PV 2000
360 VDC 500 VDC 150450 VDC 100500 VDC 1 10 ADC 2000 W 2200 W 184264.5 VAC 50 Hz <3% ~1

Protect PV 2800
360 VDC 500 VDC 150450 VDC 100500 VDC 1 13 ADC 2800 W 3000 W 184264.5 VAC 50 Hz <3% ~1

Protect PV 4600
600 VDC 750 VDC 125700 VDC 100750 VDC 3 8.5 ADC per Tracker 4600 W 5000 W 184264.5 VAC 50 Hz <3% ~1

PROTECT PV
SPECIFICATION

DC INPUT
Nominal DC voltage Max. PV open voltage MPPT range Working Range Number of MPP Tracker Max. Input current

AC OUTPUT
Output power Max. power Operational Voltage Operational Frequency Current distortion Power Factor (cos )

SYSTEM
Display Max. efciency Euro efciency Protection degree Operation temp. Humidity Standby power Acoustic noise level Comm. Interface
LCD Display 1 line, 16 Char. > 96 % > 95 % IP 43 20 C ~ 55 C 0 ~ 95 % non-condensing ~7W < 35 dBA Standard RS232 Optional RS485 and others LCD Display 1 line, 16 Char. > 96 % > 95 % IP 43 20 C ~ 55 C 0 ~ 95 % non-condensing ~7W < 35 dBA Standard RS232 Optional RS485 and others LCD Display 2 line, 16 Char. > 96 % > 94 % IP 65 20 C ~ 55 C 0 ~ 95 % non-condensing ~8W < 35 dBA Standard RS232 Optional RS485 and others
AEGPS-Protect PV Solar String-EN-11-2011-V3 - Due to our policy of continuous development, data in this document is subject to change only after written conrmation. AEG is registered trademark used under license from AB Electrolux.

MECHANICAL
W x D x H (mm) Weight (kg)
350 x 302 x 124 12.25 350 x 302 x 139 12.5 430 x 530 x 134 27

Protect PV Logger
Supply AC Operational temp. Storage temp. Alarm relay
90250 VAC, 50/60 Hz 10 C ~ 40 C 20 C ~ 60 C 1 A/24 VDC 1, DB9 1, terminal block 1, RJ45 3.8" color 2 ports temperature, irradiance via RS232 or USB 155 x 95 x 35 320

RS485 optional card

Transmission mode Operational temp.
Full Duplex 20 C ~ 55 C 60 x 130 x 1.6 60.8

MECHANICAL
W x D x H (mm) Weight (g)

INTERFACE
RS232 RS485 Ethernet LCD USB Sensor ports GPRS modem

MECHANICAL
W x D x H (mm) Weight (g)

For further information please refer to our website: solar@aegps.com www.aegps.com
