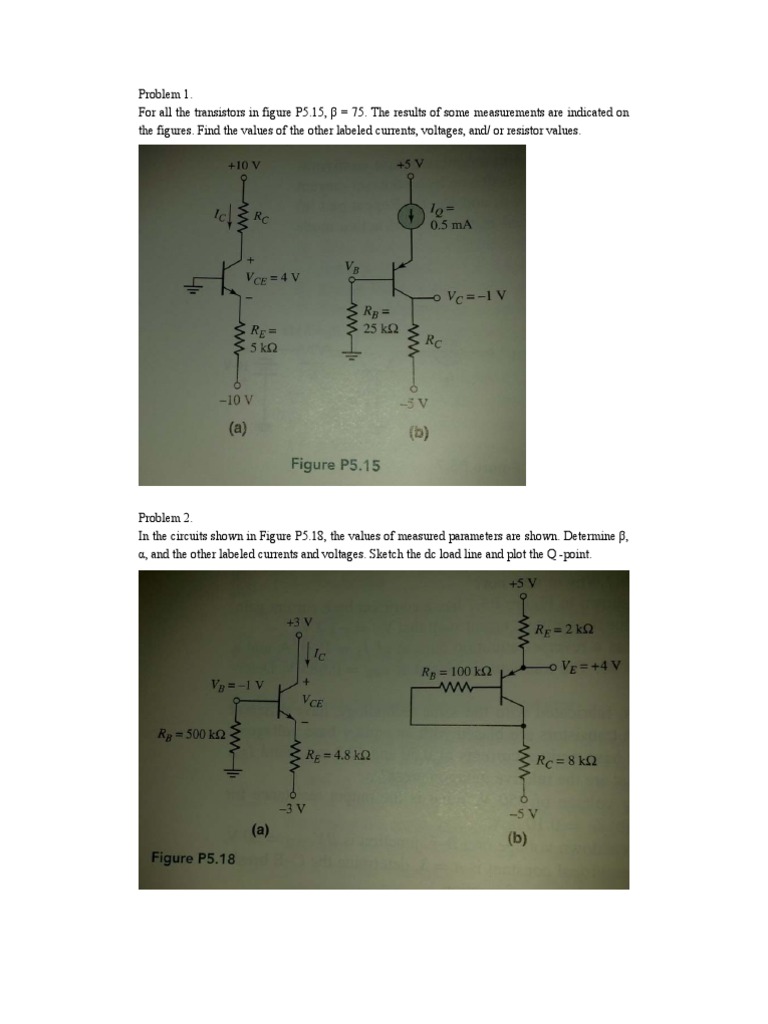

Problem 1. For all the transistors in figure P5.15, = 75.

. The results of some measurements are indicated on the figures. Find the values of the other labeled currents, voltages, and/ or resistor values.

Problem 2. In the circuits shown in Figure P5.18, the values of measured parameters are shown. Determine , , and the other labeled currents and voltages. Sketch the dc load line and plot the Q -point.

Problem 3. Consider the circuit shown in Figure P5.20. The measured value of the emitter voltage is VE = 2V. Determine IE ,IC, , , AND VEC . Sketch the dc load line and plot the Q - point.

Problem 4. For the circuit shown in Figure P5.24, if =200 for each transistor, determine: A) IE1 B) IE2 C) VC1 D) VC2

Problem 5. Consider the circuit shown in Figure P5.44. Determine IBQ, ICQ, and VCEQ for A) =75 B) =150

Problem 6. Using the circuit in Figure P5.52, design a bias-STABLE AMPLIFIER SUCH THAT THE Q-point is in the center of the load line. Let=125. Determine ICQ, VCEQ, R1 and R2.

Problem 7. The dc load line and Q- point of the circuit in Figure P5.56(a) are shwon in Figure P5.56(b). For the transistor, =120. Find RE, R1, and R2 such that the circuit is bias stable.

Problem 8. For each transistor in the circuit in Figure P5.70,=120 and the B-E turn-on voltage is 0.7V. Determine the quiescent base, collector, and emitter currents in Q1 and Q2. Also determine VCEQ1 and VCEQ2 .

Problem 9. The transistor parameters are =125 and VA =200v. A value of gm=200 mA/V is desired. Determine the collector current required, and then find r and r0.

Problem 10. The parameters of the transistor in the circuit in Figure P6.11 are =150 and V A , A) Determine R1 and R2 to obtain a bias- stable circuit with the Q- point in the center of the load line. B) Determine the small- signal voltage gain Av=v0 / vs

Problem 11. Consider the circuit shown in Figure P6.18 where vs 4 sin t (mV ) . Assume =80, A) Determine v0(t) and i0(t). What are the small- signal voltage and current gains? B) Repeat part(a) for Rs=0.

Problem 12. The parameters of the transistor in the circuit in Figure P6.20 are =100 and VA=100 V. A) find the dc voltages at the base and emitter terminals. B) Find RC such that VCEQ=3.5V . C) Assuming CC and CE act as short circuits, determine the small- signal voltage gain AV = vo / vs . D) Repeat part (c) if a 500source resistor is in series with the vs signal source.

Problem 13. For the circuit in Figure P6.14, let =100, V A , RE=12.9K, and RC=6K. Determine the maximum undistorted swing in the output voltage if the total instantaneous C-E voltage is to remain in the range 1 vCE 9V and if the total instantaneous collector current is to remain

greater or equal to 50A.

Problem 14. The transistor parameters for the circuit in Figure P6.39 are =180 and V A , A) Find ICQ and VCEQ B) Plot the dc and ac load lines. C) Calculate the small- signal voltage gain. D) Determine the input and output resistances Rib and R0

Problem 15. For the circuit in FigureP6.49, the transistor current gain is =80 and RL =500 , Design the circuit to obtain a small- signal current gain of Ai=i0/is=8. Let VCC=10v. Find R1, R2, and the output resistance R0. If RE = 500, What is the current gain if RL=2000.

Problem 16. For the circuit shown in Figure P6.56, the transistor parameters are =100 and V A . A) determine the dc voltages at the collector, base and emitter terminals. B) Determine the small- signal voltage gain Av =v0 / vs C) Find the input resistance Ri

Problem 17. The parameters for each transistor in the circuit shown in Figure P6.64 are =100 and V A . A) determine the small- signal parameters gm ,r and r0 for b oth transistors. B) Determine the small- signal voltage gain AV1 = vo1 / vs , assuming vo1 is connected to an open

circuit, and determine the gain AV2 = vo / v1 . C) Determine the overall small- signal voltage gain AV = vo / vs . Compare the overall gain with the product Av1 and Av2, using the values calculated in part(b).

Problem 18. For the circuit shown in Figure P6.66, assume transistor parameters of =100 and V A . A) Determine the dc collector current in each transistor. B) Find the small- signal voltage gain AV = vo / vs. C) Determine the input and output resistances Rib and R0.
