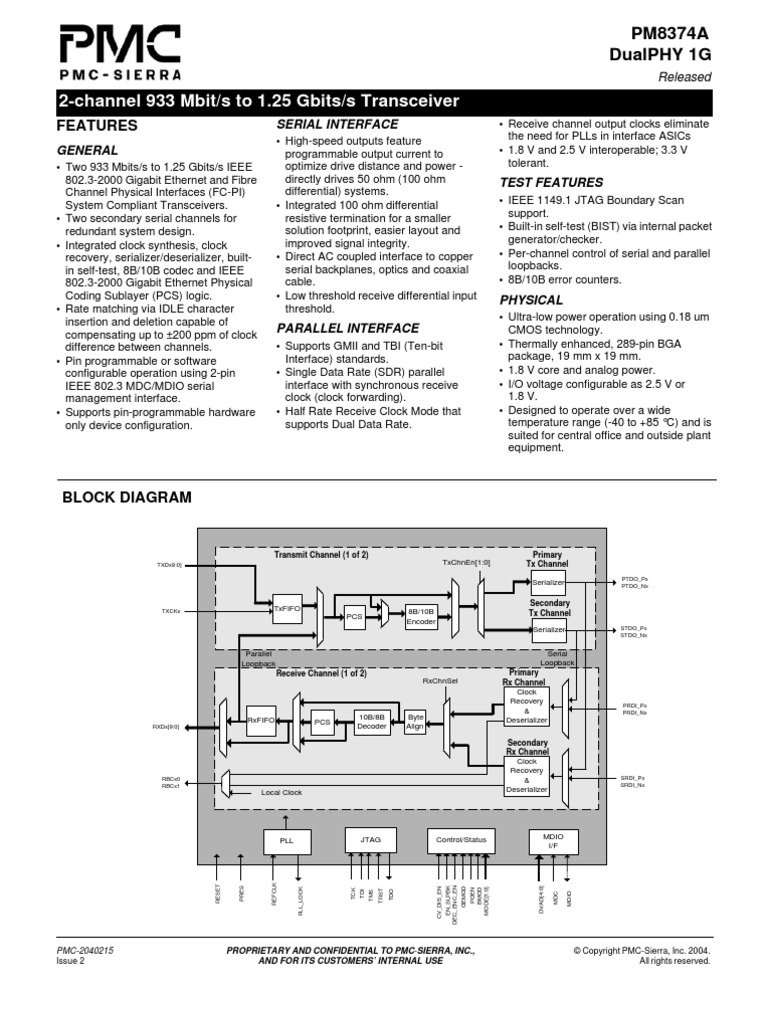

PM8374A DualPHY 1G

Released

2-channel 933 Mbit/s to 1.25 Gbits/s Transceiver


FEATURES
GENERAL
Two 933 Mbits/s to 1.25 Gbits/s IEEE 802.3-2000 Gigabit Ethernet and Fibre Channel Physical Interfaces (FC-PI) System Compliant Transceivers. Two secondary serial channels for redundant system design. Integrated clock synthesis, clock recovery, serializer/deserializer, builtin self-test, 8B/10B codec and IEEE 802.3-2000 Gigabit Ethernet Physical Coding Sublayer (PCS) logic. Rate matching via IDLE character insertion and deletion capable of compensating up to 200 ppm of clock difference between channels. Pin programmable or software configurable operation using 2-pin IEEE 802.3 MDC/MDIO serial management interface. Supports pin-programmable hardware only device configuration.

SERIAL INTERFACE
High-speed outputs feature programmable output current to optimize drive distance and power directly drives 50 ohm (100 ohm differential) systems. Integrated 100 ohm differential resistive termination for a smaller solution footprint, easier layout and improved signal integrity. Direct AC coupled interface to copper serial backplanes, optics and coaxial cable. Low threshold receive differential input threshold.

Receive channel output clocks eliminate the need for PLLs in interface ASICs 1.8 V and 2.5 V interoperable; 3.3 V tolerant.

TEST FEATURES
IEEE 1149.1 JTAG Boundary Scan support. Built-in self-test (BIST) via internal packet generator/checker. Per-channel control of serial and parallel loopbacks. 8B/10B error counters.

PHYSICAL
Ultra-low power operation using 0.18 um CMOS technology. Thermally enhanced, 289-pin BGA package, 19 mm x 19 mm. 1.8 V core and analog power. I/O voltage configurable as 2.5 V or 1.8 V. Designed to operate over a wide temperature range (-40 to +85 C) and is suited for central office and outside plant equipment.

PARALLEL INTERFACE
Supports GMII and TBI (Ten-bit Interface) standards. Single Data Rate (SDR) parallel interface with synchronous receive clock (clock forwarding). Half Rate Receive Clock Mode that supports Dual Data Rate.

BLOCK DIAGRAM

Transmit Channel (1 of 2)
TXDx9:0]

TxChnEn[1:0]

Primary Tx Channel Serializer


PTDO_Px PTDO_Nx

TXCKx

TxFIFO PCS

8B/10B Encoder

Secondary Tx Channel Serializer


STDO_Px STDO_Nx

Parallel Loopback Receive Channel (1 of 2) RxChnSel

Serial Loopback Primary Rx Channel Clock Recovery & Deserializer Secondary Rx Channel Clock Recovery & Deserializer

RXDx[9:0]

RxFIFO

PCS

10B/8B Decoder

Byte Align

PRDI_Px PRDI_Nx

RBCx0 RBCx1

SRDI_Px SRDI_Nx

Local Clock

PLL

JTAG

Control/Status

MDIO I/F

REFCLK

RESET

CV_DIS_EN EN_SLPBK DEC_ENC_EN

PRES

GEMOD POEN BMOD MODE[1:0]

PLL_LOCK

DVAD[4:0]

TCK TDI TMS

TRST

TDO

PMC-2040215 Issue 2

PROPRIETARY AND CONFIDENTIAL TO PMC-SIERRA, INC., AND FOR ITS CUSTOMERS INTERNAL USE

MDIO

MDC

Copyright PMC-Sierra, Inc. 2004. All rights reserved.

PM8374A DualPHY 1G 2-channel 933 Mbit/s to 1.25 Gbits/s Transceiver


APPLICATIONS
High-speed serial backplanes. IEEE 802.3-2000 Gigabit Ethernet dense line cards. Wireless Basestations (Implementation of CPRI interface and OBSAI RP3 interface). ANSI X3T11 Fibre Channel dense line cards. Link Aggregation. Intra-system and inter-system interconnect. Chassis Extender.

TYPICAL APPLICATIONS
GIGABIT ETHERNET SWITCH-ROUTER APPLICATION

Protect Switch Card Working Switch Card 2-Port GE Line Card # 1 2 x GE LAN Optics 4 PM8374A DualPHY 1G MAC PM8374A DualPHY 1G

PM8354 QuadPHY 1G

HS Serial I/F

Parallel I/F

Parallel I/F

HS Serial I/F 2 x 1.25 Gbit/s Serial Backplane Links

PM8354 QuadPHY 1G Switch Fabric


2-Port GE Line Card # n 2 x GE LAN Optics 4


PM8374A DualPHY 1G PM8354 QuadPHY 1G

PM8374A DualPHY 1G

MAC

HS Serial I/F

Parallel I/F

Parallel I/F

HS Serial I/F Parallel I/F

Head Office: PMC-Sierra, Inc. 8555 Baxter Place Burnaby, B.C. V5A 4V7 Canada Tel: 1.604.415.6000 Fax: 1.604.415.6200

To order documentation, send email to: document@pmc-sierra.com or contact the head office, Attn: Document Coordinator

All product documentation is available on our web site at: http://www.pmc-sierra.com For corporate information, send email to: info@pmc-sierra.com

PMC-2040215 (R2) PMC, PMCS, and PMC-Sierra are trademarks of PMC-Sierra, Inc. Other product and company names mentioned herein may be the trademarks of their respective owners.

PROPRIETARY AND CONFIDENTIAL TO PMC-SIERRA, INC., AND FOR ITS CUSTOMERS INTERNAL USE
