CIP

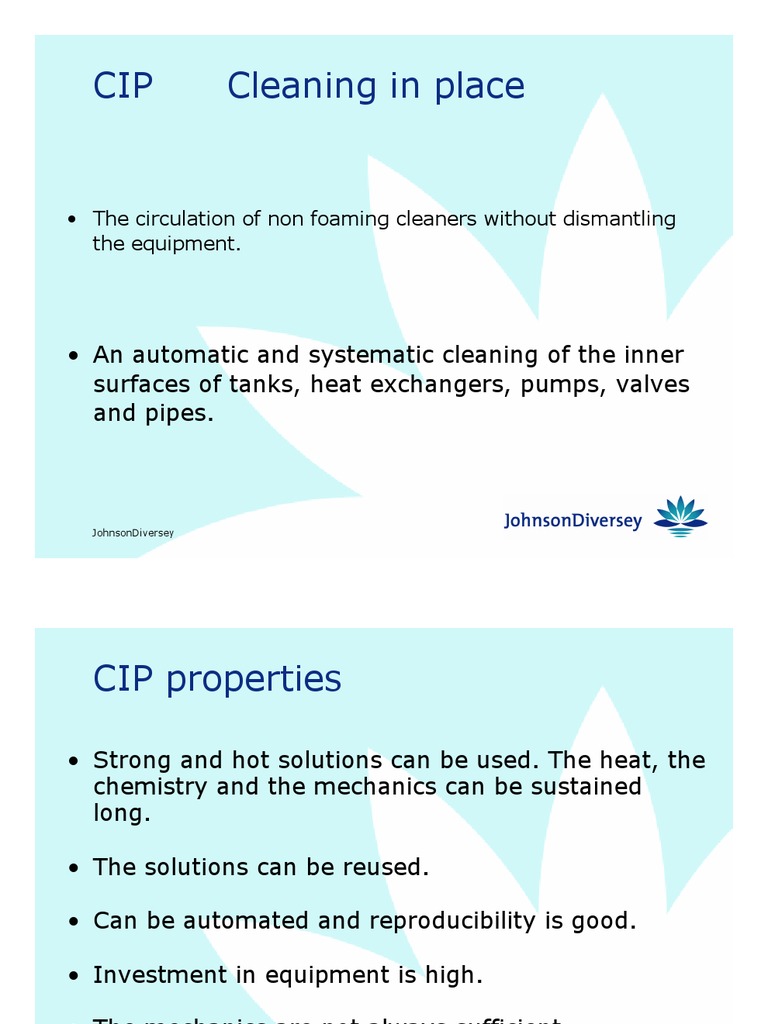

Cleaning in place
An automatic and systematic cleaning of the inner surfaces of tanks, heat exchangers, pumps, valves and pipes.
JohnsonDiversey
CIP properties
Strong and hot solutions can be used. The heat, the chemistry and the mechanics can be sustained long. The solutions can be reused. Can be automated and reproducibility is good. Investment in equipment is high. The mechanics are not always sufficient
JohnsonDiversey
JohnsonDiversey
1 second
inside diameter
v=
Where,
4.Q 3600.d .
meters per second m3 per hour dimensionless meters
2
Velocity vs flow
DN 80
77
6.9
9.3
DN 100
97
11.1
14.8
DN150
JohnsonDiversey
147
25.5
33.9
Vertical vessels
For most vessels, the sprayball delivers a uniform quantity of solution to the upper circumference of the vessel Based on soil level, deliver a given quantity of solution to a unit length of circumference - called liquid loading:
JohnsonDiversey
Sprayball Placement
Dome Height
Where, = angle of coverage, D = diameter of vessel, Dome height degrees meters meters
Sprayball
Dome Weld
NOTE: This is valid for simple vessels without obstructions. Additional sprayballs may be required.
JohnsonDiversey
example
100 gpm
15
6 dia.
JohnsonDiversey
Sprayball pressure
Sprayball pressure is critical
Generally in the range (1.0) 1.5 - 2.5 (3.0) bar Too little pressure and the vessel walls are not reached Too much and the spray atomises reducing mechanical action Larger sprayballs with larger hole diameters can operate at higher pressures without atomising. All sprayballs have specified flow / pressure curves
JohnsonDiversey
JohnsonDiversey
FS = 27 for light soil conditions FS = 30 for medium soil conditions FS = 32 for heavy soil conditions
JohnsonDiversey
JohnsonDiversey
JohnsonDiversey
Use similar data to specify as sprayballs Use manufacturers recommendations Toftejorg have a computer simulation program called TRAX - use it
JohnsonDiversey
CIP Optimizing
CIP optimizing is the process of minimizing the cost inputs of CIP cleaning
JohnsonDiversey
Optimizing drivers
clean circuits - no dead legs, no flow splits accurate and non competing instrumentation - conductivity monitoring no leaks
CIP program
correct CIP program philosophy CIP preparation sequence - correct conductivity starting point tidy CIP fluids interface management - always in lines never in tanks correct valve sequencing on monitor signals defined terminators each CIP step
JohnsonDiversey
To predict CIP losses and costs we must know the CIP circuit volume.
It is the amount of liquid held up in the CIP headers and the vessel or line being cleaned.
To calculate the circuit volume for a line clean we need to know the diameters of the lines and the length of each line size.
To calculate the circuit volume of a vessel clean we need to know the line information and the dimensions of the vessel being cleaned.
too.
Dome
Assume a completely wetted surface
Cylinder
Cone
JohnsonDiversey
Area of Cylinder:
Area Dome = r
Area Cylinder = D h2
h2 h1
Area of Cone
1 2 2 Area Cone = D D + h1 2 4
NOTE :
r =
1 D 2
JohnsonDiversey
Liquid loss for an efficient vessel CIP system is about 10% of circuit volume.
Line cleans can be run more efficiently than vessel cleans - as low as 5% loss.
Effective Flow meter or conductivity interface detection. Managing liquid interfaces into pipes not vessels.
New liquid to sprayball chasing old liquid into vessel. Over scavenge old liquid from vessel into return line. New liquid into vessel chasing old along return line to interface detector. First step should be volumetric and set for each vessel. JohnsonDiversey
measured as % of concentrate detergent lost compared to the concentrate detergent in the CIP circuit volume
concentrate detergent lost is calculated by CIP tank, volume and concentration, before and after CIP
concentrate detergent in circuit volume calculated as the volume of solution held in the CIP circuit excluding the CIP tank at the starting concentration
JohnsonDiversey
The CIP flow is best circulated bypassing the CIP tanks with the heating and chemical dosing in line
JohnsonDiversey
