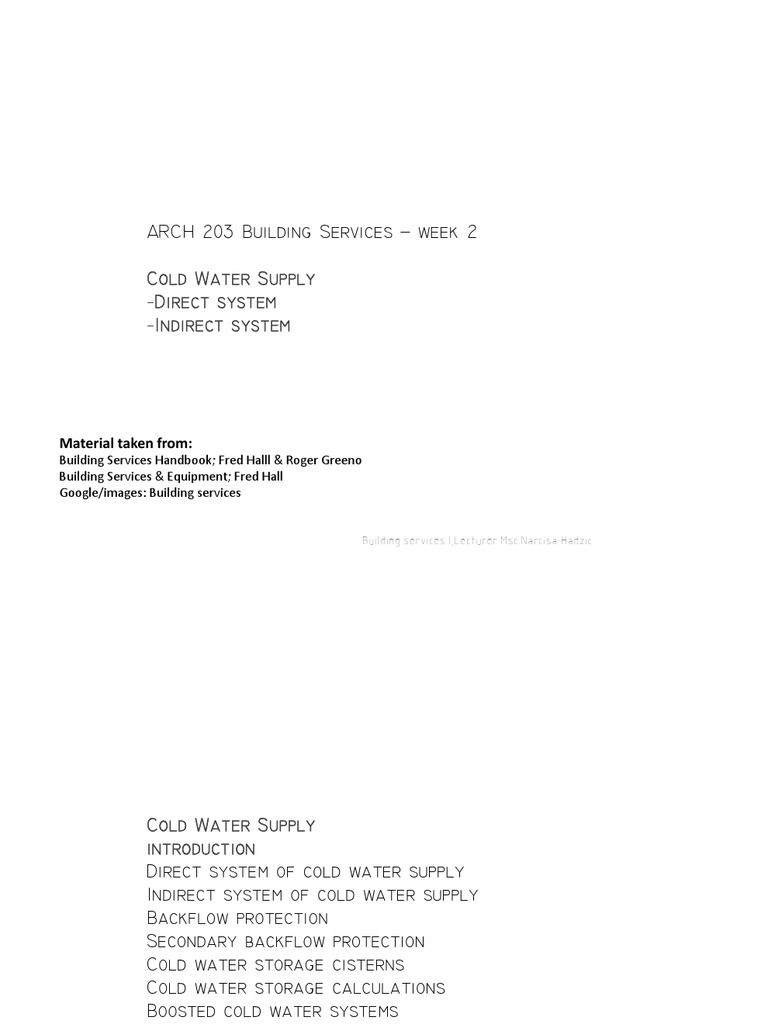

Direct system Indirect system Materialtakenfrom: BuildingServicesHandbook;FredHalll &RogerGreeno BuildingServices&Equipment;FredHall
g q p ; Google/images:Buildingservices Cold Water Supply introduction introduction Direct system of cold water supply Indirect system of cold water supply Backflow protection Secondary backflow protection Cold water storage cisterns Cold water storage calculations Boosted cold water systems
DIRECTCOLDWATERSUPPLYSYSTEM Direct system of cold water supply: Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system Direct system of cold water supply: Note: Before desiging a coldwater system for a building it is essential to know the local Water Authorities requirements. There are two distinct systems, namely: Direct and Indirect, but some Water Authorities will allow some modifications to these systems. Direct system: This system is used mostley in areas where large level of reservoirs provide a good mains suppland pressure. In this system all sanitary fittings are supplied with cold water direct from the main and a cold water feed cistern is required only to feed the hot water storage cylinder the main, and a cold water feed cistern is required only to feed the hot water storage cylinder. The capacity in litres of the feed cistern is required to be at least equal to the capacity in litres of the hot water cylinder. The water regulations require a cistern of 114 litres (minimum) capacity and is therefore small enough to be accommodated in the top of an airing cupboard, thus saving lagging of the cistern and pipework.
Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system For efficient operation a high pressure water supply is essential For efficient operation, a high pressure water supply is essential particularly at periods of peak demand. Pipework is minimal and the storage cistern supplying the hot water cylinder need only have 115 litres capacity. The cistern may be located within the airing cupboard or be combined with the hot water cylinder. the hot water cylinder. Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system Drinking water is available at every drawoff point and maintenance valves should be fitted to isolate each section of pipework. With every outlet supplied from the main, the possibility of back siphonage must be considered must be considered. Back siphonage can occur when there is a high demand on the main. NNegative pressure can then draw water back into the main from a flooded inlet, e.g. a rubber tube attached to a tap or a shower fitting without a check valve facility left lying in dirty bath water. Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system In old systems without check valves, there is a risk of water becoming infected due to backflow becoming infected due to backflow (water flows back into the mains) and such installations are no longer permitted in new housing. The hot water system is extremely inefficient and unable to supply central heating. Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system Direct system:
Direct system:
Cold Water Supply COLD WATER SUPPLY SYSTEM...direct system A direct supply system fitted with a modern boiler, antisyphon and backflow devices complies with: most modern water bylaws and eliminates the dangers of bacterial contamination. This system is easy to install and maintain and, because the water is under constant mains pressure the risk of freezing is reduced It is under constant mains pressure, the risk of freezing is reduced. It does, however, slightly increase the risks of leaking joints. This system is recommended where there is sufficient mains water This system is recommended where there is sufficient mains water supply to maintain a good quantity of water at adequate pressure during peak periods. INDIRECTCOLDWATERSUPPLYSYSTEM Indirect system of cold water supply: Cold Water Supply COLD WATER SUPPLY SYSTEM...INdirect system Indirect system of cold water supply: Note: Before desiging a coldwater system for a building it is essential to know the local Water Authorities requirements. There are two distinct systems, namely: Direct and Indirect, but some Water Authorities will allow some modifications to these systems. Indirect system: In this system all the sanitary fittings, except drinking water drawoffs at sinks and fountains, are supplied indirectly from a coldwater storage cisterns.Snce the cistern suplies cold water to baths basins showers etc and also feeds the hotwater cylinder to baths,basins,showers,etc.,and also feeds the hot water cylinder, its capacity in liters will be approximately double that required for the direct system. The water regulations require a cistern of 227liters minimum capacity, and therefore will be accommodated in the roof space.
Cold Water Supply COLD WATER SUPPLY SYSTEM...INdirect system Indirect cold water system. Water comes into house via rising main, is branched off to feed at least one tap (in this feed at least one tap (in this case the kitchen and outside tap. It also feeds the boiler next It also feeds the boiler next to the sink) and then continues to a storage tank in the loft. From here it is distributed to the other taps in the house. the other taps in the house. Overflow pipes are marked O. The position of stopcocks etc is marked on the diagram below is marked on the diagram below which also shows the hot water path.
Indirect system: Cold Water Supply COLD WATER SUPPLY SYSTEM...INdirect system y
Cold Water Supply COLD WATER SUPPLY SYSTEM...INdirect system An indirect system supplies all sanitary appliances hand basins, showers, baths and WCs with water fed from a storage tank. Mains water for drinking is available at the kitchen tap only This can Mains water, for drinking, is available at the kitchen tap only. This can also supply washing machines and a garden tap, which must be fitted with a check valve. The advantages of an indirect system include tankfed water being at low pressure, reducing noise and the likelihood of leaks. If they do occur, these produce less water and damage than a highpressure system and there is less wear and tear on valves and washers. Pump boosted showers can only less wear and tear on valves and washers. Pump boosted showers can only be fed from this type of system. Cold Water Supply COLD WATER SUPPLY SYSTEM...INdirect system The indirect system is more expensive to install (more pipework and tanks) and, unless properly installed and ) , lagged, it is vulnerable to frost damage. Modern lagging enables this to be carried out easily Modern lagging enables this to be carried out easily. If the water supply is cut off, the dwelling still has plenty of stored water for essential use. Recent water regulations insist that cold water storage tanks are fitted with kits to protect the water from contamination and infection, thus making the water potable (drinkable). Backflow Prevention AND Commercial Applications Cold Water Supply Backflow Prevention AND Commercial Applications What Is Backflow? Most of the time water flows "forward" from the water supply system into the building. Backflow is the term used to describe the "backward flow" of water into the water supply system. In other words, backflow would occur when water from the building "flows back" into the public water supply. backflow can be caused when water from a garden hose "flows back" the building. Backflow can be caused by either back pressure or backsiphonage of a plumbing system. If water flowing backwards contains hazardous chemicals or bacteria, it can cause an unhealthy or dangerous situation. Cold Water Supply Backflow Prevention AND Commercial Applications In water supply systems, water is normally maintained at a significant pressure to enable water to flow from the tap shower etc to enable water to flow from the tap, shower etc. When pressure fails or is reduced as may happen if a water main bursts, pipes freeze or there is unexpectedly high demand on the water system, the pressure in the pipe may be reduced and may allow contaminated water from the ground, from storage of from other sources to be drawn into the system. Cold Water Supply Backflow Prevention AND Commercial Applications To prevent such an occurrence, many regulatory regimes require there to be an air gap between the delivery point of mains water and local storage or use air gap between the delivery point of mains water and local storage or use. Where flooded mains inflow is permitted a backflow prevention device is required. In this way backflow prevention device protects the drinkable water system from contamination hazards which can be severed. There are over 10 000 reported cases of backflow contamination each year Some There are over 10,000 reported cases of backflow contamination each year. Some cases can be fatal. Cold Water Supply Backflow Prevention AND Commercial Applications In this situation, dirty water from the hillside pool will back siphon or back flow down the hosepipe and into the clean water tank. To prevent this from happening, the houses external tap should be fitted with a backflow prevention device. The simplest, and most effective way to provide backflow prevention is to provide an air gap. An air gap is simply a space between any device that opens to a plumbing system (like a valve or faucet) and any place where water can collect or pool. Cold Water Supply Backflow Prevention AND Commercial Applications An air gap, as it relates to the plumbing trade, is the unobstructed vertical space between the water outlet and the flood level of a fixture. A A simple example is the space between a wall mounted faucet and the sink rim (this space is the air gap). Water can easily flow from the faucet into the sink, but there is no way that water can flow from the sink into the faucet without modifying the system. This arrangement will prevent any contaminants in the sink from flowing into the potable water system by siphonage and is the least expensive form of backflow prevention. Cold Water Supply Backflow Prevention AND Commercial Applications To install a backflow preventer in a building, water will be unable to flow back into the public water pipes. The backflow preventer creates an isolated or closed plumbing system. For some homeowners, thermal expansion could produce leaky faucets or set off the relief valve on hot water heaters or in some cases other faucets or set off the relief valve on hot water heaters, or in some cases, other damage may occur. Thermal expansion occurs when your hot water heater heats the water, causing it to expand. COLDWATERSTORAGECISTERNS Cold Water Supply COLDWATERSTORAGECISTERNS Cisterns can be manufactured from galvanized mild steel (large nondomestic capacities), polypropylene or glass reinforced plastics. They must be well insulated and supported on adequate bearers to spread the concentrated load. Plastic cisterns will require uniform support on boarding over bearers. A dustproof cover is essential to prevent contamination. dustproof cover is essential to prevent contamination. Cold Water Supply COLDWATERSTORAGECISTERNS For large buildings cisterns are accommodated in a purposemade plant room at For large buildings, cisterns are accommodated in a purposemade plant room at roof level or within the roof structure. This room must be well insulated and ventilated, and be provided with thermostatic control of a heating facility. For maintenance and repairs each cistern must be capable of isolation and independent operation. independent operation. Cold Water Supply COLDWATERSTORAGECISTERNS Specification for storage cisterns up to 500 l actual capacity for water to 500 l actual capacity for water supply for domestic purposes. Cold Water Supply COLDWATERSTORAGECISTERNS Where storage demand exceeds 4500 liters, cisterns must be duplicated and interconnected. In the interests of load distribution this should be provided at much lower capacities provided at much lower capacities. Specification for galvanised low carbon steel cisterns, cistern lids, tanks and cylinders. Cisterns for domestic use. Cold water storage and combined feed and expansion storage and combined feed and expansion (thermoplastic) cisterns up to 500 l specification. Cold Water Supply COLDWATERSTORAGECISTERNS C 24 Cold Water Supply COLDWATERSTORAGECISTERNS Cold water storage data is provided to allow for up to 24 hours interruption of mains water supply Cold Water Supply COLDWATERSTORAGECISTERNS Boosted Cold Water System I Cold Water Supply Boosted Cold Water System For medium and high rise buildings, there is often insufficient mains pressure to supply water directly to the upper floors supply water directly to the upper floors. Boosting by pump from a break tank is therefore usually necessary and several more of these tanks may be required as the building rises, depending on the pump capacity. Cold Water Supply Boosted Cold Water System A break pressure cistern is also required on the down service to limit the head or pressure on the lower fittings to a maximum of 30 m pressure on the lower fittings to a maximum of 30 m. Knowing the flow rate and pressure needed, then identify the most suitable type of electric pump. On twopump sets, the pumps act as backup for one another one pump is normally sufficient to provide for average requirements, while at times of peak demand the backup pump is used as well. Cold Water Supply Boosted Cold Water System 1 The drinking water header pipe or storage vessel supplies drinking water to the upper floors upper floors. As this empties and the water reaches a predetermined low level, the pipeline switch engages the duty pump. A float switch in the break tank protects the pumps from dry running if there is an interruption to mains supply. The various pipe sections are fitted with isolating valves to facilitate maintenance and repairs. Cold Water Supply Boosted Cold Water System 1 Boosted Cold Water System II Cold Water Supply Boosted Cold Water System 2 As an alternative to the drinking water header pipe, an autopneumatic cylinder may be used may be used. Compressed air in the cylinder forces water up to the float valves and drinking water outlets on the upper floors. As the cylinder empties a low pressure switch engages the duty pump. When the pump has replenished the cylinder, a high pressure switch disengages the pump. Cold Water Supply Boosted Cold Water System 2 In time, some air is absorbed by the water. As this occurs, a float switch detects the high water level in the cylinder and activates an air compressor to regulate the correct volume of air. Break pressure cisterns may be supplied either from the storage cisterns at roof Break pressure cisterns may be supplied either from the storage cisterns at roof level or from the rising main. A pressure reducing valve is sometimes used instead of a break pressure cistern. Boosted Cold Water System III I Cold Water Supply Boosted Cold Water System 3 In modest rise buildings of several storeys where water is in fairly constant demand, water can be boosted from a break tank by a continuously running pump. The installation is much simpler and less costly than the previous and less costly than the previous two systems as there is less need for specialised items of equipment. Sizing of the pump and its delivery rating are critical, otherwise it could persistently overrun, or at the other extreme be inadequate the other extreme be inadequate. Modern pumps have variable settings allowing considerable scope around the Cold Water Supply Boosted Cold Water System 3 Modern pumps have variable settings allowing considerable scope around the design criteria. The pump is normally scheduled to run on a timed programme, e.g. in an office block it may commence an hour before normal occupancy and run on for a couple of hours after. Water delivery should be just enough to meet demand. When demand is low a pressure regulated motorised bleed valve opens to recirculate water back to the break tank. Water Supply Pressure Boosting Pressure Boosting SUMMARY Cold Water Supply SUMMARY... Direct system Note: In a direct system all the cold water taps and wc cistern are fed off the rising main, the main advantages being that suitable drinking water is available from every cold tap and there is sufficient water pressure especially for electric showers. The main disadvantage is a greater risk of contaminated water getting into the water main. To check what system is in your home, isolate the water supply at your stop cock if you dont know where it is now is as good a time as any to stop cock, if you dont know where it is, now is as good a time as any to find out. When you have isolated the supply turn your bath and wash basin, cold water taps on. If after 10 seconds cold water continues to run then you have an indirect system, if the water has stopped you have a direct system. Cold Water Supply SUMMARY... InDirect system Note: An indirect system is where only the kitchen sink is fed from the rising main, all the other cold water outlets are fed indirectly using gravity from a head tank (cistern), usually situated in the loft. The hot water outlets are also fed from the same head tank the same head tank. The advantages using this method are less likely hood of contaminated water getting into the mains supply and because of contaminated water getting into the mains supply and because of the reduced water pressure there is less chance of noisy pipes. The disadvantages are only the kitchen sink should be used for drinking water and due to using the head tank for both hot and cold water storage this tank usually has to be a lot bigger. HOMEWORK 2 Make a research on: C l l Cold water supply systems Drawings and text required
