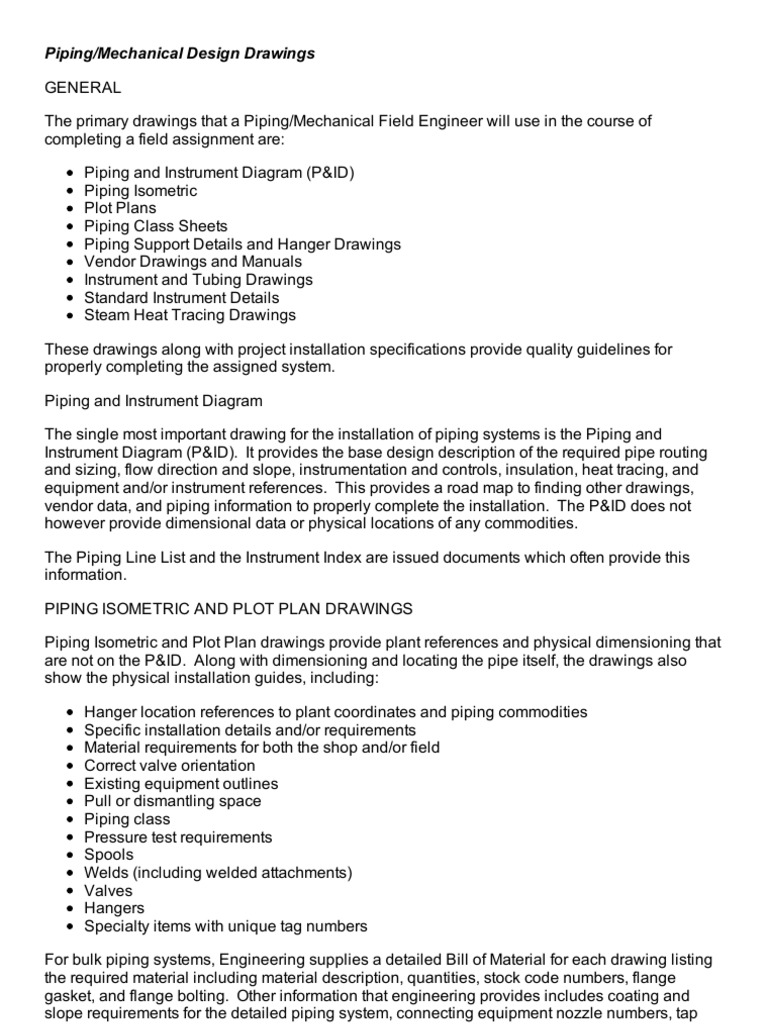

Piping/Mechanical Design Drawings GENERAL The primary drawings that a Piping/Mechanical Field Engineer will use in the course

of completing a field assignment are: Piping and Instrument Diagram (P&ID) Piping Isometric Plot Plans Piping Class Sheets Piping Support Details and Hanger Drawings Vendor Drawings and Manuals Instrument and Tubing Drawings Standard Instrument Details Steam Heat Tracing Drawings These drawings along with project installation specifications provide quality guidelines for properly completing the assigned system. Piping and Instrument Diagram The single most important drawing for the installation of piping systems is the Piping and Instrument Diagram (P&ID). It provides the base design description of the required pipe routing and sizing, flow direction and slope, instrumentation and controls, insulation, heat tracing, and equipment and/or instrument references. This provides a road map to finding other drawings, vendor data, and piping information to properly complete the installation. The P&ID does not however provide dimensional data or physical locations of any commodities. The Piping Line List and the Instrument Index are issued documents which often provide this information. PIPING ISOMETRIC AND PLOT PLAN DRAWINGS Piping Isometric and Plot Plan drawings provide plant references and physical dimensioning that are not on the P&ID. Along with dimensioning and locating the pipe itself, the drawings also show the physical installation guides, including: Hanger location references to plant coordinates and piping commodities Specific installation details and/or requirements Material requirements for both the shop and/or field Correct valve orientation Existing equipment outlines Pull or dismantling space Piping class Pressure test requirements Spools Welds (including welded attachments) Valves Hangers Specialty items with unique tag numbers For bulk piping systems, Engineering supplies a detailed Bill of Material for each drawing listing the required material including material description, quantities, stock code numbers, flange gasket, and flange bolting. Other information that engineering provides includes coating and slope requirements for the detailed piping system, connecting equipment nozzle numbers, tap orientations, stress relief and NDE requirements for piping welds, and standard details for vents

and drains. PIPING CLASS SHEETS Piping class sheets specify the material and code requirements for designated piping system pressure and temperature ratings. A sample Piping Class Sheet is shown in Attachment 4-1. HANGER DRAWINGS Hanger drawings provide a detailed drawing of the pipe support, and include the following: Detailed bill of materials Building location and elevation reference Piping dimensional reference for installation location Welding requirements Line reference numbers Design loads (on some projects, hanger loads are determined from standard load tables and/or charts based on pipe size, span, and support member size) VENDOR DRAWINGS AND MANUALS Drawings supplied by vendors will vary by manufacturer but generally provide: Outline drawings Material types Parts listing Weights and Centers of Gravity Field test requirements Operating pressures and temperatures and data (e.g. pump curves) Start-up, operating, and maintenance procedures INSTRUMENT AND TUBING DRAWINGS Design Engineering provides a standard set of drawings for the Mechanical Field Engineer to use in the installation process. The Piping/Mechanical Field Engineer will match the instrument category and service fluid and instruct the craft in which detail should be used. The standard usually will show routing, vents and drains, manifolds, bill of material and stock codes. HEAT TRACING DRAWINGS Heat tracing drawings provide the Mechanical Field Engineer with: Heat tracing category Plant location Piping isometric and line number Manifold locations with specific tap numbers for tie-in of both steam and condensate tubing.

SAMPLE PIPING CLASS SHEET ATTACHMENT 4-1

Class (XXX) ASME B31.1 Power Piping Code

Primary Rating 150 LB @ 600 oF

Pipe:

26" and larger 12" thru 24" 2 1/2" to 10" 2" and smaller

Fittings:

26" and larger 2 1/2" thru 24" 2" and smaller

Flanges: 26" and larger 2 1/2" thru 24" 2" and smaller Plate: Bolting: Gaskets: Valves: Joints: Bolts Nuts All Sizes

Seamless ASTM A-672, Gr. B70 SCH. (later if required). Seamless ASTM A-106, Gr. B STD. WALL SCH. 40 SCH. 80 ASTM A234 GR. WPBW seam weld, butt weld, wall thickness to match pipe ASTM A234 GR WPB or WPBW seamless or seamweld, butt weld, wall to match pipe ASTM A-105 3000# socket weld SCH. 80 ASTM A-105, bored to match pipe. 150# welding neck R.F. 150# slip-on, R.F. 150# socket weld, R.F. ASTM A515 GR. 70 Stud bolts, ASTM A-193 GR. B7 Heavy hex, ASTM A-194, GR 2H SEE NOTE 2

Notes:

ASBESTOS FREE SPIRAL WOUND SEE PS-22 Welded except at flange equipment connections. Field weld end preparation and weld end transition (ref. PS-06) 1. This piping shall not be used where service temperature exceeds 775 oF. 2. Flexitallic Style CG with Flexite-Super filler or equal for design temperature not exceeding 1000 oF. Metal Strip used shall be stainless steel TP304. 3. Pipe minimum walls (pipe schedules) are based on design conditions of 200 PSIG @ 400 oF.
