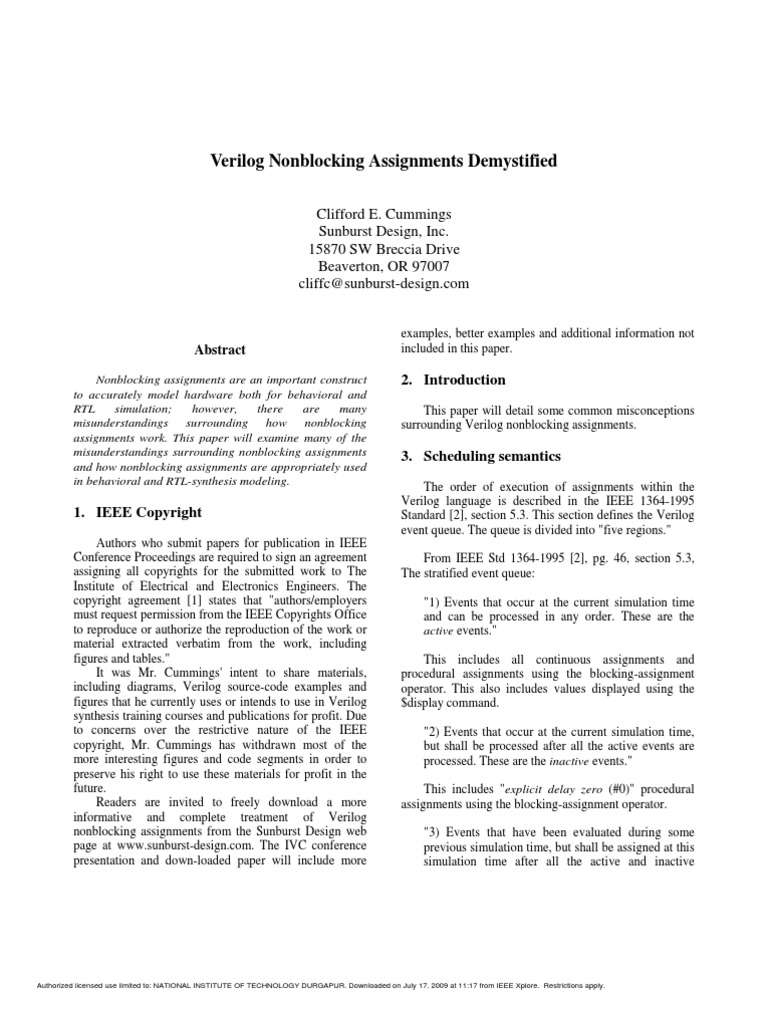

Verilog Nonblocking Assignments Demystified
Clifford E. Cummings
Sunburst Design, Inc.
15870 SW Breccia Drive
Beaverton, OR 97007
cliffc@sunburst-design.com
Abstract
Nonblocking assignments are an important construct
to accurately model hardware both for behavioral and
RTL simulation; however, there are many
misunderstandings surrounding how nonblocking
assignments work. This paper will examine many of the
misunderstandings surrounding nonblocking assignments
and how nonblocking assignments are appropriately used
in behavioral and RTL-synthesis modeling.
1. IEEE Copyright
Authors who submit papers for publication in IEEE
Conference Proceedings are required to sign an agreement
assigning all copyrights for the submitted work to The
Institute of Electrical and Electronics Engineers. The
copyright agreement [1] states that "authors/employers
must request permission from the IEEE Copyrights Office
to reproduce or authorize the reproduction of the work or
material extracted verbatim from the work, including
figures and tables."
It was Mr. Cummings' intent to share materials,
including diagrams, Verilog source-code examples and
figures that he currently uses or intends to use in Verilog
synthesis training courses and publications for profit. Due
to concerns over the restrictive nature of the IEEE
copyright, Mr. Cummings has withdrawn most of the
more interesting figures and code segments in order to
preserve his right to use these materials for profit in the
future.
Readers are invited to freely download a more
informative and complete treatment of Verilog
nonblocking assignments from the Sunburst Design web
page at www.sunburst-design.com. The IVC conference
presentation and down-loaded paper will include more
Authorized licensed use limited to: NATIONAL INSTITUTE OF TECHNOLOGY DURGAPUR. Downloaded on July 17, 2009 at 11:17 from IEEE Xplore. Restrictions apply.
examples, better examples and additional information not
included in this paper.
2. Introduction
This paper will detail some common misconceptions
surrounding Verilog nonblocking assignments.
3. Scheduling semantics
The order of execution of assignments within the
Verilog language is described in the IEEE 1364-1995
Standard [2], section 5.3. This section defines the Verilog
event queue. The queue is divided into "five regions."
From IEEE Std 1364-1995 [2], pg. 46, section 5.3,
The stratified event queue:
"1) Events that occur at the current simulation time
and can be processed in any order. These are the
active events."
This includes all continuous assignments and
procedural assignments using the blocking-assignment
operator. This also includes values displayed using the
$display command.
"2) Events that occur at the current simulation time,
but shall be processed after all the active events are
processed. These are the inactive events."
This includes "explicit delay zero (#0)" procedural
assignments using the blocking-assignment operator.
"3) Events that have been evaluated during some
previous simulation time, but shall be assigned at this
simulation time after all the active and inactive
 events are processed. These are the nonblocking 5. $strobe and $monitor commands
assign update events."
To show values after making nonblocking
This includes procedural assignments using the assignments, use either the $strobe command or the
nonblocking-assignment operator. $monitor command, both of which execute after a
nonblocking assignment has completed execution.
"4) Events that shall be processed after all the active,
inactive, and nonblocking assign update events are $strobe example:
processed. These are the monitor events."
module strobe_ivc;
This includes values displayed using either the reg a;
$monitor or $strobe commands.
initial begin
"5) Events that occur at some future simulation time. a = 0;
a <= 1;
These are the future events. Future events are divided
$strobe("$strobe: a = %b", a);
into future inactive events, and future nonblocking #1 $finish;
assignment update events." end
endmodule
4. $display command
Output display:
Verilog users often become confused when trying to
display values after making assignments using $strobe: a = 1
nonblocking assignments. In the earlier section describing
scheduling semantics, it is clear that if both a $display The value displayed by the $strobe command is the
command and a nonblocking assignment are scheduled in value that was assigned by the nonblocking assignment, a
the same simulation time-step, the $display command will <= 1;
complete before the nonblocking assignment has
completed. This can be confusing if a $display command $monitor example:
was placed immediately after a nonblocking assignment
module monitor_ivc;
since the displayed value will be the value before the
reg a;
nonblocking assignment has completed.
initial begin
$display example: a = 0;
a <= 1;
module display_ivc; $monitor("$monitor: a = %b", a);
reg a; #1 $finish;
end
initial begin endmodule
a = 0;
a <= 1; Output display:
$display("$display: a = %b", a);
#1 $finish; $monitor: a = 1
end
endmodule
The value displayed by the $monitor command is the
Output display: value that was assigned by the nonblocking assignment, a
<= 1;
$display: a = 0
6. #0 delays
The value displayed by the $display command is the An over-used and generally poor Verilog coding style
value that was assigned by the blocking assignment, a = is to make assignments with #0 delays. #0 is generally
0; not the updated value from the nonblocking believed to force assignments to occur at the end of a
assignment. simulation time-step and is most frequently used in

Authorized licensed use limited to: NATIONAL INSTITUTE OF TECHNOLOGY DURGAPUR. Downloaded on July 17, 2009 at 11:17 from IEEE Xplore. Restrictions apply.
 Verilog models that make assignments to the same
variable from more than one procedural block.
This concept is flawed and the practice is over used.
#0 causes assignments to occur later in one of the
assignment queues.
Example:
module delay0_ivc;
reg a;
initial begin
#0 a = 0;
$display("#0 $display: a = %b", a);
end
initial a = 1;
initial a <= 1'bx;
initial $display("$display: a = %b", a);
initial $strobe("$strobe: a = %b", a);
initial #1 $finish;
endmodule
Output display:
$display: a = 1
#0 $display: a = 0
$strobe: a = x
The value displayed by the second $display
command was the value that was assigned by the blocking
assignment, a = 1;. The value displayed by the first
$display command was the value that was assigned by the
#0 blocking assignment, #0 a = 0;. The value displayed by
the $strobe command was the value that was assigned by
the nonblocking assignment, a <= 1'bx; therefore, the #0
command only insured that the #0-blocking assignment
was executed at the end of the blocking assignment
queue, but before the nonblocking assignment was
executed.
In general, it is poor coding practice to make
assignments to the same variable from multiple always
blocks. To compensate for this poor coding practise,
engineers use the #0 delay in an attempt to coerce
assignment-order to the same variable from multiple
always blocks or to delay a specific assignment from
occurring until after the assignment input variable has
been updated by another always block. This coding
practice is one source of Verilog race conditions and
should be discouraged.
Authorized licensed use limited to: NATIONAL INSTITUTE OF TECHNOLOGY DURGAPUR. Downloaded on July 17, 2009 at 11:17 from IEEE Xplore. Restrictions apply.
7. Assignments in the same always block
A common misconception concerning nonblocking
assignments is that if multiple nonblocking assignments
are made to the same variable, in the same procedural
block, during the same simulation time-step, that this
behavior is undefined in the Verilog language. This is not
true.
From IEEE Std 1364-1995 [2], pg. 47, section 5.4.1
Determinism -
"2) Nonblocking assignments shall be performed in
the order the statements were executed. Consider the
following example:
initial begin
a <= 0;
a <= 1;
end
When this block is executed, there will be two events
added to the nonblocking assign update queue. The
previous rule requires that they be entered on the
queue in source order; this rule requires that they be
taken from the queue and performed in source order
as well. Hence, at the end of time-step 1, the variable
a will be assigned 0 and then 1."
It is good synthesis and model coding style to make
an initial default assignment in an always block to output
variables using nonblocking assignments, and then to
update specific assignments within the block as
functionally appropriate.
This coding style, in general, makes model-code
more compact and easy to follow, since the default output
assignments are at the beginning of the always block and
it is easy to scan the rest of the block to see where a
specific output is assigned.
References
[1] IEEE Copyright Form, http://www.ieee.org/copyright
[2] IEEE Standard Hardware Description Language Based on
the Verilog Hardware Description Language, IEEE Computer
Society, IEEE Std 1364-1995
