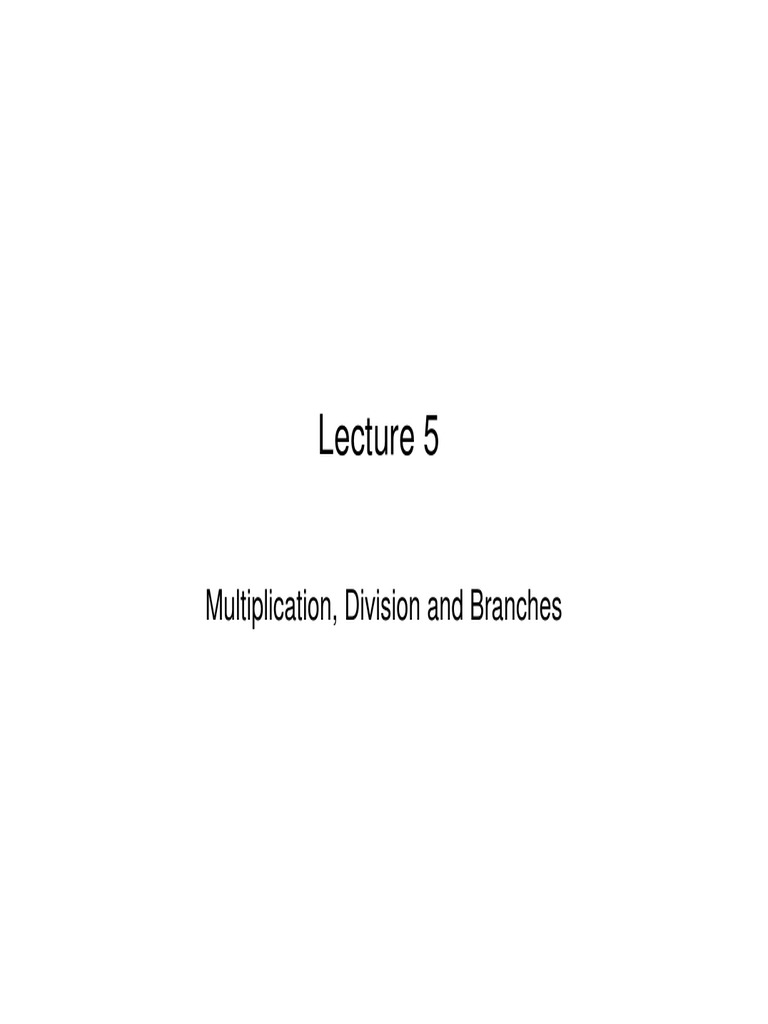

Lecture 5

Multiplication, Division and Branches

Outline
Where are we Multiplication Division Comparison Jump instructions

By now you should be able to

Move data between registers and memory Address memory in 17 ways Use logic and shifting operations to
Apply bit masks Multiple with sums of powers of two Divide by powers of two

Use addition and subtraction with both signed and unsigned numbers Organize simple programs

Unsigned Multiplication
MUL X, where X can be register or memory location Second argument is implicit, it is stored in
AL if X is 8-bit number AX if X is 16-bit number EAX if X is 32-bit number

Result stored in
AX if arguments are 8-bit DX:AX if arguments are 16-bit EDX:EAX if arguments are 32-bit

The mess with flags

The values of A,S,Z,P are undefined after multiplication This means that you cannot check the Z flag to see if the result is 0! You have to compare the result with the value 0 using a CMP instruction The C and O flags are cleared if the result fits in a half-size register

Signed Multiplication
The architects tried to apologize for the inconvenience in 80286 and later processors 2s complement signed integers IMUL reg/mem IMUL reg, reg/mem IMUL reg, immediate IMUL reg, reg/mem, immediate data

Signed Multiplication
IMUL X behaves like MUL IMUL A, B computes A=A*B IMUL A,B,C computes A=B*C There is no 8-bit by 8-bit multiplication, last operand may be 8-bit The instruction does not produce a 2n bit result so 16-bit by 16-bit produces as 16-bit number When the result does not fit in half-sized register the instruction sets the C and O flags What a mess

Simple Examples
IMUL BL ; AX=AL*BL, single operand like MUL IMUL BX ; DX:AX=BX*AX, single operand like MUL IMUL CX,DX,12h ; CX=DX*12h, result in 16-bit CX

Use of MUL/IMUL
Accessing multidimensional arrays Let A a NxM array of words with row-major ordering A[I,J] is accessed as A+(I*M+J)*2 Let a NxMxO array of words with row-major ordering A[I,J,K] is accessed as A+((I*M+J)*O+K)*2 It is convenient but it is slow

Unsigned division
DIV X, X register or memory Nominator is implicit, stored in AX if X 8-bit, DX:AX if X is 16-bit, EDX:EAX is X is 32-bit If X 8-bit quotient is stored in AL and remainder in AH If X 16-bit quotient is stored in AX and remainder in DX If X 32-bit quotient in stored in EAX and remainder in EDX

Dividing equally sized words

Use sign-extension of the nominator Special instructions for sign extensions CBW (Convert Byte to Word)
Before: AX=xxxx xxxx snnn nnnn After: AX=ssss ssss snnn nnnn

CWD (Convert Word to Double Word)

Before AX=snnn nnnn nnnn nnnn After DX=ssss ssss ssss ssss AX=snnn nnnn nnnn nnnn

CWDE
Similar to CWD but sign extends in EAX instead of DX

Flags
Division just scrambles the flags Division by 0 though produces an interrupt by the microprocessor If the quotient does not fit in the register, this also produces an interrupt E.g. 1000/2=500, argument (2) is 8-bit but quotient (500) does not fit in AL, there is a divide overflow and an interrupt is produced

Rounding
We get rid of the remainder when we want to truncate the result We can double the remainder, compare it to the denominator and then adjust the quotient
If (remainder*2) > denominator, increment quotient

Unconditional Jumps
Transfer the control flow of the program to a specified instruction, other than the next instruction in sequential execution Jumps are performed with labels pointing to the address of the target instruction It is the equivalent of a goto statement Goto is good in assembly!

Unconditional jumps
Short jump
JMP SHORT label, where label is within 128/+127 bytes off the current instruction

Near jump
JMP label, where label is within 32,768/+32,767 bytes off the current instruction

Far jump
JMP label, where label is any memory address, in segment:offset format

In protected mode near and far jumps are the same

Conditional Jumps
Jumps performed if a condition evaluates to true Conditions are evaluated based on the values of the bits in the FLAGS register Test S, Z, P, C, O If condition is true the jump is performed to the location specified If condition is false the code proceeds with the next instruction in sequence Short or near jumps in 80386

Comparisons
CMP A, B Executes A-B without modifying A (non-destructive) CMP is most of the time followed by a conditional jump based on the outcome of the comparison
CMP AL, 10h JAE target ; If AL >= 10 jump

CMP is a non-destructive SUB, it sets the flags exactly like the SUB instruction

Comparisons
Unsigned A,B
If (A<B), C=1 If (A>B), C=0 Z tested for equality/inequality

Signed A,B
If (S XOR O = = 1) A<B else A>B Z tested for equality/inequality

Signed comparisons
Case 1, Sign=1, Overflow=0
A-B looks negative There is no overflow, so A<B

Case 2, Sign=0, Overflow=1

A-B looks positive But there is overflow so the sign bit is wrong and A<B

Case 3, Sign=0, Overflow=0

A-B looks positive No overflow, so A>B

Case 4, Sign=1, Overflow=1

A-B looks negative But overflow bit is set so the sign flag is wrong therefore A>B

Conditional Jumps
Syntax: JX, where X denotes the condition J -> Jump N -> Not E -> Equal A/B -> Above/Below for unsigned arithmetic G/L -> Greater/Less for signed arithmetic

Conditional jump instructions

JL, jump if less
Jumps if A<B, that is if S XOR O = 1

JA, JNBE (above == not (below or equal))

Jumps if C=0&Z=0

JBE, JNA (below or equal == not above)

Jumps if Z=1 | C=1

JAE, JNB, JNC (above or equal == not below==no carry)

C=0

Conditional jump instructions

JB, JNAE, JC (below == not above == carry set)
C=1

JE, JZ (equal == result is 0)

Z=1

JNE, JNZ (not equal == result is not 0)

Z=0

JNS (sign, no sign)

S=0

JO
O=1

JS
S=1

Conditional jump instructions

JNO
O=0

JG, JNLE (greater==not (less or equal))

S=0, Z=0

JGE, JNL (greater or equal == not less)

S=0

JL, JNGE (less == not (greater or equal))

S XOR O = 1

JLE, JNG (less or equal == not greater)

(S XOR O = 1) | Z=1

JCXZ (counter register is 0), useful for loops

Loops
LOOP label
Combination of CMP and JNZ

Decrement the CX register and if register has not become 0 jump to the specified label If CX becomes 0 the instruction following the LOOP instruction is executed

Example
ADDS mov cx, 100 mov si, BLOCK1 mov di, BLOCK2 .Again lodsw ;get Block1 data ; AX = [SI]; SI = SI + 2 AX, [ES:DI] ;add Block2 data ;store in Block2 ; [DI] = AX; DI = DI + 2 .Again ;repeat 100 times ;load count

add stosw

loop ret

If then else in assembly

mov ax, [a] mov bx, [b] cmp ax,bx ja .true ; false instructions jmp .done .true ; true instructions If (a>b) { /* true instructions */ } else { /* false instructions */ }

Switch in assembly
cmp al, a jne .b ; these are the a instructions jmp .done .b cmp al, b jne .default ; these are the b instructions .default ;default instructions .done switch (var) { case a: /* a instructions */ break; case b: /* b instructions */ break; default /* default instructions */ }

Do while in assembly
.begin ; instructions mov ax, [a] mov bx, [b] cmp a,b je .begin do { /* instructions */ } while (a==b);

While do in assembly
.begin mov ax, [a] mov bx, [b] cmp ax,bx jne .done ; instructions jmp begin .done while (a==b) { /* instructions */ };

For loop
mov cx, 10 .begin ; instructions loop .begin for (i=10;i>0;i--) { /* instructions */ }

Examples
; ; ; ; if (J <= K) then L := L + 1 else L := L - 1 J, K, L are signed words
; ; ; ; ; while (J >= J := J K := K L := J end; K) do - 1; + 1; * K; begin

mov cmp jnel inc jmp .DoElse: dec .ifDone:

ax, [J] ax, [K] .DoElse word [L] .ifDone word [L]

.WhlLoop: mov cmp jnge dec inc mov imul mov jmp .QuitLoop:

ax, [J] ax, [K] .QuitLoop word [J] word [K] ax, [J] [K] [L], ax .WhlLoop
