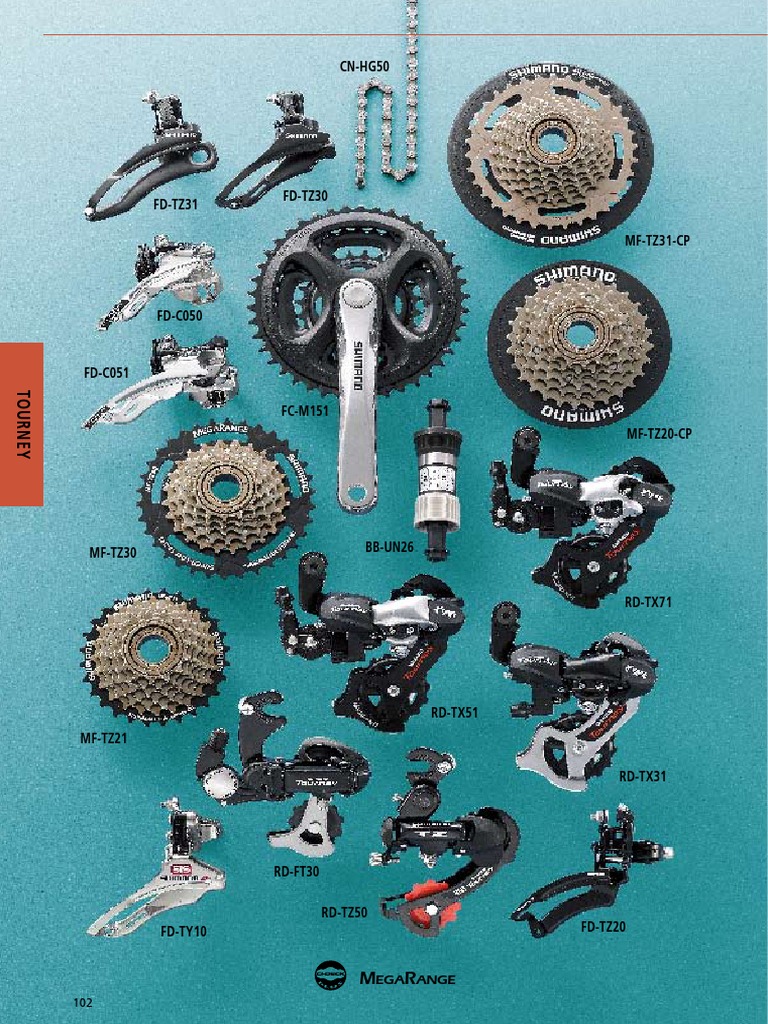

CN-HG50

FD-TZ31

FD-TZ30 MF-TZ31-CP

FD-C050

FD-C051

TOURNEY
MF-TZ30 MF-TZ21 FD-TY10 102

FC-M151 MF-TZ20-CP

BB-UN26

RD-TX71

RD-TX51

RD-TX31

RD-FT30 RD-TZ50

FD-TZ20

MEGARANGE

SHIMANO

RD-TX71/RD-TX51/RD-TX31

Rear Derailleur

FC-M151

Crankset

6/7-speed SIS rear index shifting Slant Pantograph Precise shifting, reliable shifting SMARTCAGE pulley plate Aluminum right link High grade appearance (RD-TX71) Wheel type cable guide pulley Light action shifting effort (RD-TX71/TX51) MEGARANGE gear compatible Mega Pulley Attractive, long service life and less noise B-tension adjusting screw for easy adjustment Compatible with 11T top gear

8,7,6-speed Chainring combinations : 42-34-24T, 48-38-28T Chainline : 47.5mm Chainguard option available Crank arm lengths : 170mm

Comfort Components

BB-UN26

Cartridge Bottom Bracket

Sealed cartridge bearing assembly

Index 48-38-28T compatible FD-C051

TOP SWING Front Derailleur

RD-TZ50

Rear Derailleur

Index 42-34-24T compatible FD-C050 FD-TY10

TOP SWING Front Derailleur DOWN SWING Front Derailleur

6-speed SIS rear index shifting Slant Pantograph Precise shifting, reliable shifting

TOURNEY

RD-FT30

Rear Derailleur

Friction 48-38-28T compatible FD-C051 FD-TZ31 FD-TZ21

TOP SWING Front Derailleur DOWN SWING Front Derailleur DOWN SWING Front Derailleur

Short cage Smallest cage in all Shimano rear derailleur. Fit for folding bike. For 16x1.75 and larger wheel. *Compatible with single chainwheel only. 6/7-speed SIS rear index shifting Wheel type cable guide pulley Light action shifting effort Compatible with 11T top gear

Friction 42-34-24T compatible FD-C050 FD-TZ30 FD-TZ20

TOP SWING Front Derailleur DOWN SWING Front Derailleur DOWN SWING Front Derailleur

Road Components

MF-TZ31/MF-TZ30/ MF-TZ21/MF-TZ20/MF-TZ07/MF-TZ06
Multiple Freewheel

7-speed
Model No. MF-TZ31-CP MF-TZ31 MF-TZ21-CP MF-TZ21 MF-TZ07 Chain Protector X X MEGARANGE X X Gearing 14-34T 14-34T 14-28T 14-28T 14-28T HG/UG X X X X X

Dual Pull cable anchor (FD-C050/C051) Two cable anchor positions allow a single derailleur to be used with frames that have top or bottom pull cables. Multi Clamp system (FD-C050/C051) Allows a single derailleur to be mounted to 28.6, 31.8 or 34.9 mm frame tube diameters. (Two smaller sizes use adapters.) DUAL SIS front index shifting (FD-C050/C051/TY10)

Cycling Wear and Others

Wheelsets / SPD

6-speed
Model No. MF-TZ30-CP MF-TZ30 MF-TZ20-CP MF-TZ20 MF-TZ06 Chain Protector X X MEGARANGE X X Gearing 14-34T 14-34T 14-28T 14-28T 14-28T HG/UG X X X

CN-HG50 CN-UG51

HG Chain UG Chain

HG/UG chain for precise SIS / DUAL SIS index shifting

Technical Notes / Service Parts

X X

Specifications

103

HB-IM40

BR-IM35-RF

BR-IM35-FF

RH-IM10

ST-EF50 SL-RS43-L

TOURNEY
SL-TZ20-LN SL-TZ20-6R SL-RS41A-L SL-TX30-LN SL-TX30-6R 104

SL-RS43-7R

SL-RS41-7R

SL-RS41-L

ST-EF40

SL-RS41A-7R SL-TX50-LN

SL-RS35-L SL-RS35-6R SL-TX50-7R

SHIMANO
Easy gear changing and lever reach adjustment (ST-EF50/EF40) Easy gear changing with REVOSHIFT shifter (SL-RS43/RS41/RS41A/RS35) REVOSHIFT shifter is available in 6 and 7-speed models for convenient SIS index shifting with just a twist of the wrist. Optical Gear Display Every Tourney shifter features the Optical Gear Display for convenient gear position verification at a glance. CI-DECK gear indicator compatible (SL-RS43/RS41/RS41A/RS35)

DUAL SIS 21-speed Shift Lever ST-EF50-7R/L EZ FIRE Plus Shifter (7S, R/L) ST-EF40-7R/L EZ FIRE Plus Shifter (7S, R/L) SL-RS43-7R/L REVOSHIFT Shifter (7S, R/L) SL-RS41A-7R/L REVOSHIFT Shifter (7S, R/L) SL-RS41-7R/L REVOSHIFT Shifter (7S, R/L) SL-RS35-7R/L REVOSHIFT Shifter (7S, R/L) SL-TX50-7R/L Thumb Shifter Plus DUAL SIS 18-speed Shift Lever ST-EF40-6R/L EZ FIRE Plus Shifter (6S, R/L) SL-RS41-6R/L REVOSHIFT Shifter (6S, R/L) SL-RS35-6R/LA REVOSHIFT Shifter (6S, R/L) Rear SIS 21-speed Shift Lever SL-RS43-7R/LN
REVOSHIFT Shifter (7S, R/L, left lever is non-SIS)

Comfort Components

BR-IM35-RF BR-IM35-FF

Hub Roller Brake (Rear) Hub Roller Brake (Front)

TOURNEY

Require less maintenance at all, such as toe-in adjust, balancing L & R spring, shoe angle adjustment on V-BRAKE All-weather performance (performs same in rain condition) Almost no noise

SL-RS35-7R/LN
REVOSHIFT Shifter (7S, R/L, left lever is non-SIS)

RH-IM10

Steel Rear Hub

SL-TZ20-7R/LN
Thumb Shifter (7S, R/L, left lever is non-SIS)

Roller brake (BR-IM35-RF) compatible rear hub for multi-speed O.L.D : 133mm (6-speed), 135mm (7-speed)

Road Components

Rear SIS 18/12-speed Shift Lever SL-RS43-6R/LN

REVOSHIFT Shifter (6S, R/L, left shifter is non-SIS)

HB-IM40

Front Hub

SL-RS35-6R/LN
REVOSHIFT Shifter (6S, R/L, left shifter is non-SIS)

SL-TX30-6R/LN
Thumb Shifter Plus (6S, R/L, left shifter is non-SIS)

Roller brake (BR-IM35-FF) compatible front hub for 26 wheel or larger Braking POWER MODULATOR system Roller brake compatible front hub features a built-in braking POWER MODULATOR that prevents excess brake pressure.

SL-TZ20-6R/LN
Thumb Shifter (6S, R/L, left shifter is non-SIS)

Cycling Wear and Others

Wheelsets / SPD Specifications

Technical Notes / Service Parts

105

CI-DECK / Cycle Computer / Lamp

ID-TX50 SM-TX50

ID-TX50 SC-TX30 / SC-TX31 SM-TX30 SM-TX31

ID-TX50 SC-TX50

LP-M300 Silver SC-M300

LP-M300 Black SC-M300

106

SHIMANO

CI-DECK / Cycle Computer / Lamp

The CI-DECK features easy assembly. The bracket uses a single-piece construction so there will be minimal to no damage even if it is tampered with in shops. The common drive cable drastically reduces the number of parts. The cycle computer SC-TX50 / SC-TX30 / SC-TX31 are lined up for the high-grade version of CI-DECK. It is an advanced system that hub dynamo supplies electric power and the cycling information is always visible by backlight. The Xenon/LED dual lamp LP-M300 and the cycle computer SC-M300 are also available.

Comfort Components

CI-DECK
ID-TX50/SM-TX50
Dual gear position display Easy-to-read gear indicators Single-piece construction (SM-TX50) Easy assembly Simplified ordering Multi-clamp band Fits both 22.2/25mm handlebars

ID-TX50

SM-TX50

ID-TX50

CI-DECK / Cycle Computer / Lamp

SM-TX30*1
Single-piece construction Assembly time reduced to one-fourth

SC-TX30 Speedometer ID-TX50 SC-TX31 Cadence display Gear position

SM-TX31
Cowling

SM-TX32*1
Analog Compass

Road Components

SM-TX31
Cowling SM-TX30

Cycle Computer
SC-TX30
Large display figures Analog-look/digital dual displays Speedometer, watch function EZ-cable clamp & cable length adjuster equipped

SM-TX32

Analog Compass
(You can see the direction by taking it out of the bracket.)
Cycling Wear and Others

Wheelsets / SPD

SC-TX31*1
Gear change timing indicator Analog-like cadence display EZ-cable clamp & cable length adjuster equipped

Lamp
LP-M300*3
Xenon/LED dual lamp Position light (LED) It is possible for LED to light up and for a position to be shown even at low speed. In-switch light sensor No switch operation *1 It can be used together with existing SC-TX50/SM-TX50 *2 Does not meets DIN standard *3 Cannot be used with 3.0W hub dynamo

SC-M300/SC-TX50*2
Hub dynamo electric power supplies back light Display is possible at once in two or more data Easy assemble : Without sensor (Rotation signal is received from hub dynamo) Easy to read by a big character SC information is always visible by back light Keep back light for 10 seconds after stopping

Technical Notes / Service Parts

Specifications

107

TOURNEY Specifications
Gearing Rear Derailleur
RD-TX71
7/6-speed SIS Index Shifting Max. Front Difference : 20T Total Capacity : 43T Max. Rear Sprocket : 28-34T Min. Rear Sprocket : 11T Aluminum Right Link Wheel-Type Cable Guide

Front Derailleur
DUAL SIS Front and Rear Index Shifting 48-38-28T

Shift Lever
DUAL SIS Front and Rear Index Shifting 7-speed

TOURNEY
DUAL SIS Front and Rear Index Shifting 3x7 speed

FD-C051 TOP SWING FD

Dual Pull, Multi-Clamp Band

7/6-speed Top Gearing : 48T Total Capacity : 20T Top-Middle Min. Difference : 10T

ST-EF50-7R/L EZ FIRE Plus Shift Lever ST-EF40-7R/L EZ FIRE Plus Shift Lever SL-RS43-7R/L REVOSHIFT Shifter SL-RS41-7R/L REVOSHIFT Shifter SL-RS41A-7R/L REVOSHIFT Shifter SL-RS35-7R/L REVOSHIFT Shifter SL-TX50-7R/L Thumb Shifter Plus
DUAL SIS Front and Rear Index Shifting 6-speed

RD-TX51

TOURNEY
DUAL SIS Front and Rear Index Shifting 3x6 speed

7/6-speed SIS Index Shifting Max. Front Difference : 20T Total Capacity : 43T Max. Rear Sprocket : 28-34T Min. Rear Sprocket : 11T Wheel-Type Cable Guide

DUAL SIS Front and Rear Index Shifting 42-34-24T

FD-C050 TOP SWING FD

Dual Pull, Multi-Clamp Band

FD-TY10 Down Swing FD RD-TX31

7/6-speed SIS Index Shifting Max. Front Difference : 20T Total Capacity : 43T Max. Rear Sprocket : 28-34T Min. Rear Sprocket : 11T 7/6-speed Top Gearing : 42T Total Capacity : 18T Top-Middle Min. Difference : 8T

ST-EF40-6R/L EZ FIRE Plus Shift Lever SL-RS41-6R/L REVOSHIFT Shifter SL-RS35-6R/LA REVOSHIFT Shifter

TOURNEY
108

SIS Rear Index Shifting 48-38-28T

SIS Rear Index Shifting 7-speed

FD-C051 TOP SWING FD

TOURNEY
SIS Rear Index Shifting 3x7 speed

Dual Pull, Multi-Clamp Band

RD-FT30
7/6-speed SIS Index Shifting Front Single use only Total Capacity : 17T Max. Rear Sprocket : 28T Min. Rear Sprocket : 11T

FD-TZ31 Down Swing FD FD-TZ21 Down Swing FD

7/6-speed Top Gearing : 48T Total Capacity : 22T Top-Middle Min. Difference : 10T

SL-RS43-7R/LN REVOSHIFT Shifter SL-RS35-7R/LN REVOSHIFT Shifter SL-TZ20-7R/LN Thumb Shifter

RD-TZ50

TOURNEY
SIS Rear Index Shifting 3x6 speed

6-speed SIS Index Shifting Max. Front Difference : 20T Total Capacity : 34T Max. Rear Sprocket : 28T Min. Rear Sprocket : 14T

SIS Rear Index Shifting 42-34-24T

SIS Rear Index Shifting 6-speed

FD-C050 TOP SWING FD

Dual Pull, Multi-Clamp Band

FD-TZ30 Down Swing FD FD-TZ20 Down Swing FD

7/6-speed Top Gearing : 42T Total Capacity : 18T Top-Middle Min. Difference : 8T

SL-RS43-6R/LN REVOSHIFT Shifter SL-RS35-6R/LN REVOSHIFT Shifter SL-TX30-6R/LN Thumb Shifter Plus SL-TZ20-6R/LN Thumb Shifter
