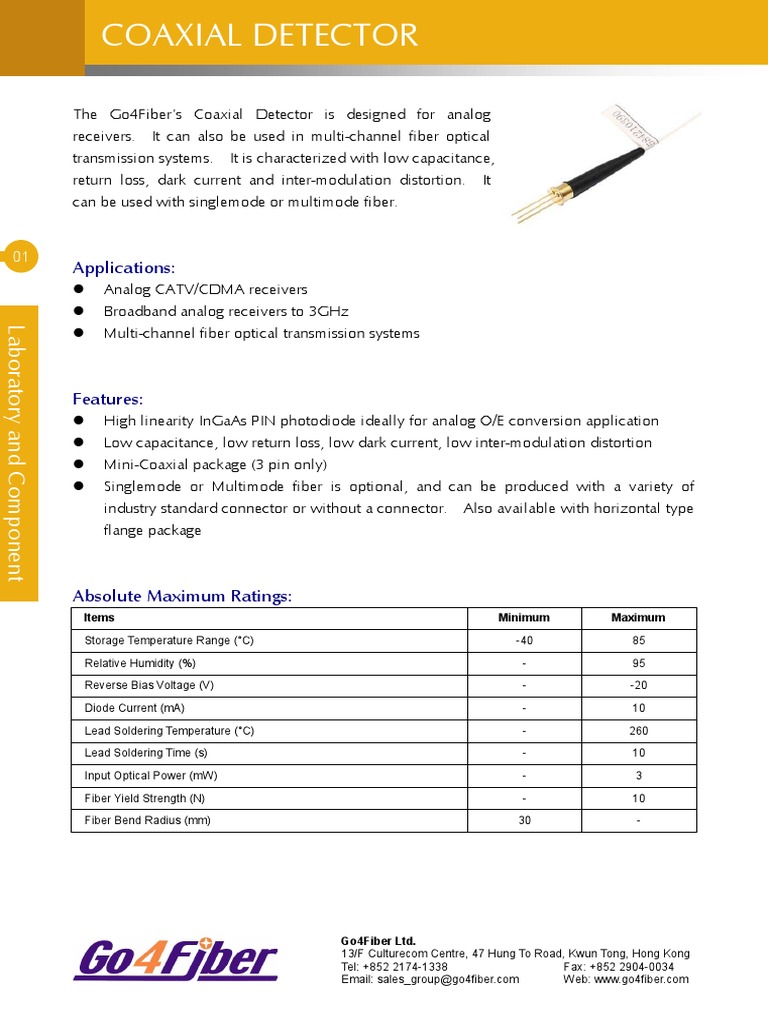

COAXIAL DETECTOR

The Go4Fiber's Coaxial Detector is designed for analog receivers. It can also be used in multi-channel fiber optical transmission systems. It is characterized with low capacitance, return loss, dark current and inter-modulation distortion. It can be used with singlemode or multimode fiber.

01

Applications:
Analog CATV/CDMA receivers Broadband analog receivers to 3GHz Multi-channel fiber optical transmission systems

Laboratory and Component

Features:
High linearity InGaAs PIN photodiode ideally for analog O/E conversion application Low capacitance, low return loss, low dark current, low inter-modulation distortion Mini-Coaxial package (3 pin only) Singlemode or Multimode fiber is optional, and can be produced with a variety of industry standard connector or without a connector. Also available with horizontal type flange package

Absolute Maximum Ratings:

Items Storage Temperature Range (C) Relative Humidity (%) Reverse Bias Voltage (V) Diode Current (mA) Lead Soldering Temperature (C) Lead Soldering Time (s) Input Optical Power (mW) Fiber Yield Strength (N) Fiber Bend Radius (mm) Minimum -40 30 Maximum 85 95 -20 10 260 10 3 10 -

Go4Fiber Ltd. 13/F Culturecom Centre, 47 Hung To Road, Kwun Tong, Hong Kong Tel: +852 2174-1338 Fax: +852 2904-0034 Email: sales_group@go4fiber.com Web: www.go4fiber.com

COAXIAL DETECTOR
Recommended Operating Conditions:
Items Case Operating Temperature Range (C) Operating Voltage (V) Minimum -40 Typical 25 -15 Maximum 85 -

02

Specifications (T=25C, VR=15V, unless otherwise noted):

Items Distortion Product IM2 (dBc) Distortion Product IM3 (dBc) Minimum 1.5 1100 0.85 0.90 45 Typical Maximum -70 -80 1 0.5 3.0 1650 -

Laboratory and Component

Dark Current (nA) Capacitance (pF) -3dB Bandwidth (GHz) Wavelength Range (nm) Responsivity @1310nm (A/W) Responsivity @1550nm (A/W) Return Loss (dB)

Pin Description:
Pin 1 2 3 Description GND Cathode Anode Bottom View

Go4Fiber Ltd. 13/F Culturecom Centre, 47 Hung To Road, Kwun Tong, Hong Kong Tel: +852 2174-1338 Fax: +852 2904-0034 Email: sales_group@go4fiber.com Web: www.go4fiber.com

COAXIAL DETECTOR
Package Outline (All in mm, unless otherwise noted):

03

Laboratory and Component

Ordering Information:
GDCS985
Bandwidth 015: 020: 025: 028: Blank: 1.5GHz 2.0GHz 2.5GHz 2.8GHz 3.0GHz
