Setting Up PowerMill Defaults
Setting Up PowerMill Defaults
Setting Up PowerMill Defaults
Support Document

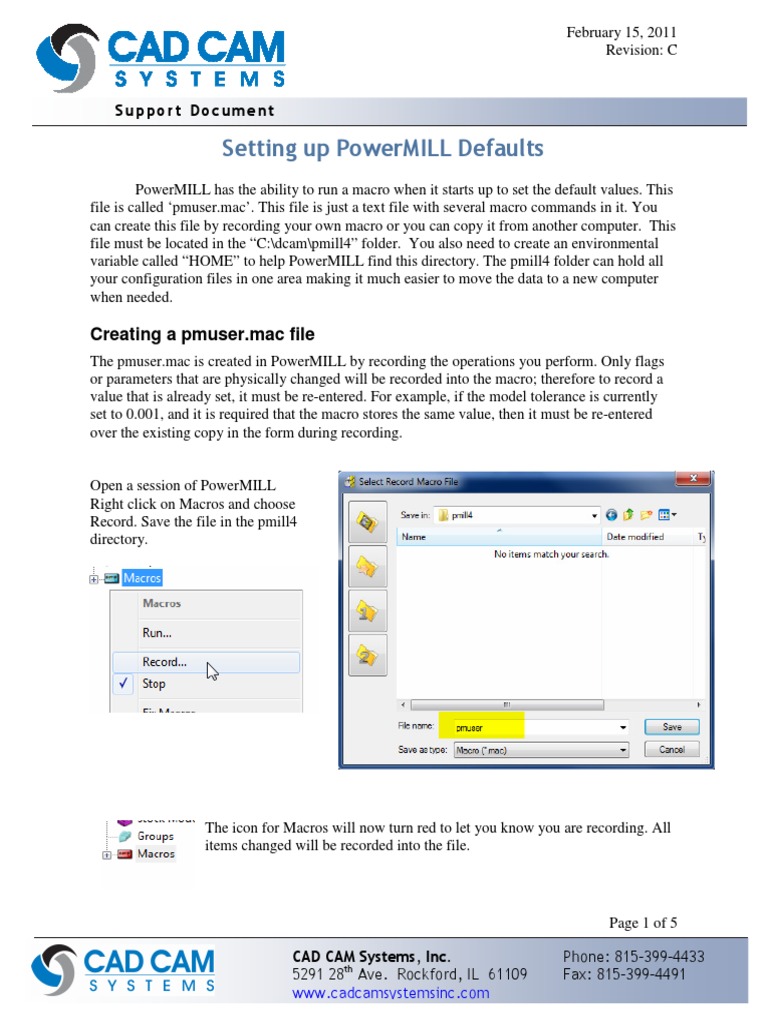

Open a session of PowerMILL Right click on Macros and choose Record. Save the file in the pmill4 directory.
The icon for Macros will now turn red to let you know you are recording. All items changed will be recorded into the file.
Page 1 of 5 CAD CAM Systems, Inc. 5291 28th Ave. Rockford, IL 61109 www.cadcamsystemsinc.com Phone: 815-399-4433 Fax: 815-399-4491
Bringing up the Model Drawing Options to change the Shading Tolerance to .001
Page 2 of 5 CAD CAM Systems, Inc. 5291 28th Ave. Rockford, IL 61109 www.cadcamsystemsinc.com Phone: 815-399-4433 Fax: 815-399-4491
February 15, 2011 Revision: C The pmuser.mac file is optional and PowerMILL can run without it. In PowerMILL 10 and above, many of the options are now stored in the registry and do not need to be set each time PowerMILL starts up. These options can be changed and will be saved when PowerMILL closes. Examples include: Tools-Options Tools-Customise Colors Tools-Customise Paths NC Program Preferences
Double click System Select System and then select Advanced System Settings
Page 3 of 5 CAD CAM Systems, Inc. 5291 28th Ave. Rockford, IL 61109 www.cadcamsystemsinc.com Phone: 815-399-4433 Fax: 815-399-4491
February 15, 2011 Revision: C Click the Advanced tab and select the Environmental Variables.
Fill in the variable Name box with HOME and the Variable Value with c:\dcam. Make sure the word HOME is in capital letters
Page 4 of 5 CAD CAM Systems, Inc. 5291 28th Ave. Rockford, IL 61109 www.cadcamsystemsinc.com Phone: 815-399-4433 Fax: 815-399-4491
You are done, close all open windows and close the Control Panel.
There can be many folders in the pmill4 area. By keeping some of the items below in this area, it makes it much easier to keep track of the items to move to another computer so nothing gets lost. These can all be defined in PowerMILL under Tools-Customise Paths Posts These files are used to create the CNC code for the machine tools. Setupsheets These files are used to create setupsheets in PowerMILL. Templates These are template files used by PowerMILL to create toolpaths. Macros These are files that automate PowerMILL. These are other important folders that can reside in the pmill4 folder. Tool Database This is the tooling database. Holders These files are defined holders for tools.
