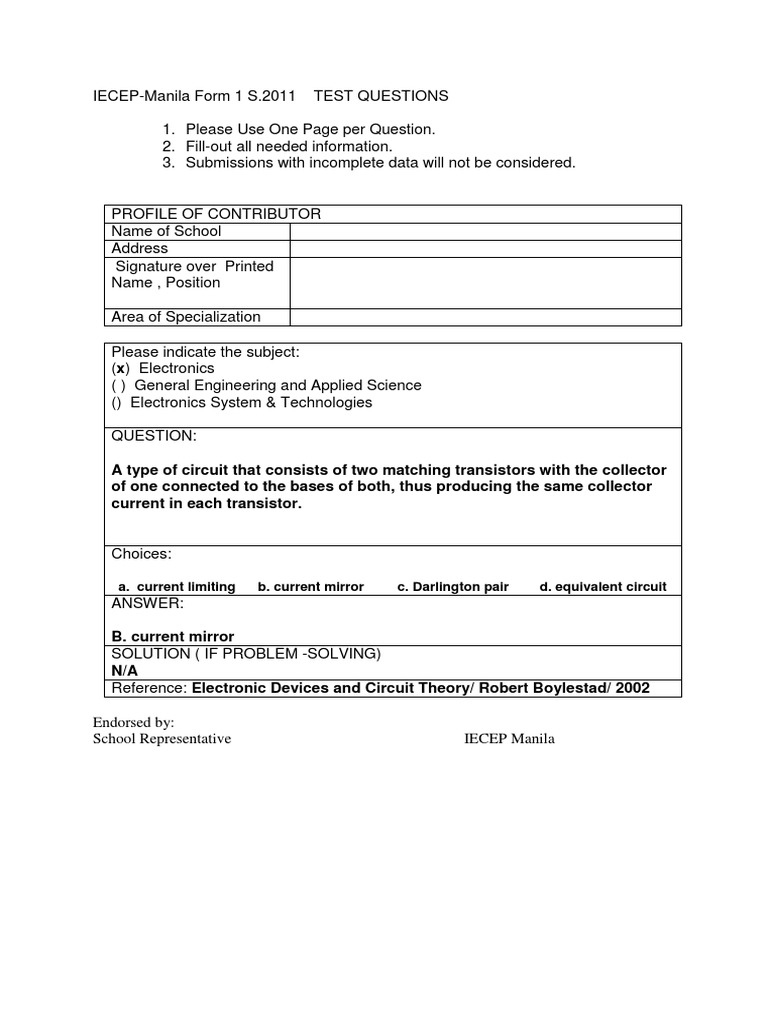

IECEP-Manila Form 1 S.

2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: A type of circuit that consists of two matching transistors with the collector of one connected to the bases of both, thus producing the same collector current in each transistor.

Choices:
a. current limiting b. current mirror c. Darlington pair d. equivalent circuit

ANSWER: B. current mirror SOLUTION ( IF PROBLEM -SOLVING) N/A Reference: Electronic Devices and Circuit Theory/ Robert Boylestad/ 2002 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: Determine the cut-off frequency of an op-amp having unity bandwidth of 1MHz and open loop gain of 200 V/mV.

Choices: a. 0.2 Hz ANSWER: b. 0.5 Hz c. 5 Hz d. 1 MHz

C. 5 Hz SOLUTION ( IF PROBLEM -SOLVING)

Reference: Electronic Devices and Circuit Theory/ Robert Boylestad/ 2002 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: In a push-pull amplifier, the distortion in the output cause by the transition of state of transistors from cut-off state to the on state is called ____. Choices: a. harmonic distortion ANSWER: b. crossover distortion c. clipping d. aliasing

B. crossover distortion SOLUTION ( IF PROBLEM -SOLVING) N/A Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: For an op-amp having a slew rate of 2 V/us, what is the maximum closedloop voltage gain that can be used when the input signal varies by 0.5 V in 10 us?

Choices: a. 10 b. 20 ANSWER: D. 40 SOLUTION ( IF PROBLEM -SOLVING) c. 30 d. 40

Reference: Electronic Devices and Circuit Theory/ Robert Boylestad/ 2002 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: A certain voltage regulator has a 12 V output when there is no load. When there is a full-load current of 10 mA, the output voltage is 11.9 V. What is the voltage regulation? Express in %/mA. Choices: a. 0.00084 %/mA ANSWER: b. 0. 0084 %/mA c. 0.084 %/mA d. 0.84 %/mA

C. 0.084 %/mA SOLUTION ( IF PROBLEM -SOLVING) ( ) ( )

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: A class C amplifier is driven by a 200 kHz signal. The transistor is on for 1us, and the amplifier is operating over 100 percent of its load line. If IC(sat) = 100 mA and VCE(sat) = 0.2 V, what is the average power dissipation of the transistor? Choices: a. 20 mW ANSWER: b. 2 mW c. 40 mW d. 4 mW

D. 4 mW SOLUTION ( IF PROBLEM -SOLVING)

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: The nominal output voltage of a certain regulator is 8 V. The output changes 2 mV when the input voltage foes from 12 V to 18 V. Determine the line regulation and express it in units of %/V. Choices: a. 0.004167 %/V ANSWER: b. 0.033333 %/V c. 0.155556 %/V d. 0.266667 %/V

A. 0.004167 %/V SOLUTION ( IF PROBLEM -SOLVING)

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: What is VOUT for a transistor log amplifier with VIN = 3 V and R1 = 68 k? Assume IEBO = 40 nA.

Choices: a. 1.751 mV ANSWER: b. -1.751 mV c. 175.1 mV d. -175.1 mV

D. -175.1 mV SOLUTION ( IF PROBLEM -SOLVING) ( ) ( )

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: In a self-biased JFET, the gate is at

Choices: a. a positive voltage ANSWER: b. 0 V c. a negative voltage d. ground

B. 0 V SOLUTION ( IF PROBLEM -SOLVING)

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: It is the time taken by a diode to operate in the reverse condition from forward conduction.

Choices: a. reverse recovery time ANSWER: b. transition time c. storage time d. response time

A. reverse recovery time SOLUTION ( IF PROBLEM -SOLVING) N/A Reference: Electronic Devices and Circuit Theory/ Robert Boylestad/ 2002 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: The MOSFET in a certain single-stage common-source amplifier has a range of forward transconductance values from 2.5 mS to 7.5 mS. If the amplifier is capacitively coupled to a variable load that ranges from 4 k to 10 k and the dc drain resistance is 1.0k, Determine the maximum voltage gain. Choices: a. 2.0 b. 3.53 ANSWER: D. 6.82 SOLUTION ( IF PROBLEM -SOLVING) c. 4.67 d. 6.82

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: This diode provides fast voltage transitions by the very sudden disappearance of the charge carriers. After a forward current has been passing in the diode and the current is interrupted, the reverse conduction will cease very abruptly.

Choices: a. Schottky diode ANSWER: b. Step-recovery diode c. Tunnel diode d. Point contact diode

B. Step-recovery diode SOLUTION ( IF PROBLEM -SOLVING) N/A Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: What theory states that "any resistance R in a branch of a network in which a current I is flowing can be replaced by a voltage equal to IR"? Choices: a. Source Transformation ANSWER: b. Norton's Theorem c. Superposition Theorem d. Compensation Theorem

D. Compensation Theorem SOLUTION ( IF PROBLEM -SOLVING) N/A Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: The resonant circuit of a tuned-collector transistor oscillator has a resonant frequency of 5 MHz. If the value of capacitance is increased by 50%. Calculate the new resonant frequency. Choices: a. 3.33 MHz ANSWER: b. 2.6 MHz c. 11.25 MHz d. 4.08 MHz

D. 4.08 MHz SOLUTION ( IF PROBLEM -SOLVING) ( ) ( )

Reference: Electronic Devices and Circuit Theory/ Robert Boylestad/ 2002 Endorsed by: School Representative

IECEP Manila

IECEP-Manila Form 1 S.2011

TEST QUESTIONS

1. Please Use One Page per Question. 2. Fill-out all needed information. 3. Submissions with incomplete data will not be considered.

PROFILE OF CONTRIBUTOR Name of School Address Signature over Printed Name , Position Area of Specialization Please indicate the subject: (x) Electronics ( ) General Engineering and Applied Science () Electronics System & Technologies QUESTION: For a silicon diode, calculate the current at room temperature if the forward voltage, Vf = 0.3 V and the reverse saturation current Is = 100 nA. Use thermal voltage of 0.025 V. Choices: a. 8.69 mA ANSWER: b. 16.28 mA c. 8.69 nA d. 16.28 nA

B. 10.51 m SOLUTION ( IF PROBLEM -SOLVING) ( ) ( )

Reference: Electronic Devices/ Thomas Floyd/ 2008 Endorsed by: School Representative

IECEP Manila
