Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 1 of 10

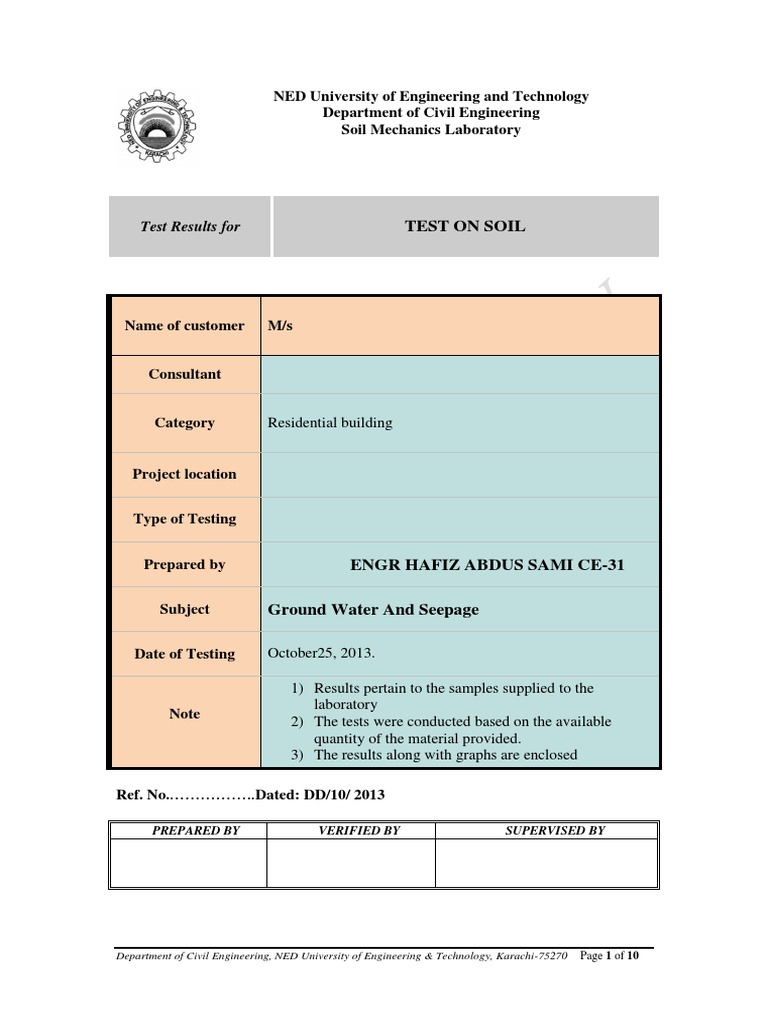

NED University of Engineering and Technology
Department of Civil Engineering Soil Mechanics Laboratory
Test Results for TEST ON SOIL
Name of customer M/s Consultant Category Residential building Project location Type of Testing Prepared by ENGR HAFIZ ABDUS SAMI CE-31 Subject Ground Water And Seepage Date of Testing October25, 2013. Note
1) Results pertain to the samples supplied to the laboratory 2) The tests were conducted based on the available quantity of the material provided. 3) The results along with graphs are enclosed
Ref. No... Dated: DD/10/ 2013
PREPARED BY VERI FI ED BY SUPERVI SED BY
Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 2 of 10 Dr. Amanullah Marri Professor Amir Nizam Sr. Laboratory Engineer Prof. Dr. Asad ur Rehman Khan Chairman
Report Moist soil samples delivered to the Soil Mechanics laboratory at NED University for testing. In compliance to the request; necessary tests were conducted on the samples. The summary of the test results is given in the following table (Table 1). Table 1 Summary of test results soil Water Absorption Ratio Of soil Plastic limit liquid limit Hydraulic Conductivity (K) Specific Gravity Shrinkage limit Clay 15.80 % 30.04 29.89 6.907x10 -7 2.73 15.12
Figure 1 Water absorption ratio soil Table 1 Water absorption ratio soil Weight of Dish W1 21.38 grams Weight of Dish + wet soil W2 49.47 grams weight of dish + dry soil W3 42.72 grams Water Absorption Ratio Of soil 15.80 % Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 3 of 10
Figure 2 Water content test Table 2 Water content test TEST DATA UNIT Weight of Shrinkage Dish W1 21.38 grams Weight of Dish + wet soil W2 49.47 grams weight of dish + dry soil W3 42.72 grams Moisture content,
31.63
%
water content dry soil Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 4 of 10
Figure 3 Specific gravity of soil test of the soil sample.
Table 3 Specific gravity of soil test of the soil sample.Data Weight of empty density bottle W1 in g 27.05 Weight of density bottle full of water W2 in g 77.65 Weight of density bottle + water + soil W3 in g 84 Weight of water W4 in g 50.6 Weight of density bottle + water W5 in g 74 Weight of soil W6 in g 10 Weight of displaced Water (W2- W5) W7 in g 177.65 Specific Gravity = (Weight of soil W6 ) ( Weight of displaced Water W7)
2.73
31.63 % water water content dry soil Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 5 of 10
Table 4 Reference table for Specific gravity characteristics.
Result : The soil sample Specific gravity was found as of clay.
Figure 4 Shrinkage limit test of the soil sample.
Table 5 Shrinkage limit test of the soil sample. Data TEST DATA Weight of Shrinkage Dish W1 21.38 grams Weight of Dish + wet soil W2 49.47 grams weight of dish + dry soil W3 42.72 grams
31.63 % Mass of mercury to fill the dish, W4 222.24 grams Mass of mercury displaced by soil pat W5 174.31 grams
16.51%
15.12 Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 6 of 10
Figure 5 Hydraulic conductivity test of the soil sample.
Table 6 Hydraulic conductivity datasheet a ( cm 2 ) L (cm) A (cm 2 ) T (C) h 1
Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 7 of 10
Table 7 Reference table for hydraulic conductivity characteristics
Table 8 Reference table for hydraulic conductivity characteristics
Result :Through hydraulic conductivity characteristics the soil was found as clay
Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 8 of 10
Figure 6 Field density of soil outside of soil lab (Sand replacement method)
Table 9 Field density of soil outside of soil lab (Sand replacement method) data Test Steps Quantity Calibration cone Weight of plastic Gallon+Cone+Sand (before use), W1 8350 grams Weight of plastic Gallon+Cone+Sand (after use), W2 6486 grams Weight of the sand to fill the cone, Wc = W1- W2 1864 grams Volume of cone V1 1/30 ft 3
Dry unit weight, d (sand) = (W2 - W1) / V1 55920 g/ft 3
Result From field tsets Weight of plastic Gallon+Cone+Sand (before use), W3 8350 grams Weight of plastic Gallon+Cone+Sand (after use), W4 4876 ft 3
Volume of hole, V2 = (W5-W6-Wc)/ d (sand) 0.03201 ft 3
Weight of evaporating dish, W5 21.38 grams Weight of evaporating dish + wet soil from the field, W6 91.93 grams Weight of evaporating dish + dry soil after 24hrs, W7 90.53 Moist unit weight of the soil in the field, t (in-situ soil) = (W6 W5) / V2 2204.7 Water content in the field, w(%)= (W6 W7) / (W7- W5)*100 2.36 % Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 9 of 10 Dry unit weight in the field, d (in-situ soil)= [t (Row 14)] / [1+ w(%) / 100] 2153.86 g/ft 3
Figure 7 Liquid and plastic limit of soil by casagrande method.
Table 10 Liquid and plastic limit of soil by casagrande method data TEST Data 1 Data 2 UNIT Weight of Shrinkage Dish W1 21.38 21.38 grams Weight of Dish + wet soil W2 49.47 53.48 grams weight of dish + dry soil W3 42.72 46.37 grams Moisture content,
31.63
28.45
% Number of blows, N 18 24 Plastic limit wp= 30.04 Flow index
24.45 liquid limit,
Soil Mechanics Laboratory (Lab: Report) Department of Civil Engineering, NED University of Engineering & Technology, Karachi-75270 Page 10 of 10
29.89
Result : From Plasticity Chart it is known that the sample of soil is Clay.
