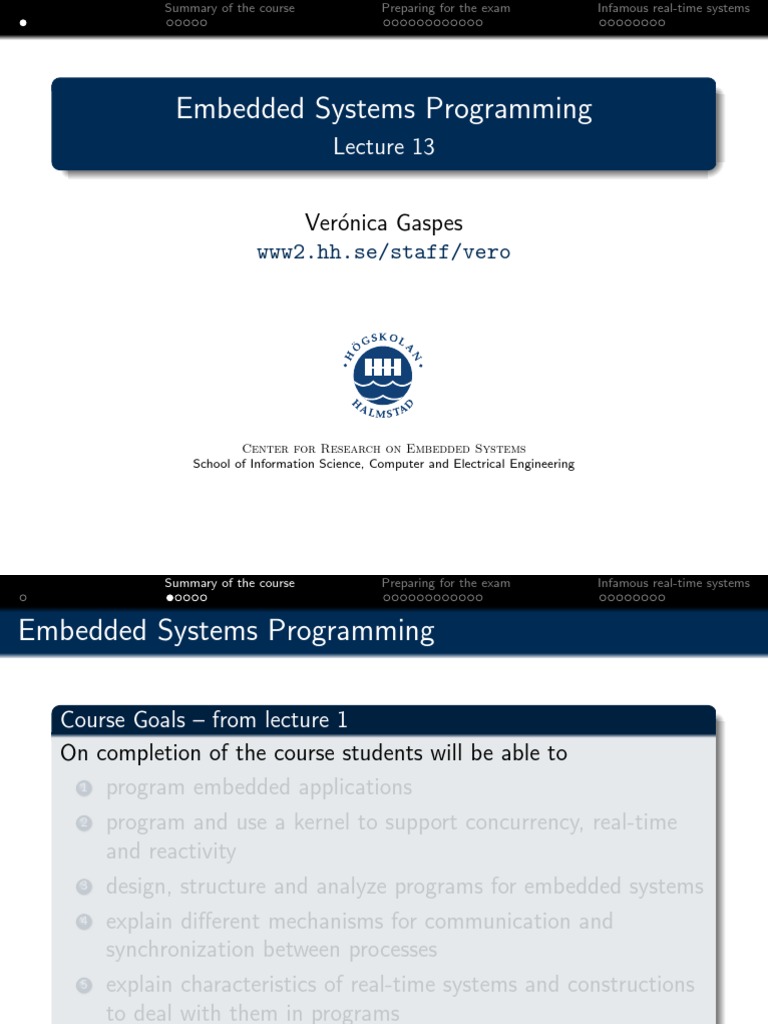

Embedded Systems Programming: Ver Onica Gaspes

Summary of the course Preparing for the exam Infamous real-time systems
Embedded Systems Programming

Lecture 13
Verónica Gaspes
www2.hh.se/staff/vero
Center for Research on Embedded Systems

School of Information Science, Computer and Electrical Engineering
Course Goals – from lecture 1

On completion of the course students will be able to
1 program embedded applications
2 program and use a kernel to support concurrency, real-time
and reactivity
3 design, structure and analyze programs for embedded systems
4 explain different mechanisms for communication and
synchronization between processes
5 explain characteristics of real-time systems and constructions
to deal with them in programs
6 compare, select and apply programming language constructs
designed for concurrency and real-time

and reactivity

and reactivity

and reactivity

and reactivity

and reactivity

and reactivity
Yet another programming course?
from lecture 1
The programming techniques we learn about in this course address
the fact that embedded computer systems are interfaced to
physical equipment that they monitor and control.
Concurrency – from lecture 1

A major issue is that external real-world elements
exist and evolve in parallel , so we will deal with how to express
concurrency in our programs.
Time constrained reactions – from lecture 1

Another issue is the need for
timely reaction to the physical environment , we will thus deal
with how to express time constraints and achieve reactivity in our
programs.


programs.


programs.
But also . . .
from lecture 1
In embedded systems it is often the case that the programs we
write have to directly access the hardware that is conected to the
processor.
In order to be able to practice

with embedded systems, we start
the course from this end! The
next two lectures are about using
C and programming close to
hardware!
But also . . .
from lecture 1
In embedded systems it is often the case that the programs we
write have to directly access the hardware that is conected to the
processor.
In order to be able to practice

with embedded systems, we start
the course from this end! The
next two lectures are about using
C and programming close to
hardware!
Focus
Concurrency
How to write programs using parallel threads of execution
Reactivity
How to write programs whose purpose is to react to events
(ultimately in the form of interrupts)
Real-time
How to write programs whose correctness depends on their
real-time behaviour
Things to think about
Input - output to registers. Bit patterns.

The cyclic executive and busy waiting.
Threads, time slicing, interrupts, critical sections.
Reactive objects, methods and messages.
Real time, timed reactions. Scheduling for the future, periodic
tasks, tasks with deadlines.
Priority based scheduling, RM and EDF, preemptive vs non
preemptive, schedulability analysis.
Ada (tasks, select, accept, when, delay until) and Java
(threads, monitors, condition variables).







Bits and bytes
Question
The segments of an LCD are controlled via 8-bit registers
LCDDRx. The lower bits of LCDDRx are used to control 4 of the
segments used to build a character in one position, while the
higher bits are used to control the same segments but at another
position. If you know that variable nibble contains the bit
configuration needed for turning on some segments, show what
you have to assign to LCDDRx in order to turn on these segments
in each of the two positions.
Answer
LCDDRx = LCDDRx & 0xF0 | nibble -- lower part
LCDDRx = LCDDRx & 0x0F | (nibble<<4) -- higher part
Bits and bytes
Question
The segments of an LCD are controlled via 8-bit registers
LCDDRx. The lower bits of LCDDRx are used to control 4 of the
segments used to build a character in one position, while the
higher bits are used to control the same segments but at another
position. If you know that variable nibble contains the bit
configuration needed for turning on some segments, show what
you have to assign to LCDDRx in order to turn on these segments
in each of the two positions.
Answer
LCDDRx = LCDDRx & 0xF0 | nibble -- lower part
LCDDRx = LCDDRx & 0x0F | (nibble<<4) -- higher part
The cyclic executive

Question
Below you find the definition of two functions that use busy
waiting to detect changes in ports A and B respectively. You are
asked to implement a program that has to wait for changes from
either port A or port B, whichever comes first. Solve this in a
platform with no support for concurrency. Explain and motivate!
Question
The busy waiting functions are
void waitForA(){
while(!PORTA_READY);
}
void waitForB(){
while(!PORTB_READY);
}

Question
Below you find the definition of two functions that use busy
waiting to detect changes in ports A and B respectively. You are
asked to implement a program that has to wait for changes from
either port A or port B, whichever comes first. Solve this in a
platform with no support for concurrency. Explain and motivate!
Question
The busy waiting functions are
void waitForA(){
while(!PORTA_READY);
}
void waitForB(){
while(!PORTB_READY);
}
Answer
while(1){
sleepUntilNextTimerInterrupt();
if(PORTA READY){// record it is port A}
if(PORTB READY){// record it is port B}
// do what has to be done.
}
Answer
The busy-waiting functions had to be destroyed to be able to
detect either of them (a sequence of two busy waiting functions
imposes an order and might shadow one of the events). The timer
is used to avoid using all CPU cycles while waiting. Its period
should be set to trade power againstresponsiveness.
Answer
while(1){
sleepUntilNextTimerInterrupt();
if(PORTA READY){// record it is port A}
if(PORTB READY){// record it is port B}
// do what has to be done.
}
Answer
The busy-waiting functions had to be destroyed to be able to
detect either of them (a sequence of two busy waiting functions
imposes an order and might shadow one of the events). The timer
is used to avoid using all CPU cycles while waiting. Its period
should be set to trade power againstresponsiveness.
Threads, timeslicing, interrupts, critical sections

Question
Give two program fragments that cannot be arbitrarily interleaved;
meaning that running them concurrently may produce a result that
is different from running them sequentially in either order. Show
how to protect from arbitrary interleaving using a mutex.
Answer
global variable int x;
fragment A: fragment B:
x++; x++;
**************************************************
global variable mutex m;
lock(&m) lock(&m)
x++; x++;
unlock(&m) unlock(&m)
Threads, timeslicing, interrupts, critical sections

Question
Give two program fragments that cannot be arbitrarily interleaved;
meaning that running them concurrently may produce a result that
is different from running them sequentially in either order. Show
how to protect from arbitrary interleaving using a mutex.
Answer
fragment A: fragment B:
x++; x++;
**************************************************
global variable mutex m;
lock(&m) lock(&m)
x++; x++;
unlock(&m) unlock(&m)
Reactive objects, methods and messages
Question
Define a (TinyTimber) class that turns a port into a reactive object
(might be needed if there are several threads trying to read/write
to the same port in one program: it is a critical section!).
Answer
typedef struct{
Object super;
unsigned char *port;
}Proxy;
#define initProxy(port) {initObject(),port}

Question
Answer
typedef struct{
Object super;
}Proxy;

Question
Answer
typedef struct{
Object super;
}Proxy;

Answer
int set(Proxy *self, unsigned char bits){
*self->port = *self->port|bits;
}
int clr(Proxy *self, unsigned char bits){

*self->port=*self->port&~bits;
}
Timed reactions, baselines, deadlines, periods

Question
Implement the class of a reactive object that
calls a function doA every T milliseconds (periodically)
calls a function doB every T milliseconds (periodically), but
delayed D milliseconds relative to the activation of doA (D is
the phase)
can react to a message setPhase that can change the phase.
Answer
typedef struct{
Object super;
int T;
int D;
}Wave;
#define initWave(t,d) = {initObject,t,d}

Question
Implement the class of a reactive object that
calls a function doA every T milliseconds (periodically)
calls a function doB every T milliseconds (periodically), but
delayed D milliseconds relative to the activation of doA (D is
the phase)
can react to a message setPhase that can change the phase.
Answer
typedef struct{
Object super;
int T;
int D;
}Wave;
#define initWave(t,d) = {initObject,t,d}

Answer
int turnOn(Wave * self, int nothing){
ASYNC(self,doA,0);
}
int setPhase(Wave * self, int phase){
self->D = phase;
}
// not int .h! private!
int doA(Wave * self, int nothing){
AFTER(MSEC(D),self,doB,0);
AFTER(MSEC(T),self,doA,0);
// do A!
}
int doB(Wave * self, int nothing){
// do B!
}
Priority based scheduling, schedulability analysis
Question
Explain RM and EDF priority scheduling.
Answer
Rate monotonic assigns priorities according to the period: the
shorter the period, the higher the priority. With the typical
inverted priority scale, the period might be the priority value. Only
the relative priorities are relevant. It is a static method.
EDF assigns priorities according to time to (absolute) deadline: the
shorter the time to deadline, the higher the priority. Different
activations of the same task might get different pririties. It is a
dynamic method.
Priority based scheduling, schedulability analysis
Question
Explain RM and EDF priority scheduling.
Answer
Rate monotonic assigns priorities according to the period: the
shorter the period, the higher the priority. With the typical
inverted priority scale, the period might be the priority value. Only
the relative priorities are relevant. It is a static method.
EDF assigns priorities according to time to (absolute) deadline: the
shorter the time to deadline, the higher the priority. Different
activations of the same task might get different pririties. It is a
dynamic method.
Ada and Java
Question
Show how to implement a bounded buffer in Ada using tasks with
entries.
Answer
task type Bounded_Buffer is
entry Deposit(N : in Integer);
entry Fetch(N : out Integer);
end Bounded_Buffer;
Ada and Java
Question
Show how to implement a bounded buffer in Ada using tasks with
entries.
Answer
task type Bounded_Buffer is
entry Deposit(N : in Integer);
entry Fetch(N : out Integer);
end Bounded_Buffer;
Ada
Answer
task body Bounded_Buffer is
SIZE : Positive := 10;Count : Natural := 0;
Front : Natural := 0; Rear : Natural := 0;
Buffer : array (0..SIZE-1) of Integer;
begin
loop
select
when Count < SIZE =>
accept Deposit(N : in Integer) do
Buffer(Rear):=N; Rear := (Rear + 1) mod SIZE;Count := Count + 1;
end Deposit;
or
when Count > 0 =>
accept Fetch(N: out Integer) do
N := Buffer(Front); Front := (Front + 1) mod SIZE;Count := Count-1;
end Fetch;
end select;
end loop;
end Bounded_Buffer;
Therac 25
You can find more information about it on the Wikipedia under
http://en.wikipedia.org/wiki/Therac-25
Therac 25
Background
The Therac-25 was a computer controlled therapeutic
radiation machine for the treatment of tumors
Deployed in the mid 80’s, it was a modernized successor to a
highly successful, but slow and bulky machine: the Therac-20
Massive radiation overdozes generated by the machine
resulted in deaths or severe injuries for at least six people in
the USA and Canada 1985-1987
The machine was redesigned in 1987 as the result of multiple
federal investigations
Therac 25
Background
Therac 25
Background
Therac 25
Background
Therac 25
Background
Therac-25 functionality
Two modes: low energy

electron beam and high
energy electron mode.
Therac-25 computer
DEC PDP-11 responsible for

Scanning operator input
Positioning the turntable with the tungsten shield
Setting up the electron gun, bending magnets, and various
other devices
Performing treatment timing
Executing extensive safety checks
Controlled via an ASCII-based terminal in a remote room, using

cursor keys for moving between input fields.
Therac-25 computer

other devices

Therac-25 computer

other devices

Therac-25 computer

other devices

Therac-25 computer

other devices

Therac-25 computer

other devices

Therac-25 computer

other devices

Therac-25 software design

Reconstructed accident cause 1
The operator erroneously enters X-ray mode, realizes the mistake,

and switches back to electron mode - all within 8 seconds
During that time window, the treatment phase task is ignoring the
keyboard entry flag because it is delaying in a busy-wait loop while
bending magnets are being set up.
Thus the new mode is never copied over to the variable read by
the gun emission control task
The other tasks register the edit, though, so the turntable is

moved and the screen updated accordingly
This results in the patient being exposed to unshielded, high

energy radiation, with no indication to the operator












When input parameters are unverified or inconsistent, the

treatment monitor task periodically runs a procedure that
increments a counter
This counter is used as a flag by the housekeeping task, indicating

whether gun firing should be enabled or not
However, as the counter is only 8 bits, it will overflow every 256

ticks, and the ”flag” will temporarily indicate a zero condition!
If the ”set” command is given at that instant, inconsistencies are

not checked, and unshielded highenergy radiation may result
















Additional facts
The Therac-25 software was written in assembly language by a

single person, who also wrote the context-switching ”kernel”
Few people seem to have had any clear idea of how the software
really worked
Safety analyses for the machine never took timing errors into
account
It turned out that the Therac-20 also contained the same bugs,
but there hardware sensors and fuses were used as an extra safety
net against high radiation
Basic lesson
Never synchronize using flags!
Additional facts

really worked
account
Basic lesson
Additional facts

really worked
account
Basic lesson
Additional facts

really worked
account
Basic lesson
Additional facts

really worked
account
Basic lesson
Additional facts

really worked
account
Basic lesson

Embedded Systems Programming: Ver Onica Gaspes

Uploaded by

Copyright:

Available Formats

You might also like

Embedded Systems Programming: Ver Onica Gaspes

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Embedded Systems Programming: Ver Onica Gaspes

Uploaded by

Copyright:

Available Formats

Summary of the course Preparing for the exam Infamous real-time systems

Embedded Systems Programming

Center for Research on Embedded Systems

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Embedded Systems Programming

Course Goals – from lecture 1

Yet another programming course?

Yet another programming course?

Concurrency – from lecture 1

Time constrained reactions – from lecture 1

Yet another programming course?

Concurrency – from lecture 1

Time constrained reactions – from lecture 1

Yet another programming course?

Concurrency – from lecture 1

Time constrained reactions – from lecture 1

In order to be able to practice

In order to be able to practice

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Things to think about

Input - output to registers. Bit patterns.

Bits and bytes

Bits and bytes

The cyclic executive

The cyclic executive

The cyclic executive

The cyclic executive

Threads, timeslicing, interrupts, critical sections

Threads, timeslicing, interrupts, critical sections

Reactive objects, methods and messages

#define initProxy(port) {initObject(),port}

Reactive objects, methods and messages

#define initProxy(port) {initObject(),port}
