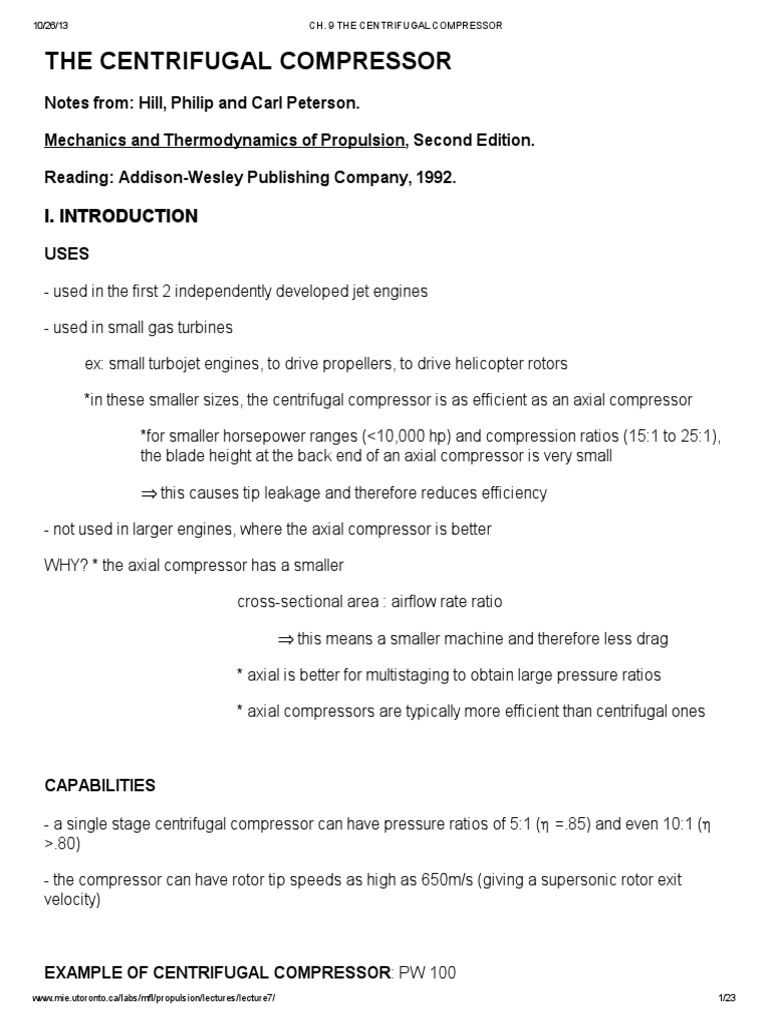

THE CENTRIFUGAL COMPRESSOR
Notes from: Hill, Philip and Carl Peterson.
Mechanics and Thermodynamics of Propulsion, Second Edition.
Reading: Addison-Wesley Publishing Company, 1992.
I. INTRODUCTION
USES
- used in the first 2 independently developed jet engines
- used in small gas turbines
ex: small turbojet engines, to drive propellers, to drive helicopter rotors
*in these smaller sizes, the centrifugal compressor is as efficient as an axial compressor
*for smaller horsepower ranges (<10,000 hp) and compression ratios (15:1 to 25:1),
the blade height at the back end of an axial compressor is very small
this causes tip leakage and therefore reduces efficiency
- not used in larger engines, where the axial compressor is better
WHY? * the axial compressor has a smaller
cross-sectional area : airflow rate ratio
this means a smaller machine and therefore less drag
* axial is better for multistaging to obtain large pressure ratios
* axial compressors are typically more efficient than centrifugal ones

CAPABILITIES
- a single stage centrifugal compressor can have pressure ratios of 5:1 (h =.85) and even 10:1 (h
>.80)
- the compressor can have rotor tip speeds as high as 650m/s (giving a supersonic rotor exit
velocity)

EXAMPLE OF CENTRIFUGAL COMPRESSOR: PW 100
10/26/13 CH. 9 THE CENTRIFUGAL COMPRESSOR
*2 centrifugal stages, 2000hp, 15:1 pressure ratio
- higher efficiency than a multistage
- shorter axial length axial compressor with
- same weight the same flow rate

II. STAGE DYNAMICS
- air leaving the impeller has no axial velocity component

3 MAIN PARTS OF THE CENTRIFUGAL COMPRESSOR
1. Impeller
2. diffuser
3. scroll

HOW IT WORKS
1. FLUID ENTERS THE IMPELLER THROUGH THE INDUCER
2. THE INDUCER TURNS THE FLOW THAT ENTERS IT
3. AIR LEAVES THE IMPELLER FLOWING IN THE RADIAL DIRECTION
the flow enters the inducer part of the impeller axially
the flow leaves radially after the inducer turns it

4. FLOW PASSES THROUGH A RADIAL DIFFUSER WITH VANED PASSAGES
-these passages decrease the flow velocity, turning the momentum into higher pressure
5. THE SCROLL/COLLECTOR COLLECTS THE FLOW LEAVING THE DIFFUSER AND
REDIRECTS IT TOWARD THE OUTLET

CENTRIFUGAL COMPRESSOR STAGES / STATES
1 impeller entrance
2 impeller exit / diffuser entrance
3 diffuser exit

SOME EQUATIONS..
For a steam line through a rotor:
The sum of the torques, acting = the change in the angular
on a control volume surrounding momentum, rcq , of the flow
a compressor rotor through the rotor
We can approximate S t as the torque applied to the rotor from the shaft, t
s
Then, the work per unit mass, work, done by the rotor on the flow is:
with U = W r.
Next, look at the control volume energy equation:
where is the heat transfer rate
is the work transfer rate

F
body
= body forces
The flow through the rotor is steady (d/dt = 0) and adiabatic ( ) with negligible gravitational
and body forces (F
body
= 0, gz = 0). Applying these simplifications to the energy equation yields:
But:
So:
This shows that the work done on the fluid is equal to the change in stagnation enthalpy:
Or, substituting the work from the equation above:
Now, if we fix the reference frame to the rotor, the absolute and relative velocities, c and w, are
related by:
Substituting these relations into the enthalpy equation above, and rearranging, yields:
For an incremental change along a streamline:
since U
2
= W
2
r
2
.
Solving the entropy equation,
for dh, substituting into the dh equation above and assuming isentropic flow (ds=0) yields:
* The presence of the d(W
2
r
2
/2) term indicates that the rotor pressure can rise
even if there is no change in relative velocity, w. (In an axial compressor, this term is equal
to zero).
* This type of pressure increase can cause boundary layer separation on the
blade
WHY? The pressure increases but the relative boundary layer and freestream
velocities dont change
WHAT DO YOU DO? Design the rotor so that the freestream
velocity decelerates. Boundary layer separation may still
occur, but this does prevent some separation.

We can assume that all streamlines entering the compressor have the same angular momentum
(aka swirl free inlet flow), but many compressor have swirl at the rotor entrance. This can be from a
previous compressor stage or inlet guide vanes. If we assume that the uniform swirl upstream and
downstream, the work equation becomes:
Dividing both sides by c
p
T
01
, rearranging, and using the following relations:
with a
01
= speed of sound at T
01
, yields:
On a typical machine, the velocity has only an axial component at the inlet.
So:
Then the above equation becomes:

3 TYPES OF IMPELLER BLADES
1. Forward leaning
2. Straight radial
3. Backward leaning
b
2
= angle of blade with respect to radial direction
w
r
= c
r
because U is tangential

More Equation Stuff.
From the velocity triangles of all 3 impellers:
Inserting into the stagnation temperature difference equation changes it to:
Now look at continuity at the impeller exit:
density, r , is just the impeller exit density, r
2
the velocity, V, is only in the radial direction, so V = w
r2
the area, A, is the area perpendicular to the flow direction. It is the surface area of a cylinder
(minus the top and bottom bases) with a radius equal to the impeller outer radius, r
2
, and a
height equal to the blade height, b. So: A = 2p r
2
b
Substituting into the continuity equation gives:
Solving for w
r2
gives:
This equation can be used to find the value of w
r2
used in the stagnation temperature equation.

COMPARISON OF 3 IMPELLER BLADES
- For fixed inlet conditions
fixed tip speed, U2
zero mass flow rate
All 3 impellers give the same
stagnation temperature rise,

- As you increase the mass flow rate
the stagnation temperature rise in the
backward leaning impeller decreases
forward leaning impeller increases
radial bladed impeller doesnt change
- If there is no swirl at the entrance, the relative stage temperature rise is a linear function of w
r2
/U
2
.
Then, w
r2
/U
2
is directly proportional to the mass flow rate and inversely proportional to the shaft
speed.
- Backward leaning vs. Radial
* for a given tip speed the radial impeller provides a greater pressure rise than the
backward leaning impeller
BUT
it has a higher Mach number flow entering the diffuser
at pressure ratios above 4:1, the air leaving the impeller and flowing into the diffuser
becomes supersonic
the resulting shocks cause flow irreversibilities that decrease the efficiency of the diffuser
therefore, as the pressure ratio increases, the diffuser efficiency decreases
* Modern centrifugal compressors therefore use backward leaning impellers to
prevent the diffuser efficiency loss
the bending stresses characteristic of backward impellers are designed against through
material choice and the design itself
the designs can have b
2
values as high as 30
* Some designs also obtain a backsweep effect in impellers with radial line
elements at the outlet.
in the tangent plane, the blade is angled away from the axial direction and against the
direction of rotation
this imparts an extra 3-D effect on the flow field that creates the effect of backsweep across
the impeller outlet

STAGE STAGNATION PRESSURE RATIO &
IMPELLER EXIT MACH NUMBER
Pressure Ratio
(equation is the same as for an axial compressor)
But, the diffuser has adiabatic flow, so, T
03
= T
02
. Also, from before:
Therefore:

Impeller Exit Mach Number
absolute Mach number at the impeller exit:

also,

c
2
2
= cq
2
2
+ c
r2
2
or

(speed of sound at T
2
)
2

with
and the isentropic relation

stagnation temperature relation from before

Substituting the c
2
2
, a
2
2
, and T
02
/T
01
relations into the M
2
equation gives:
where
* This equation can be used to generate plots of M
2
and P
03
/P
01
versus U
2
/a
01
for different
impeller exit blade angles (b
2
s) and flow coefficients (w
r2
/U
2
s). These plots can be used to
determine the necessary conditions for a given pressure ratio or the pressure ratio attainable from
a given set of conditions.
* The plots also show that pressure ratios above a certain value can lead to supersonic diffuser
flow and thereby decrease the diffuser efficiency.
h
c
= 0.85
h
c
= 0.85 b
2
= 15

III. THE INDUCER AND IMPELLER
INDUCER: impeller entrance section
changes the tangential fluid motion
helps the flow enter the impeller smoothly
WHY IS IT IMPORTANT?
* Without an inducer, there is flow separation and violent mixing near
the leading edge of the impeller vane. The separation and mixing can
be very noisy.
* By directing the flow smoothly into the impeller, the inducer prevents
the separation and mixing, making the compressor much quieter.

INDUCER MAXIMUM TURNING ANGLE
Consider the flow entering the centrifugal impeller.
-At the impeller tip, the angle between the flow and the relative velocity vector can be very large.
For the flow to enter the inducer without boundary layer separation at the leading edge, the
inlet van angle must be set at a large angle with respect to the flow.
This limits the amount the inducer may turn the flow
- If we assume that the inducer can turn the relative velocity without changing the radius..
There is no inducer radial velocity component
The axial velocity component therefore remains constant
For the tip, the relative velocity at the inducer outlet is:
* if w < w1, there is diffusion in the inducer
- To find the maximum turning angle, or the largest angle the flow may be turned before boundary
layer separation:
1. Find C
pmax
, the pressure coefficient at separation, where:
2. Find the maximum turning angle from;
- Turbulent boundary layer behavior is affected by surface curvature, though. It may therefore
separate earlier on more curved surfaces than on less curved surfaces.

COMPRESSIBILITY EFFECTS
- High Mach numbers can cause shocks near the impeller tips
- The shock irreversibilities can then cause the compressor performance to deteriorate
- For example, shocks in the diffuser (from supersonic flow leaving the impeller) decrease its
efficiency

EFFECT OF INLET TIP-RADIUS BLADE ANGLE, b
1t
,
AND RELATIVE MACH NUMBER M
1rel
The inducer inlet Mach number and blade angle are related by:
If we know the inlet stagnation temperature and pressure we can find the inlet temperature and
density from their isentropic relations and the perfect gas law:
r
01
= P
01
/ RT
01
We can then get the inlet absolute velocity from the equation for the Mach number as c
1
/a
1
:
Next, we can find the blade-tip velocity, U
1t
, and inlet tip diameter, D
t1
, from:
The shaft rpm, N, is then related to the tip velocity and diameter by:
- Plotting the shaft speed, N, versus the M1 for several M1rels and b 1ts then shows the
necessary shaft speeds for certain inlet Mach number and tip-radius blade angle combinations.
Please see Figure 9.11 in Hill and Petersons Mechanics and Thermodynamics of Propulsion for
an example of this kind of plot.
- These quantities then limit the compressor design in two ways:
1. aerodynamically: the inlet relative Mach number limits the rotational speed, N
2. stress-related: the impeller stresses limit the tip speed at the impeller exit, thus
affecting the pressure ratio
- These two sets of limits then combine to limit the machine size

IMPELLER PASSAGE SHAPE
- Boundary layer separation occurs at a certain overall velocity ratio, w
2
/w
1
- You want the compressor design to decrease the possibility of boundary layer separation
try to keep the average flow velocity constant in the radial part of the impeller

HOW?
decrease the axial width of the impeller as you increase its radius
Then, instead of obtaining a pressure rise by decreasing the velocity, centrifugal forces
increase the pressure rise in the flow direction

THE CORIOLIS FORCES
- The pressure change from the centrifugal forces does not cause boundary layer separation
- Consider a fluid particle moving radially outward with:
w = particle velocity relative to the impeller
W = impeller rotational velocity
**The solid lines represent conditions at time t. The dotted lines represent conditions at time t+dt.
* w experiences no change in magnitude, but does experience a change in the q -direction
in dt the particle moves dq = W dt and dr = wdt
then dcq = W dr + wdq = 2W wdt
divide both sides by dt to get the Coriolis acceleration, aq
* This acceleration requires a tangential Coriolis pressure gradient of
- from before:
- canceling d(W
2
r
2
/2) since the acceleration is in the tangential direction and dividing both sides
by rdq gives:
- combining this equation with
gives:
Since this equation contains a dw/dq term, it shows that there is a tangential variation in w. This
variation is shown below.
THE CORIOLIS PRESSURE GRADIENT
- There is a pressure difference across the blades. It is indicated by the + and signs in two
previous figures
- The static pressure in the tangential direction at the impeller exit is constant
- The Coriolis pressure gradient causes 3 effects near the tip:
1. As the pressure gradient near the outlet disappears, the fluid particles in the
middle of the channel cant continue their radial movement and slip back against
the direction of rotation. Then the tangential component of the absolute velocity,
cq
2
, will be much less than U
2
. To prevent this, the blades must be spaced very
closely together.
2. As the boundary layer on the (+) pressure side approaches the tip diameter, the
fluid accelerates.
3. On the () pressure, or suction, side, the pressure gradient tends to cause the
boundary layer to separate. The separation may increase as the secondary flow
driven by the Coriolis pressure gradient moves the slower particles to the suction
surface.

SLIP FACTOR, s
s
For radial blades:
- depends on the momentum averaged tangential velocity component, cq
2
, or on the number of
blades, N
b
For nonradial blades:
- depends on the momentum averaged tangential velocity component, the number of blades and
the impeller exit blade angle, B2

OUTLET BLADE HEIGHT
- The centrifugal compressor has a very small blade height at the impeller outlet
WHY?
- large density increase across the wheel
- the expansion of the diameter between the impeller inlet and outlet
- the limitation of relative velocity reduction
- The outlet blade height is related to the stage efficiency since the efficiency depends on the rotor
and on the casing adjacent to the blade edges. The stage efficiency, h
c
, is related to these
quantities by:
where: D
2
is the tip clearance
b
2
is the blade height
is equal to 0.3 0.05 for the clearance range: 0< D
2
/b
2
<1

SIMULATION OF INTERNAL FLUID DYNAMICS
- Since impellers are used in small gas turbines, they should be highly efficient, but weigh as little
as possible
- Simulating the internal fluid dynamics helps in the design
- To simulate the internal flow:
1. Divide the passage into a large number of volume elements
2. Use an iterative numerical procedure to satisfy the continuity, momentum, and energy
equations for each element
- The pressure gradients calculated at the wall then indicate any danger of flow separation

IV. THE DIFFUSER
Velocities flowing out of the impeller, relative the impeller are quite low, but with a high
impeller tip speed (35,000 RPM +), the absolute velocity leaving the impeller could reach values
above Mach 1. The diffuser is used to reduce this velocity, while at the same time increase the
pressure. In this section, our interest lies in flow through a vaneless diffuser. The vaneless diffuser
is a simple annular channel in which the radial velocity component is reduced by area increase and
the tangential velocity component by the requirement of constant angular momentum.
We begin our analysis for an incompressible flow in a vaneless region of constant width h. In
this region, both continuity and angular momentum of the air must be conserved.
Along a streamline, continuity becomes
which may be reduced to the general form
The general equation for angular momentum is
If we combine the two equations above, we see that
or
where a is the angle between the radial direction and the velocity c, as shown in the figure below.

***Angles in a diffuser are always with respect to the radial direction.
Thus the streamline makes a constant angle with the radial direction inside the vaneless section of
the diffuser and since a is constant, the velocity is inversely proportional to the radius

One can also analyze the flow through a vaneless section of a diffuser for compressible flow. Here
we adopt the relation between fluid properties at any point in a flow with their values at a point were
the Mach number is 1 (denoted by the *).
The continuity and angular momentum equations used now are
Noting that
The continuity and angular momentum equations may now be written as
Once again we combine these equations (solve rcsin a for rc and plug into
r rccos a ) to yield
If we assume one dimensional, adiabatic, reversible flow, r */r may be written as
Therefore
And a is now a function of M. We can then use rcsin a in the form
of which, upon using the isentropic relations for T/T*, we obtain
With all said, what have we actually achieved. To explain this best, lets go into an example.
Lets say we only know the velocity and the angle of the air flowing out of the impeller, M
1
= 1.3 and
a
1
= 70 . (Tan a */Tan a ) can be used to find a * = 75 , which is constant throughout the
vaneless section. From here we then use (r*sin a */rsin a ) and solve for (r*/r)
1
= 0.8 at the
beginning of the section. Now if we wish to diffuse the air to M
2
= 0.4, we can get the angle a
2
from
(Tan a */Tan a ), knowing a * = 75 and use (r*sin a */rsin a )to solve for (r*/r)
2
= 2.3 at the end of
the vaneless section. Again, knowing the conditions and parameters of the impeller, we can now
find the ratio
(equaling 2.9) and the total width of the vaneless section needed to diffuse air flowing out of an
impeller at M
1
= 1.2 to M
2
= 0.4. So as you can see, the equations above are very useful to quickly
approximate how big your compressor needs to be.
The advantage of using a vaneless diffuser is that it can provide deceleration of supersonic
flows to subsonic flow. However there is a price to pay and that is the large radius ratio across the
vaneless section. Where one must avoid large engine diameters, a vaneless diffuser is
undesirable and a vaned diffuser is used. In the vaned diffuser, the vanes are used to guide the
flow so that the overall rate of diffusion is higher then that obtainable in a vaneless diffuser, allowing
for smaller compressor sizes. Great care is taken for the angles of these vanes. Without proper
angles, stall could occur, creating losses in the flow and decreasing the efficiency of the
compressor.

IMPELLER SHAFT SPEED
In the earlier section we were able to calculate the impeller shaft speed by considering only
the impeller inlet conditions:
Mass flow rate
Stagnation Temperature T
01
Stagnation Pressure P
01
Inducer angle b
1t
Hub Diameter D
h
Mach number M
1

rel
By changing one of these variables, we needed to make numerous calculations to get the shaft
speed N or W . This may become a little tedious and it was found that another equation could be
used to make one calculation when changing any variable. The equation to be used is

Where z is

IMPELLER DIAMETER RATIO

One can calculate the diameter ratio for the impeller from
Where
IMPELLER EXIT BLADE WIDTH RATIO
If one would like, they may use this equation to approximate the blade width ratio for a
centrifugal compressor by
Where h
c
is
And s
s
is the slip factor given by

Centifugal Compressor

Uploaded by

Copyright:

Available Formats

You might also like

Centifugal Compressor

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Centifugal Compressor

Uploaded by

Copyright:

Available Formats

10/26/13 CH.

9 THE CENTRIFUGAL COMPRESSOR

You might also like
