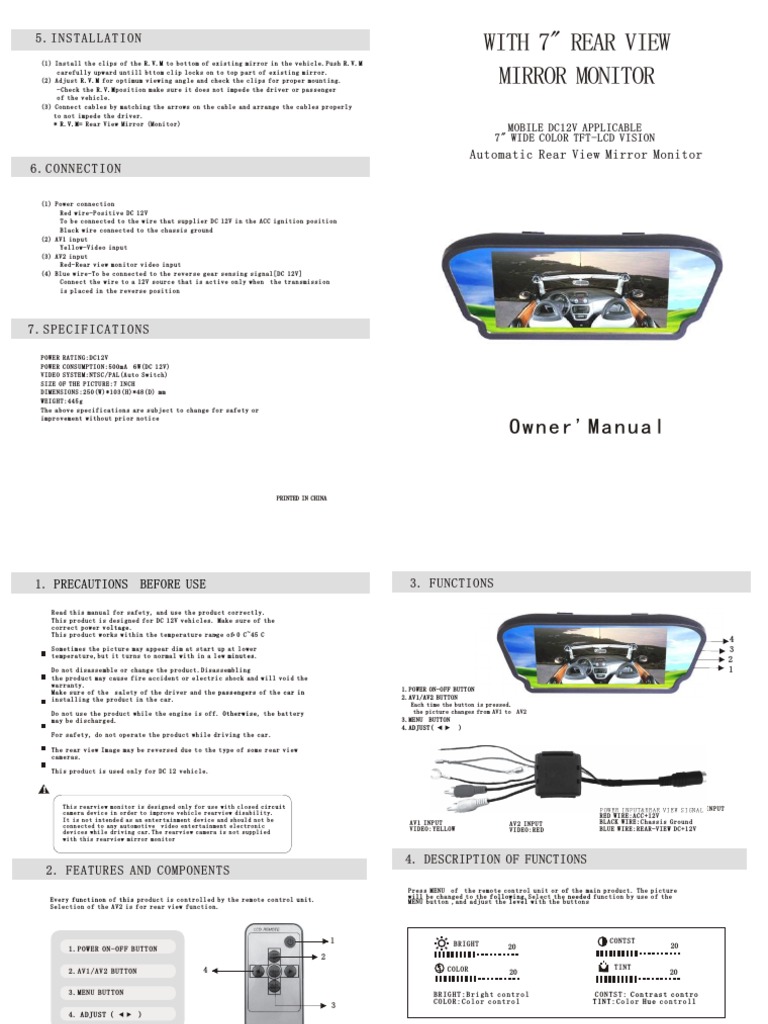

5 .

I NSTALL A T I ON
(1) Install the clips of the R.V.M to bottom of existing mirror in the vehicle.Push R.V.M
carefully upward untill bttom clip locks on to top part of existing mirror.
(2) Adjust R.V.M for optimum viewing angle and check the clips for proper mounting.
-Check the R.V.M position make sure it does not impede the driver or passenger
of the vehicle.
(3) Connect cables by matching the arrows on the cable and arrange the cables properly
to not impede the driver.
* R.V.M= Rear View Mirror (Monitor)

WITH 7" REAR VIEW

MIRROR MONITOR
MOBILE DC12V APPLICABLE
7" WIDE COLOR TFT-LCD VISION

Automatic Rear View Mirror Monitor

6.CON N E C T ION
(1) Power connection
Red wire-Positive DC 12V
To be connected to the wire that supplier DC 12V in the ACC ignition position
Black wire connected to the chassis ground
(2) AV1 input
Yellow-Video input
(3) AV2 input
Red-Rear view monitor video input
(4) Blue wire-To be connected to the reverse gear sensing signal[DC 12V]
Connect the wire to a 12V source that is active only when the transmission
is placed in the reverse position

7 . S PECIF I C A T IONS
POWER RATING:DC12V
POWER CONSUMPTION:500mA 6W(DC 12V)
VIDEO SYSTEM:NTSC/PAL(Auto Switch)
SIZE OF THE PICTURE:7 INCH
DIMENSIONS:250(W)*103(H)*48(D) mm
WEIGHT:445g
The above specifications are subject to change for safety or
improvement without prior notice

Owne r ' Manu a l

PRINTED IN CHINA

3. FUNCTIONS

1. PRECAUTIONS BEFORE USE

Read this manual for safety, and use the product correctly.
This product is designed for DC 12V vehicles. Make sure of the
correct power voltage .
This product works within the temperature range of 0 C~45 C

4
3
2
1

Sometimes the picture may appear dim at start up at lower

temperature,but it turns to normal with in a lew minutes .
Do not disassemble or change the product.Disassembling
the product may cause fire accident or electric shock and will void the
warranty.
Make sure of the salety of the driver and the passengers of the car in
installing the product in the car.

1.POWER ON-OFF BUTTON

2. AV1/AV2 BUTTON
Each time the button is pressed.
the picture changes from AV1 to AV2

Do not use the product while the engine is off. Otherwise , the battery
may be discharged.

3.MENU BUTTON
4. ADJUST(

For safety, do not operate the product while driving the car.
The rear view Image may be reversed due to the type of some rear view
cameras.
This product is used only for DC 12 vehicle.

!
T h i s r e arvie w m o n i t or i s d esig n e d o n ly f or u se w it h c l o s e d c ircui t
c a m e ra d evic e i n o r d e r t o i mprove v e h i c le r earvi e w d i s abili t y .
I t i s n o t i n tended a s a n e n t e r tainme n t d e v ice a nd s ho u l d n o t b e
c o n n ected t o a n y a u t o m otive v i d e o e n t ertai n m e n t e lectr o n i c
d e v i ces w hil e d r i v i ng c ar.T h e r e a rview c am e r a i s n o t s uppli e d
w i t h t h is r earv i e w m i r ror m oni t o r

AV1 INPUT
VIDEO:YELLOW

4. DESCRIPTION OF FUNCTIONS

2. FEATURES AND COMPONENTS

Press MENU of the remote control unit or of the main product. The picture
will be changed to the following .Select the needed function by use of the
MENU button ,and adjust the level with the buttons

Every functinon of this product is controlled by the remote control unit .

Selection of the AV2 is for rear view function.

1
1.POWER ON-OFF BUTTON

COLOR

3.MENU BUTTON

3
4. ADJUST (

BRIGHT

20

CONTST

20

2
4

2.AV1/AV2 BUTTON

AV2 INPUT
VIDEO:RED

POWER INPUT&REAR VIEW SIGNAL INPUT

RED WIRE:ACC+12V
BLACK WIRE:Chassis Ground
BLUE WIRE:REAR-VIEW DC+12V

20

BRIGHT:Bright control
COLOR:Color control

TINT

20

CONTST: Contrast contro

TINT:Color Hue controll

)
Au t o m a tical l y c h a n ges t he p ic t u r e t o t he r ear v iew m o d e i f t h e R E AR V IEW f un c t i on i s o perat e d , A V 2 w orks f ir s t ,
