This document provides an overview of Cisco IOS commands for different modes including user mode, privileged mode, global configuration mode, and interface configuration mode. It includes keyboard shortcuts, descriptions of common commands for configuring devices, routing protocols, security, and other network settings. Privileged commands are also listed for viewing device information and managing the configuration.
This document provides an overview of Cisco IOS commands for different modes including user mode, privileged mode, global configuration mode, and interface configuration mode. It includes keyboard shortcuts, descriptions of common commands for configuring devices, routing protocols, security, and other network settings. Privileged commands are also listed for viewing device information and managing the configuration.
This document provides an overview of Cisco IOS commands for different modes including user mode, privileged mode, global configuration mode, and interface configuration mode. It includes keyboard shortcuts, descriptions of common commands for configuring devices, routing protocols, security, and other network settings. Privileged commands are also listed for viewing device information and managing the configuration.
This document provides an overview of Cisco IOS commands for different modes including user mode, privileged mode, global configuration mode, and interface configuration mode. It includes keyboard shortcuts, descriptions of common commands for configuring devices, routing protocols, security, and other network settings. Privileged commands are also listed for viewing device information and managing the configuration.

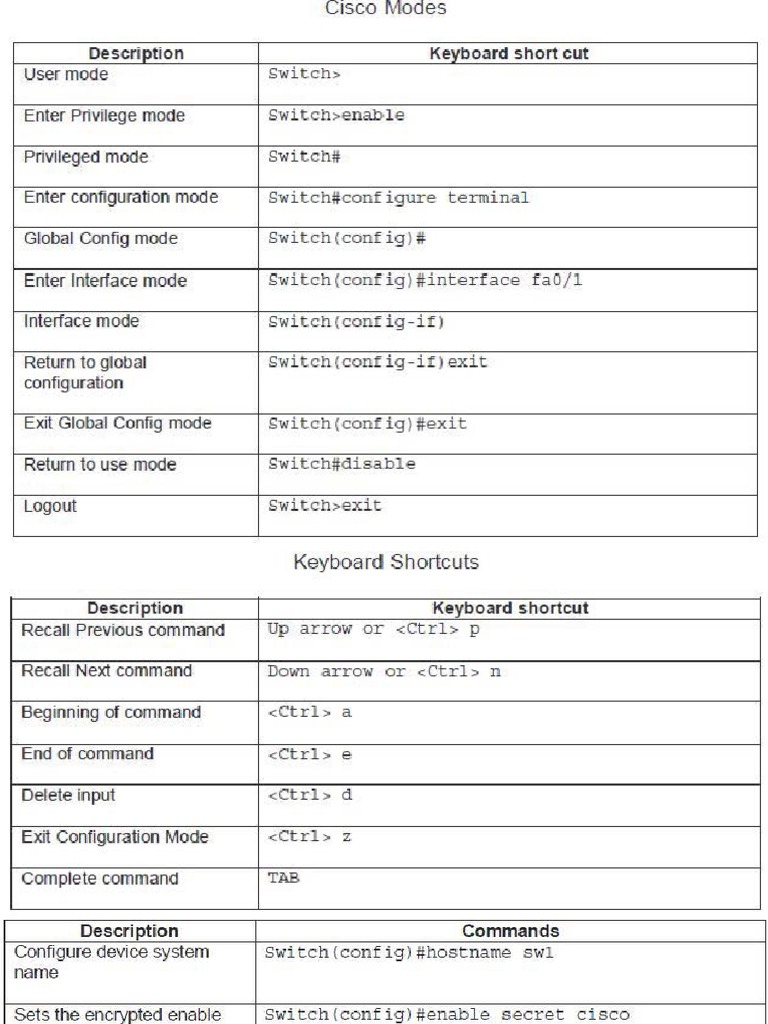

User mode Switch> Enter Privilege mode Switch>enable Privileged mode Switch# Enter configuration mode Switch#configure terminal Global Config mode Switch(config) # Enter Interface mode Switch(conf ig) #interface f a0/ 1 Interface mode Switch(config-i f) Return to global Switch(config-if ) exit configuration Exit Global Config mode Switch(config) #exit Return to use mode Switch#disa.ble Logout Switch>exi t Keyboard Shortcuts Description Keyboard shortcut Recall Previous command Up arrow or <Ct r l > p Recall Next command Down arrow or <Ctrl > n Beginning of command <Ctrl> a End of command <Ct r l> e Delete input <Ctrl> d Exit Configuration Mode <Ctrl> z Complete command TAB Description Commands Configure device system Switch(config) #hostname swl name Sets the encrypted enabl e Switch(config) #enable s ec ret cisco password Sets the unencrypted enable Switch(config) #enable password c isco password Enable password encryption Switch(config) #service passwor d-encryption on all clear text password within the confi guration file Confi gure a Message Of The Switch(config) #banner motd $ Banner, with an ending character of $ Assign IP address to vlan Switch(config) #int vlan 1 Switch(config-if l #ip addr 172.22.1.11 255.255.255. 0 Assign Default gateway, note Switch(config) #i p defaul t -gateway 10. 1.1.1 the mode Select one interface Switch(config) #i nt fa0/ 1 Select a range of interfaces Switch(config) #i nt range fa0/1 - 12 (version dependant) .-.. ... . . - .. - . . -- .. - Select a range of interfaces Switch(config) #int range fa0/1 - 12 (version dependant) Set the interface descri ption Switch(config- ifl #description Add vlan using config mode switch(config) #vl an 11 switch(config- vlan) #name test Configure Interface fa0/1 @ Switch(config- if) #speed 100 speed 100 Mbps and ful l Switch(config-if ) #duplex full duplex Assign interface to vlan switch(config- if) #switchport access vl an 11 Enable Port Security Switch(config- if) #switchport mode access Switch(config-if ) #switchport port-security Switch(config- ifl #switchport port-security mac - address sticky Disable Interface Switch(config- ifl shutdown Enable Interface Switch(config-if ) no shutdown Configures 5 Telnet sessions Switch(conf ig) #line vty O 4 each with a password of Switch(config-l ine) #login 'cisco Switch(config- line) #password cisco Enable and define console Switch(conf ig) #line con O password of cisco' Switch(config- line) #login Switch(config-l ine) #password cisco Synchronise console Switch(config-line) #logging synchronous messages (Keep what you have typing on the screen) Set the timezone and Switch(conf ig) #clock t i mezone gmt 0 automatically adjust Switch(conf ig) #clock summer-time gmt recurring Sets the switch priority for Switch(conf ig) #spanning- tree vlan 1 priority the vtan. This combined with 4096 the switch mac address creates the switch BID Enables portfast Switch(conf ig) #int fa0/1 Switch(config-if ) #spanning-tree portfast Enables RSTP. other Switch(conf ig) #spanning-tree mode rapid-pvst options are, PVST and MST Creates a vlan. Note this Switch(conf ig) #vlan 2 now done in config mode Switch(config-vlan) #name sales not vtan database. Also note the 'int vlan' command does NOT create vlans . . - - Assign an interface to vlan 2 Switch(config-if ) #switchport access v l an 2 unconditionally forces an Switch(config-if ) #switchport mode trunk interface into trunKing. Other options are access and dynamic Manually assign a switch to Switch(config) #vtp domain lab a VTP domain. A switch will automatically become part of a VTP domain if it's currently in the ' null' domain and receives a VTP frame Changes the VTP mode from Switch(conf ig) #vtp mode client the default 'server' mode to client mode. In client mode no changes can be made Enable the http server to Router (config) #ip http server SOM can be used Defines a username and Router (config) #username sue password cisco password. The list can be used for many things from PPP authentication to user access Defines a local host file. Like Router (conf ig) #ip host mypc 10.1.1.3 /etdhosts in unix Disables DNS lookup. Useful Router (config) #no ip domai n- lookup when a command as been miss typed Sets the logical (not Router (config) #int so physical) bandwidth of Router (config- if)#bandwidth intertace. This is used by routing protocols, SNMP queuing etc Sets the physical clock Router (config -if )#cl ock rate 64000 Set the serial intertace WAN Router (config-if )#encapsulation hdl c encapsul ation. Other options are PPP or frame-relay Authentication on PPP is Router (config- if)#ppp authentication chap optional. This command enable chap on the intertace. Other option PAP Defines the type of LMI Router (config -if )#frame- relay lmi-type cisco being used. If len un- configured the correct LMI type should be automatically detected Defines a static route. Router (config) #ip route 50.0. 0.0 255.0.0.0 Renumber static routes have 10.1.2.1 an admin distance of 1. Therefore will over ride any dynamic routing. Enables RIP version 1 on all Router (config) #router rip LOCAL interfaces which Router (config-router) #network 10.0.0.0 have a 10.x.x.x address Enables RIP version 2 Router (config- router) #version 2 Enable the router to provide Router (config) #ip dhcp pool MYPOOL a DHCP service. Router (dhcp-config)#network 10.1.1.0 255. 255. 255. 0 Router (dhcp-config) #default-router 10.1.1.1 Router (dhcp-config) #exit Router (config) #ip dhcp excl uded- address 10.1.1.1 10.1.1.99 Changes the config register Router (config) #config-register Ox2102 which controls what the router does when the router boots Creates a logical sub Router(config) #int faO/ O .1 intertace below the physical intertace Enables 802.1q trunking on Router (config- subif )#encapsulation dotlQ 1 the intertace Define the ip address Router (config- subif )#ip address 10.1.1.1 255.255.255.0 Enable OSPF on any local Router (config- ) #router ospf 1 intertace which start with the Router (config- router) #network 10.1.0.0 ip address 10. 1.x.x. Note the 0.0.255.255 area O inverted mask EIGRP can be configured in Router (config) #router eigrp 1 a similar way to RIP or the Router (config-router) #network 172.16.0.0 mask option could be used Or Router (config-router) #network 172.16.2.0 0.0.0.255 Defines a standard ACL. Router (config) #access -list 1 permi t Standard ACL use number 172.16.1.1 1-99 Defines an Extended ACL. Router (config) #access -l ist 101 deny tcp host The first address is the 172.16.1.1 host 172.16.2.1 eq telnet source IP address Router (config) #access -list 101 permit ip any any . . .. .. - - . . .. . - - - . - Use the group command to Router (conf ig) #interface f aO/ O attach an ACL to an Router (config- if ) #ip access- group 1 out interface. is used under an interface if the ACL is to filter traffic An example using named Router (config) #ip access- list extended ACL in stead of numbers my_list Router (config-ext- nacl ) # deny tcp host 172.16.1.1 host 172.16.2.1 eq ftp Router (conf.ig-ext - nacl ) # permit i p any any Attaching a named AGL to Router (config) #int faO/ O an interface Router (config-i f ) #ip access- group my_list in Configuring a static NAT to Router (config) #ip nat i nsi de source static allow a server to be access 10.1.1.2 interface s0/ 0/ 1 via the Internet, using the IP address on interface s0/0/1 Defining interface which NAT Router (config) #int faO/O . 1 takes place between Router (config- i f ) #ip nat i nside Enables RIPng Router (conf.ig) #ipv6 unicast - routing ROuter (config) #ipv6 router rip ccna Descriction Manually starts the setup dialog which is automatically invoked when the device starts ~ no config Displays the config held in DRAM. Which i s lost if not copy run start command is not used Displays the NVRAM (None volatile) config. Saves the config. Without this command all changes/configuration will be lost. Saves the running config to a TFTP server Copies IOS files to a TFTP server Copies files from a TFTP server the device flash .. - .. . Router (config) #int sO/ O/ O Router (config- if)#ipv6 r i p ccna enable Privi lege Commands Commands Switch#setu.p Switch#show running- config Switch#show startup- conf i g Switch#copy running- conf i g startup- config Switch#copy running- conf i g tftp Switch#copy flash tftp Switch#copy tftp flash - . . . .. - . Erase the config held in Switch#erase startup- conf ig NVRAM. If this i s followed with the reload command all configuration is lost Reboots the device Switch#reload Abort sequence <Shift> <Ctrl > 6 Suspend Telnet Session <Shift> <Ctrl > 6 ( then let all keys go, then} x Show the current sessions. Switch#show sessions The one with a is your active sessi on Forcible closes a telnet Switch#disconnect session Set the device local clock. Switch#clock set 10 : 00 : 00 april 2 2008 Note this i s not done in config mode Display the IOS version Switch#show version along with other useful info e.g sys uptime. confi g register etc Displays the file contents of Switch#show flash the flash Di splays the clock Switch#show clock Displays the users currently Switch#show users logged on By default displ ays the last Switch#show history 10 commands Di splays the ARP cache Switch#show arp Di splays the spanning tree Switch#show spanning- tree vlan 1 status on vlan 1 Lists all the confi gured vlans Switch#show vlan Di splays VTP info such as Switch#sh vtp status VTP mode, VTP domain, VTP counter. Ping selected address Switch#ping 10.1.1.1 Extended ping. Must be in Switch#ping privilege mode Di splay the interface status Switch#show int fa0/1 - " . . - .. . .. - - - Displays the vlan status and Switch#show interfaces vlan 1 the IP address VLAN 1 (often the management v1an) Displays a list of CDP Switch#show cdp neighbors neighbours Extended information on the Switch#show cdp neighbors details above Display CDP packets as they Switch#debug cdp packets arrive Display ping packets as they Switch#debug icmp packets arrive Display switch MAC Switch#show mac address- table Addresses table. These entries are learnt from the source mac address in the Ethernet frames Displays the interface Router#show ip interface brief operational status and IP addresses for all router interfaces Displays all the confi gured Router#show ip protocols routing protocols Di splays the IP routeing Router#show ip route table Di splays the NAT Router#show ip nat translations translations Displays the physical cabl e Router#show controllers s O DTE/DCE, x.21 , V.35, RS232 configuration Displays the end-to-end Router#show frame- rel ay pvc status. Recall that 'show interface' does not Di splays the type of LMI and Router#show frame- rel ay lmi the number LMI frames Displays the frame relay Router#show frame- rel ay map inverse ARP table To be come neighbours both Router#show ip ospf nei ghbor the local and remote interface must be correctly configured. If adjacent routers don't Router#show ip ospf interf ace become neighbours. Then use the command to checK the local router interface is configured correctly Same information as the Router#show ip eigrp neighbor above OSPF commands but with EIGRP. Rememberthat AS numbers MUST match Same information as the Router#show ip eigrp interface above OSPF commands but with EIGRP 1Pv6 ping. Recall that : Router#ping 2000:1000:500:3: :1 means all zero in between
