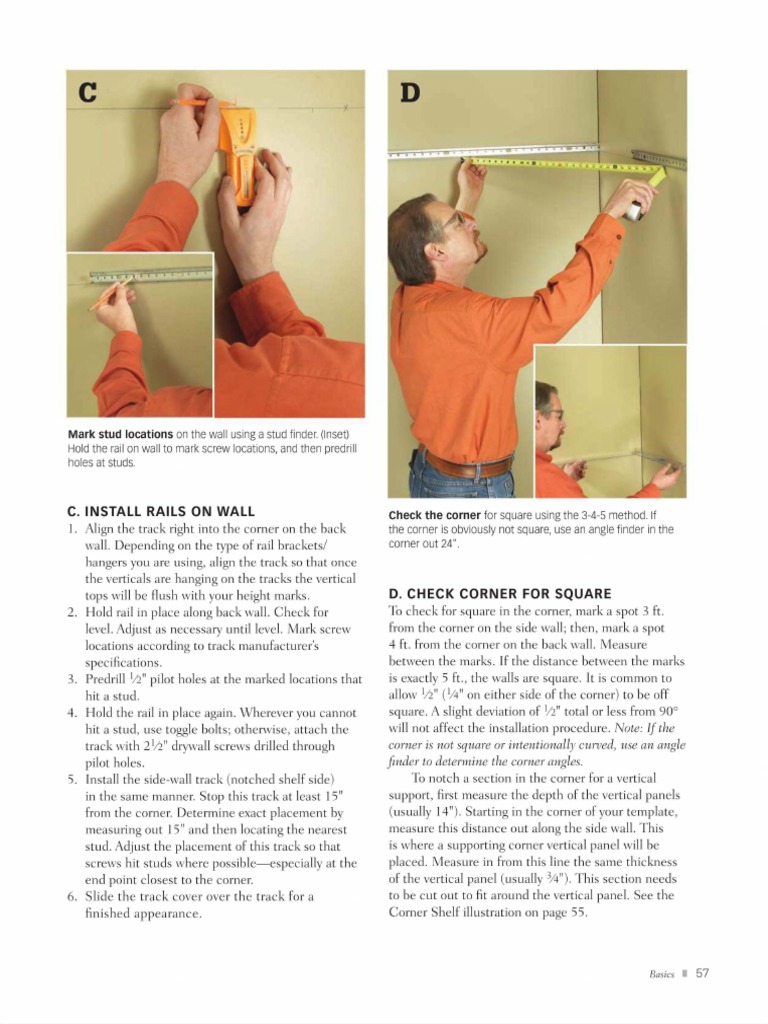

Mark stud locations on the wall using a stud finder. (Inset)
Hold the rail on wall to mark screw locations, and then predrill holes at studs. C. INSTALL RAILS ON WALL 1. Align the track right into the corner on the back wall. Depending on the type of rail brackets/ hangers you are using, align the track so that once the verticals are hanging on the tracks the vertical tops will be flush with your height marks. 2. Hold rail in place along back wall. Check for level. Adjust as necessary until level. Mark screw locations according to track manufacturer's specifications. 3. Predrill 1/ 2" pilot holes at the marked locations that hit a stud. 4. Hold the rail in place again. Wherever you cannot hit a stud, use toggle bolts; otherwise, attach the track with 2 1 /2" drywall screws drilled through pilot holes. 5. Install the side-wall track (notched shelf side) in the same manner. Stop this track at least 15" from the corner. Determine exact placement by measuring out 15" and then locating the nearest stud. Adjust the placement of this track so that screws hit studs where possible-especially at the end point closest to the corner. 6. Slide the track cover over the track for a finished appearance. D Check the corner for square using the 3-4-5 method. If the corner is obviously not square, use an angle finder in the corner out 24" . D. CHECK CORNER FOR SQUARE To check for square in the corner, mark a spot 3 ft. from the corner on the side wall; then, mark a spot 4 ft. from the corner on the back wall. Measure between the marks. If the distance between the marks is exactly 5 ft. , the walls are square. It is common to allow 1/ 2" (114" on either side of the corner) to be off square. A slight deviation of 1/ 2" total or less from 90 will not affect the installation procedure. Note: If the corner is not square or intentionally curved, use an angle finder to determine the corner angles. To notch a section in the corner for a vertical support, first measure the depth of the vertical panels (usually 14"). Starting in the corner of your template, measure this distance out along the side wall. This is where a supporting corner vertical panel will be placed. Measure in from this line the same thickness of the vertical panel (usually 314"). This section needs to be cut out to fit around the vertical panel. See the Corner Shelf illustration on page 55. Basics 57
