SVC6000 Service Manual

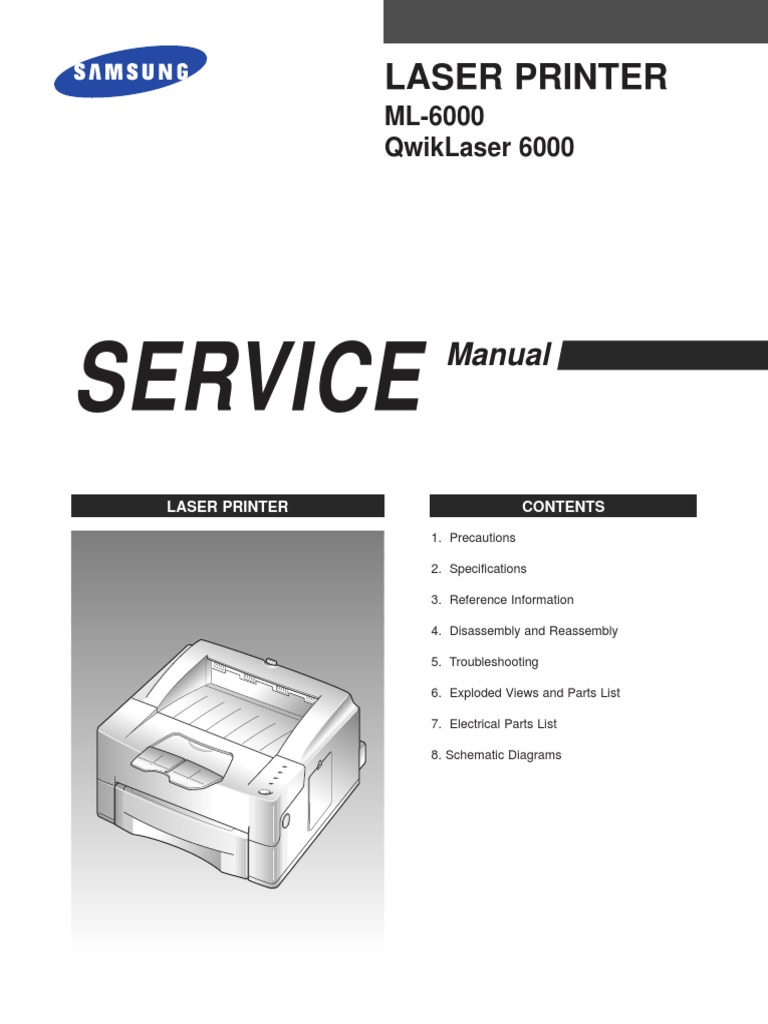

SERVICE
LASER PRINTER
ML-6000
QwikLaser 6000
Manual
LASER PRINTER CONTENTS
1. Precautions
2. Specifications
3. Reference Information
4. Disassembly and Reassembly
5. Troubleshooting
6. Exploded Views and Parts List
7. Electrical Parts List
8. Schematic Diagrams
SAMSUNG TELECOMMUNICATIONS AMERICA, INC.
1130 EAST ARAPAHO ROAD
RICHARDSON, TX 75081 USA
TEL : 1-888-987-HELP(4357)
Printed in Korea
JC68-61030B
ELECTRONICS
Samsung Electronics 1-1
1. Precautions
1-1 Safety Precautions
Read each caution carefully:
1. Do not use this printer near water or when
exposed to inclement weather.
2. Do not place this printer on an unstable cart, stand
or table; the product may fall, causing serious
damage to the product.
3. Slots and openings in the cabinet are provided for
ventilation. To ensure reliable operation and to
protect the printer from everheating, do not block
or cover any of these openings. Do not place the
printer in an enclosure unless the enclosure
provides adequate ventilation.
4. Never push objects of any kind into the printer
through the cabinet ventilation slots as they may
touch dangerous high voltage points, create short
circuits, cause a fire, or produce an electrical shock.
Never spill liquid of any kind on the printer.
5. Do not place the printer in a location where
someone may trip on the cords.
6. Select a work surface that is large enough to hold
the printer.
7. Position the printer within six feet of the computer
and within five feet of an electrical outlet.
8. Operate this printer using the power source (110V,
220V, etc) indicated on the marking label. If you are
not sure of the type of power source available,
consult your dealer or local power company.
9. If you need to use an extension power cord with
this printer, make sure that it uses a three-wire
grounded cord and that the total ampere ratings
for all of the products using the extension do not
exceed the extension cord ampere rating. Also,
make sure that the total of all products plugged
into the wall outlet does not exceed 15 amperes.
10. Do not allow anything to rest on the power cord
or data communications cable.
11. Unplug this printer from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
sprays. Use a damp cloth for cleaning.
12. Do not touch the surface of the photo-sensitive
drum as marks or scratches may impair print
quality.
13. Do not expose the drum unit to direct light for
prolonged periods.
14. Use only standard papers, OHP films, and
approved envelopes. Feed OHP films though the
manual feed slot only. See specifications for
approved papers and envelopes.
15. Other than replacing consumables such as paper
and toner, refer all questions to qualified service
personnel.
LASER STATEMENT (LASERTURVALLISUUS)
WARNING : NEVER OPERATE AND SERVICE THE PRINTER
WITH THE PROTECTIVE COVER REMOVED
FROM LASER/SCANNER ASSEMBLY. THE
REFLECTIVE BEAM, ALTHOUGH INVISIBLE, CAN
DAMAGE YOUR EYES.
Class 1 laser product
Luokan 1 laserlaite
Klass 1 laser apparat
Allonpituus 770-795nm
Teho 0.3mW0.03mW
CAUTION
VORSICHT
ATTENTION
ATTENZIONE
PRECAUCION
CAUTION : Avoid exposure to invisible laser radiation when the
development unit is not installed.
INVISIBLE LASER RADIATION WHEN
THIS COVER OPEN. DO NOT OPEN
THIS COVER.
UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GEOFFNET.
NIGHT DEM STRAHL AUSSETZEN.
REYONNEMENT LASER INVISIBLE EN CAS
DOUVERTURE. EXPOSITION DANGERUSE AU
FAISCEAU.
RADIAZIONE LASER INVISIBLE IN CASO DI
APERTURA. EVITARE LESPOSIZONE LA FASCIO.
REDIACION LASER INVISIBLE CUANDO SE
ABRE. EVITAR EXPONERSE AL RAYO.
1. Before disassembly, pull the power plug from the AC
power connector.
2. To avoid spilling toner inside the machine, do not
turn the printer over or on its side before removing
the developer cartridge.
3. Faulty installation of DRAMs may cause permanent
damage to the Laser Printer.
4. Use only+5V power for video controller-related
circuitry.
5. When replacing parts, use only the same type of part
as the original. Replacing components with a second
vendors part may cause faulty operation.
6. Check the insulation between the blades of the AC
plug and accessible conductive parts (examples :
metal panels and input ports).
7. Insulation Checking Procedure:
Disconnect the power cord from the AC power
source. Connect an insulation resistance meter (500V)
to the blades of the AC plug.
The insulation resistance between each blade of the
AC plug and accessible conductive parts (see left)
should be greater than 1 megaohm.
8. Never defeat any of the B+ voltage interlocks. Do not
apply AC power to the unit (or any of its assemblies)
unless all solid-state heat sinks are correctly installed.
9. Always connect a test instruments ground lead to the
instrument chassis ground before connecting the
positive lead; always remove the instruments ground
lead last.
1-2 Samsung Electronics
Precautions
1-2 Servicing Precautions
Note : Requirements for AC power are described on the label affixed to the rear of the printer. Check the AC
voltage rating requirement before use.
CAUTION : Be sure the power is off to the
chassis or circuit board, and
observe all other safety precautions
1. Immediately before handling any semiconductor
components assemblies, drain the electrostatic charge
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist strap device.
(Be sure to remove the strap before applying power to
the unit under test to avoid potential shock.)
2. After removing ESD-equipped assembly, place it on a
conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3. Do not use freon-propelled chemicals. These can
generate electrical charges sufficient to damage ESDs.
4. Use only a ground-tip soldering iron when soldering
or desoldering ESDs.
5. Use only anti-static solder removal device. Some
solder removal devices are not rated as anti-
static;these can accumulate sufficient electrical
charge to damage ESDs.
6. Do not remove a replacement ESD from its protective
package until you are ready to install it. Most
replacement ESDs are package with leads that are
electrically shorted together by conductive foam,
aluminum foil or other conductive materials.
7. Immediately before removing the protective material
from the leads of a replacement ESD, touch the
protective material to the chassis or circuit assembly
into which the device will be installed.
8. Minimize body motions when handling unpackaged
replacement ESDs. Motion such as your clothes
brushing together, or lifting a foot from a carpeted
floor can generate enough static electricity to damage
an ESC.
9. Handle ICs and EPROMs carefully to avoid bending a
pin.
10. Pay attention to the direction of parts when mounting
or inserting them on a PCB.
11. Components can be permanently damaged if heated
for longer than necessary while welding. All
components are susceptible to heat damage.
1-3 ESD Precautions
Some semiconductor (solid state) devices are easily damaged from static electricity. Such components
commonly are called Electrostatically Sensitive Devices (ESDs); examples include integrated circuits (ICs),
Large-Scale Integrated circuits (LSIs), some field-effect transistors, and semiconductor chip components. The
following techniques will reduce the occurrence of component damage caused by static electricity:
Item Specification & Description
Engine MLE-6000
Print Speed 12PPM (A4 Size, 5% Character Pattern)
Resolution True 600 x 600 dpi
Source of Light Laser Diode (LSU:Laser Scanner Unit)
Print Method Non-impact Electrophotography
Feed Method Cassette & Manual, Option Feeder
Paper Handling (input) *Size
(1) Standard : A4, Letter, Legal, B5, Executive, Folio
(2) Envelope : manual feed only
Paper Type Paper size(mm
2
)
Monarch 98.5 x 190.5
Com-10 104.9 x 241.3
Intl-DL 110 x 220
Intl C5 162 x 229
(3) Universal type
Length : 150 ~ 356 mm
Width : 90 ~ 216 mm
*Weigh : For Cassette, 60 ~ 90 g/m
2
For Manual, 60 ~ 120 g/m
2
*Recommended Paper
USA: X420, X4024, NEKOSA, BOISECASCADE
EC : REFLEX, ADAGIO
Transparancies : 3M(CG3300 or 3360)
Label : AVERY 53XX series
Paper Handing (output) Face Down : 250 sheets, Face Up : 1 sheet
Feed Capacity 250 sheet tray
one option 250 sheet Drawer
Warm-up time 45 seconds or less (23C, 50%)
First Print Time 14 seconds or less (Fast Mode)
Power Rating AC100~120V/ 220~240V(15%), 50/60Hz (3%)
Power Consumption Max : 650W, During Printing : 210WH (average)
Power Saving During Sleep : Max 28 W
Consumption Less than 30W during 1 hour when it turned on
Certification & Compliance C-UL, TUV, FCC, CDRH, CE, CB
Acoustic Noise Stand by : Less than 36dB, Operating : Less than 49dB
Toner Supply Print Cartridge
2. Specifications
Note: It is subject to change without notice.
Specifications
Item Specification & Description
Expected Life Span 150,000 sheets
Operating Environment Temperature : 10~30C, Humidity : 20~80%RH
Storage Environment Temperature : 0~35C, Humidity : 10~90%RH
Weigh Net : Max 11Kg, Gross : 12Kg
External Dimension 360 (W) x 368 (D) x 220 (H)mm
Print Cartridge Life Span : 5,000 pages, 5% Pattern
Developing : Non-magnetic Contact Developing
Charging : Conductive Roller Charging
Density Adjustment : 3 step (Light, Medium, Dark)
Toner Supply Method : Exchanging the Developer
Toner Checking Sensor : None
Transfer System : Conductive Roller Transfer
Fusing System : Temperature & Pressure
Ozone Emission : Less than 0.1 PPM
Emulation PCL5e, PCLXL (compatible with HP LaserJet 5P)
Microsoft WPS (Windows Printing System)
Font 1 bitmap
45 scalable (35 intelligent, 10 truetype)
CPU Motorola Power PC 603e (clock speed 100MHz)
RAM Memory Standard 4M byte (16M bit x 2)
Option SIMM Module ; 4, 8, 16, 32M byte
*Refer to Operators Guide for instructions on SIMM installation.
ROM 4M byte (8M bit x 2 : Program) Flash Memory
EEPROM 512 bytes
Interface Bidirectional Parallel Standard
- IEEE 1284 COMPATIBLE MODE
- IEEE 1284 NIBBLE MODE
- IEEE 1284 BYTE MODE
- IEEE 1284 ECP WITHOUT RLE
- IEEE 1284 ECP WITH RLE
Serial/Local Interface Optional
Serial (RS-232C)
- 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 1152bps
- XON/XOFF, DTR/DST Protocol
- Rubust XON for XON/XOFF
LOCALTALK
- Macintosh Host Interface
230.4KBPS, SDLC, FMO Coding, RS-232C
Interface Switching Automatic (Serial & Parallel)
Interface Time Out 5 min (max.)
Tables 3-1-1 and 3-1-2 list abbreviations and acronyms which may be found in this service manual.
Abbreviations
Abbr Definition Abbr Definition
amps amperes motor_pa Motor phase A
assy assembly motor_pb Motor phase B
badac bad access mpx multiplex
bps bits per second neg negative
CBUSY Command busy od open drain
CCLK Command clock OSC oscillator
clk clock OUT output
cm centimeter(s) pba printed board assembly
CMSG Command message pcb printed circuit board
CON connector pix picture
DS Data Strobe Pmotor LSU motor on
EBUSY Engine Status busy pos positive or position
EMSG Engine Status message pot potential
Exitpap Exit paper ppm print pages per minute
GND ground PRINT Print command
HLDA hold acknowledge psync page synchronization
hldar hold acknowledge received pwr power
HLDR hold request Q_Lamp Quenching Lamp
HOR horizontal qty quantity
HSYNC Horizontal sync READY Engine print ready
I/O Input and Output sw switch
in inch(es) or input tach tachometer
INT Interrupt thvea Transfer high voltage Enable
INTA Interrupt Acknowledge Vcc collector supply voltage (dc)
INTR Interrupt Request VDI Video data from controller
lb. Pound(s) VDO Video data output
LDON laser Diode On vert vertical
lin linearit Vp-p peak-to-peak voltage
lock bus lock VR variable resistor
Lready LSU power ready mm millimeter(s)
3. Reference Information
3-1 Abbreviations and Acronyms
Acronym Definition Acronym Definition
ADC Analog to Digital Converter LED Light Emitting Diode
ALE Address-Latch Enable LSU Laser Scanner Unit
ASCII American Standard Code for MHV Main High Voltage
Information Interchange MPU Micro Processor Unit
BIOS Basic Input/Output System NC No Connection
BPS Bits Per Second PCB Printed Circuit Board
CMOS Complementary Metal Oxide PCU Printed Control Unit
Semiconductor PLCC Plastic Leaded Chip Carrier
CPU Central Processing Unit PPM Page Per Minute
DCU Diagnostic Control Unit PQFP Plastic Quad Flat Package
DMA Direct Memory Access or PWM Pulse Width Modulation
Dynamic Memory Access QFP Quad Flat Package
DMAC Direct Memory Access Controller RAM Random Access Memory
ROM Read Only Memory
DOS Disk Operating System SCC Serial Communications Controller
DPI Dots Per Inch (resolution)
DRAM Dynamic Random Access Memory SMPS Switching Mode Power Supply
DVM Digital Voltmeter SOP Small Outline Package
EEPROM Electronically Erasable THV Transfer High Voltage
Programmable Read Only Memory TS Tri-State
ICU Image Control Unit VCU Video Control Unit
Reference Information
Acronyms
3-2-1 Precautions for Chip Replacement
1. Do not directly touch any portion of the part with
the soldering iron. ICs, especially TSOPs, are easily
damaged by heat.
2. Use care with the soldering iron tip and avoid
rapidly heating parts. Some parts can be damaged
by sudden heating. Preheat the part at about 100
o
C
for several minutes before installing it.
3. Use a soldering tip temperature of about 240
o
C.
For larger parts, use a slightly higher temperature
(about 280
o
C).
4. The thin (0.3mm) solder for miniature parts does
not contain adequate flux. Supplementary flux is
thus needed in most cases.
Computer, OA and A/V systems are manufactured
using flux which can be cleaned by water. When
you replace the part or when troubleshooting, use
proper flux and solder which can be cleaned by
water.
Improper flux may cause the soldering area to
corrode and may cause a fatal system error.
5. Use care not to damage the circuit pattern,
especially when desoldering. Because of the many
pins, cleanliness of the pattern is extremely
important after removing an IC.
6. Use care to avoid solder bridges. Remove any
bridges that occur.
7. Position the part carefully. This also affects the
soldering operation. Be very precise in positioning
the IC. Soldering opposite pins first holds the IC in
place and makes soldering the other pins easier.
8. Do not reuse removed parts.
9. Clock for solder joints, especially miniature parts
with small lead.
10. Adefective trimming resistor cannot be adjusted
externally. Replace with an ordinary variable
resistor.
11. Always inspect the work with a magnifying lens.
Check after installing cold solder joints, etc.
3-2-2 Tools for Chip Replacement
The tools for chip replacement are as follows:
Thin tip type soldering iron.
Small flat-blade tip type soldering iron
Special desoldering tip iron
Air-blower Unit
Flat Package Pick-up
Flux that can be cleaned by water
0.3mm thin solder that can be cleaned by water
Desoldering wire
Tweezers
3-2-3 Chip Resistor and Chip Capacitors
TYPES
The types of chip resistors and chip capacitor are as
follows:
Thick Film Chip Resistors
Carbon Film Chip Resisters
Metal Film Chip Resisters
Chip Ceramic Capacitors
Chip Trimming Resisters
R EM O VIN G
1. Using Two soldering irons:
a. Use thin tip soldering irons
b. Use soldering tip temperature of about 280
o
C.
c. Simultaneously heat both ends of the part.
d. While heating, grasp the part with the tips of the
soldering irons and remove it.
e. Use desoldering wire to completely remove the
old solder from the part location on the board. A
clean pattern for installing the new part is very
important.
3-2 Chip Replacement (SMD)
IN STA LLIN G
1. Clean the area where the new part is to be
mounted.
2. Apply a water soluble flux.
3. Set part correctly into position and prevent is from
shifting.
4. Bring the soldering iron tip close to the part contact
without actually touching it. Melt thin (0.3mm)
solder between the tip and part so that it flows into
the part contact.
5. Check work quality with a magnifying lens.
3-2-4 Chip Tantalum Capacitors and
Chip filters
TYPES
The types of chip tantalum capacitors and chip filters
are as follows:
Chip Inductors
Chip Tantalum Capacitors
Chip Tantalum Electrolytic Capacitors
Chip Aluminum Electrolytic Capacitors
Chip Transformers
Chip Filters
R EM O VIN G
1. Using a special desoldering iron:
a. Select soldering tip according to part size.
b. Bring the tip into contact with the solder points.
c. When the solder melts, remove the part.
d. Remove the old solder with desoldering wire.
2. Using a special desoldering iron:
a. Use small flat-blade tips.
b. Heat both ends of the part simultaneously.
c. When the solder melts, grasp and remove the
part with the soldering iron tips.
IN STA LLIN G
mounted.
3. Set part correctly into position and prevent it from
shifting.
4. Use a sharp soldering iron tip. Bring the tip close to
the part contact without actually touching it. Melt
thin (0.3mm) solder between the tip and part so
that it flows into the part contact.
5. Check work quality with a magnifying lens.
3-2-5 Chip VRs, Chip Trimmer
Capacitors, Diode and Tr.
TYPES
The types of parts are as follows:
Chip VRs
Chip Trimmer Capacitors
Diode
Transistors
R EM O VIN G
1. Using two soldering irons.
a. Use small-flat-blade tips.
b. Heat the leads of the part simultaneously.
c. When the solder melts, grasp and remove the
part with the soldering iron tips.
IN STA LLIN G
mounted.
3. Set part correctly into position and prevent is from
shifting.
4. Use a sharp soldering iron tip. Bring close to the
part contact without actually touching it. Melt thin
(0.3mm) solder between the tip and part so that it
flows into the part contact.
3-2-6 Chip ICs
TYPES
The types of chip ICs are as follows:
1. SOP (Small Outline Package) IC
2. SSOP (Shrink Small Outline Package) IC
3. VSOP (Very Small Outline Package) IC
4. QFP (Quad Flat Package) IC
5. VQFP (Very Quad Flat Package) IC
6. PLCC (Plastic Leaded Chip Carrier) IC
7. TSOP (Thin Small Outline Package) IC
R EM O VIN G
1. Using special desoldering iron:
a. Select the tip according to the size shape of the
IC.
b.Tin the tip with a small amount of the IC leads.
c. Set the tip squarely over the IC leads.
d. When the solder melts, carefully twist the iron.
e. Raise and remove the IC.
2. Using a shaped air-blower unit:
a. Select the correct nozzle.
b. Select the temperature and air-blow
(suggested : temperature : 7, air-blow:4)
c. Engage the IC removing tool.
d. Use the air-blow the preheat the IC for about 5
seconds, then heat with the nozzle until the IC
remove lifts the part from the board.
IN STA LLIN G
1. Use desoldering wire to remove the previous solder
2. Clean the location.
3. Apply water soluble flux.
4. Position the IC and solder two pins at opposite
sides.
5. Use a sharp tipped soldering iron and carefully
solder each pin. (After gaining experience, a thicker
tip can be used for better work efficiency)
6. Remove any solder bridges with desoldering wire.
7. Inspect the work with a magnifying lens.
IC
LBP DIAGNOSTIC CONTROL UNIT
DIAGNOSTIC MODE INDICATOR
04 DEV 300 DEV 350 DEV 350
05 LSU READY LSU MT & LD LSU MOTOR
07 PAPER EMPTY PAPER WIDTH NEW CRU
08 EXIT SENSOR FEED SENSOR
09 COVER OPEN
10 OVER HEATING PRINTING TEMP. READY TEMP.
ON
STATUS
SELF
TEST
DIAGNOSTIC
OFF
DIAGNOSTIC CODE
00 MAIN MOTOR OPERATING SYSTEM
01 MAIN HIGH VOLTAGE ON
02 TRANSFER HIGH VOLTAGE(-) ON
03 THV(+) REFERENCE ON
04 DEV/SUPPLY HIGH VOLTAGE/PTL ON
05 LSU OPERATING SYSTEM
06 PICKUP CLUTCH ON
07 PEMPTY/PWIDTH/NEW CRU TEST
08 FEED & EXIT SENSOR TEST
09 COVER OPEN SENSOR TEST
10 FUSER TEST
11 HOT BURN TEST
12 CLEANING MODE PRINT
13 THV(+) TRIGGER ALL HV & FAN ON
NORMAL STATUS CODE
61 WARM UP
00 READY(LEGAL)
01 READY(LETTER)
02 READY(A4)
03 READY(EXECUTIVE)
04 READY(B5)
20 PRINT START
30 FEED SENSOR ON
40 FEED SENSOR OFF
50 PAPER OUT
69 SLEEP MODE
ERROR STATUS CODE
60 OPEN FUSER ERROR
62 LOW TEMPERATURE ERROR
68 OVER HEATING ERROR
64 COVER OPEN ERROR
70 NO PAPER
71 PAPER JAM 0
72 PAPER JAM 1
73 PAPER JAM 2
95 LSU NOT READY
DIAGNOSTIC
MODE
TO ENTER DIAGNOSTIC MODE, PUSH THREE BUTTONS SIMULTANEOUSLY
AND TURN THE PRINTER POWER ON.
DOWN
UP
SHIFT STOP
ENTER
SEC CODE : ML+5000KC/XRX
3-3 Recommended Test Equipment
Samsung recommends the following equipment when servicing the Laser Printer.
Digital Multimeter Adigital multimeter with attached LED or LCD 4-digit Panel
Oscilloscope Adigitizing oscilloscope which can measure more than 100MHz
High Voltage Probe Ahigh voltage probe which can measure about less than 10KV
DCU (Diagnostic Control Unit) DCU can be supplied from Samsung which can easily shows the engines
error status
Table 3-4-1 Equipment List
Figure 3-4-1 DCU
3-4 DCU Control
3-4-1 DCU Setup
1) Connect DCU to Controller Board Connector J6 (4 pins) or Engine Board CN2 (4pins).
2) To apply power, simultaneously press and hold down [DOWN], [SHIFT], and [STOP] keys. 78 is displayed.
3) After 2-3 seconds, release the keys. 00 is displayed.
4) Press [UP] or [SHIFT]+[DOWN] keys until the desired code number is displayed in the DCU display.
5) Press [ENTER] to begin operating.
6) Example : Select numbers 13 and 14 to adjust the electrophotography trigger voltage.
7) To end operation, press [SHIFT] and [STOP] keys.
3-4-2 DCU Diagnostic Mode
The DCU is used to diagnose the printer malfunction status.
Display Diagnostic Code Description
00 MAIN MOTOR OPERATING SYSTEM
01 MAIN HIGH VOLTAGE ON
02 TRANSFER HIGH VOLTAGE(-) ON
04 DEV/SUPPLY HIGH VOLTAGE/PTL ON
05 LSU OPERATING SYSTEM
06 PICKUP CLUTCH ON
07 PEMPTY/PWIDTH/NEW CRU TEST
08 FEED & EXIT SENSOR TEST
09 COVER OPEN SENSOR TEST
10 FUSER TEST
11 HOT BURN TEST
12 CLEANING MODE PRINT
13 THV(+) TRIGGER ALL HV & FAN ON
3-4-3 DCU Error Status Code
DCU error code will indicate malfunction area of the machine.
Display Error status
60 OPEN FUSER ERROR
62 LOW TEMPERATURE ERROR
68 OVER HEATING ERROR
64 COVER OPEN ERROR
70 NO PAPER
71 PAPER JAM 0
72 PAPER JAM 1
73 PAPER JAM 2
95 LSU NOT READY
3-4-4 Error Solution
Display Solution
60, 62, 68 1. Measure the resistance of the AC connector on the Fuser. Normal resistance is 2-4
ohmsfor 110V, 6-8 ohms for 220V.
2. Check if the fuser lamp works properly.
3. Measure the resistance at Q101 on the engine board. If abnormal, replace Q101, Q3,
PC151, Q8.
70 1. Make sure that paper is loaded in the cassette.
2. Replace OP2 sensor (photo interrapter).
3. Check if the feed clutch works properly.
4. If abnormal, replace the feed clutch or Q4 on the engine board.
71 1. Make sure that paper is loaded in the cassette.
2. Check for pick-up unit. If it is heavily worn, replace it with new one.
3. Replace OP1 sensor.
72, 73 1. Make sure that the paper being used meets the specification.
2. Check if there is a paper jam in the fuser.
3. Replace OP1, OP3 on the engine board.
4. Check the fuser roller for any dirt. If dirty, clean the roller.
95 1. Check for U205 on the engine board.
2. Replace LSU.
3. Measure the resistance at R62 and R8. If abnormal, replace them.
4. Disassembly and Reassembly
4-1 General Precautions on Disassembly
When you disassemble and reassemble components, you must use extreme caution. The close proximity of
cables to moving parts makes proper routing a must. If components are removed, any cables disturbed by the
procedure must be restored as close as possible to their original positions. Before removing any component
from the machine, note the cable routing that will be affected.
Whenever servicing the machine, you must perform as follows:
1. Remove the paper cassette(s), and the print cartridge. Do not expose the cartridge to direct room light or sun
light, and be careful not to scratch the drum surface.
2. Turn the power switch off.
3. Unplug all the cables from the printer.
4. Replace with only an authorized component.
5. Do not force to open or fasten a plastic material component.
6. Be careful no obstacles are included when you reassemble components.
7. When you reassemble components, be careful small size components are located in place.
8. If you turn the machine over to replace some parts, toner or paper particles may contaminate the LSU
window. Protect the LSU window with clean paper.
Releasing Plastic Latches
Many of the parts are held in place with plastic
latches. The latches break easily; release them
carefully. To remove such parts, press the hook end
of the latch away from the part to which it is
latched.
Disassembly and Reassembly
4-2 Transfer Roller
1. Press the cover open switch and raise the printer
cover.
3. Pull the roller slightly to the right to release the
left end of the roller, then take it out.
2. Use a phillips screwdriver to release the right
end of the roller.
4-3 Controller Board
1. Remove the cover located at the right side of the
printer.
2. Remove one screw. Slide the shield cover in the
direction of OPEN arrow marked on the cover,
then remove the cover.
3. Unplug two connectors from the board.
4. Remove three screws securing the board and pull
the board out of the printer.
4-4 Panel Board
2 Remove the panel cap.
1 Press the cover open switch and raise the printer
cover.
3. Unplug one connector from the panel board.
4 Remove three screws from the board, and
remove the board.
5. Remove the Window LED and button panel
LED.
4-5 Pickup Assembly
1. Turn the printer over. Remove three screws from
the left base bracket, and take the bracket out.
2. Remove one ground screw.
3. Remove two screws securing the pickup
assembly and take the assembly out.
4. Check the pickup rubber wear. If the rubber is
heavily worn, replace it with a new one.
Push the solenoid if you
have difficulty to remove
the pickup assembly.
Squeeze this tab to
remove the rubber.
4-6 Main Cover
1. Before you remove the cover, you should
remove:
-Controller Board (see page 4-3)
2. Remove two screws at the back of the printer.
3. Open the printer cover, and remove two screws.
4. Remove the panel cap inside the operator panel.
5. Unplug one connector from the panel board.
4-7 LSU
1. Before you remove the LSU, you should remove:
-Main Cover (see page 4-6)
2. Remove two screws securing the fuser cover, and
remove the fuser cover.
3. Remove three screws, and remove the LSU. Then
unplug two connectors from the LSU.
7. Slide the main cover upward, out of printer. 6. Unlatch the front ends of the cover.
Note that the power switch is
properly released from the cover.
4-8 Exit Assembly
1. Before you remove the exit assembly, you should
remove:
-Fuser Cover (see page 4-10)
2. Remove three screws, and remove the bracket.
3. Remove two screws, unlatch the exit tray and
take it out.
4. If you want to remove the roller shaft, unlatch
both ends of the shaft and take it out.
5. If you want to remove the exit rollers, sqeeze the
bottom of roller and take it out.
4-9 Drive Assembly and Fan
1. Before you remove the drive assembly or fan,
you should remove:
2. Unplug two connectors.
4. Remove seven screws securing the drive
assembly from the gear bracket, and remove the
drive assembly and motor drive board. Unplug
one connector from the board.
3. If you want to replace the fan, take the fan out.
5. If you want to remove the motor from the drive
assembly, remove three gold screws securing the
motor assembly to the gear bracket.
6. Remove the motor assembly. Remove two screws
securing the motor to the motor bracket, then
take the motor out.
4-10 Fuser
1. Before you remove the fuser, you should remove:
2. Remove three screws, and remove the bracket.
3. Remove two screws from the SMPS bracket.
4. Remove the exit actuator. Unplug two
connectors.
5. Remove four screws, and remove the fuser
assembly.
Exit Actuator
To remove the thermostat from the fuser assembly :
Remove two screws, and take the thermostat out.
To remove the halogen lamp from the fuser
assembly :
Remove one screw.
To remove the thermistor from the fuser assembly :
1. Release the wire from the three holders.
2. Remove one screw, then take the thermistor out.
Note: When you reassemble the thermistor,
make sure that it puts in place.
Note: When you reassemble the halogen lamp,
make sure that it is inserted into the slot
properly.
Thermostat
4-11 Engine Board and Miscellaneous
1. Before you remove the engine board, you should
remove:
2. Remove the SMPS bracket as described in 4-10
Fuser and unplug four connectors.
3. Remove one screw from the engine board.
5. Remove three screws securing the ICU ground,
and remove the ICU ground.
4. Turn the printer over. Remove six screws from
the left and the right base brackets, and take
them out.
6. Remove one ground screw.
7. Remove six screws securing the PCU shield. 9. Unplug all connectors from the PCU shield, and
remove the shield.
To replace HV terminals :
Remove the terminals.
Note: When you replace with new ones, be
careful that they are inserted in place.
8. While you push the stopper to release the PCU
shield, take the PCU shield out of the printer.
Stopper
HV terminals
To replace the SCF connector :
Remove two screws and take it out.
To replace the pickup sensor :
Take the sensor out while you push the both ends
of the sensor.
To replace the paper empty sensor :
Take the sensor out while you push the both ends
of the sensor inward.
Paper empty sennsor
To replace the cover open sensor :
Remove the spring and take it out.
To replace the actuator :
1. Turn the mechanism back and push down the
points as shown to unlatch the actuator.
2. Turn the unit over, and remove the actuator.
To remove the transfer guide :
Remove four screws and take the guide out.
To replace the PTL module :
Release the three tabs latching the sensor using a
phillips screwdriver, then push the sensor down.
M3 x 8
Note: When you reassemble the thermistor
assembly, make sure that it puts in place.
To replace the thermistor assembly :
Remove one screw, and remove the thermistor
assembly.
To replace the transfer roller bushings
(left and right) :
Release each tab latching the left and right holder,
then push the holder down.
4-12 ROM
1. Press the cover open switch and raise the printer
cover.
2. Remove the ROM cover.
3. Replace ROM using the specified jig.
Note: When you install a new ROM, be careful for
the direction.
Memo
5. Troubleshooting
Error code 1-010
Fault
Description
Black vertical stripes occur in the printing.
Black vertical stripes Model ML-xxxx
Check
1. Developer cartridge
2. Transfer roller
3. Charge roller
Cause
1. Defective develop roller or bad blade of toner cartridge.
2. Defective transfer roller or charge roller.
Solution
1. Replace the toner cartridge, if defective.
2. Replace the roller defective.
Remark
Others
Troubleshooting
Error code 1-020
Fault
Description
White vertical voids in the image.
White vertical stripes Model ML-xxxx
Check
1. LSU
3. Fuser
Cause
1. Foreign matter stuck onto the window of internal lens of LSU mirror
2. Foreign matter or toner particles between the developer roller and blade
3. If the fuser is defective, voids occur periodically at the top of a black image.
Solution
1. Clean the LSU window with a recommended cleaner, or replace the LSU window.
2. Replace the developer cartridge if defective.
3. Open rear cover and check ribs in the fuser for contamination. Clean if necessary.
Remark
Use LSU cleaner dated after January 1997.
Others
If white streaks occurs fewer than 5 or 6 times, it can be considered as normal.
Troubleshooting
Error code 1-030
Fault
Description
Dark or blurry horizontal stripes occur in the printing periodically.
Black horizontal stripes Model ML-xxxx
Check
Developer cartridge
Cause
1. Bad contacts of the voltage terminals to developer
2. The rollers may be stained with toner particles.
* Abnormal image periodicity :
37.7 mm = Charge roller
31.3 mm = Supply roller
94.2 mm = OPC drum
46 mm = Develop roller
non periodical = Blade
Solution
1. Check all voltages, and adjust as necessary.
2. Check for terminal contacts, and replace the cartridge, if necessary.
Remark
Others
Troubleshooting
Error code 1-040
Fault
Description
Dark or blurry black or white spots occur periodically.
Black or white spots Model ML-xxxx
Check
2. Transfer voltage
3. Transfer rollers life
Cause
1. If dark or blurry black spots occur periodically, the rollers in the Developer may be contaminated
with foreign matter or paper particles.
(Charge roller : 37 mm interval, OPC drum : 94 mm interval).
2. If faded areas or voids occur in a black image at intervals of 94 mm, or black spots occur
elsewhere, the OPC drum surface is damaged.
3. If a black image is partially broken, the transfer voltage is abnormal or the transfer rollers life has
expired.
Solution
1. Run OPC cleaning to remove excess toner and paper particles on the charge roller and OPC drum.
Repeat 2 or 3 times. Run the self-test. If the same problem persists, replace the developer.
2. Clean the rollers. If problem persists, replace the Developer.
3. The transfer roller guarantees 50,000 sheets printing. If the rollers life is expired, replace it.
Remark
Others
Troubleshooting
Error code 1-050
Fault
Description
The printed image is light, with no ghost.
Light image (1) Model ML-xxxx
Check
Developer cartridge
Cause
1. The life of cartridge is ended.
2. Ambient temperature is below than 10
o
C.
3. Agitator gear in the Developer is defective.
4. Bad contact of supply roller and abnormal supply voltage.
Solution
1. Check the weight of the developer cartridge, and replace if necessary. When the cartridge is almost
used up, the weight will be as follows:
ML+6000D5 : 960 grams +/- 20 grams
2. In low temperature, wait 30 minutes after printer is powered on before you start printing.
3. Check if the hopper gear is visible from the side of the developer. If not, replace the developer.
4. Check for the supply roller contact and the supply voltage.
Remark
Others
Troubleshooting
Error code 1-051
Fault
Description
Check
Engine board
Cause
1. Charge voltage (=MHV) on the engine board exceeds 1520V. (Perform DCU diagnostic mode 01 to
measure the voltage).
2. No power to the supply roller.
Solution
Check the following parts and replace if defective :
U201(KA324), Q211(C1008), T202(Transformer),
resistors, and diodes in the output and feedback area.
Remark
Check the charge voltage (MHV) at :
U201; while operating, #10/#9 2.5~2.9V, #8 5.5~8.5V
while idling, #9 2.7V, #10/#8 0V
Q201 operating voltage; Base 2~2.5V, Emitter 0~1V, Collector 30~60V
U203; #1 0V input, #2 0V output
Others
Troubleshooting
Error code 1-052
Fault
Description
Check
1. Engine board
2. Main body
Cause
1. Engine board bias (350-485V) and supply voltage (570-630V) may be low (Perform DCU diagnostic
mode 04 to measure the voltage).
2. Direct strong light may be entered into the manual feed slot.
Solution
1. Check the following parts :
U201(KA324), Q204(D526-Y), T204(Transformer), U203(SN7407N), resistors, diodes in the output
and feedback area.
2. Check if contrast mode is set to Light. If not, change the install position of the printer or attach
OPC cover sheet (P/No: JC72-49093A).
Remark
Bias and supply voltage check point:
U203; #9 pulse input, #8 pulse output
Others
Troubleshooting
Error code 1-060
Fault
Description
The printed image is dark.
Dark image (1) Model ML-xxxx
Check
Engine board
Cause
1. No charge voltage in the engine board. (Perform DCU diagnostic code 01 to measure the voltage).
Solution
1-1. Check the following parts :
U201(KA324), Q211(C1008), Q201(D526-Y), T202, U203 (SN7407N),
resistors, diodes in the output and feedback area.
1-2. Clean the high voltage terminal on the engine and its PBA.
1-3. Refer to the following information.
U201(KA324)s pin #12, #13 ; 2.5~2.9 V, pin #14 ; 5.5~8.5 V
For standby, pin #13 ; 2.7V, pin #12 & #14 ; 0V
Q201s operating voltage ; base=+2~2.5 V, emitter=0~1 V collector=30~60 V
U203(7407N)s pin #1 ; 0V input, pin #2 ; 0V output
Remark
Others
Troubleshooting
Error code 1-061
Fault
Description
Check
Engine board
Cause
1. No supply or bias voltage at the engine board
(Perform DCU diagnostic code 04 to measure the voltage).
Solution
U201(KA324), Q204(D526-Y), T204, U203 (SN7407N),
U203(7407N)s pin #1; pulse input, pin #2; pulse output.
Remark
Others
Troubleshooting
Error code 1-062
Fault
Description
Check
Engine board
Cause
1. Voltage higher than normal. (normal supply voltage : 570-630V, normal bias voltage : 350-485V).
Solution
U201(KA324), Q204(D526-Y), T204, U203 (SN7407N)
U203(7407N)s pin #9; pulse input, pin #8; pulse output.
1-3. Check developer contacts for contamination by toner particles.
Remark
Others
Troubleshooting
Error code 1-070
Fault
Description
Print density is uneven between left and right.
Uneven density Model ML-xxxx
Check
1. Transfer roller pressure
Cause
1. The pressure force on the left and right springs of the transfer roller is not even (left : 450 gf, right :
600 gf), the springs are damaged, the transfer roller is improperly installed, or the transfer roller
bushing or holder is damaged.
2. The toner level is not even on the developer roller due to the bad blade.
Solution
1. Replace defective holder or springs. Adjust the transfer voltage.
2. Replace the developer cartridge.
Remark
Others
Troubleshooting
Error code 1-080
Fault
Description
Background appears in the printing.
Background Model ML-xxxx
Check
1. Engine board
3. Transfer roller
4. Operating environment
Cause
1-1. Low transfer voltage (10% below than normal)
1-2. High supply and / or bias voltage.
1-3. No transfer voltage.
2. Unauthorized recording paper has been used.
3. Abnormal ambient temperature or humidity.
4. Defective develop roller.
Solution
1-1. Refer to Error Code 1-060.
1-2. Refer to Error Code 1-061.
1-3. Refer to Error Codes 1-090 and 1-091.
2. Use a recommended type of recording paper.
3. If the printer is under abnormal ambient condition for a long time, print errors may occur. Improve
the operating environment.
4. Replace the toner cartridge.
Remark
Others
Troubleshooting
Error code 1-090
Fault
Description
Ghost occurs at 94 mm intervals.
Ghost (1) Model ML-xxxx
Check
2. Main body
Cause
1. Contamination of high voltage terminals in the main body , engine board, and / or developer.
2. Transfer roller lifetime has expired.
3. No using recommended recording paper.
4. The Pre-Transfer Lamp (Refer to 18 on page 6-6.)
Solution
1. Open top cover and disassemble the unit and clean contamination components.
2. After replacing the transfer roller, make sure the transfer voltage is normal.
3. Use a recommended type of recording paper.
4. Check for the PTL operation, and if required, check for the main board.
Remark
Others
Troubleshooting
Error code 1-090-1
Fault
Description
Ghost occurs at 94 mm intervals.
Check
Operating environment
Cause
1. Abnormal low temperature and humidity. In this case, ghost occurs on the entire page and the
print density is too light.
Solution
1. If the operating temperature and relative humidity are too low, try waiting about 1 hour after power
on before using printer.
Remark
Others
Troubleshooting
Error code 1-091
Fault
Description
When xerographic paper is used in ADF, ghost occurs at 94 mm intervals.
Check
Engine board
Cause
1. No minus (-) transfer voltage output from the engine board.
(Normal voltage : 1250 -1450V with 660 Mohm load)
2. The (+) transfer voltage may be abnormal when performing DCU #13 with 660 Mohm load on the
transfer voltage output. (Normal voltage: 2200V (+30/-30V) DCU #14, 3250-3350V DCU #13).
Solution
Check the following parts :
U201(KA324), Q207(A708), Q202(KSD526-Y), T201, U203 (SN7407),
resistors, or diodes in the output and feedback area.
Remark
Others
In case of no minus transfer output voltage, image quality may be poor, and background may occur in
the printing.
Troubleshooting
Error code 1-093
Fault
Description
When printing on card stock or transparencies using manual feeder, ghost occurs at 94 mm intervals.
Check
1. Selected paper type in the software application
2. Engine board
Cause
1. When printing on card stock or transparencies, higher transfer voltage is required. Select Thick
Mode on paper type menu from the software application.
2. Defective transfer voltage terminal in the engine board.
Solution
1. Select Thick Mode on paper type menu from software application to print on card stock or
transparencies.
2. If the transfer voltage in the engine board is out of specification, refer to Error Code 1-091
Remark
Others
Troubleshooting
Error code 1-094
Fault
Description
Dark ghost occurs in printing at 69 mm intervals
Check
Fuser
Cause
The heat roller and pressure roller in the fuser are contaminated with toner or paper particles.
Solution
Open the rear cover and check if the heat roller is stained. If stained, disassemble the fuser and clean
the rollers with soft cloth dampened with alcohol. If ghost still occurs, replace the fuser.
Remark
Others
Troubleshooting
Error code 1-095
Fault
Description
White ghost occurs in the black image printing at 46 mm intervals.
Check
Cause
1. The life of the developer may be expired.
2. Abnormal transfer voltage or bad contact of the transfer roller
Solution
1. Measure the weight of the developer and replace if the weight is less than 960g +/-20g.
2. Check the supply voltage and adjust if necessary. Check for the contact.
Remark
Others
Troubleshooting
Error code 1-100
Fault
Description
Partially blank image appears either periodically or non-periodically.
Partial blank image Model ML-xxxx
Check
1. Transfer roller
Cause
1. The pressure force on the left and right transfer roller springs are not even, the springs are
damaged, the transfer roller is improperly installed, or the transfer roller bushing or holder is
damaged.
2. If a black image prints light or gradually light at intervals of 49 mm, the transfer roller is defective.
3. If there is a partial blank image on left and right side of the page:
1) The life of the transfer roller has expired.
2) Abnormal transfer voltage.
3) The life of the developer has expired.
Solution
1. Replace the defective components.
2. Replace the transfer roller.
3-1. Replace the transfer roller.
3-2. Measure the transfer voltage. If the voltage is abnormal, disassemble the main board and clean
the components stained with toner or paper particles.
3-3. Measure the weight of the developer. If the weight is less than 960 g 20 g, replace the
developer.
Remark
Others
Troubleshooting
Error code 1-110
Fault
Description
Background too dark on the face of printed page
Stains on the face of page Model ML-xxxx
Check
2. Main body
Cause
1. Toner leakage due to improperly sealed developer.
2. Transfer roller length is out of spec. (218 mm) or the roller is defective.
3. The inside of the unit is contaminated with toner or paper particles.
Solution
1. Clean the unit thoroughly. If problems still occurs, replace the developer.
2. If the roller is shorter than the recording paper or the roller is severely stained, replace the roller.
3. Clean the contaminated components.
Remark
Others
Troubleshooting
Error code 1-111
Fault
Description
The back of the page is stained at 49 mm intervals
Stains on back of page Model ML-xxxx
Check
Transfer roller
Cause
1. Transfer roller is contaminated.
2. Abnormal (+) (-) transfer voltage, or cleaning voltage.
3. Defective transfer roller
Solution
1. Clean the transfer roller thoroughly. Replace if contaminated severely.
2. Adjust the voltages.
3. Replace if necessary.
Remark
Others
Troubleshooting
Error code 1-120
Fault
Description
Blank page is printed.
Blank page printout Model ML-xxxx
Check
1. Bad ground contacts in OPC and/ or developer.
2. Seal tape on the cartridge
Cause
1. GND OPC is not well grounded.
2. Seal tape is not removed.
3. Low toner
Solution
1. Repair or replace the GND terminal.
2. Remove the seal tape.
3. Shake the toner cartridge and print. Or replace with new one.
Remark
Others
Troubleshooting
Error code 1-121
Fault
Description
One or several blank pages are printed.
When the printer turns on, several blank pages print.
Partial black image Model ML-xxxx
Check
Control board
Cause
Defective control board
Solution
1. Perform the engine self test using DCU. If blank page prints, the control board is defective. If the
printer works normally, refer to next solution (2). If the control board is defective, check the
connection on the control board, QP1700 pin 125, and 202.
2. If blank page is printed one time or continuously, check that the video controller oscillates properly
at 47.7789 MHz. (lower than 0.75V, higher than 3.5V)
3. If blank pages prints continuously when the printer turns on, check the CPU works properly, and
replace if defective.
Remark
Others
Troubleshooting
Error code 1-130
Fault
Description
Incomplete or missing characters.
Data error Model ML-xxxx
Check
Control board
Cause
1. Bad connections of port
2. Defective oscillators in the video controller.
3. Defective CPU in the video controller.
Solution
1. Check that the port and related parts are properly connected or soldered.
2. Check the oscillators (47.7789 MHz, 50MHz) on the video controller.
3. Replace the CPU on the video controller.
Remark
Others
Troubleshooting
Error code 1-140
Fault
Description
When printing on xerographic paper from cassette, the printed image is diffused.
Poor fusing grade (1) Model ML-xxxx
Check
Engine board
Cause
Defective the fuser (Heat lamp) control circuit in the engine board.
Solution
Refer to solution 2-1 under Error Code 3-011.
Remark
Others
Troubleshooting
Error code 1-141
Fault
Description
When printing on card stock or transparencies using manual feeder, the printed image is diffused.
Poor fusing grade (2) Model ML-xxxx
Check
1. Improper paper type menu setup
2. Engine board
Cause
1. When printing on card stock or transparencies, higher transfer voltage is required.
2. Defective transfer voltage circuit in the engine board.
Solution
1-1. Select Thick Mode on paper type menu from the software application to print on card stock or
transparencies.
1-2. Check the fuser control circuit. Refer to Solution 2-1 under Error Code 3-011.
2. Check the transfer voltage and adjust if necessary.
Remark
Others
Troubleshooting
Error code 2-010
Fault
Description
Printing begins at wrong position on the paper.
Wrong print position Model ML-xxxx
Check
Feed sensor actuator, LSU, Pick-up assy, Bracket-dust, Solenoid, Video Controller.
Cause
1. Wrong sence time caused by defective feed sensor actuator.
2. Skew:
Bad LSU-assembling
Uneven pressure force of the pick-up assy
Defective mechanical parts
3. Top margin;
Early feeding by the solenoid
Wrong OP1 sensor position
Wrong video controller connection
Solution
1. Replace the defective actuator.
2. Reassemble or replace the LSU.
Reassemble or replace the pick-up assy.
Reassemble or replace the defective mechanical parts. (for example, Bracket-dust).
3. Replace the solenoid.
Check OP1.
Check the Vedio Controller or its connection.
Remark
Others
Troubleshooting
Error code 2-020
Fault
Description
1. Paper is not exited from the cassette.
2. Paper is stopped just after cassette, before feed sensor, or on the feed sensor.
Jam 0 Model ML-xxxx
Check
Engine board
Cause
1. Open the printer cover, and close it. Then check :
1-1. If the paper does not feed into the printer, the feed clutch driving circuit in the engine board may
be defective.
1-2. If the paper feeds into the printer and Jam 0 occurs, the feed sensor OP1 on the engine board
may be defective.
2. Defective PLT-Knockup (12) (Refer to 9 on page 6-14.)
Solution
1. Check for the solenoid driving circuit using DCU diagnostic mode 06.
1) Check for 24V input on D1 cathode. If 24V is not present, check Q4. If they work normally, check
for 24V output from SMPS.
2) Measure the feed clutch resistance. Replace if not approximately 60 ohms.
3) Check Q4. if Q4 is OK, the collector and base should be 0V and 0.7V DC to GND, respectively.
2. Check for Feed sensor OP1 and related parts.
1) Replace Feed sensor actuator if defective.
2) When OP1 sensor is blocked, U6 (74HC245) pin#16 should be over 3.5V. When the sensor is
not blocked, the pin should be below 0.7V.
One side of R15 in OP1 transmitter should be 5V, and the other end 1.2V. If normal, check OP1
receiver. If not shorted, replace CPU.
3. Replace the cassette, if damaged.
Remark
Others
Troubleshooting
Error code 2-030
Fault
Description
Recording paper is jammed in the output area (inside the fuser), or multiple sheets of the paper are
fed at once.
Jam 1 Model ML-xxxx
Check
Engine board
Cause
1. Open the printer cover, and close it. Then check :
- If the paper does not feed into the printer, the feed clutch driving circuit in the engine board may
be defective.
- If the paper feeds into the printer and Jam 1 occurs, the feed sensor OP1 on the engine board
may be defective.
- If paper is stopped in just front of fuser:
1-1. Feed sensor OP1 or feed actuator may be defective.
1-2. Exit sensor OP3 or exit actuator may be defective.
2. In case of multi-feeding, refer to Error Code 2-050.
Solution
1-1. Check the feed sensor OP1. Refer to Error Code 2-020. Replace the feed actuator if defective.
1-2. Check OP contacts. In operating mode, U6 (74HC245) pin#13 should be below 0.7V. If not, check
OP3 contact resistance. Replace OP3 if over 100 ohms. If the switch works normally, check R30.
If defective, replace the exit sensor actuator.
2. In case of multi feeding, refer to Error Code 2-050.
Remark
Others
Troubleshooting
Error code 2-040
Fault
Description
Paper is completely fed out of the printer, but Jam 2 occurs. Or, the paper is stuck in the fuser roller.
Jam 2 Model ML-xxxx
Check
1. Engine board
2. Fuser
Cause
1. Check if paper is jammed in the pressure roller.
2. Open the printer cover, and close it :
If Jam 2 occurs after the paper is completely fed out of the printer, the exit sensor contact may be
bad or the exit sensor actuator may be deformed.
Solution
1-1. Check if the exit sensor actuator is defective, and replace if required.
1-2. Check the exit sensor OP3 contact and related parts. Refer to Error Code 2-030.
2. If the paper is stuck in the fuser, disassemble the fuser and remove the jammed paper, and clean
the surface of the pressure roller with soft cloth, dampened with alcohol.
Remark
Others
Troubleshooting
Error code 2-050
Fault
Description
Multiple sheets of paper are fed at once.
Multi-feeding Model ML-xxxx
Check
Engine board
Cause
1. Solenoid malfunction.
2. Feed clutch armature does not engage the pick-up housing in the pick-up assy.
Solution
1. If the solenoid does not work properly:
1-1. Measure the resistance of the feed clutch coil. If below 40 ohm (normal: 55-60 ohm), replace.
1-2. Check Q4 C/E short, and replace as necessary. (If C and E are shorted, multiple sheets of
paper feed when the printer powers on.)
1-3. Check if the solenoid spring is returned to the original state. Replace if the return force is
weak.
2. If the clutch works properly, but the armature does not engage the pick-up housing in the pick-up
assy, bend the armature to pick up properly.
Remark
The feed clutch spring has 40 turns. A pad is attached to solenoid yoke, the armature angle is 90
degrees.
Others
Troubleshooting
Error code 3-010
Fault
Description
All the lamps on the operator panel blink and the system stops.
Fuser Error Model ML-xxxx
Check
1. Fuser
2. Engine board
Cause
1-1. Thermostat, AC wire, or heat lamp may be open.
1-2. Thermistor may be open. (DCU error code 60, 62, 68.)
2-1. Abnormal heat lamp on/off
2-2. Malfunction of the overheat circuit
Solution
1-1. Check thermostat, AC wire, and heat lamp. If the thermostat is open, check also R37, R47, or Q8.
1-2. If thermistor is open, check the wire. If the wire is good, check Q8. Q8 collector should be 0.2V,
base 0.7V.
2-1. Check Q3 and its related parts in the order shown below.
1) Check Q3 C-E, B-E, B-C, and replace if shorted. If the voltage between B and E is below 0.7V,
replace the transistor.
2) When lamp is on, if the base is 0V, check CPU pin 38.
3) When lamp is on, if the collector is 0V with lamp off, check PC151, Q101, and its related parts.
2-2. Check the overheat circuit. When U5 pin 7 is below 0.5V, the overheat circuit should activate and
the lamp turns off. In normal mode, pin 6 is approximately 2.6V, pin 5 is over 2.6V, and pin 7 is
over 4V. If not, check all related parts.
Remark
Others
Troubleshooting
Error code 3-011
Fault
Description
When printing, motor breaks away from its place due to the defective fuser gear.
Malfunction of the gear motor in the fuser Model ML-xxxx
Check
1. Fuser
2. Engine board
Cause
1. Fuser control temperature is set too high.
2. PC151 or Q3 is defective.
3. Overheat circuit is not operating properly.
Solution
1-1. Check if the thermostat is open, and replace.
1-2. Check if the thermistor sensor is in place, and replace if required.
2-1. R57 and R58 = 3.3k and 1k, respectively.
Check if R57 and R58 are 3.3K and 1K respectively.
2-2. Replace Q3 if C and E are short.
2-3. Replace PC151 if pin 4 and 6 are short.
2-4. Replace Q101 if T1 and T2 are short.
3. Check if the overheat circuit works properly :
Refer to the solution 2-2 under Error Code 3-010.
Remark
Others
Troubleshooting
Error code 3-020
Fault
Description
The feeding paper is stopped in the front of transfer roller and all lamps on the operator panel blink.
Scanner Error Model ML-xxxx
Check
1. LSU
2. Engine board
Cause
1. Defective LSU
2. Defective Q5, or CPU
3. Abnormal resistance value of R8, R62
Solution
1. Perform DCU diagnostic code 05. If the DCU error code 95 is displayed, replace LSU.
If you cannot solve the problem after you replace LSU, follow the steps below.
(1) When you press ENTER key with DCU code 05, if the LSU motor does not run, check U205
pin 5, pin 6. If U205 pin 5, and pin 6 are normal, check CPU pin 40 and the related parts.
If the motor drives properly, and CPU pin 25 is not below 0.5V, replace R51 and CPU.
(2) When you press UP key with DCU code 05, if ON and OFF lamps do not turn on, check CPU
pin 28 and 41, and their related parts. Normally pin 28 is over 3.5V when high, and below 0.7V
when low. If the transformer works normally, replace CPU.
Remark
Others
Q3, U3, CN3, SW151
Troubleshooting
Error code 3-030
Fault
Description
The PAPER lamp on the operator panel is on even when paper is loaded in the cassette.
The PAPER lamp on the operator panel does not come on when the paper cassette is empty.
Paper Empty Model ML-xxxx
Check
1. Actuator-Empty (Refer to 52 on page 6-6.)
2. Engine board
Cause
1. Empty actuator may be defective.
2. Photo sensor OP2 on the engine board may be defective.
Solution
2-1. U6 (74HC245) pin 15 should be over 3.5V when OP2 sensor is blocked, and below 0.7V
when the sensor is not blocked.
2-2. One end of R24 in the transmitter of OP2 should be 5V, and the other end 1.2V.
2-3. If the related resistors are good, check for short circuit of OP2 receiver.
If OP2 is normal, replace U6 (74HC245).
Remark
Others
Troubleshooting
Error code 3-040/3-041
Fault
Description
The ERROR lamp is on even when the printer cover is closed.
The ERROR lamp does not come on even when the printer cover is open.
Cover Open Model ML-xxxx
Check
1. Hook lever in the top cover (Refer to 2 on page 6-4.)
2. Engine board
3. Actuator-cover open (Refer to 48 49 on page 6-6.)
Cause
1. The hook lever may be defective.
2. Malfunction of the circuit containing the micro switch SW151 and its related parts on the engine board.
3. Defective actuator-cover open.
Solution
1. Replace the hook lever, if defective.
2. Check SW151 and its related parts :
2-1. Check SMPS 24V output.
2-2. Check D4 anode when SW151 is pressed. D4 anode will be below 3.5V when SW151 is open.
Check for R38 and R39, and replace if defective.
2-3. If D4 anode is over 3.5V, check if CPU pin 48 is short. If not, replace CPU.
Remark
Others
Troubleshooting
Error code 3-050
Fault
Description
When printer power is on, all lamps on the operator panel blink.
All Lamps Blinking Model ML-xxxx
Check
1. Harness between the engine and control boards
2. Engine board
Cause
Defective interface between the engine board and control boards (DCU error code 78)
Solution
1. Check the harness between the engine and control boards.
2-1. Check if the engine board works properly when the printer resets. U5 pin 1 should be below 0.7V
for about 122 ms after power is on, then remain over 3.5V.
-Check U5 pin 2 = approx. 3.8V. If so, check R54 or R55.
-Check U5 pin 3 = approx 4V. If so, check R53 or R56, or C35.
-If the voltages are normal, and U5 pin 1 is below 0.7V, replace U5.
-If all are normal, check CPU pin 55. If OK, replace CPU.
2-2. Check for X1 oscillation (6.94407MHz).
2-3. Replace EPROM in the engine board, if defective.
2-4. If all above are OK, replace CPU.
Remark
Others
U4, U202, Q9
Troubleshooting
Error code 3-060
Fault
Description
When printing, error message is printed out.
Memory Overflow Model ML-xxxx
Check
Control board
Cause
Insufficient printer memory.
Solution
Install optional SIMM memory in the control board.
Remark
Others
Troubleshooting
Error code 3-080
Fault
Description
Main motor is not driving when printing, and paper does not feed into the printer, resulting Jam 0.
Defective motor operation Model ML-xxxx
Check
1. Engine board
2. Sub motor board (Refer to 12 on page 6-6.)
Cause
1. Motor harness or CN104 may be defective.
2. U1 defective in the sub motor board.
Solution
1. Check the motor harness. replace it, if defective.
2-1. Perform DCU diagnostic code 00 and check the motor operation.
2-2. With DCU code 00, check for pulse at U1 pin 8 and pin 13. Or, check the related parts.
2-3. With DCU code 00, check U1 pin 4 and pin 17 are over 4V. If the pins are below 1V, check
R424.
2-4. If all above are OK, replace U1.
Remark
Others
Troubleshooting
Error code 3-090
Fault
Description
While operating, ear-splitting noise occurs.
Ear-splitting noise or allophone Model ML-xxxx
Check
LSU motor, Main motor bracket, Fan, Developer, Fuser gear
Cause
1. Defective LSU motor and main motor bracket, or defective harness
2. Foreign materials in the fuser gear or developer
Solution
1-1. Replace the LSU, if defective.
1-2. Check the main motor bracket or its wiring harness.
1-3. Check pick-up assy rolls.
2. Reassemble or replace the fuser and developer if defective.
Remark
Others
Troubleshooting
Error code 3-100
Fault
Description
When system power is turned on, all lamps on the operator panel do not come on.
No power Model ML-xxxx
Check
Engine board
Cause
1. Defective harness between engine and control boards.
2. Defective harness between the control board and panel.
3. Defective fuse F151
4. Defective fuse F101
5. BD101 short. Check for the resistance value of Q102.
6. Defective U101
Solution
1. Check the connection between engine and control boards, and replace, if defective.
2. Check the connection between control board and operator panel. If defective, replace the harness.
3. Check F151 on the engine board. If open, measure the resistance between 5V and ground. If it is
below 50 ohm, it is short.
4. Check F101 on the engine board. If open, check also :
- R114 open
- Q102, D-S, G-D, or G-S short
- Defective BD101
Remark
Others
Troubleshooting
Error code 3-110
Fault
Description
When printing, vertical line gets curved.
Vertical line getting curved Model ML-xxxx
Check
LSU
Engine board
Cause
1. For LSU, +24V supply is unstable in the engine board.
2. Difference according to LSU vendors
Solution
Check the capacitor between CN 3 pin 5 and +24V is 100nF.
Check the resistor R63 (12.1Kohm).
Replace LSU.
Replace the main board.
Remark
Others
Troubleshooting
Fault
Description
When turning on, all LEDs are continuously on.
All LEDs On Model ML-xxxx
Check
Fuser, LSU, Engine board
Cause
1. Fuser error
2. LSU error
3. Bad connection between engine board and control board.
Solution
1. Replace the fuser.
2. Replace the LSU.
3. Check the wiring between the engine board and the control board.
4. Replace engine board.
Remark
Others
Troubleshooting
Fault
Description
When printing, image is irregular.
Jitter Model ML-xxxx
Check
LSU, Motor bracket
Cause
1. LSU hexahedron period
2. Defective motor bracket gears
Solution
1. Replace the LSU.
2. Replace the motor bracket assy.
Remark
Others
6. Exploded Views and Parts List
6-1 Main Exploded View
6-2 Main Parts List
6-3 Cover Exploded View
6-4 Cover Parts List
6-5 Frame Exploded View
6-6 Frame Parts List
6-7 Fuser Exploded View
6-8 Fuser Parts List
6-9 Drive Assembly Exploded View
6-10 Drive Parts List
6-11 Pick-Up Exploded View
6-12 Pick-Up Parts List
6-13 Cassette Exploded View
6-14 Cassette Parts List
6-15 Second Cassette Exploded View (Option)
6-16 Second Cassette Parts List (Option)
6-17 Second Cassette Frame Exploded View (Option)
6-18 Second Cassette Frame Parts List (Option)
Exploded Views and Parts List
6-1 Main Exploded View
4
1
5
8
6
7
9
3

11
12
13
2
14
10
6-2 Main Parts List
NO DESCRIPTION SEC. CODE QTY A/S
1 MEA RACK-FEEDER CAS JC97-01077A 1 O
2 MEC-BRKT, BASE R JC75-10922A 1 O
3 MEA RACK-FEEDER. JC97-01078A 1 O
4 ELA HOU-FRAME(12) JC96-01092A 1 X
5 ELA HOU-MOTOR MAIN JC96-01099A 1 O
6 ELA-DEVE UNIT ML+6000D5 1 X
7 UNIT-LSU JC59-10507A 1 O
8 ELA HOU-CVR_MAIN JC96-01305A 1 O
9 ELA HOU-FUSER_220,KR JC96-01280A 1 O
10 ELA HOU-CONTROLLER_K JC96-01308A 1 O
11 PRO-COVER_SIMM JC72-41224A 1 O
12 IPR-SHIELD SIMM JC70-10234A 1 O
13 MEC-BRKT, BASE JC75-10920B 1 O
14 ELA HOU-ENG BD(220) JC96-01228A 1 O (220V)
ELA HOU-ENG BD(110) JC96-01236A 1 O (110V)
Note
110V : for QwikLaser 6000
220V : for ML-6000
6
5
20
21
22
23
24
1
2
3
18
17
14
8
25
12
9
10
11
19
4
4
7
7
13
16
15
12
1
6-3 Cover Exploded View
0
6-4 Cover Parts List
0 ELA HOU-CVR_MAIN JC96-01305A 1 O
1 SPRING-HOOK LEVER 6107-000133 1 X
2 LEVER-HOOK JC72-40325A 1 X
3 PLATE-SPRING, DEV JC70-10223A 2 X
4 SCREW-TAPTITE 6003-000002 4 X
5 SPRING-COVER OPEN, L JC61-70944A 1 X
6 STACKER-SUB JC72-41220A 1 X
7 HINGE-HSG, R JC72-41216A 2 X
8 SHAFT-COVER OPEN JC70-10228A 2 X
9 PAD-DUMMY JC73-30912A 2 X
10 BRUSH-ANTI JC74-40902A 1 X
11 GROUND-ANTI JC70-11057A 1 X
12 GUIDE-DUMMY JC72-41111A 2 X
13 COVER-EXIT JC72-41221A 1 X
14 LOCKER-EXIT JC72-41286A 1 X
15 SCREW-TAPTITE 6003-000196A 1 X
16 COVER-MAIN JC72-41214A 1 X
17 BUTTON-C/O JC72-40336A 1 X
18 SPRING-CS (BUTTON) 6107-000117 1 X
19 SPRING-COVER OPEN, R JC61-70945A 1 X
20 COVER-FRONT, LED JC72-41215A 1 X (220V)
COVER-FRONT, XAR JC72-41215B 1 X (110V)
21 WINDOW-LED JC72-41397A 1 X
22 BUTTON-PANEL, LED JC72-41219A 1 X
23 PBA-PANEL, LED JC92-00346A 1 O
24 CAP-PANEL WIRE JC72-41222A 1 X
25 SCREW-TAPTITE 6003-000002 3 X
Note
220V : for ML-6000
6-5 Frame Exploded View
9
55
6

18
15
14
13-2
13
17
I
III
6
24-5
33
6
32
48
24-4
IV
21
19
22
22-1
26
25-2
22-2
22-2
22-3
22-4
II
20
24-1
24-2
24-2
6
31
34
35
30
28
29
16-2
23
16-2
24-3
25
25-1
13-1
11
10
3
2
44
6
50
51
1
6
36
37
53 52
38
6
7
5
4
12
18-1
18-2
18-3
18-4
16-3
16-1
16-1
16-2
16
6
16-4
46
45
41
40
39
43 42
8
49-1
49
49-2
13-2
47-1
47
24
27
54
56
0
6-6 Frame Parts List
0 ELA HOU-FRAME (12) JC96-01092A 1 X
1 SHEET COVER OPC JC72-40909A 1 X
2 GUIDE-SKEW(12) JC72-41350A 1 X
3 ACTUATOR-FEED JC72-40226A 1 X
4 SPRING-CS 6107-000104 3 X
5 CONNECTOR TERMINAL2 3712-000165 2 X
6 SCREW-TAPTITE 3*10 6003-000002 6 X
7 CONNECTOR TERMINAL1 3712-000166 1 X
8 GROUND-PLT MOTOR JC70-10013A 1 X
9 CBF HARNESS JC39-40576A 1 X
10 GROUND-OPC JC70-10217A 1 X
11 GUIDE-DUST JC70-11068A 1 X
12 MOTOR BOARD JC41-10543A 1 X
13 ELA-DEVELOPER, GUID JC96-00290A 1 O
13-1 GUIDE-DEV L JC72-40274A 1 X
13-2 SPRING-PS G/DEV JC61-70001A 2 X
14 FAN DC 24V 3103-001049 1 X
15 SWITCH JC39-40510A 1 X
16 MEA RACK-BRKT_EXIT JC97-01198A 1 O
16-1 GEAR-EXIT/U ID JC66-40006A 4 X
16-2 RING-C ID3 6044-000159 2 X
16-3 GEAR-EXIT, L/ID JC66-40210A 1 X
16-4 BRACKET_EXIT JC70-11075A 1 X
17 EARTH PLATE FUSER JC70-10911A 1 X
18 ELA HOU-PTL JC96-01148A 1 O
18-1 EARTH TRNAS (12) JC70-11023A 1 X
18-2 HOLDER-PTL JC72-41187A 1 X
18-3 PBA MAIN PTL JC92-01050A 1 X
18-4 CBF HARNESS JC39-40512A 1 X
20 GND PLATE G/TR JC70-10980A 1 X
21 GROUND-EXIT JC70-11058A 1 X
22 MEA RACK-TR HOLDER, L JC97-01079A 1 O
22-1 BUSHING-TR12 (L) JC72-41283A 1 X
22-2 SPRING-TR (12) JC61-70940A 2 X
22-3 HOLDER-TR L (12) JC72-41285A 1 X
22-4 SPRING-PLATE (12) JC70-11050A 1 X
23 ROLLER-TRANSFER JC75-10962A 1 O
24 HEA RACK-BRKT_EXT JC97-01198A 1 O
24-1 GEAR-EXIT JC66-40209A 1 X
24-2 BEARING-EXIT JC75-10529A 2 X
24-3 ROLL EXIT FR/UP JC75-10957A 1 X
24-4 MEA RACK-EXIT ROLLER JC97-01098A 1 X
I ROLLER EXIT MAIN JC72-41081A 4 X
II ROLLER EXIT FR JC72-41082A 4 X
III HOLDER-EXIT JC72-41080A 4 X
IV SPRING-EXIT (12) JC61-70939A 4 X
24-5 HOUSING-EXIT (250) JC72-41114A 1 X
25 MEA RACK-TR HOLDER, R JC97-01071A 1 O
25-1 BUSHING-TR12 (R) JC72-41060A 1 X
25-2 HOLDER-TR R (12) JC72-41062A 1 X
26 GEAR-TRANSFER (12) JC66-40949A 1 O
27 GROUND FUSER(R) JC70-11064A 1 X
29 LSU-HARNESS JC39-40540A 1 X
30 CBF-HARNESS JG39-40179A 1 X
31 GUIDE-FUSER JC72-40233A 1 X
32 BASE FRAME JC72-41113A 1 O
33 SHIELD CAP WIRE JC70-10003A 1 X
34 SHIELD ICU JC70-10225A 1 X
36 FILM-EMI JC74-10908A 1 X
37 DAMPER-PLATE JC72-41288A 1 X
38 GROUND-ICU JC70-10006A 1 X
39 GUIDE-TRANSFER JC70-10220A 1 X
40 SHEET GUIDE-TR JC74-10907A 1 X
41 SCREW-TAPTITE 3*8 6003-000119 2 X
42 PLATE-SAW JC70-10232A 1 X
43 HOLDER-SAW PLATE JC72-40247A 1 X
44 ELA HOU-THERMISTOR JC96-01148A 1 X
45 SPRING-CVR OPEN (12) JC61-70964A 1 X
46 ACTUATOR-C/O JC72-40269A 1 X
47 ELA-DEVELOPER, GUID JC96-00291A 1 O
47-1 GUIDE-DEV R JC72-40275A 1 X
48 ROM COVER JC72-41186A 1 X
49 MEA RACK-EMPTY_ACT JC97-01207A 1 O
49-1 SPRING-EMPTY JC61-70965A 1 X
49-2 ACTUATOR-EMPTY12 JC72-41290A 1 X
50 ACTUATOR-TR JC72-41287A 1 O
51 HOLDER-ACTUATOR JC72-41289A 1 O
52 PBA MAIN-CLN JC92-01084A 1 O
53 CBF-HARNESS JC39-40513A 1 X
54 ELA-HOU CLEANING PLT JC96-01229A 1 X
55 CAP-GND WIRE JC72-00011A 1 X
56 CBF-HARNESS MOTOR JC39-40575A 1 X
6-8
5
27
2
2
24
22
21
2
2
2
20
19
18
15
14
12
13
16
17
25
23
29
3
4
5
7
8
9
10
11
2
26
26
2
1
23
31
28
6
6-7 Fuser Exploded View
0
6-8 Fuser Parts List
0 ELA HOU-FUSER(110V) JC96-01093A 1 O (110V)
ELA HOU-FUSER(220V) JC96-01094A 1 O (220V)
1 CBF-HARNESS-FU(110) JC39-40609A 1 X
CBF-HARNESS-FU(220) JC39-40610A 1 X
2 SCREW-MACHINE M3x6, BH+ 6001-000131 8 X
3 SCREW-TAPTITE M3x12, FH+ 6003-000198 1 X
4 THERMISTOR-NTC 1404-001117 1 O
5 SCREW-TAPTITE M3x8, BH+ 6003-000119 3 X
6 NPR-ELECTRODE FU R JC71-10201A 1 X
7 PMO-ROLLER EXIT F/UP JC72-40342A 3 X
8 SPRING-PS, EXIT F/UP JC61-70006A 3 X
9 PMO-ACTUATOR EXIT JC72-41079A 1 O
10 BEARING-EXIT FU JC66-10201A 1 X
11 IPR-FUSER LOWER JC70-10983A 1 X
12 PMO-BUSHING PR JC72-41078A 2 X
13 SPRING-PR JC61-70923A 2 X
14 PMO-BUSHING HR, R JC72-41077A 1 X
15 NEX-ROLLER HEAT JC71-20901A 1 O
16 MEC-ROLLER PRESSURE JC75-10956A 1 O
17 PMO-GUIDE PATH JC72-41074A 1 X
18 PMO-BUSHING HR, L JC72-41076A 1 X
19 GEAR-FUSER JC66-40926A 1 O
20 MEC-ROLLER EXIT, FU/LR JC75-10955A 1 X
21 PMO-FUSER REAR JC72-41075A 1 X
22 LAMP-HALOGEN 4713-001075 1 O (220V)
LAMP-HALOGEN 4713-001076 1 O (110V)
23 BEARING-EXIT FU L JC66-10200A 1 X
24 GEAR-EXIT JC66-40209A 1 X
25 PMO-FUSER UPPER JC72-41073A 1 X
26 RING-CS 6044-000001 3 X
27 GEAR-EXIT, L/ID JC66-40210A 2 X
28 NPR-ELECTRODE FUSER JC71-10902A 1 X
29 THERMOSTAT 4712-000001 1 O
30 PMO-CLAW SEPARATOR JC72-41064A 4 X
31 SPRING-CLAW JC61-70922A 4 X
Note
220V : for ML-6000
1
12 11 10
7
9
8
3
4
2
2
5
6
13
6-9 Drive Assembly Exploded View
0
6-10 Motor Bracket Parts List
0 ELA HOU-MOTOR MAIN JC96-01099A 1 O
1 IPR-BRKT_GEAR JC70-10984A 1 X
2 SCREW-MACHINE M3x6 6001-000131 5 X
3 GEAR-FUSER DRIVE JC66-40378A 1 X
4 GEAR-125/18 JC66-40376A 1 X
5 IPR-BRKT, MOTOR JC70-10985A 1 X
6 MOTOR-STEP 3101-001144 1 O
7 GEAR-132/50 (12) JC66-40959A 1 X
8 GEAR-IDLE, FU JC66-40377A 1 X
9 GEAR-IDLE OPC (12) JC66-40960A 1 X
10 GEAR-OPC DRV2 JC66-40010A 1 X
11 GEAR-OPC DRIVE (12) JC66-40961A 1 X
12 GEAR-FEED DRV (12) JC66-40962A 1 X
13 FILM-BRACKET JC73-00002A 1 X
1
2
24
3
3
13
18
8
9
10
2
2
5
6
4
23
25
7
11
12
13
2
3
22
14
17
19
15
16
17
15 21 20
6-11 Pick-Up Exploded View
0
6-12 Pick-Up Parts List
0 MEA RACK-FEEDER JC97-01078A 1 O
1 PLT, GEAR-PICK UP JC66-40219A 1 X
2 WASHER-PLAIN 6031-000021 4 X
3 PLT, BEARING-PICK UP JC66-10202A 4 X
4 IMP, SHAFT-PICK UP JC70-10231A 1 X
5 PLT, LEVER-PICK UP JC72-40254A 1 X
6 SPRING PICK-UP JC61-70966A 1 X
7 PLT, FRAME-FEED JG72-41115A 1 X
8 PMP, IDLE-PICKUP JC72-41234A 1 X
9 PLT, HOUSING-PICK UP JC72-40252A 1 X
10 PLT, RUBBER-PICKUP JC73-40907A 1 X
11 IMP, GUIDE-FEED JC70-10992A 1 X
12 SPRING-FEED (2) JC61-70942A 1 X
13 PLT, HOLDER-FEED2 JC72-41185A 1 X
14 PLT, SUB HOLER-FEED, SMALL JC72-40266A 1 X
15 PLT, ROLLER-FEED, LARGE JC72-40261A 2 X
16 PLT, ROLLER-FEED, SMALL JC72-40262A 1 X
17 IMP, SHAFT-FEED, IDLER JC70-10230A 3 X
18 PLT, ROLLER-FEED, DRIVE JC72-41295A 1 X
19 SCREW (M3X6 FH+, BLK) 1 X
20 PLT, HOLDER-FEED1 JC72-41184A 1 X
21 SPRING-FEED (1) JC61-70941A 1 X
22 IMP, SHAFT-FEED JC70-10229A 1 X
23 PLT, GEAR-FEED JC66-40375A 1 X
24 PLT, GEAR-P/UP DRIVE JC66-40219A 1 X
25 IMP, GND-FEED JC70-10991A 1 X
22
19
4
18
20
21
3
2
1
6
7
8
9
11
14
12
17
10
5
16
15
20
13
23
Q
w
ik
L
a
s
e
r6
0
0
0
M
L
-6
0
0
0
6-13 Cassette Exploded View
0
6-14 Cassette Parts List
0 MEA RACK-FEEDER CAS JC97-01077A 1 O
1 PMO-TRAY-MANUAL JC72-41387A 1 X
2 PMO-HOLDER FINGER JC72-41182A 1 X
3 IMP, FINGER JC70-10213A 1 X
4 IMP, GUIDE PLATE-PAPER JC70-10219A 2 X
5 SPRING-KNOCK UP JC61-70951A 1 X
6 LOCKER-PLATE JG72-40844A 1 X
7 MMP, PAD JC73-10911A 1 X
8 LABEL-PLATE JC68-30929A 1 X
9 IPR-PLT KNOCK UP(12) JC70-11022A 1 X
10 SPRING-LOCKERPLATE JG61-70531A 1 X
11 LABEL-HEIGHT JG68-30572A 1 X
12 PMO-GUIDE LEGAL JC72-41393A 1 X
13 IPR-BRACKET_LEGAL JC70-11086A 1 X
14 PMO-GUIAE_LETTER JC72-41392A 1 X
15 IPR-BRACKET_LETTER JC70-11087A 1 X
16 IPR-TENSION_LETTER JC70-11085A 2 X
17 PMO-ADJUSTER_S CAST JC72-41394A 1 X
18 IPR-GUIDE-PLATE JC70-10993A 1 X
19 PMO-FRAME_CASSETTE, P JC72-41382A 1 X
20 SCREW-TAPTITE M3x10 FH, WHITE 6003-000002 4 X
21 GUIDE-CASSETTE, M JC72-00013A 1 X
22 PMO-GUIDE SUB CAST. JC72-41225A 1 X
23 PMO-GUIDE REAR JC72-41180A 1 X
3
0
3
3
2
3
2
9
3
2
8
3
3
3
8
3
4
3
5
3
6
3
7
4
0
4
2
4
3
1
1
4
1
4
4
3
4
4
3
2
3
1
4
6
4
7
4
8
4
1
2
3
4
5
6
3
8
7
1
2
9
2
2
1
0
2
1
2
1
2
0
9
3
2
7
2
6
1
5
5
0
2
5
2
4
3
1
2
3
1
7
1
6
1
5
1
3
1
4
3
9
1
8
1
9
3
1
2
1
1
3
4
9
5
4
5
3
3
9
3
2
2
3
1
6-15 Second Cassette Frame Exploded View
0
T
o
p

s
i
d
e
6-16 Second Cassette Frame Parts List
0 ELA HOU-SCF(ML6000) JC96-01268A 1 X
1 E-RING 6044-000126 4 X
2 BEARING ROLLER IDLER JC66-10304A 2 X
3 TAPTITE SCREW 6003-000179 23 X
4 TAPTITE SCREW 4 X
5 FOOT RUBBER JC61-40301A 4 X
6 GUIDE INNER UPPER JC72-40307B 1 X
7 GEAR-FEED JC66-40014A 1 X
8 ROLLER-INNER UPPER JC75-10028A 1 X
9 E-RING 6044-000125 5 X
10 GEAR DOUBLE OPTION JC66-40363A 1 X
11 BRKT MOTOR (SCF) JC70-10986A 1 X
12 STEP MOTOR 3101-001158 1 X
13 SHIELD-PCB JC70-10451A 1 X
14 COVER-LEFT JC72-40368B 1 X
16 MACHINE SCREW 6001-000131 4 X
17 SOLENOID-MAGNET JC33-10001A 1 X
18 HUB CLUTCH JC72-40587A 1 X
19 SPRING-TS,CLUTCH JC61-70331A 1 X
20 GEAR IDLER OPTION JC66-40365A 1 X
21 GEAR IDLE Z19 JC66-40012A 2 X
22 GUIDE RAIL JC72-40371A 2 X
23 BEARING-FEED JC72-40531A 2 X
24 GEAR P/UP OPTION JC66-40364A 1 X
25 COLLAR CLUTCH P1 JC72-40569B 1 X
27 PBA MAIN JC92-01077A 1 X
29 LABEL WARNING JC68-20417A 1 X
30 LABEL(R)-SCF(12) JC68-30936A 1 X
31 COVER-REAR JC72-40362B 1 X
32 FRAME UPPER JC70-10027A 1 X
33 FRAME LEFT(SCF) JC70-10023A 1 X
34 ACTUATOR-ARM JC72-40370A 1 X
35 CS STOP RING 6044-000001 1 X
36 PIN PARELLED,P/U JC70-40360A X
37 STOPPER-SCF JC72-41347A 1 X
39 FRAME LOWER JC70-11065A 1 X
40 SHAFT PICKUP JC70-40002A 1 X
41 IDLE-SCF JC72-41348A 1 X
42 HODER-HOUSING JC72-40654A 1 X
43 RUBBER P/UP JC73-40907A 1 X
44 BRKT SUPPORT JC70-10461A 2 X
45 COVER-RIGHT JC72-40367B 1 X
46 TAPTITE SCREW 1 X
47 GROUND ROLLER JC70-10467A 1 X
48 FRAME RIGHT(SCF) JC70-10022A 1 X
50 CABLE CLAMP 6502-000003 1 X
1
2
3
4
5
7
8
9
10
11
12
13
14
22
23
6
15
16
24
19
17
21
20
6
18
25
Q
w
ik
L
a
s
e
r6
0
0
0
M
L
-6
0
0
0
6-17 Second Cassette Exploded View
0
6-18 Second Cassette Parts List
0 MEA RACK-CAST.SCF JC97-01196A 1 X
1 GUIDE CST JC72-40306A 1 X
2 PMO-GUIDE-2ND CAST. JC72-41227A 1 X
3 PLATE-COLOR JC72-41226A 1 X
4 SPRING ES 6107-001047A 2 X
5 ROLLER EXIT JC72-40361A 2 X
7 SPRING KNOCKUP JC61-70951A 1 X
8 GUIDE SCF JC70-11076A 1 X
9 FINGER JC70-10213A 1 X
10 PLT KNOCK-UP (12) JC70-11022A 1 X
11 MMP, PAD JC73-10911A 1 X
12 LABEL(R) PLATE JC68-30929A 1 X
13 LOCKER-PLATE JC72-41210A 1 X
14 SPRING-LOCKER PLATE JG61-70531A 1 X
15 GUIDE PAPER JC70-10219A 1 X
16 LABEL(R) HEIGHT JG68-30572A 1 X
17 GUIDE-LEGAL JC72-41180A 1 X
18 IPR-BRACKET_LEGAL JC70-11086A 1 X
19 PMO-GUIDE_LETTER JC72-41392A 1 X
20 IPR-BRACKET_LETTER JC70-11087A 1 X
21 IPR-TENSION_LETTER JC70-11085A 2 X
22 GUIDE-SIDE CASSETTE JC72-41116A 1 X
23 GUIDE PLATE JC70-10993A 1 X
24 FRAME-CASSETTE JC72-41183A 1 X
25 PMO-GUIDE REAR JC72-41180A 1 X
Memo
NO CODE NO. TYPE DESCRIPTION/SPECIFICATION LOCATION NO.
1 JC94-01028A HALB PRAAUTO-ENGI 220V
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D504,D505
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D221,D222,D223,D224
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D500,D501,D502
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D4,D5,D6,D7,D101
2 0402-000012 ROH DIODE-RECTIFIER;UF4007,1KV,1A, D102
2 0402-000129 ROH DIODE-RECTIFIER;1N4003,200V,1A D503
2 0402-000129 ROH DIODE-RECTIFIER;1N4003,200V,1A D1,D216,D217
2 0402-000468 ROH DIODE-RECTIFIER;ESJS58-06,6KV, D205,D206,D207,D208
2 0402-001193 ROH DIODE-RECTIFIER;SHV-04,4KV,20m D201,D202,D203,D204
2 0402-001193 ROH DIODE-RECTIFIER;SHV-04,4KV,20m D210
2 0403-000005 ROH DIODE-ZENER;UZ5.1B,4.8-5.4V,50 ZD102
2 0403-000338 ROH DIODE-ZENER;UZ27BM,27V,25.7-28 ZD103
2 0403-000346 ROH DIODE-ZENER;UZ33B,33V,30-36V,5 ZD152,ZD204,ZD205
2 0403-000356 ROH DIODE-ZENER;UZ5.6BCB,5.6V,5.46 ZD151,ZD201
2 0403-000475 ROH DIODE-ZENER;1N5274B,130V,5%,50 ZD101,ZD203
2 0403-000554 ROH DIODE-ZENER;UZ7.5BM,7.2-7.7V,5 ZD202
2 0501-000010 ROH TR-SMALLSIGNAL;KSC1008,NPN,80 Q3,Q4,Q8,Q10,Q208
2 0501-000010 ROH TR-SMALLSIGNAL;KSC1008,NPN,80 Q500,Q503
2 0501-000010 ROH TR-SMALLSIGNAL;KSC1008,NPN,80 Q211
2 0501-000294 ROH TR-SMALLSIGNAL;KSA708-Y,PNP,8 Q207,Q209
2 1203-000002 ROH IC-POSI.ADJUSTREG.;431,TO-92, U151
2 2001-000002 ROH R-CARBON(S);200Kohm,5%,1/2W,AA R107
2 2001-000003 ROH R-CARBON;330ohm,5%,1/8W,AA,TP, R406
2 2001-000003 ROH R-CARBON;330ohm,5%,1/8W,AA,TP, R25,R52,R111,R151
2 2001-000005 ROH R-CARBON;390ohm,5%,1/8W,AA,TP, R218,R221,R231
2 2001-000010 ROH R-CARBON;68Kohm,5%,1/8W,AA,TP, R240
2 2001-000012 ROH R-CARBON;680Kohm,5%,1/8W,AA,TP R236
2 2001-000015 ROH R-CARBON(S);0.5ohm,5%,1/2W,AA, R62
2 2001-000016 ROH R-CARBON(S);1ohm,5%,1/2W,AA,TP R8
7. Electrical Parts List
7-1 Engine Part List(ML-6000 : 220V)
Electrical Parts List
2 2001-000019 ROH R-CARBON(S);10ohm,5%,1/2W,AA,T R217,R230
2 2001-000023 ROH R-CARBON;47ohm,5%,1/4,AA,TP,2. R109
2 2001-000027 ROH R-CARBON;100ohm,5%,1/4,AA,TP,2 R104
2 2001-000045 ROH R-CARBON;1.8Kohm,5%,1/4W,AA,TP R274
2 2001-000118 ROH R-CARBON(S);180ohm,5%,1/2W,AA, R103
2 2001-000221 ROH R-CARBON;1.2Kohm,5%,1/8W,AA,TP R39,R251
2 2004-000634 ROH R-METAL;261Kohm,1%,1/8W,AA,TP R215
2 2001-000281 ROH R-CARBON;100ohm,5%,1/8W,AA,TP, R15,R24,R29,R30,R31
2 2001-000331 ROH R-CARBON;12Kohm,5%,1/8W,AA,TP, R56,R63
2 2001-000429 ROH R-CARBON;1Kohm,5%,1/8W,AA,TP,1 R41,R42,R44,R45,R46
2 2001-000429 ROH R-CARBON;1Kohm,5%,1/8W,AA,TP,1 R49
2 2001-000429 ROH R-CARBON;1Kohm,5%,1/8W,AA,TP,1 R18,R33,R34,
2 2001-000435 ROH R-CARBON;1Mohm,5%,1/8W,AA,TP,1 R502
2 2001-000449 ROH R-CARBON;2.2Kohm,5%,1/8W,AA,TP R48,R225,R250,R256
2 2001-000660 ROH R-CARBON;33Kohm,5%,1/8W,AA,TP, R257,R263,R266
2 2001-000786 ROH R-CARBON;47Kohm,5%,1/8W,AA,TP, R54,R223,R224,R227
2 2001-000812 ROH R-CARBON;5.6Kohm,5%,1/8W,AA,TP R19,R26,R28,R35,R36
2 2001-000812 ROH R-CARBON;5.6Kohm,5%,1/8W,AA,TP R60,R61,R260
2 2001-000816 ROH R-CARBON;5.6ohm,5%,1/4W,AA,TP, R113
2 2001-000832 ROH RCARBON;510ohm,5%,1/8W,AA,TP, R20,R407
2 2001-001093 ROH R-CARBON(S);2.2Kohm,5%,1/2W,AA R292
2 2001-001119 ROH R-CARBON(S);3.3Mohm,5%,1/2W,AA R239
2 2001-001119 ROH R-CARBON(S);3.3Mohm,5%,1/2W,AA R210,R212,R226,R229
2 2001-001150 ROH R-CARBON(S);470Kohm,5%,1/2W,AA R101,R105
2 2004-000002 ROH R-METAL;78.7Kohm,1%,1/8W,AA,TP R247
2 2004-000345 ROH R-METAL;15Kohm,1%,1/8W,AA,TP,1 R17,R22,R55,R222
2 2004-000345 ROH R-METAL;15Kohm,1%,1/8W,AA,TP,1 R513
2 2004-000433 ROH R-METAL;1Kohm,1%,1/8W,AA,TP,1. R58,R213
2 2004-000699 ROH R-METAL;3.3Kohm,1%,1/8W,AA,TP, R516,R57
2 2004-000754 ROH R-METAL;309Kohm,1%,1/8W,AA,TP, R511
2 2004-000869 ROH R-METAL;3Kohm,1%,1/8W,AA,TP,1. R154
2 2004-000884 ROH R-METAL;4.3Kohm,1%,1/8W,AA,TP, R37
2 2009-001041 ROH R-METALGLAZE;2Mohm,1%,1/4W,AA R208,R209
2 2009-001042 ROH R-METALGLAZE;4.7Mohm,1%,1/4W, R204,R207,R277
2 2001-000832 ROH R-CARBON;510ohm,5%,1/8W,AA,TP, R20,R407
2 2004-000869 ROH R-METAL;3Kohm,1%,1/8W,AA,TP,1. PR154
2 2201-000003 ROH C-CERAMIC,DISC;68pF,10%,2KV,SL C203,C404
2 2201-000004 ROH C-CERAMIC,DISC;100pF,10%,2KV,S C220
2 2201-000017 ROH C-CERAMIC,DISC;1nF,10%,50V,Y5P C42,C43,C45,C237
2 2201-000017 ROH C-CERAMIC,DISC;1nF,10%,50V,Y5P C31,C38,C39,C40,C41
2 2201-000019 ROH C-CERAMIC,DISC;10nF,+80-20%,50 C106,C50
2 2201-000021 ROH C-CERAMIC,DISC;100nF,+80-20%,5 C209
2 2201-000021 ROH C-CERAMIC,DISC;100nF,+80-20%,5 C26,C32,C34,C37,C46
2 2201-000021 ROH C-CERAMIC,DISC;100nF,+80-20%,5 C222,C226,C227,C229
2 2201-000138 ROH C-CERAMIC,DISC;100pF,10%,50V,Y C16,C28,C30,C402
2 2201-000163 ROH C-CERAMIC,DISC;10nF,79.8,50V,Y C24,C36
2 2201-000163 ROH C-CERAMIC,DISC;10nF,79.8,50V,Y C19
2 2201-000163 ROH C-CERAMIC,DISC;10nF,79.8,50V,Y C1,C13,C14
2 2201-000326 ROH C-CERAMIC,DISC;2.2nF,10%,50V,Y C230
2 2201-000326 ROH C-CERAMIC,DISC;2.2nF,10%,50V,Y C221,C223,C225
2 2201-000391 ROH C-CERAMIC,DISC;22pF,5%,50V,SL, C20,C21
2 2201-000645 ROH C-CERAMIC,DISC;680pF,5%,50V,SL C111
2 2201-000724 ROH C-CERAMIC,DISC;470pF,0.1,3KV,Y C201,C204,C219
2 2201-000724 ROH C-CERAMIC,DISC;470pF,0.1,3KV,Y C202,C206
2 2202-000002 ROH C-CERAMIC,MLC-AXIAL;10nF,0.05, C10,C12,C15,C18,C401
2 2202-000002 ROH C-CERAMIC,MLC-AXIAL;10nF,0.05, C502
2 2202-000888 ROH C-CERAMIC,MLC-RADIAL;100nF,20% C110,C112
2 2301-000490 ROH C-FILM,PEF;4.7nF,5%,100V,TP,5. C113,C505
2 2401-000207 ROH C-AL;100uF,20%,50V,WT,TP,8x12, C228,C503,C504,C506
2 2401-000613 ROH C-AL;1uF,20%,50V,WT,TP,5x11,5 C109,C152
2 2401-001476 ROH C-AL;47uF,20%,10V,GP,TP,6.3x5m C11
2 2401-001585 ROH C-AL;47uF,20%,50V,WT,TP,8x11.5 C114
2 2401-001700 ROH C-AL;470uF,20%,10V,-,-,10x12.5 C153,C154,C155
2 2401-002075 ROH C-AL;4.7uF,20%,50V,GP,TP,5x11, C33,C35
2 2902-001011 ROH FILTER-LINE;-,-,- BD103,BD151,BD152
2 3301-000344 ROH CORE-FERRITE BEAD;ZZ,3.5x6.5mm FB1,FB2,FB3,FB4,FB5
2 3602-000001 ROH FUSE-CLIP;-,-,30mohm FH1,FH2,FH3,FH4
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP25-JP31,JP33-JP53
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP16,JP17,JP21-JP23
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP8,JP10,JP11,JP13
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JS3-JS5,JP4-JP6
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP617,R205,R412
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP602,JP605,JP616
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP217-JP234,JP268
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP55-JP60,JP62,JP63
2 JC41-10529A ROH PCB-ENGINE;ML-5500,FR-1,1L,T1.
1 JC94-01035A HALB PRAAUTO ROT-EUROPE
2 0402-000104 ROH DIODE-BRIDGE;D3SBA60,600V,4A,- DB101
2 0402-000304 ROH DIODE-RECTIFIER;STPR1020CF,200 D153
2 0402-000314 ROH DIODE-RECTIFIER;D10SC4M,40V,10 D152
2 0502-000245 ROH TR-POWER;KSB1151-Y,PNP,1.3W,TO Q9
2 0502-001124 ROH TR-POWER;KSD526,NPN,30W,TO-220 Q201,Q202,Q203,Q204
2 0505-000173 ROH FET-SILICON;SSP5N90,N,900V,5A, Q102
2 0604-000142 ROH PHOTO-COUPLER;TR,-,200mW,DIP-4 PC152,PC153
2 0604-000146 ROH PHOTO-COUPLER;TRIAC,-,250mW,DI P92 PC151
2 0604-001033 ROH PHOTO-INTERRUPTER;TR,-,150mW,D OP1,OP2,OP3,OP4
2 0801-000528 ROH IC-CMOS LOGIC;74HCT574,D FLIP- U4
2 0801-000722 ROH IC-CMOS LOGIC;74HC245,TRANSCEI U6
2 0803-000679 ROH IC-TTL;7406,BUFFER/DRIVER,DIP, U205
2 0903-000219 ROH IC-MICROCOMPUTER;88C4316,8BIT, U3
2 1201-000229 ROH IC-OPAMP;324,DIP,14P,300MIL,Q U201
2 1202-000103 ROH IC-VOLTAGE COMP.;393,DIP,8P,30 U5
2 1203-000258 ROH IC-POSI.FIXED REG.;7818,TO-220 U202
2 1203-000531 ROH IC-SWITCH VOL. REG.;5311,DIP,8 U101
2 1401-000108 ROH THYRISTOR-TRIAC;100A,600V,-,5V Q101
2 1404-000167 ROH THERMISTOR-NTC;5ohm,10%,3150K, TH101
2 1405-000147 ROH VARISTOR;470V,4500A,17x12mm,BK NR101
2 2003-000703 ROH R-METALOXIDE(S);470ohm,5%,3W, R157,R158
2 2003-000706 ROH R-METALOXIDE(S);47Kohm,5%,2W, R108
2 2005-000168 ROH R-WIRE WOUND,NON;0.22ohm,5%,2W R114
2 2009-001082 ROH R-METALGLAZE;30Mohm,2%,2W,-,B R280
2 2009-001083 ROH R-METALGLAZE;200Mohm,2%,1/2W, R220
2 2009-001084 ROH R-METALGLAZE;30Mohm,2%,0.5W,C R211
2 2009-001085 ROH R-METALGLAZE;10Mohm,3%,1/2W,C R201
2 2103-000156 ROH VR-SEMI;10Kohm,10%,1/2W,TOP VR201,VR202
2 2103-000270 ROH VR-SEMI;20Kohm,10%,1/2W,TOP VR203
2 2201-000023 ROH C-CERAMIC,DISC;2.2nF,20%,125V, C103,C104,C115
2 2201-000154 ROH C-CERAMIC,DISC;10nF,+80-20%,2K C108
2 2201-002066 ROH C-CERAMIC,DISC;470pF,10%,6KV,Y C211,C212,C215,C216
2 2201-002067 ROH C-CERAMIC,DISC;100pF,10%,6KV,Y C213
2 2306-000114 ROH C-FILM,MPPF;100nF,20%,250VAC,B C102
2 2401-000183 ROH C-AL;1000uF,20%,35V,WT,TP,12.5 C156,C157
2 2401-000697 ROH C-AL;2200uF,20%,16V,WT,TP,12.5 C151
2 2401-001691 ROH C-AL;150uF,20%,400V,WT,BK,30x2 C107
2 2501-000203 ROH C-PAPER;470nF,0.2,250VAC,TP,26 C101
2 2801-000002 ROH CRYSTAL-UNIT;6.94407MHz,50ppm, X1
2 3405-000125 ROH SWITCH-MICRO;125V,5A,50gf,SPDT SW151,SW152
2 3601-000003 ROH FUSE-FERRULE;250V,5A,FASTACTI F151
2 3601-000296 ROH FUSE-FERRULE;250V,5A,TIME LAG, F101
2 3704-000235 ROH SOCKET-IC;28P,DIP,SN,2.54mm U2
2 3711-000164 ROH CONNECTOR-HEADER;1WALL,2P,1R,2 CN4
2 3711-000633 ROH CONNECTOR-HEADER;BOX,11P,1R,2m CN3
2 3711-000782 ROH CONNECTOR-HEADER;BOX,2P,1R,2.0 CN105
2 3711-000865 ROH CONNECTOR-HEADER;BOX,3P,1R,2mm CN103
2 6003-000119 ROH SCREW-TAPTITE;BH,+,B,M3,L8,CBL D152,D153
2 6003-000119 ROH SCREW-TAPTITE;BH,+,B,M3,L8,CBL Q101,Q201,Q203
2 JC26-20301B ROH TRANS AF-;ML-80,-,95MH T202,T204
2 JC26-20301B ROH TRANS AF-;ML-80,-,95MH T201
2 JC26-20301D ROH TRANS-AF;ML-80,-,0.32WIRE T101
2 JC26-30503A ROH TRANS POWER;ML-165,-,400MH,26/ T203
2 JC27-40502A ROH COILCHOCK-68uH;ML5500,68uH,0. L103
2 JC27-60101B ROH COILFILTER-;-,9UH,-,- L152
2 JC27-60101C ROH COILFILTER-;-,6UH,-,- L151
2 JC27-60501A ROH COILFILTER-LINE220V;ML5500,13 L101
2 JC27-60503A ROH COILFILTER-3mH;ML5500,3.0mH,0 L102
2 JC33-10501B ROH SOLENOID-6000;ML-6000,24VDC,72
2 JC61-70100A ROH SPRING-PS;ML-66G,STS304-W1/2H, SMPS H/SINK
2 JC62-20001A ROH TUBE-IRF840;SSP5N90,IRF840,-,T TUBE(Q102)
2 JC62-30001A ROH HEATSINK-TRANS;ML-80,AL,- HS102
2 JC62-30002A OH HEATSINK-SMPS;ML-80,AL,- HS202
2 JC70-10909A ROH IPR-CONNECTOR HV;ML-80,AL,T0.8 HP1,HP2,HP3,HP4
2 JF62-30201A ROH HEATSINK;HVPS,SPCC,t1.0 HS101,HS201
1 JF68-30527N ROH ROM LABEL
7-2 Engine Part List (QwikLaser 6000 : 110V)
1 JC94-01030A HALB PRAAUTO-ENGINE 110V
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D4,D5,D6,D7,D101
2 0401-000005 ROH DIODE-SWITCHING;1N4148,75V,300 D500,D501,D502
2 0402-000012 ROH DIODE-RECTIFIER;UF4007,1KV,1A, D102
2 0402-000129 ROH DIODE-RECTIFIER;1N4003,200V,1A D1,D216,D217
2 0402-000468 ROH DIODE-RECTIFIER;ESJS58-06,6KV, D205,D206,D207,D208
2 0402-001193 ROH DIODE-RECTIFIER;SHV-04,4KV,20m D210
2 0402-001193 ROH DIODE-RECTIFIER;SHV-04,4KV,20m D201,D202,D203,D204
2 0403-000005 ROH DIODE-ZENER;UZ5.1B,4.8-5.4V,50 ZD102
2 0403-000338 ROH DIODE-ZENER;UZ27BM,27V,25.7-28 ZD103
2 0403-000346 ROH DIODE-ZENER;UZ33B,33V,30-36V,5 ZD152,ZD204,ZD205
2 0403-000475 ROH DIODE-ZENER;1N5274B,130V,5%,50 ZD203
2 0403-000554 ROH DIODE-ZENER;UZ7.5BM,7.2-7.7V,5 ZD202
2 0501-000010 ROH TR-SMALLSIGNAL;KSC1008,NPN,80 Q211
2 0501-000010 ROH TR-SMALLSIGNAL;KSC1008,NPN,80 Q3,Q4,Q8,Q10,Q208
2 1203-000002 ROH IC-POSI.ADJUSTREG.;431,TO-92, U151
2 2001-000015 ROH R-CARBON(S);0.5ohm,5%,1/2W,AA, R62
2 2001-000016 ROH R-CARBON(S);1ohm,5%,1/2W,AA,TP R8
2 2001-000023 ROH R-CARBON;47ohm,5%,1/4,AA,TP,2. R109
2 2001-000027 ROH R-CARBON;100ohm,5%,1/4,AA,TP,2 R104
2 2004-000634 ROH R-METAL;261Kohm,1%,1/8W,AA,TP R215
2 2001-000281 ROH R-CARBON;100ohm,5%,1/8W,AA,TP, R15,R24,R29,R30,R31
2 2001-000429 ROH R-CARBON;1Kohm,5%,1/8W,AA,TP,1 R41,R42,R44,R45,R46
2 2001-000429 ROH R-CARBON;1Kohm,5%,1/8W,AA,TP,1 R18,R33,R34,
2 2001-000435 ROH R-CARBON;1Mohm,5%,1/8W,AA,TP,1 R502
2 2001-000786 ROH R-CARBON;47Kohm,5%,1/8W,AA,TP, R54,R223,R224,R227
2 2001-000812 ROH R-CARBON;5.6Kohm,5%,1/8W,AA,TP R19,R26,R28,R35,R36
2 2004-000385 ROH R-METAL;17.4Kohm,1%,1/8W,AA,TP R510,R268
2 2004-000869 ROH R-METAL;3Kohm,1%,1/8W,AA,TP,1. R154
2 2201-000003 ROH C-CERAMIC,DISC;68pF,10%,2KV,SL C203,C404
2 2201-000004 ROH C-CERAMIC,DISC;100pF,10%,2KV,S C220
2 2201-000017 ROH C-CERAMIC,DISC;1nF,10%,50V,Y5P C31,C38,C39,C40,C41
2 2201-000017 ROH C-CERAMIC,DISC;1nF,10%,50V,Y5P C17,C22,C27,C29 |
2 2201-000019 ROH C-CERAMIC,DISC;10nF,+80-20%,50 C106,C501
2 2201-000021 ROH C-CERAMIC,DISC;100nF,+80-20%,5 C26,C32,C34,C37,C46
2 2201-000138 ROH C-CERAMIC,DISC;100pF,10%,50V,Y C16,C28,C30,C402
2 2201-000163 ROH C-CERAMIC,DISC;10nF,79.8,50V,Y C1,C13,C14
2 2201-000326 ROH C-CERAMIC,DISC;2.2nF,10%,50V,Y C221,C223,C225
2 2201-000391 ROH C-CERAMIC,DISC;22pF,5%,50V,SL, C20,C21
2 2201-000645 ROH C-CERAMIC,DISC;680pF,5%,50V,SL C111
2 2201-000724 ROH C-CERAMIC,DISC;470pF,0.1,3KV,Y C201,C204,C219
2 2201-000724 ROH C-CERAMIC,DISC;470pF,0.1,3KV,Y C202,C206
2 2202-000002 ROH C-CERAMIC,MLC-AXIAL;10nF,0.05, C502
2 2202-000002 ROH C-CERAMIC,MLC-AXIAL;10nF,0.05, C10,C12,C15,C18,C401
2 2202-000888 ROH C-CERAMIC,MLC-RADIAL;100nF,20% C110,C112
2 2301-000490 ROH C-FILM,PEF;4.7nF,5%,100V,TP,5. C113,C505
2 2401-000207 ROH C-AL;100uF,20%,50V,WT,TP,8x12, C228,C503,C504,C506
2 2401-000613 ROH C-AL;1uF,20%,50V,WT,TP,5x11,5 C109,C152
2 2401-001476 ROH C-AL;47uF,20%,10V,GP,TP,6.3x5m C11
2 2401-001700 ROH C-AL;470uF,20%,10V,-,-,10x12.5 C153,C154,C155
2 2401-002075 ROH C-AL;4.7uF,20%,50V,GP,TP,5x11, C33,C35
2 3301-000344 ROH CORE-FERRITE BEAD;ZZ,3.5x6.5mm FB1,FB2,FB3,FB4,FB5
2 3602-000001 ROH FUSE-CLIP;-,-,30mohm FH1,FH2,FH3,FH4
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP55-JP60,JP62,JP63
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP31,JP33-JP53
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP16,JP17,JP21-JP23
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP8,JP10,JP11,JP13
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JS3-JS5,JP4-JP6
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP617,R205,R412,R517
2 JC39-40511A ROH CBF-HARNESS;ML-80,JUMPER,AWG22 JP602,JP605,JP616
2 JC41-10529A ROH PCB-ENGINE;ML-5500,FR-1,1L,T1.
1 JC94-01031A HALB PRAAUTO ROT-ENG110V
2 0402-000104 ROH DIODE-BRIDGE;D3SBA60,600V,4A,- DB101
2 0402-000304 ROH DIODE-RECTIFIER;STPR1020CF,200 D153
2 0402-000314 ROH DIODE-RECTIFIER;D10SC4M,40V,10 D152
2 0502-000245 ROH TR-POWER;KSB1151-Y,PNP,1.3W,TO Q9
2 0502-001124 ROH TR-POWER;KSD526,NPN,30W,TO-220 Q201,Q202,Q203,Q204
2 0505-000135 ROH FET-SILICON;IRF840,N,500V,8A,0 Q102
2 0604-000001 ROH PHOTO-COUPLER;TR,50-60%,200mW, C152,PC153
2 0604-000146 ROH PHOTO-COUPLER;TRIAC,-,250mW,DI PC151
2 0604-001033 ROH PHOTO-INTERRUPTER;TR,-,150mW,D OP1,OP2,OP3,OP4
2 0801-000528 ROH IC-CMOS LOGIC;74HCT574,D FLIP- U4
2 0801-000722 ROH IC-CMOS LOGIC;74HC245,TRANSCEI U6
2 0903-000219 ROH IC-MICROCOMPUTER;88C4316,8BIT, U3
2 1201-000229 ROH IC-OPAMP;324,DIP,14P,300MIL,Q U201
2 1202-000103 ROH IC-VOLTAGE COMP.;393,DIP,8P,30 U5
2 1203-000258 ROH IC-POSI.FIXED REG.;7818,TO-220 U202
2 1203-000531 ROH IC-SWITCH VOL. REG.;5311,DIP,8 U101
2 1401-000108 ROH THYRISTOR-TRIAC;100A,600V,-,5V Q101
2 1404-000167 ROH THERMISTOR-NTC;5ohm,10%,3150K, TH101
2 1405-000147 ROH VARISTOR;470V,4500A,17x12mm,BK TNR101
2 2003-000703 ROH R-METALOXIDE(S);470ohm,5%,3W, R157,R158
2 2003-000706 ROH R-METALOXIDE(S);47Kohm,5%,2W, R108
2 2005-000164 ROH R-WIRE WOUND,NON;0.1ohm,5%,2W, R114
2 2009-001082 ROH R-METALGLAZE;30Mohm,2%,2W,-,B R280
2 2009-001083 ROH R-METALGLAZE;200Mohm,2%,1/2W, R220
2 2009-001084 ROH R-METALGLAZE;30Mohm,2%,0.5W,C R211
2 2009-001085 ROH R-METALGLAZE;10Mohm,3%,1/2W,C R201
2 2103-000156 ROH VR-SEMI;10Kohm,10%,1/2W,TOP VR201,VR202,VR204
2 2103-000270 ROH VR-SEMI;20Kohm,10%,1/2W,TOP VR203
2 2201-000023 ROH C-CERAMIC,DISC;2.2nF,20%,125V, C103,C104,C115
2 2201-000154 ROH C-CERAMIC,DISC;10nF,+80-20%,2K C108
2 2201-002066 ROH C-CERAMIC,DISC;470pF,10%,6KV,Y C211,C212,C215,C216
2 2201-002067 ROH C-CERAMIC,DISC;100pF,10%,6KV,Y C213
2 2301-000323 ROH C-FILM,PEF;220nF,0.1,250V,-,-, C101
2 2305-000002 ROH C-FILM,MPEF;47nF,20%,250VAC,BK C102
2 2401-000183 ROH C-AL;1000uF,20%,35V,WT,TP,12.5 C156,C157
2 2401-000697 ROH C-AL;2200uF,20%,16V,WT,TP,12.5 C151
2 2401-003203 ROH C-AL;470uF,20%,200V,GP,BK,30x2 C107
2 2801-000002 ROH CRYSTAL-UNIT;6.94407MHz,50ppm, X1
2 3405-000125 ROH SWITCH-MICRO;125V,5A,50gf,SPDT SW151,SW152
2 3601-000151 ROH FUSE-FERRULE;125V,5A,NON TIME, F151
2 3601-000157 ROH FUSE-FERRULE;125V,8A,SLOW BLOW F101
2 3704-000235 ROH SOCKET-IC;28P,DIP,SN,2.54mm U2
2 6003-000119 ROH SCREW-TAPTITE;BH,+,B,M3,L8,CBL D152,D153
2 6003-000119 ROH SCREW-TAPTITE;BH,+,B,M3,L8,CBL Q101,Q201,Q203
2 JC26-20301B ROH TRANS AF-;ML-80,-,95MH T202,T204
2 JC26-20301B ROH TRANS AF-;ML-80,-,95MH T201
2 JC26-20301C ROH TRANS AF-;ML-80,-,0.4WIRE T101
2 JC26-30503A ROH TRANS POWER;ML-165,-,400MH,26/ T203
2 JC27-40502A ROH COILCHOCK-68uH;ML5500,68uH,0. L103
2 JC27-60101B ROH COILFILTER-;-,9UH,-,- L152
2 JC27-60101C ROH COILFILTER-;-,6UH,-,- L151
2 JC27-60502A ROH COILFILTER-LINE110V;ML5500,7. L101
2 JC27-60503A ROH COILFILTER-3mH;ML5500,3.0mH,0 L102
2 JC33-10501B ROH SOLENOID-6000;ML-6000,24VDC,72
2 JC61-70100A ROH SPRING-PS;ML-66G,STS304-W1/2H, SMPS H/SINK
2 JC62-20001A ROH TUBE-IRF840;SSP5N90,IRF840,-,T TUBE(Q102)
2 JC62-30001A ROH HEATSINK-TRANS;ML-80,AL,- HS102
2 JC62-30002A ROH HEATSINK-SMPS;ML-80,AL,- HS202
2 JC70-10909A ROH IPR-CONNECTOR HV;ML-80,AL,T0.8 HP1,HP2,HP3,HP4
2 JF62-30201A ROH HEATSINK;HVPS,SPCC,t1.0 HS101,HS201
1 JF68-30527N ROH ROM LABEL
7-3 Controller Board Part List (XEG,XEU,XAR)
1 JC92-01049A HALB PBASUB-CONTROLLER
2 2804-000380 ROH OSCILLATOR-CLOCK;50MHz,100ppm, OSC1
2 2804-001230 ROH OSCILLATOR-CLOCK;47.7789MHz,10 OSC2
2 3702-000118 ROH CONNECTOR-RIBBON;36P,FEMALE,AN J11
2 3702-001104 ROH CONNECTOR-RIBBON;30P,FEMALE,ST J10
2 3709-000177 ROH CONNECTOR-CARD EDGE;72P,1.27mm J1,J13
2 3711-000817 ROH CONNECTOR-HEADER;BOX,2P,1R J2
2 3711-001091 ROH CONNECTOR-HEADER;BOX,7P,1R,2.5 J12
2 3711-003204 ROH CONNECTOR-HEADER;BOX,24P,2R,2m J7
1 JC94-01032A HALB PRAAUTO SMD-CONT
2 0801-001081 ROH IC-CMOS LOGIC;74ACT373,TRANSPA U14,U19,U23
2 0801-002266 ROH IC-CMOS LOGIC;74HCT273,D F/F,S U3,U4
2 0802-001015 ROH IC-BICMOS LOGIC;74ABT373CSC,LA U7,U8,U13,U22
2 0802-001034 ROH IC-BICMOS LOGIC;74ABT245,TRANS U10,U11,U12,U17
2 0803-000117 ROH IC-TTL;74F14,INVERTER,SOP,14P, U9,U36
2 0803-000274 ROH IC-TTL;74F32,OR GATE,SOP,14P,1 U35
2 0803-003058 ROH IC-TTL;74F1071,ESD,SOP,20P,-,- U15
2 1006-000243 ROH IC-LINE TRANSCEIVER;74ACT245,S U5,U6
2 1103-000133 ROH IC-EEPROM;93C66,256x16BIT,SOP, U1
2 1105-000191 ROH IC-DRAM;416C120,-,-,-,-,70nS,5 U20,U29
2 1107-001046 ROH IC-FLASH MEMORY;29F800,512Kx16 U30,U32
2 1203-000346 ROH IC-VOL. SUPERVISORY;7705,SOP,8 U21
2 1203-001026 ROH IC-POSI.FIXED REG.;33269,DPAK, U28,U33
2 2007-000029 ROH R-CHIP;0ohm,5%,1/10W,DA,TP,201 R1,R131,R170
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R247,R255-R258,R262
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R137,R186,R217,R235
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R100,R102-R107
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R264-R269,R271-R275
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R284,R287-R293,R295
2 2007-000290 ROH R-CHIP;100ohm,5%,1/10W,DA,TP,2 R298,R300
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R220,R222,R223
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R218,R302
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R206,R209-R214,R216
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R310
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R117-R120,R132,R148
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R149,R150,R169,R204
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R4,R8-R13,R16-R20
2 2007-000300 ROH R-CHIP;10Kohm,5%,1/10W,DA,TP,2 R250-R254,R259-R261
2 2007-000308 ROH R-CHIP;10ohm,5%,1/10W,DA,TP,20 R183,R294
2 2007-000312 ROH R-CHIP;10ohm,5%,1/8W,DA,TP,321 R229
2 2007-000468 ROH R-CHIP;1Kohm,5%,1/10W,DA,TP,20 R133,R136,R138-R141
2 2007-000493 ROH R-CHIP;2.2Kohm,5%,1/10W,DA,TP, R36
2 2007-000511 ROH R-CHIP;2.4Kohm,5%,1/10W,DA,TP, R246,R248
2 2007-000781 ROH R-CHIP;33ohm,5%,1/10W,DA,TP,20 R23,R26,R27,R28,R29
2 2007-000964 ROH R-CHIP;5.1Kohm,5%,1/10W,DA,TP, R127-R129
2 2007-000964 ROH R-CHIP;5.1Kohm,5%,1/10W,DA,TP, R25,R111-R114,R126
2 2007-001133 ROH R-CHIP;68ohm,5%,1/10W,DA,TP,20 R34,R134,R238
2 2011-001094 ROH R-NETWORK;39ohm,5%,1/16W,L,CHI RA1-RA16
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C153,C154,C156-C162
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C164-C166,C168,C169
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C123,C124,C127,C129
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C9,C33-C42,C44,C48
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C171-C173,C182-C184
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C210,C224-C226,C235
2 2203-000199 ROH C-CERAMIC,CHIP;100nF,79.8,50V, C189-C191,C196-C208
2 2203-000239 ROH C-CERAMIC,CHIP;100pF,5%,50V,NP C1,C3-C8,C28-C30,C53
2 2203-000239 ROH C-CERAMIC,CHIP;100pF,5%,50V,NP C109,C112,C120,C121
2 2203-000239 ROH C-CERAMIC,CHIP;100pF,5%,50V,NP C231
2 2203-000274 ROH C-CERAMIC,CHIP;10pF,0.25pF,50V C222,C223,C239,C240
2 2203-000274 ROH C-CERAMIC,CHIP;10pF,0.25pF,50V C2,C10-C13,C108,C221
2 2203-000274 ROH C-CERAMIC,CHIP;10pF,0.25pF,50V C139
2 2203-000455 ROH C-CERAMIC,CHIP;1nF,5%,50V,NPO, C141
2 2203-000455 ROH C-CERAMIC,CHIP;1nF,5%,50V,NPO, C14-C25,C63,C140
2 2203-000455 ROH C-CERAMIC,CHIP;1nF,5%,50V,NPO, C301-C305
2 2203-000455 ROH C-CERAMIC,CHIP;1nF,5%,50V,NPO, C253,C283,C294,C295
2 2203-000595 ROH C-CERAMIC,CHIP;220pF,5%,50V,NP C142-C145,C149-C152
2 2203-000634 ROH C-CERAMIC,CHIP;22pF,5%,50V,NPO C110,C111,C175
2 2203-000634 ROH C-CERAMIC,CHIP;22pF,5%,50V,NPO C176,C300
2 2203-000634 ROH C-CERAMIC,CHIP;22pF,5%,50V,NPO C31,C43,C45,C46,C52
2 2203-000818 ROH C-CERAMIC,CHIP;33pF,5%,50V,NPO C126,C163,C178,C194
2 2203-000818 ROH C-CERAMIC,CHIP;33pF,5%,50V,NPO C405
2 2203-000938 ROH C-CERAMIC,CHIP;470pF,5%,50V,NP C114,C116,C117
2 2203-000938 ROH C-CERAMIC,CHIP;470pF,5%,50V,NP C285,C291
2 2203-000938 ROH C-CERAMIC,CHIP;470pF,5%,50V,NP C255,C280-C282,C284
2 2203-001158 ROH C-CERAMIC,CHIP;68pF,5%,50V,NPO C49
2 2404-000128 ROH C-TA,CHIP;10uF,20%,16V,-,TP,60 C47,C58
2 2404-000308 ROH C-TA,CHIP;33uF,20%,10V,-,TP,73 C60,61
2 2404-000308 ROH C-TA,CHIP;33uF,20%,10V,-,TP,73 C32,C51,C56,C59
2 2901-000229 ROH FILTER-EMI SMD;50V,300mA,-,22n LF2-LF5,LF7-LF9,LF11
2 2901-000229 ROH FILTER-EMI SMD;50V,300mA,-,22n LF13,LF14
2 2901-000235 ROH FILTER-EMI SMD;50V,300mA,-,150 LF1,LF10
2 3301-001074 ROH CORE-FERRITE BEAD;AB,2.0*1.25* B113
2 3301-001074 ROH CORE-FERRITE BEAD;AB,2.0*1.25* B100,B103,B107-B112
2 3301-001074 ROH CORE-FERRITE BEAD;AB,2.0*1.25* B140,B141
2 4701-001020 ROH FREQ-ATTENUATOR;5-80MHz,15dB,- U16
2 JC09-10501A ROH IC MICRO COMPUTER;ML-165,XPE60 U26
2 JC11-10507A ROH IC MASK ROM-HIGH;ML-165,KM23C8 U25
2 JC11-10510A ROH IC MASK ROM-PCL6,EVE;ml-165,KM U27
2 JC13-10503A ROH IC-ASIC;ML-68H+,QP1700(25MHz), U2
2 JC13-10505A ROH IC ASIC-INTERFACE;ML-165,POWER U24
2 JC41-10531A ROH PCB-CONTROLLER;ML-5500,FR4,4L,
7-4 LED PANNEL Part List
1 JC92-00372A HALB PBA-PANEL,AUTO
2 2202-000579 ROH C-CERAMIC,MLC-AXIAL;100nF,+80- C1
2 JC41-10003A ROH PCB-PANELLED;ML-85/84,FR-4,2L PCB-LED
1 JC92-00373A HALB PBA-PANEL,LED
2 0601-000161 ROH LED;ROUND,GRN,5mm,563nm LED1
2 0601-000255 OH LED;ROUND,RED,5mm,700nm LED4
2 0601-000304 ROH LED;ROUND,YEL,5mm,585nm LED2,LED3
2 3404-000116 ROH SWITCH-TACT;12V,50mA,160gf,6X6 SW1
7-5 PTL Board Part List
1 0601-000208 ROH LED;CHIP,RED,1.5X2mm,660nm LD1-LD18
1 2007-000797 ROH R-CHIP;3600hm,1%,1/8W,DA,TP;3216
1 JC41-10530A ROH PCB PTL;ML-6000,FR-4
7-6 Motor Sub Part List
1 1003-001148 ROH IC-MOTOR DRIVER;A2918SWV,DIP,1 U1
1 2005-000419 ROH R-WIRE WOUND,NON;0.33ohm,1%,1W R1,R2
1 2401-000450 ROH C-AL;10uF,20%,25V,WT,TP,5x11,5 C1
1 3711-000817 ROH CONNECTOR-HEADER;BOX,2P,1R,2.5 CN2,CN4
1 JC39-40545A ROH CBF HARNESS-GND WIRE;ML-6000,W
1 JC94-01033A HALB PRAAUTO-MOTOR SUB
2 0402-000129 ROH DIODE-RECTIFIER;1N4003,200V,1A D7,D8
2 3301-000344 ROH CORE-FERRITE BEAD;ZZ,3.5x6.5mm FB1
2 JC41-10543A ROH PCB-MOTOR SUB;ML-5500,FR-4,2L,
1 JC94-01034A HALB PRAAUTO SMD-MOTOR
2 0407-001008 ROH DIODE-ARRAY;DA204K,20V,100mA,C D1-D3
2 2203-000009 ROH C-CERAMIC,CHIP;820pF,10%,50V,X C3,C4
2 2203-000260 ROH C-CERAMIC,CHIP;10nF,10%,50V,X7 C9,C10,C11
2 2203-000778 ROH C-CERAMIC,CHIP;330pF,10%,50V,X C5,C6,C7,C8
MLC AXIAL
NOT USED
MLC AXIAL
220 R424 1/8
JS3
510
R407
1/8
1K
R34
1/8
1/8
R422 100
1/8 R52 330
+5V
100
R31
1/8
R36
5.6K
+5V
500V
C401
10NF
+5V
+5V
LM393
U5-2
7
Q0
5
Q1
Q2 6
100PF
C402
50V
22PF
C21
50V
D401
1N4148
1/8
R45
1K
VDD
32
VSS
54
XIN
XOUT
53
50V
C13
10NF
10NF
C15
500V
P5.1_ADC1
P5.2_ADC2
47
48
P5.3_ADC3
P5.4_ADC4
49
50
P5.5_ADC5
P5.6_ADC6
51
52
P5.7_ADC7
34
P6.0
P6.1
35
36
P6.2
P6.3
37
38
P6.4
P6.5
39
40
P6.6
P6.7
41
RESET*
55
64
23
22
P3.2
P3.3
21
20
P3.4
P3.5
19
18
P3.6
P3.7
17
16
P4.0
P4.1
15
14
P4.2
P4.3
13
12
P4.4
P4.5
11
10
P4.6
P4.7
9
P5.0_ADC0
45
46
P1.1_AD1
P1.2_AD2
61
60
P1.3_AD3
P1.4_AD5
59
58
P1.5_AD5
P1.6_AD6
57
56
P1.7_AD7
P2.0
33
P2.1
31
30
P2.2
P2.3
29
28
P2.4
P2.5
27
26
P2.6
P2.7
25
24
P3.0
P3.1
U3
KS88C4316
AVREF
43
44
AVSS
42
EA
8
P0.0_P8
P0.1_A9
7
6
P0.2_A10
P0.3_A11
5
4
P0.4_A12
P0.5_A13
3
2
P0.6_A14
P0.7_A15
1
P1.0_AD0
63
62
1NF
C29
50V
50V
C405
10NF
O2
O3
15
16
O4
O5
17
18
O6
O7
19
OE*
22
28
VCC
1
VPP
+5V
50V
C14
10NF
A11
A12
2
26
A13
A14
27
A2
8
7
A3
A4
6
5
A5
A6
4
3
A7
A8
25
24
A9
20
CE*
14
GND
11
O0
O1
12
13
1
2
+5V
56K
R53
1/8
U2
27C256
A0
10
9
A1
A10
21
23
1/8 R426 220
BDCORE
FB5
CN105
SLCON2P
D504
1N4148
1N4148
D505
1/8
R25
330
+5V
50V
C20
22PF 100NF
C34
50V 50V
4.7UF
C33 C35
4.7UF
50V
50V
C39
1NF
BDCORE
FB1
1/8
R406
330 1K
R408
1/8
15K
R55
1/8
JS2
10NF
C18
50V
+5V
74LS06
U205-1
1 2
R516
1/8
+5V
220 R27 1/8
50V
C27
1NF
B8
11
1
DIR
GND
10
VCC
20
30K
*G
19
A1
2
3
A2
A3
4
5
A4
A5
6
7
A6
A7
8
9
A8
18
B1
B2
17
16
B3
B4
15
14
B5
B6
13
12
B7
74LS06
U205-6
13 12
74HC245
U6
1/8
R46
1K
1/8
R54
47K
JS1
1NF
C19
50V
1K
R33
1/8
5.6K
R405
1/8
+5V
+5V
Q3
Q4
16
15
Q5
Q6
14
13
Q7
Q8
12
20
VCC
U205-5
74LS06
11 10
74HCT574
U4
11
CLK
D1
2
3
D2
D3
4
5
D4
D5
6
7
D6
D7
8
9
D8
GND
10
OC
1
19
Q1
Q2
18
17
220 R425 1/8
6.94407MHZ
X1
U205-2
74LS06
3 4
1N4148
D7
+5V
+5V
FB4 BDCORE
1/8
R56
12K
50V
C38
1NF 1NF
C40
50V
SCF_CLUTCH
SUPPLY
TONER
COVER
MP_PAPER
FEED
DCU_DATA
CCLK
VDI
MOTOR_PA
MOTOR_PB
MOTOR_EA
PSIZE
FAN_E
+5V
+5V
100PF
C28
50V
PSYNC
EMSG
EBUSY
CMSG
HSYNC
PT_LAMP
CLN
THVEA
BIASPWM
THVPWM
MHV
LREADY
THVREAD
THERM
DCU_CLK
AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
CLUTCH
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(1)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
AD(0:7)
PEMPTY
EXIT
SCF_EMPTY
A(15)
A(0:15)
LDON
PMOTOR
VDO
READY
PRINT
MP_CLUTCH
AD(0) A(0)
A(15)
AD(0)
SEL_CASSET
SCF_MOTOR
FUSER
SLEEP
A(0)
A(15)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
A(14)
A(13)
A(12)
A(11)
A(10)
A(9)
A(8)
A(1)
8. Schematic Diagrams
8-1 Engine Controller)
Engine Controller (1/6)
1
2
1
2
3
SLCON3P-TONER
CN103
1
2
3
+5V
CN10
SLCON2P-FAN
1NF
C31
50V
JS5
CN7
SLCON3P-CLN
24
3
4
5
6
7
8
9
+24V
0.5
R62
1/2
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
1NF
C41
50V
+5V
D225
1N4148
CN5
DLCON_24P-VIDEO
74LS06
U205-3
5 6
100 R293 1/4
+5VT
50V
C42
1NF
Q10
KSC1008
B
C
E
+5VS +24VS1
10NF
C36
50V
1/8
R59
5.6K
JS6
+5V +5V
+5V
5.6K
R26
1/8
D232
1N4148
5.6K
R51
1/8
1N4148
D227
1/8
R48
2.2K
50V
C231
10NF
50V
C24
10NF
D231
1N4148
D226
1N4148
+24VS1
50V
C17
1NF
5.6K
R61
1/8
+5V
+5V
5.6K
R60
1/8
+5V
1/8 R283 100
1N4148
D230
100 R284 1/8
BD1
1N4148
D224
1/8 R285 100
D228
1N4148
U203-3
7407
5 6
33
R517
1/2
BDCORE
2
3
4
10V
47UF
C11
+5V
+5VT
+5V
1K
R42
1/8
50V
C30
100PF
SLCON4P-DCU
CN2
1
C22
1NF
50V
C503
100UF
1/8 R29 100
1/2
R8
1
1/8
R63
12K
50V
100NF
C46
50V
50V
C26
100NF
100NF
C32
50V
8
9
1N4148
D233
+5V
1N4148
D229
R282 1/8
CN3
SLCON11P
1
10
11
2
3
4
5
6
7
CN6
SLCON8P-SCF
1
2
3
4
5
6
7
8
+5V
100
100PF
C16
50V
JS4
CLN
TONER
VDI
LDON
HSYNC
LREADY
1/8
R28
5.6K
+5V
EBUSY
READY
HSYNC
CMSG
EMSG
CCLK
PRINT
PSYNC
DCU_DATA
DCU_CLK
PMOTOR
PT_LAMP
SEL_CASSET
SCF_MOTOR
SCF_CLUTCH
SCF_EMPTY
VDO
+5V
NOT USED
50V
C227
100NF
KSD526
Q201
B
C
E
50V
C209
100NF
1/8
R224
47K
100NF
C226
50V
+18V
1/8
R234
86.6K
50V
C229
100NF 2.2NF
C223
500V
+24VS1 470PF
C204
3KV
50V
C217
10NF
HS201
HEAT_SINK2
50V
C228
100UF
1/4
BR
R201
10M
+24VS1
C220
2KV
1/8
R415
3.3K
50V
C222
100NF
2KV
1/8
R238
100K
ZD203
1N5274B
100PF
3.3M
R212
1/2
SUPPLY
HP1 1
30M
R412
BR
100PF
C403
DEV
1
U201-1
LM324
Q0
1
Q1 3
2
Q2
1/8
R257
33K 5.6K
R261
1/8
VR203
10KOHM
HP2
C
E
50V
C210
33NF
+24VS1
470PF
C201
3KV
D210
ESJA57-04
U203-4
7407
9 8
2SA1413
Q402
B
C E
KSC1008
Q403
B
1/8
R237
16.2K
2KV
C404
68PF
75K
R269
1/8
TRANS10P
T204
1 10
2
4
5 6
1/8
R413
33K
3.3M
R229
1/2
1/2
R210
3.3M
UZ33B
ZD205
MHV
HP3 1
1/8
R218
390
1/2
R226
3.3M
15K
R222
1/8
1N4148
D215
+18V
47K
R223
1/8
12
1/8
R258
180K
4.7M
R204
1/4
10
R217
1/2
TRANS10P
T202
1
10
2
4
5
6
7407
U203-6
13
+18V
9.1K
R262
1/8
U202
KA7818
2
GND
IN 1 3 OUT
3.3M
R239
1/2
2.2K
R416
1/8
10K
R418
1/8
UZ33B
ZD204
1/8
R253
27K
10K
R417
1/8
+24VS1
+18V
33NF
C208
50V
Q204
KSD526
B
C
E
50V
C230
2.2NF
10M
R205
1/4
SLCON2P-MHV
CN8
1
2
1/2
R230
10
R268
17.4K
47K
R227
1/8
10KOHM
VR204
U203-1
7407
1 2
2M
R208
1/4
1/8
Q211
KSC1008
B
C
E
1/8
R419
33K
+24VS1
1K
R414
1/8
LM324
U201-3
8
Q0
10 Q1
Q2
9
1/4
R207
4.7M
3KV
C219
470PF
ESJA57-04
D201
D
2
0
2
E
S
J
A
5
7
-
0
4
1/4
R209
2M
93.1K
R233
1/8
D223
1N4148
BIASPWM
MHV
SUPPLY
1/8
R266
33K
390
R231
1/8
MLC AXIAL
+5V
MLC AXIAL
MLC AXIAL
500V
C10
10NF
50V
C43
1NF
50V
C37
100NF
1/8
R37
4.3K
+5V
D4
1N4148
1/8 R30 100
50V
C1
10NF
1/8
R57
3.3K
CN4
1
2
+5V
150
R512
1/8
150
R23
1/8
510 R20 1/8
OP3
S58VT
SLCON2P-THER
D222
1N4148
1/8
R41
1K
10NF
C502
500V
+5V
KSB1151-Y
Q9
B
C E
15K
R43
1/8
1/8
R49
1K
1NF
C237
50V
+24VS2
1/8
R39
1.2K
1K
R18
1/8
U5-1
LM393
Q0
1 Q1
3
2 Q2
Q8
KSC1008
B
C
E 1NF
C45
50V
+5V
100UF
C504
50V
1/8
R35
5.6K
1N4148
D220
+5V
1K
R58
1/8
BDCORE
FB2
+5V
5.6K
R40
1/8
100 R24 1/8
FEED_CLUCH
1
2
FB3
BDCORE
+24V
1N4148
D221
100 R514 1/8
+5V
4.7K
R47
1/8
5.6K
R19
1/8
OP1
S58VT
50V
47UF
C506
1/8 R15 100
+5V
1/2
R292
2.2K
1/8
R513
15K
S58VT
OP4
10NF
C12
500V
1/8
R44
1K
Q4
KSC1008
B
C
E
1/8
R64
150
1/8
R16
150
1
10
2
3
4
5
6
7
8
9
S58VT
OP2
+24VS1
5.6K
R38
1/8
Q208
KSC1008
B
C
E
DLCON_10P
CN104
C
E
74LS06
U205-4
9 8
1/8
R22
15K
R17
1/8
+24VS2 +24VS1
+5V
KSC1008
Q3 B
MOTOR_PA
MOTOR_PB
MOTOR_EA
FAN_E
MP_PAPER
MP_CLUTCH
D1
1N4003
15K
COVER
FUSER
FUSERON
CLUTCH
FEED
PEMPTY
EXIT
SLEEP
THERM
PSIZE
E
S
J
A
5
8
-
0
6
D
2
0
6
Q202
KSD526
B
C
E
1.8K
R274
1/8
2.2K
R250
1/8
U201-2
LM324
Q0
7 Q1
5
6 Q2
309K
R511
1/8
LM324
U201-4
14
Q0
12
Q1
Q2
13
+18V
+18V
1/8
R505
56K
68K
R515
1/8
6K
1N4148
D502
+18V
+18V
VR201
10KOHM
+18V
1/8
R501
2.2K
JP641
470PF
C211
7407
U203-5
11 10
4.7M
R277
1/4
68PF
C203
2K D501
+24VS1
6K
C213
100PF
1/8
R252
100
1/2
R216
56
75K
R506
1/8
1N4148
E
S
J
A
5
8
-
0
6
D
2
0
5
1/8
R256
2.2K
6K
C215
470PF
1N4003
D216
1K
R213
1/8
1/8
R504
2.2K
50V
C505
4.7nF
D217
1N4003
+18V
30M
R280
BR
Q502
KSA708
B
C
E
470K
R243
1/8
12.1K
R245
1/8
Q203
B
C
E
Q207
KSA708
B
C
E
E
S
J
A
5
8
-
0
6
D
2
0
7
1/8
R247
78.7K
1N4148
D209
HS202
HEAT_SINK2
KSD526
BR
R220
200M
2.2nF
C221
50V
33NF
C207
50V
R215
100K
1/8
R221
390
470PF
C216
6K
56
R219
1/2
VR205
100KOHM
1/8
10KOHM
VR202
6K
C212
470PF
33K
R500
1/8
R263
33K
1/8
R507
33K
KSC1008
Q503
B
C
E
D503
1N4003
10nF
C501
50V
1/8
ZD201
UZ5.6BCB UZ7.5BM
ZD202
50V
C225
2.2nF
1/8
R509
619K,MF
33NF
C224
50V
T201
TRANS10P
1
10
2
4
5
6
1/8
R225
2.2K
1/8
R240
68K
33K
R249
1/8
1/8
R251
1.2K
THV
HP4 1
680K
R236
1/8
KSA708
Q209
B
C
E
T203
TRANS10P
1 10
2
4
5 6
D203
ESJA57-04
6K
C206
470PF
50V
C214
33NF
1/8
R260
5.6K
+5V
1/8
R508
21.5K,MF
3 4
1M
R502
1/8
D500
1N4148
D
2
0
8
E
S
J
A
5
8
-
0
6
C
E
1/8
R503
33K
6K
C202
470PF
U203-2
7407
E
S
J
A
5
7
-
0
4
D
2
0
4 +5V
50V
C500
2.2nF
Q500
KSC1008
B
KSA708
Q501 B
C
E
1/8
R248
56K
THVPWM
THVEA
THVREAD
30M
R211
BR
17.4K,MF
R510
1/8
220UF,200V
5
LOCATION NO
R106,R107
0.1OHM,2W R114
T101
250V/T5A
F151
8
9
10
7
SMPS[V1]
6
125V/8A
125V/5A
IRF840
4
100KOHM,1/2W
DESCRIPTION
3
F101
220NF,250V
47NF,250V
1
1900UH
C102
C107
250V/5A
2
C101
F101
F151
PC152,PC153
Q102
MLC RADIAL
[V2] [V1]
50V
1UF
C152
THERMISTER
TH101
PC817
JP614
3W
R158
470
1N4148
D154
+5VS
2.2NF
C103
250V
47K
R108
2W
+24V
C114
47UF
50V
FH3
BDCORE
BD151
2
3 4
FH1
+24V
+5V +5VS
4.7NF
50V
C113
BDCORE
BD103
ZD152
UZ33B
6MH
L102
1
C151
2200UF
16V
BD152
BDCORE
D102
UF4007
500V
C106
10NF
TNR-471K
TNR101
C107
150UF
400V
1/8
R153
3.16K
SW151
M_SW
1 3 2
L152
9UH
D3SBA60
DB101
1
2
3
4
BDCORE
BD102
470
R157
3W
270
R112
1/4
1W
R114
0.22
470k
R105
1/2
+24VS2
MOC3061
PC151
1
2 4
6
100NF
C110
50V
PC152-1
PC123FY
1
2
PC123FY
PC153-2
4 3
PC123FY
PC153-1
1
2
BD101
BDCORE
1N4148
D101
M_SW
SW152
1 3 2
KA7552
U101
8
C
S
C
T
7
2
F
B
4
G
N
D
I
S
+
3
O
U
T
5
R
T
1
6
V
C
C
1
2
3
300UH
L103
SLCON2P-LAMP
CN102
1
2
250V
C102
100NF
CN101
SLCON2P-AC
1
2
1N4148
D6
D153
STPR1020CT
250V
C115
2.2NF
C157
1000UF
35V
6UH
L151
1/4
R113
5.6
FH4
250V
C104
2.2NF
1/8
R110
4.7K
C154
470UF
10V
D103
1N4937GB
1/2
R103
180
P
C
1
5
2
-
2
P
C
1
2
3
F
Y
4
3
50V
1UF
C109
250V
C108
10NF
330
R151
1/8
50V
C111
680PF
K
R
UZ5.6BCB
ZD151
3K
R154
1/8
200K
R107
1/2
470UF
C155
10V
1/2
R101
470k
STL431_S
U151
A
1/4
R14
1.5K
1/8
R156
470
+24VS1
ZD103
UZ27BM
JP623
JP622
35V
1000UF
C156
D10SC4M
D152
1
2
3
ZD102
5.1V
47
R109
1/4
G
M
T
1
M
T
2
FH2
100
R104
1/4
+5V
1/8
R152
2K
330
R111
1/8
+24VS2
TRIAC
Q101
1/2
R106
100K
SLCON4P-POW
CN12
1
2
3
4
10V
470UF
C153
1N5274B
ZD601
HS101
HEAT_SINK2
120
R102
1/2
1/8
R155
100
470NF
C101
250V
0.1UF
C112
50V
G
S
L101
11MH
12
3 4
D5
1N4148
FUSERON
TRANS
T101
1
3
5
6
7
10
11
12
Q102
SSP5N90
D
8-2 Controller Diagram
Controller Diagram (1/10)
POWER PC
3C2
3B2
3B2
2B1
2C1
3C1
3C5
4A1,5A1
4A1,3A1
3C2
T182
3C2
3C5
3C2
3C5
2B7
R254
10K
10K
R204
VCC
3.3V
T208
C198
0.1UF
VCC
C208
0.1UF
R221
33
T213
T206
C256
0.1UF
T180
T290
T211
R222
10K
VCC
C61
33UF/16V
R246
2.4K
T217
VCC
VCC
T188
R219
33
R229
10-3216
6
7 8
T186
C236
0.1UF
R236
10K
RA10
RA33 1 2
3 4
5
0.1UF
C261
10K
R225
0.1UF
C199
C262
0.1UF
T304
0.1UF
C265
R253
10K
C202
0.1UF
R227
R249
10K
T181
4
V
D
D
0
V
D
D
1
1
4
1
6
7
V
D
D
1
0
V
D
D
1
1
1
7
7
2
0
7
V
D
D
1
2
2
4
V
D
D
2
V
D
D
3
3
4
4
4
V
D
D
4
V
D
D
5
5
9
1
2
2
V
D
D
6
V
D
D
7
1
3
7
1
4
7
V
D
D
8
V
D
D
9
1
5
7
236
WT*
10K 201
TCK
TDI
199
198
TDO
TEA*
154
TLBSYNC*
233
TMS
200
202
TRST*
TS*
149
197
TSIZ0
TSIZ1
196
195
TSIZ2
191
TT0
TT1
190
185
TT2
TT3
184
180
TT5
9
6
O
V
D
D
9
PLL_CFG0
213
211
PLL_CFG1
PLL_CFG2
210
208
PLL_CFG3
235
QACK*
QREQ*
31
RSRV*
232
SMI*
187
189
SRESET*
SYSCLK
212
TA*
155
234
TBEN
TBST*
192
TC0
224
223
TC1
O
V
D
D
1
4
1
3
8
O
V
D
D
1
5
1
4
8
O
V
D
D
1
6
1
7
3
1
8
3
O
V
D
D
1
7
O
V
D
D
1
8
1
9
4
2
2
2
O
V
D
D
1
9
O
V
D
D
2
3
5
O
V
D
D
2
0
2
2
9
2
4
0
O
V
D
D
2
1
1
6
3
O
V
D
D
2
2
4
5
O
V
D
D
3
O
V
D
D
4
5
4
6
1
O
V
D
D
5
O
V
D
D
6
7
0
7
9
O
V
D
D
7
O
V
D
D
8
8
8
O
G
N
D
2
0
2
2
0
2
2
8
O
G
N
D
2
1
O
G
N
D
2
2
2
3
8
4
3
O
G
N
D
3
O
G
N
D
4
5
3
6
0
O
G
N
D
5
O
G
N
D
6
6
9
7
7
O
G
N
D
7
O
G
N
D
8
8
6
9
5
O
G
N
D
9
O
V
D
D
0
1
0
2
0
O
V
D
D
1
O
V
D
D
1
0
1
0
4
1
1
2
O
V
D
D
1
1
O
V
D
D
1
2
1
2
1
1
2
8
O
V
D
D
1
3
203
L2_TSTCLK*
205
LSSD_MODE*
186
MCP*
O
G
N
D
0
8
1
8
O
G
N
D
1
O
G
N
D
1
0
1
0
3
1
1
1
O
G
N
D
1
1
O
G
N
D
1
2
1
2
0
1
2
7
O
G
N
D
1
3
O
G
N
D
1
4
1
3
6
1
4
6
O
G
N
D
1
5
O
G
N
D
1
6
1
6
1
1
7
1
O
G
N
D
1
7
O
G
N
D
1
8
1
8
1
1
9
3
O
G
N
D
1
9
O
G
N
D
2
3
3
1
6
2
G
N
D
1
0
G
N
D
1
1
1
7
2
1
8
2
G
N
D
1
2
G
N
D
1
3
2
0
6
2
3
9
G
N
D
1
4
2
9
G
N
D
2
G
N
D
3
3
9
4
9
G
N
D
4
G
N
D
5
6
5
1
1
6
G
N
D
6
G
N
D
7
1
3
2
1
4
2
G
N
D
8
G
N
D
9
1
5
2
HRESET*
214
188
INT*
L1_TSTCLK*
204
D
L
6
1
3
3
1
3
1
D
L
7
D
L
8
1
3
0
1
2
9
D
L
9
DP0
38
40
DP1
DP2
41
42
DP3
DP4
46
47
DP6
DP7
48
217
DPE*
156
DRTRY*
GBL*
1
9
G
N
D
0
G
N
D
1
1
9
D
L
2
1
4
0
D
L
2
0
1
0
2
1
0
1
D
L
2
1
D
L
2
2
1
0
0
5
1
D
L
2
3
D
L
2
4
5
2
5
5
D
L
2
5
D
L
2
6
5
6
5
7
D
L
2
7
D
L
2
8
5
8
6
2
D
L
2
9
1
3
9
D
L
3
D
L
3
0
6
3
6
4
D
L
3
1
D
L
4
1
3
5
1
3
4
D
L
5
9
9
D
H
6
D
H
7
9
8
9
7
D
H
8
D
H
9
9
4
D
L
0
1
4
3
1
4
1
D
L
1
D
L
1
0
1
2
6
1
2
5
D
L
1
1
D
L
1
2
1
2
4
1
2
3
D
L
1
3
D
L
1
4
1
1
9
1
1
8
D
L
1
5
D
L
1
6
1
1
7
1
0
7
D
L
1
7
D
L
1
8
1
0
6
1
0
5
D
L
1
9
1
1
3
D
H
2
8
1
D
H
2
0
D
H
2
1
8
0
7
8
D
H
2
2
D
H
2
3
7
6
7
5
D
H
2
4
D
H
2
5
7
4
7
3
D
H
2
6
D
H
2
7
7
2
7
1
D
H
2
8
D
H
2
9
6
8
D
H
3
1
1
0
6
7
D
H
3
0
D
H
3
1
6
6
1
0
9
D
H
4
D
H
5
1
0
8
145
DBB*
DBDIS*
153
26
DBG*
DBWO*
25
1
1
5
D
H
0
D
H
1
1
1
4
9
3
D
H
1
0
D
H
1
1
9
2
9
1
D
H
1
2
D
H
1
3
9
0
8
9
D
H
1
4
D
H
1
5
8
7
8
5
D
H
1
6
D
H
1
7
8
4
8
3
D
H
1
8
D
H
1
9
8
2
36
ABB*
AP0
231
AP1
230
AP2
227
226
AP3
APE
218
ARTRY*
32
A
V
D
D
2
0
9
BG*
27
219
BR*
CI*
237
CKSTP_IN*
215
216
CKSTP_OUT*
CLK_OUT
221
225
CSE0
CSE1
150
159
A24
A25
22
A26
158
A27
23
A28
151
A29
30
A3
3
A30
144
A31
37
A4
176
A5
5
A6
175
A7
6
A8
174
A9
7
28
AACK*
A1
2
A10
170
A11
11
A12
169
A13
12
A14
168
A15
13
A16
166
A17
15
A18
165
A19
16
A2
178
A20
164
A21
17
A22
160
A23
21
10PF
C240
0.1UF
C210
U26
MPE603E
A0
179
T292
10K
R240
VCC
33
R224
10K
R241
0.1UF
C237 C268
0.1UF
VCC
R252
10K
0.1UF
C205
U28
MC33269DT
1
GND
IN
3 2
OUT
C258
0.1UF
T199
VCC
10K
R261
R207
33
33
R205
T219
RA33
RA9
1 2
3 4
5 6
7 8
T174
T203
T163
T202
T306
T308
LF7
FILTER_22NF
1 2 3
T313
R239
10K
T171
10K
R244
0.1UF
C267
T167
RA7
RA33 1 2
3 4
5 6
7 8
0.1UF
C201
T214
RA12
RA33 1 2
3 4
5 6
7 8
C264
0.1UF
T195
C204
0.1UF
T209
T296 T205
T191
T197
8
C197
0.1UF
T331
MC33269DT
U33
GND
1
3
IN OUT
2
RA33
RA15
1 2
3 4
5 6
7
R206
10K
R211
10K
R214
VCC
0.1UF
C207
10K
T284
RA33
RA2
1 2
3 4
5 6
7 8
T190
T162
T166
T305
T302
T321
C221
10PF
T170
T222
0.1UF
C203
T172
0.1UF
C220
T316
100 R217
T169
T221
T178
T187
VCC
VCC
T335
T194
T252
T201
RA33
RA13
1 2
3 4
5 6
7 8
T173
6
7 8
RA33
RA4
1 2
3 4
5 6
7 8
2
3 4
5 6
7 8
RA1
RA33
1 2
3 4
5
3 4
5 6
7 8
10K
R251
RA3
RA33
1
2 3
T319
T165
RA33
RA11
1 2
R235 100
0.1UF
C263
LF13
FILTER_22NF
1
T207
R210
10K
10PF
C222
T216
T189
T307
VCC
T295
R223
10K
10K
R226
T285
C219
0.1UF
T164
VCC
T177
T168
10K
R228
T183
C206
0.1UF
T291
T198
T298
T299
VCC
2.4K
R248
T329
T192
C225
0.1UF
8 T204
T196
VCC
T336
T220
T318
T309
RA14
RA331 2
3 4
5 6
7
8
T317
C223
10PF
C200
0.1UF
T223
RA33
RA16
1 2
3 4
5 6
7
T312
T293
10PF
C239
T320
T107
T303
T294
T212
2
3 4
5 6
7 8
0.1UF
C257
10K
R212
T215
RA6
RA33 1
R243 180
T176
T310
T288
T324
T322
T218
C211
0.1UF
10UF/16V
C58
VCC
VCC
R238 68
RA5
RA33 1 2
3 4
5 6
7 8
T175
VCC
T332
T315
VCC
VCC
T334
T330
T185
T200
T247
T314
0.1UF
C238
R218
10K
T161
0.1UF
C241
T311
VCC
T301
FILTER_22NF
LF11
1 2 3
T224
T289
FILTER_22NF
LF14
1 2 3
T210
R237
10K
R247 100
10K
R220
10K
R242
0.1UF
C224
T251
T300
T287
T246
R216
10K
R250
10K
R213
10K
C266
0.1UF 0.1UF
C259
C209
33PF
T193
T325
T248
T333
4
5 6
7 8
R260
10K
C260
0.1UF 0.1UF
C196
RA33
RA8
1 2
3
T184
T297
T179
DH(15)
DH(16)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
DH(24)
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
180 R245
A_R(30)
A_R(7)
A_R(5)
A_R(3)
A_R(1)
A_R(15)
A_R(13)
A_R(11)
A_R(9)
A_R(23)
A_R(21)
A_R(19)
A_R(17)
A_R(31)
A_R(29)
A_R(27)
A_R(25)
DH(0)
DH(1)
DH(2)
DH(3)
DH(4)
DH(5)
DH(6)
DH(7)
DH(8)
DH(9)
DH(10)
DH(11)
DH(12)
DH(13)
DH(14)
D
H
_
R
(
2
6
)
D
H
_
R
(
2
7
)
D
H
_
R
(
2
8
)
D
H
_
R
(
2
9
)
D
H
_
R
(
3
)
D
H
_
R
(
3
0
)
D
H
_
R
(
3
1
)
D
H
_
R
(
4
)
D
H
_
R
(
5
)
D
H
_
R
(
6
)
D
H
_
R
(
7
)
D
H
_
R
(
8
)
D
H
_
R
(
9
)
RST*
INT*
SYSCLK
TA*
A_R(0)
A_R(2)
A_R(4)
A_R(6)
A_R(8)
A_R(10)
A_R(12)
A_R(14)
A_R(16)
A_R(18)
A_R(20)
A_R(22)
A_R(24)
A_R(26)
A_R(28)
DH_R(29)
DH_R(28)
DH_R(0:31)
DH(0:31)
TT1
TBST*
BG*
AACK*
TSIZ0
TSIZ1
TSIZ2
TS*
DBB*
D
H
_
R
(
0
)
D
H
_
R
(
1
)
D
H
_
R
(
1
0
)
D
H
_
R
(
1
1
)
D
H
_
R
(
1
2
)
D
H
_
R
(
1
3
)
D
H
_
R
(
1
4
)
D
H
_
R
(
1
5
)
D
H
_
R
(
1
6
)
D
H
_
R
(
1
7
)
D
H
_
R
(
1
8
)
D
H
_
R
(
1
9
)
D
H
_
R
(
2
)
D
H
_
R
(
2
0
)
D
H
_
R
(
2
1
)
D
H
_
R
(
2
2
)
D
H
_
R
(
2
3
)
D
H
_
R
(
2
4
)
D
H
_
R
(
2
5
)
A_R(31)
A_R(0:31)
DH_R(27)
DH_R(26)
DH_R(25)
DH_R(24)
DH_R(23)
DH_R(22)
DH_R(21)
DH_R(20)
DH_R(19)
DH_R(18)
DH_R(17)
DH_R(16)
DH_R(15)
DH_R(14)
DH_R(13)
DH_R(12)
DH_R(11)
DH_R(10)
DH_R(9)
DH_R(8)
DH_R(7)
DH_R(6)
DH_R(5)
DH_R(4)
DH_R(3)
DH_R(2)
DH_R(1)
DH_R(0)
DH_R(31)
DH_R(30)
A(2)
A(0)
A_R(1)
A_R(2)
A_R(3)
A_R(4)
A_R(5)
A_R(6)
A_R(7)
A_R(8)
A_R(9)
A_R(10)
A_R(11)
A_R(12)
A_R(13)
A_R(14)
A_R(15)
A_R(16)
A_R(17)
A_R(18)
A_R(19)
A_R(20)
A_R(21)
A_R(22)
A_R(23)
A_R(24)
A_R(25)
A_R(26)
A_R(27)
A_R(28)
A_R(29)
A_R(30)
A_R(0)
A(0:31)
A(23)
A(19)
A(31)
A(29)
A(27)
A(25)
A(21)
A(17)
A(15)
A(13)
A(11)
A(9)
A(7)
A(5)
A(3)
A(1)
A(30)
A(28)
A(26)
A(24)
A(22)
A(20)
A(18)
A(16)
A(14)
A(12)
A(10)
A(8)
A(6)
A(4)
7A1,10B1
3C2
1D7,3C2
1C7
3B5
3B5
3B5
3C5
6D1
9C1
6A7
3E5
9C1
9C1
9C1
9B1
3D5
8D1
7E5
(N.A)
6C1
3C1,5C3,5E3,5C5
9C1
9C1
10C1
3A1,7D1,5E1,10C1
3A1,7C1,5E3,10C1
6A1
8D1
8D1
8B1
8C1
8C1
8D1
8C1
7B1
3A1
9C1
3C5
6C1
3A2
5E1
5E3
10B1
1C7,7B1
8B1
8D1
T
3
5
TP347
TP348
R101 33
R115 33
0.1UF
C130
T129
T139
C
4
1
0
0
P
F
0.1UF
C113
T42
C
5
1
0
0
P
F
T145
T149
T
1
1
4
R165 470
0.1UF
C103
T323
33UF/16V
C32
R102 100
T130
R130
33
0.1UF
C137
T146
100 R103
VCC
33
R121
VCC
T
1
1
0
T128
10K
R148
T125
T39
VCC
R110
10K
B141 1 2
T16
T269
T23
VCC
U36
74F14
13 12
B140 1 2
74F14
5 6
74F14
U36
9 8
74F14
U36
11 10
T
1
2
4
T143
5.1K
R112
U36
T275
T144
T36
R37
10K
T258
R106
T255
T131
R109 33
T262
T276
T148
C126
33PF
100
C102
T17
0.1UF
C122
T271
R5
0
T263
0.1UF
10K R108
T133
T135
T261
T
2
8
1
C107
0.1UF
T138
T254
0.1UF
C134
T273
T274
FILTER_22NF
LF2
1
2
3
T
3
2
7
0.1UF
VCC
10K
R296
33UF/16V
C51
C138
0.1UF
C133
100
VCC
T19
T153
R113
5.1K
VCC
T41
VCC
C1
100PF
R105
B100
1 2
T21
R111
5.1K
10K
R4
VCC
T266
T265
100PF
C112
C131
0.1UF
T140
T154
T
1
2
3
T328
100PF
C128
A7_5V
T38
10K
R104 100
T260
T278
R100 100
T40
R117
T32
C104
0.1UF
T152
T
1
5
7
T141
T134
A7_5V
T147
JP1
JP-SW
T
1
2
1
1
0
0
P
F
C
7
VCC
T
1
1
7
T22
T
2
5
3
C108
10PF
C
8
1
0
0
P
F
T151
0.1UF
C44
T
1
2
0
C106
0.1UF
T92
T137
C109
100PF
T155
10K
R132
T15
0.1UF
C135
10K R150
T
2
8
0
T126
C158
0.1UF
T14
10PF
C10
VCC
T259
T18
T37
33 R116
T272
0
R131
T
1
1
9
C129
0.1UF
T132
C11
10PF
22PF
C111
T142
T270
T264
T
1
2
2
T127
T
1
6
0
VCC
T257
T
1
1
2
T150
74F14
U36
3 4
T267
1
0
0
P
F
C
3
10PF
C2
0.1UF
C105
T277
R107 100
C153
0.1UF
C140
1000PF
9
8
W
R
1
W_R*
48
5
5
X
I
N
X
O
U
T
5
4
U36
74F14
1 2
192
VCC19
VCC2
17
VCC20
198
203
VCC21
27
VCC3
VCC4
37
53
VCC5
VCC6
64
72
VCC7
VCC8
79
94
VCC9
VCLK*
125
VIDEO*
130
W
A
I
T
1
0
1
WE*
185
W
R
0
9
7
SBSY*
122
S
E
L
E
C
T
6
3
59
SELECTIN*
STROBE*
80
STS*
121
5
7
T
X
D
7
VCC1
VCC10
102
118
VCC11
VCC12
126
136
VCC13
VCC14
146
155
VCC15
VCC16
166
176
VCC17
VCC18
186
R
A
S
1
*
1
8
8
1
9
0
R
A
S
2
*
1
9
1
R
A
S
3
*
1
9
3
R
A
S
4
*
R
A
S
5
*
1
9
4
105
RCS0*
RCS1*
106
107
RCS2*
RCS3*
108
R
D
0
9
5
9
6
R
D
1
41
READY*
RESET*
207
206
RST0
R
T
S
*
5
8
R
X
D
5
1
M
D
7
1
4
0
1
4
2
M
D
8
M
D
9
1
4
3
78
PD0
PD1
77
75
PD2
PD3
74
73
PD4
PD5
71
70
PD6
PD7
69
6
5
P
E
R
R
O
R
82
PMODE0*
PMODE1*
83
129
PRINT*
R
A
S
0
*
1
8
7
1
5
7
M
D
2
0
M
D
2
1
1
5
8
1
5
9
M
D
2
2
M
D
2
3
1
6
0
1
6
2
M
D
2
4
M
D
2
5
1
6
3
1
6
4
M
D
2
6
M
D
2
7
1
6
5
1
6
7
M
D
2
8
M
D
2
9
1
6
8
M
D
3
1
3
5
1
6
9
M
D
3
0
M
D
3
1
1
7
0
1
3
7
M
D
4
M
D
5
1
3
8
1
3
9
M
D
6
M
A
7
1
8
0
1
8
2
M
A
8
M
A
9
1
8
3
1
3
2
M
D
0
M
D
1
1
3
3
1
4
4
M
D
1
0
M
D
1
1
1
4
5
1
4
7
M
D
1
2
M
D
1
3
1
4
8
1
4
9
M
D
1
4
M
D
1
5
1
5
0
1
5
2
M
D
1
6
M
D
1
7
1
5
3
1
5
4
M
D
1
8
M
D
1
9
1
5
6
1
3
4
M
D
2
I
R
Q
0
1
1
0
1
1
1
I
R
Q
1
1
1
2
I
R
Q
2
1
1
3
I
R
Q
3
I
R
Q
4
1
1
4
I
R
Q
5
1
1
5
1
1
6
I
R
Q
6
LSYNC*
128
1
7
2
M
A
0
M
A
1
1
7
3
1
8
4
M
A
1
0
1
7
4
M
A
2
M
A
3
1
7
5
1
7
7
M
A
4
M
A
5
1
7
8
1
7
9
M
A
6
G
N
D
5
1
8
1
1
7
1
G
N
D
6
G
N
D
7
1
6
1
1
5
1
G
N
D
8
G
N
D
9
1
4
1
HIZ*
81
INT*
208
INTI*
62
I
O
C
S
0
8
5
8
6
I
O
C
S
1
I
O
C
S
2
8
7
8
8
I
O
C
S
3
I
O
C
S
4
9
0
9
1
I
O
C
S
5
I
O
C
S
6
9
2
9
3
I
O
C
S
7
1
3
1
G
N
D
1
0
G
N
D
1
1
1
2
4
1
0
9
G
N
D
1
2
G
N
D
1
3
9
9
8
9
G
N
D
1
4
G
N
D
1
5
7
6
6
8
G
N
D
1
6
G
N
D
1
7
5
6
4
6
G
N
D
1
8
G
N
D
1
9
3
5
2
0
1
G
N
D
2
2
5
G
N
D
2
0
G
N
D
2
1
1
55
G
N
D
2
2
G
N
D
3
1
9
5
1
8
9
G
N
D
4
B
U
Z
Z
E
R
8
4
196
CAS0*
1
9
7
C
A
S
1
*
1
9
9
C
A
S
2
*
C
A
S
3
*
2
0
0
120
CBSY*
119
CCLK
202
CLKIN
CLKO
204
123
CMD*
5
2
C
T
S
*
47
DEN*
6
0
F
A
U
L
T
*
127
FSYNC*
100
GCS*
G
N
D
1
2
0
5
40
AD31
AD4
6
8
AD5
AD6
9
10
AD7
AD8
11
12
AD9
ADS*
49
50
ALE*
61
AUTOFDE*
45
BE0*
BE1*
44
43
BE2*
BE3*
42
117
BLAST*
BUSY
66
22
AD17
AD18
23
24
AD19
AD2
3
AD20
26
28
AD21
AD22
29
30
AD23
AD24
31
32
AD25
AD26
33
34
AD27
AD28
36
38
AD29
4
AD3
AD30
39
QP-1700
U2
A2
103
104
A3
67
ACK*
AD0
1
2
AD1
AD10
13
14
AD11
AD12
16
18
AD13
AD14
19
20
AD15
AD16
21
T
1
1
6
R119 10K
10PF
C12
C136
0.1UF
T
1
5
6
0.1UF
C127
T256
1K
R133
T
1
1
3
T279
5
2
_RIN
T282
VCC
T
1
1
8
1
0
0
P
F
C
6
U21
7705A
3
CT
GND
4
REF
1
6
RES
7
SEN
VCC
8
_RES
C101
0.1UF
T
1
1
5
T24
T5
10K R118
T136
C13
10PF
5.1K
R114
C110
22PF
10K R120
R149
10K
0.1UF
C123
T20
R
A
S
(
2
)
R
A
S
(
3
)
R
A
S
(
4
)
RCS(0)
RCS(1)
RCS(2)
RCS(3)
READY*
SELECT
R_W*
F_RST*
ACK*
BUSY
C124
0.1UF
T268
M
D
(
1
3
)
M
D
(
1
4
)
M
D
(
1
5
)
M
D
(
1
6
)
M
D
(
1
7
)
M
D
(
1
8
)
M
D
(
1
9
)
M
D
(
2
)
M
D
(
2
0
)
M
D
(
2
1
)
M
D
(
2
2
)
M
D
(
2
3
)
M
D
(
2
4
)
M
D
(
2
5
)
M
D
(
2
6
)
M
D
(
2
7
)
M
D
(
2
8
)
M
D
(
2
9
)
M
D
(
3
)
M
D
(
3
0
)
M
D
(
3
1
)
M
D
(
4
)
M
D
(
5
)
M
D
(
6
)
M
D
(
7
)
M
D
(
8
)
M
D
(
9
)
PERROR
R
A
S
(
0
)
R
A
S
(
1
)
ADS*
BE0*
BE2*
BE3*
C
A
S
(
1
)
C
A
S
(
2
)
C
A
S
(
3
)
FAULT*
GCS*
INT*
IRQ0*
IRQ1*
M
A
(
0
)
M
A
(
1
)
M
A
(
1
0
)
M
A
(
2
)
M
A
(
3
)
M
A
(
4
)
M
A
(
5
)
M
A
(
6
)
M
A
(
7
)
M
A
(
8
)
M
A
(
9
)
M
D
(
0
)
M
D
(
1
)
M
D
(
1
0
)
M
D
(
1
1
)
M
D
(
1
2
)
AD(0)
AD(1)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)
AD(16)
AD(17)
AD(18)
AD(19)
AD(2)
AD(20)
AD(21)
AD(22)
AD(23)
AD(24)
AD(25)
AD(26)
AD(27)
AD(28)
AD(29)
AD(3)
AD(30)
AD(31)
AD(4)
AD(5)
AD(6)
AD(7)
AD(8)
AD(9)
AUTOFD*
INIT*
LA(2)
LA(3)
LA(2:3)
RCS(0:3)
WR0*
MA(0:10)
MD(0:31)
C
A
S
(
0
)
CAS(0:3)
WE*
AD(0:31)
SYSCLK
IOCS1*
IOCS0*
IOCS2*
RD0*
RST*
IOCS3*
IOCS4*
RAS(0:4)
EBSY*
CLK
IOCS5*
CLK
PD(0)
CCLK*
EMSG*
CMSG*
VCLK*
PSYNC*
LSYNC*
PRINT*
VIDEO*
PD(0:7)
PD(1)
PD(2)
PD(3)
PD(4)
PD(5)
PD(6)
PD(7)
SELIN*
STROBE*
1C1
4C1,4C3
4C1
2D7
1D1
1D1
1D1
1E1
1A1,2D7
4A6,2D7,5A1
2C1
2C1
4E1
3C7
3C7
3C7
1D1
1C7
5E3,4E6,2C7
4E1
4E6
2C7
2B7
1C7
2E4
2E4
1D1
2A1
10C2
2C1
4A6
VCC
4C1
4C1
4D3
1D1
(N.A)
0.1UF
C162
C49
68pf
R36
2.2k
33PF
C404 C403
33PF
C48
0.1UF
100PF
C53
33PF
C400
NC
VCC
4
C173
0.1UF
T68
CLK
GND
2 1
NC
VCC
4
LF3
FILTER_22NF
1
2
3
OSC2
47.7789MHZ
3
CLK
GND
2 1
B113
BEAD
1 2
33
R35
OSC1
50MHZ
3
0.1UF
C212
0.1UF
C182
10PF
C139
R208
33
R134
68
T59
T89
T56
VCC
T66
33
R151
T67
C172
0.1UF
C154
FILTER_22NF
LF8
1
2
3
T87
R32
10K
33UF/16V
C56
0.1UF
33PF
C401 C405
33PF
R34
68
C183
0.1UF
100PF
C231
1K
R33
T86
VCC
T62
C161
0.1UF
10K R169
T57
R170 0
0.1UF
C184
T71
U16
FS741
LF
4
MODOUT_RS1
6
1
OSCIN
OSCOUT
2
7
REFOUT_RS0
3
REF_OFF
VDD
8
5
VSS
0 R171 T64
C171
0.1UF
T58
T88
T61
T84
27
XTSIZ1
XTSIZ2
28
XTT1
32
0.1UF
C160
XPA25
15
XPA26
16
XPA27
18
XPA28
19
XPA29
20
6
XPA3
XPA30
22
XPA31
23
XPA4
7
33
XREADY*
24
XRST*
61
XRW*
37
XTA*
XTBST*
36
29
XTS*
XTSIZ0
26 56
XBE2*
XBE3*
55
XBG*
59
58
XBG2*
34
XDBB*
63
XDBE*
XI_CLK
52
54
XLA4
XPA0
2
3
XPA1
XPA2
4
XPA20
8
10
XPA21
XPA22
11
XPA23
12
XPA24
14
79
WR*
XA0
38
39
XA1
XA2
40
44
XA20
XA21
45
47
XA22
XA23
48
49
XA28
42
XA3
XA4
43
XAACK*
67
XABE*
65
66
XADS*
XALE
62
XBE0*
57
G
N
D
5
2
5
3
0
G
N
D
6
G
N
D
7
3
1
4
1
G
N
D
8
G
N
D
9
5
0
71
RD*
69
TIN
V
D
D
1
92
1
V
D
D
2
V
D
D
3
3
5
4
6
V
D
D
4
V
D
D
5
6
0
7
2
V
D
D
6
V
D
D
7
8
0
8
5
V
D
D
8
9
6
V
D
D
9
88
D6
D7
89
91
D8
D9
92
G
N
D
1
1
5
1
G
N
D
1
0
G
N
D
1
1
5
3
6
4
G
N
D
1
2
G
N
D
1
3
6
8
7
6
G
N
D
1
4
G
N
D
1
5
8
1
9
0
G
N
D
1
6
G
N
D
1
7
1
0
0 5
G
N
D
2
G
N
D
3
1
3
1
7
G
N
D
4
74
AD1
AD2
75
77
AD3
CS*
73
D0
78
D1
82
93
D10
D11
94
95
D12
D13
97
98
D14
D15
99
83
D2
D3
84
86
D4
D5
87
T73
VIS_VCC
C52
22PF
U24
PowerVIS
AD0
70
T65
VCC
C300
22PF
C47
10UF/16V
T286
LF9
FILTER_22NF
1
2
3
T60
T82
T83
T85
FILTER_22NF
LF4
1
2
3
T69
T55
T72
VCC
T70
33PF
C163
LA(0:31)
LA(5)
LA(4)
LA(3)
LA(2)
BG*
VCLK*
BA(20)
TA*
R_W*
BA(28)
DBE*
BE0*
VIS_VCC
AD(27)
AD(26)
AD(25)
AD(24)
AD(23)
AD(22)
AD(21)
AD(20)
AD(19)
AD(18)
AD(17)
AD(16)
BA(21)
BA(22)
BA(23)
A(0:31)
A(1)
A(2)
A(3)
A(4)
A(20)
A(21)
A(22)
A(23)
A(24)
A(25)
A(26)
A(27)
A(28)
A(29)
A(30)
A(31)
F_RST*
TBST*
ABE*
ALE
TSIZ0
TSIZ1
TSIZ2
DBB*
READY*
ADS*
TT1
TS*
CLK
IOCS5*
AD(31)
RD0*
WR0*
AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AACK*
BE2*
BE3*
SYSCLK
LA(4)
A(0)
AD(0:31)
AD(30)
AD(29)
AD(28)
3C5
1A1
3C5
3B5
3B5
3B5
3B5
3B5
3A1,10C1
3A5
Q4
Q5
15
16
Q6
Q7
19
20
VCC
3C4
1A1
3B5
3B5
3B5
3B5
3C5
D0
3
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
VCC VCC
R172
33
U19
74ACT373
2
5
Q1
Q2
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
VCC
33
R173
74ABT373
U22
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
R21
33
74ACT373
U23
3
D0
D1
4
7
D2
D3
8
13
D4
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
22PF
C43
C42
0.1UF
74ABT373
U7
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
12
11
B8
DIR
1
10
GND
20
VCC
T45
U10
74ABT245
19
*G
2
A1
A2
3
4
A3
A4
T43
0.1UF
C37
0.1UF
C132
22PF
0.1UF
C41
22PF
C46
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
Q4
Q5
15
16
Q6
Q7
19
20
VCC
VCC
C45
C38
0.1UF
U8
74ABT373
D0
3
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
T63
T46
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
12
11
B8
DIR
1
10
GND
20
VCC
T47
U12
74ABT245
19
*G
2
A1
A2
3
4
A3
A4
C40
0.1UF
0.1UF
C39
VCC
12
15
Q5
Q6
16
19
Q7
VCC
20
VCC
C148
0.1UF
VCC
C31
22PF
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
6
9
Q3
Q4
0.1UF
C165
VCC
74ACT373
U14
8
9
A8
18
B1
B2
17
16
B3
B4
15
14
B5
B6
13
12
B7
B8
11
1
DIR
GND
10
VCC
20
13
12
B7
B8
11
1
DIR
GND
10
VCC
20
74ABT245
U11
*G
19
A1
2
3
A2
A3
4
5
A4
A5
6
7
A6
A7
*G
19
A1
2
3
A2
A3
4
5
A4
A5
6
7
A6
A7
8
9
A8
18
B1
B2
17
16
B3
B4
15
14
B5
B6
33
R135
C147
0.1UF
74ABT245
U17
0.1UF
C164
VCC
T44
16
Q6
Q7
19
20
VCC
R161
33
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
Q4
Q5
15
VCC
U13
74ABT373
D0
3
VCC
A(6)
A(7)
A(8)
A(9)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)
LA(17)
LA(18)
LA(19)
LA(20)
A(5)
LA(21)
LA(22)
LA(23)
A(6)
A(7)
A(8)
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)
BA(20)
BA(21)
BA(22)
BA(23)
A(5)
AD(19)
AD(20)
AD(21)
AD(22)
AD(23)
DH(24)
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
AD(24)
AD(25)
AD(26)
AD(27)
AD(28)
AD(29)
AD(30)
AD(31)
DH(0:31)
DBE*
R_W*
LA(5)
LA(5:24)
LA(6)
LA(7)
LA(8)
LA(9)
LA(10)
LA(11)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
DH(8)
DH(9)
DH(10)
DH(11)
DH(12)
DH(13)
DH(14)
DH(15)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)
DH(16)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
AD(16)
AD(17)
AD(18)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)
BA(20)
BA(21)
BA(22)
BA(23)
A(24)
A(25)
A(26)
A(27)
BA(28)
A(29)
A(30)
A(31)
DH(0)
DH(1)
DH(2)
DH(3)
DH(4)
DH(5)
DH(6)
DH(7)
AD(0)
AD(1)
AD(2)
AD(5)
AD(0:31)
AD(6)
AD(7)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)
AD(16)
AD(17)
AD(18)
AD(19)
AD(20)
ALE
ABE*
AD(21)
AD(22)
AD(23)
AD(24)
AD(25)
AD(26)
AD(27)
AD(28)
AD(29)
AD(30)
AD(31)
A(0:31)
A(10)
3C5
1A1
3C5
3B5
3B5
3B5
3B5
3B5
3A1,10C1
3A5
Q4
Q5
15
16
Q6
Q7
19
20
VCC
3C4
1A1
3B5
3B5
3B5
3B5
3C5
D0
3
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
VCC VCC
R172
33
U19
74ACT373
2
5
Q1
Q2
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
VCC
33
R173
74ABT373
U22
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
R21
33
74ACT373
U23
3
D0
D1
4
7
D2
D3
8
13
D4
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
22PF
C43
C42
0.1UF
74ABT373
U7
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
12
11
B8
DIR
1
10
GND
20
VCC
T45
U10
74ABT245
19
*G
2
A1
A2
3
4
A3
A4
T43
0.1UF
C37
0.1UF
C132
22PF
0.1UF
C41
22PF
C46
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
Q4
Q5
15
16
Q6
Q7
19
20
VCC
VCC
C45
C38
0.1UF
U8
74ABT373
D0
3
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
T63
T46
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
12
11
B8
DIR
1
10
GND
20
VCC
T47
U12
74ABT245
19
*G
2
A1
A2
3
4
A3
A4
C40
0.1UF
0.1UF
C39
VCC
12
15
Q5
Q6
16
19
Q7
VCC
20
VCC
C148
0.1UF
VCC
C31
22PF
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
G
11
GND
10
1
OC
Q0
2
5
Q1
Q2
6
9
Q3
Q4
0.1UF
C165
VCC
74ACT373
U14
8
9
A8
18
B1
B2
17
16
B3
B4
15
14
B5
B6
13
12
B7
B8
11
1
DIR
GND
10
VCC
20
13
12
B7
B8
11
1
DIR
GND
10
VCC
20
74ABT245
U11
*G
19
A1
2
3
A2
A3
4
5
A4
A5
6
7
A6
A7
*G
19
A1
2
3
A2
A3
4
5
A4
A5
6
7
A6
A7
8
9
A8
18
B1
B2
17
16
B3
B4
15
14
B5
B6
33
R135
C147
0.1UF
74ABT245
U17
0.1UF
C164
VCC
T44
16
Q6
Q7
19
20
VCC
R161
33
4
D1
D2
7
8
D3
D4
13
14
D5
D6
17
18
D7
11
G
10
GND
OC
1
2
Q0
Q1
5
6
Q2
Q3
9
12
Q4
Q5
15
VCC
U13
74ABT373
D0
3
VCC
A(6)
A(7)
A(8)
A(9)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)
LA(17)
LA(18)
LA(19)
LA(20)
A(5)
LA(21)
LA(22)
LA(23)
A(6)
A(7)
A(8)
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)
BA(20)
BA(21)
BA(22)
BA(23)
A(5)
AD(19)
AD(20)
AD(21)
AD(22)
AD(23)
DH(24)
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
AD(24)
AD(25)
AD(26)
AD(27)
AD(28)
AD(29)
AD(30)
AD(31)
DH(0:31)
DBE*
R_W*
LA(5)
LA(5:24)
LA(6)
LA(7)
LA(8)
LA(9)
LA(10)
LA(11)
AD(3)
AD(4)
AD(5)
AD(6)
AD(7)
DH(8)
DH(9)
DH(10)
DH(11)
DH(12)
DH(13)
DH(14)
DH(15)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)
DH(16)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
AD(16)
AD(17)
AD(18)
A(11)
A(12)
A(13)
A(14)
A(15)
A(16)
A(17)
A(18)
A(19)
BA(20)
BA(21)
BA(22)
BA(23)
A(24)
A(25)
A(26)
A(27)
BA(28)
A(29)
A(30)
A(31)
DH(0)
DH(1)
DH(2)
DH(3)
DH(4)
DH(5)
DH(6)
DH(7)
AD(0)
AD(1)
AD(2)
AD(5)
AD(0:31)
AD(6)
AD(7)
AD(8)
AD(9)
AD(10)
AD(11)
AD(12)
AD(13)
AD(14)
AD(15)
AD(16)
AD(17)
AD(18)
AD(19)
AD(20)
ALE
ABE*
AD(21)
AD(22)
AD(23)
AD(24)
AD(25)
AD(26)
AD(27)
AD(28)
AD(29)
AD(30)
AD(31)
A(0:31)
A(10)
5E2 5E2
5D3
2E4
2D7
5D1
2A1
7D4
7A4
2E4
3C5
5E2
5E4
5E4
2A1
7D4
5C3,5C5
5E4
5E2
2A1
7D4
2D7
3A2,4A6,2D7
5C3,5D3
5C1
5C5
5C5
5C3,5C5
5E4
5E4
(N.A)
(N.A)
1A1,4A1,3A1
100 R299
5E4
7D4
VCC
U35
74F32
4
5
6
T49
0.1UF
C250
100 R300
C157
0.1UF
1
2
3
U9
74F14
3 4
R295
100
T78
74F32
U35
0.1UF
C286
10K
R209
74F14
U9
5 6
R297 100
D3
21
24
D4
D5
26
28
D6
D7
30
16
D8
D9
18
NC1
1
43
NC2
NC3
44
14
OE*
VCC
23
VSS1
13
32
VSS2
6
A5
A6
5
4
A7
A8
42
41
A9
33
BHE
CE*
12
15
D0
D1
17
20
D10
D11
22
25
D12
D13
27
29
D14
D15
31
19
D2
U27
KM23C8105DG-LOW
A0
11
10
A1
A10
40
39
A11
A12
38
37
A13
A14
36
35
A15
A16
34
3
A17
A18
2
A2
9
8
A3
A4
7
R186 100
VCC
10
13
NC3
14
NC4
RESET*
12
RY_BY*
15
VCC
37
VSS1
46
VSS2
27
_BYTE
47
_CE
26
28
_OE
11
_WE
31
DQ10
34
DQ11
36
39
DQ12
41
DQ13
43
DQ14
45
DQ15
DQ2
33
DQ3
35
38
DQ4
40
DQ5
42
DQ6
44
DQ7
DQ8
30
DQ9
32
9
NC1
NC2
A12
A13
3
A14
2
A15
1
A16
48
17
A17
A18
16
A2
23
A3
22
A4
21
A5
20
A6
19
A7
18
A8
8
7
A9
DQ0
29
DQ1
U32
AM29F800A
A0
25
A1
24
6
A10
5
A11
4
T81
VCC
VCC
NC3
NC4
70
71
NC5
46
NC6
NC7
48
42
RD_FLASH*
67
RY_BY*
VCC1
10
30
VCC2
VCC3
59
43
WE0*
DQ29
8
DQ3
DQ30
64
38
DQ31
DQ4
24
26
DQ5
DQ6
36
49
DQ7
DQ8
51
53
DQ9
F_RST*
47
GND1
1
39
GND2
GND3
72
NC1
66
NC2
68
69
65
37
DQ15
DQ16
3
5
DQ17
DQ18
7
9
DQ19
DQ2
6
DQ20
25
27
DQ21
DQ22
35
50
DQ23
DQ24
52
54
DQ25
DQ26
56
58
DQ27
DQ28
60
62
A20
14
A3
A4
15
16
A5
A6
17
18
A7
19
A8
A9
20
44
CS0*
CS1*
45
DQ0
2
4
DQ1
DQ10
55
57
DQ11
DQ12
61
63
DQ13
DQ14
J13
FSIMM
A0
11
12
A1
A10
21
22
A11
23
A12
A13
28
A14
29
31
A15
A16
32
A17
33
34
A18
A19
40
A2
13
41
VCC
C191
0.1UF
T75
VCC
0.1UF
C169
T74
VCC
R259
10K
C252
0.1UF
0.1UF
C159 1
43
NC2
NC3
44
14
OE*
VCC
23
VSS1
13
32
VSS2
T50
VCC
D0
D1
17
20
D10
D11
22
25
D12
D13
27
29
D14
D15
31
19
D2
D3
21
24
D4
D5
26
28
D6
D7
30
16
D8
D9
18
NC1
A13
A14
36
35
A15
A16
34
3
A17
A18
2
A2
9
8
A3
A4
7
6
A5
A6
5
4
A7
A8
42
41
A9
33
BHE
CE*
12
15
VCC
U25
KM23C8105DG-HIGH
A0
11
10
A1
A10
40
39
A11
A12
38
37
T77
T54
T90
C216
0.1UF
0.1UF
C190
T51
T76
10
R294
15
RY_BY*
37
VCC
46
VSS1
27
VSS2
47
_BYTE
26
_CE
_OE
28
_WE
11
T79
C218
0.1UF
DQ13
41
DQ14
43
DQ15
45
33
DQ2
35
DQ3
DQ4
38
DQ5
40
DQ6
42
DQ7
44
30
DQ8
32
DQ9
NC1
9
10
NC2
NC3
13
NC4
14
12
RESET*
48
A16
A17
17
16
A18
23
A2
22
A3
21
A4
20
A5
19
A6
18
A7
8
A8
A9
7
29
DQ0
31
DQ1
34
DQ10
36
DQ11
DQ12
39
AM29F800A
U30
25
A0
24
A1
A10
6
A11
5
A12
4
3
A13
2
A14
1
A15
0.1UF
R298 100
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
RD_FLASH*
RCS0*
F_RST*
WR_FLASH*
DH(0:31)
T80
C287
F_RST*
RCS0*
RD_FLASH*
RY_BY1*
LA(2)
LA(3)
LA(4)
LA(5)
LA(6)
LA(7)
LA(8)
LA(9)
LA(10)
LA(11)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)
LA(17)
LA(18)
LA(19)
LA(20)
DH(16)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
DH(24)
DH(14)
DH(15)
DH(16)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
DH(24)
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
RD_FLASH*
F_RST*
WR_FLASH*
RY_BY2*
RCS2*
RCS3*
WR_FLASH*
RCS(0)
RCS2*
RCS(2)
RCS0*
LA(2:23)
RY_BY1*
WR_FLASH*
LA(5)
LA(6)
LA(7)
LA(8)
LA(9)
LA(10)
LA(11)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)
LA(17)
LA(18)
LA(19)
LA(20)
LA(21)
LA(22)
DH(0)
DH(1)
DH(2)
DH(3)
DH(4)
DH(5)
DH(6)
DH(7)
DH(8)
DH(9)
DH(10)
DH(11)
DH(12)
DH(13)
LA(14)
LA(13)
LA(12)
LA(11)
LA(10)
LA(9)
LA(8)
LA(7)
LA(6)
LA(5)
LA(4)
LA(3)
LA(2)
DH(15)
DH(14)
DH(13)
DH(12)
DH(11)
DH(10)
DH(9)
DH(8)
DH(7)
DH(6)
DH(5)
DH(4)
DH(3)
DH(2)
DH(1)
DH(0)
LA(2)
LA(3)
LA(4)
RCS(3)
RCS3*
LA(20)
LA(19)
LA(18)
LA(17)
LA(16)
LA(15)
LA(14)
LA(13)
LA(12)
LA(11)
LA(10)
LA(9)
LA(8)
LA(7)
LA(6)
LA(5)
LA(4)
LA(3)
LA(2)
LA(21)
LA(22)
LA(23)
WR0*
FLASH_WR_E
LA(20)
LA(19)
LA(18)
LA(17)
LA(16)
LA(15)
DH(24)
DH(25)
DH(26)
DH(27)
DH(28)
DH(29)
DH(30)
DH(31)
LA(19)
LA(18)
LA(17)
LA(16)
LA(15)
LA(14)
LA(13)
LA(12)
LA(11)
LA(10)
LA(9)
LA(8)
LA(7)
LA(6)
LA(5)
LA(4)
LA(3)
LA(2)
LA(21)
LA(22)
LA(23)
RCS1*
RCS(1)
RCS1*
GCS*
R_W*
RD_FLASH*
RD0* RD0#
RCS(0:3)
LA(20) DH(0)
RD0#
DH(16)
DH(1)
DH(2)
DH(3)
DH(4)
DH(5)
DH(6)
DH(7)
DH(8)
DH(9)
DH(10)
DH(11)
DH(12)
DH(13)
DH(14)
DH(15)
DH(17)
DH(18)
DH(19)
DH(20)
DH(21)
DH(22)
DH(23)
2A7
2A1
2A1
2A1
2A7
T52
C168
0.1UF
R203 33
R291 100
T91
GND1
1
39
GND2
GND3
72
67
PD0
PD1
68
69
PD2
PD3
70
44
RAS0*
RAS1*
45
RAS2*
34
RAS3*
33
WRITE*
47
C193
100PF
50
DQ27
DQ28
52
54
DQ29
8
DQ3
DQ30
56
58
DQ31
DQ32
60
62
DQ33
DQ34
64
38
DQ35
DQ4
20
22
DQ5
DQ6
24
26
DQ7
36
DQ8
49
DQ9
DQ12
55
DQ13
57
DQ14
61
63
DQ15
DQ16
65
37
DQ17
DQ18
3
5
DQ19
DQ2
6
DQ20
7
9
DQ21
DQ22
21
23
DQ23
DQ24
25
27
DQ25
DQ26
35
18
A6
A7
28
31
A8
A9
32
BS0*
29
46
BS1*
BS2*
66
71
BS3*
CAS0*
40
43
CAS1*
CAS2*
41
42
CAS3*
DQ0
2
4
DQ1
DQ10
51
53
DQ11
J1
SIMM
+5V_1
10
30
+5V_2
+5V_3
59
12
A0
A1
13
19
A10
14
A2
A3
15
16
A4
A5
17
C194
33PF
T93
180 R193
C59
33UF/16V
T13
0.1UF
C189
0.1UF
C156
0.1UF
C235
R289 100
32
NC5
OE*
29
14
RAS*
UCAS*
30
1
VCC1
VCC2
6
21
VCC3
13
WR*
3
DQ2
DQ3
4
5
DQ4
DQ5
7
8
DQ6
DQ7
9
10
DQ8
DQ9
33
GND1
22
37
GND2
GND3
42
31
LCAS*
16
NC1
NC2
15
NC3
11
NC4
12
19
A2
A3
20
23
A4
A5
24
25
A6
A7
26
27
A8
A9
28
DQ1
2
34
DQ10
DQ11
35
36
DQ12
DQ13
38
39
DQ14
DQ15
40
41
DQ16
33 R202
U29
KM416C1200
17
A0
A1
18
33
R234
R232 33
VCC
10 R183
C213
0.1UF
R200 180
100PF
C192
C249
0.1UF
100 R292
33 R233
R192 180 0.1UF
C166
100 R273
C178
33PF
T34
33 R184
33PF
C233
100 R271
T94
C234
33PF
100 R293
100PF
C187
R288 100
R185
33
R274 100
180 R201
R290 100
C215
0.1UF
VCC
33PF
C195
C188
100PF
R275 100
100 R272
31
NC1
16
15
NC2
11
NC3
12
NC4
NC5
32
29
OE*
RAS*
14
30
UCAS*
VCC1
1
6
VCC2
VCC3
21
WR*
13
C176
22PF
36
38
DQ13
DQ14
39
40
DQ15
DQ16
41
DQ2
3
4
DQ3
DQ4
5
7
DQ5
DQ6
8
9
DQ7
DQ8
10
33
DQ9
22
GND1
GND2
37
42
GND3
LCAS*
KM416C1200
U20
A0
17
18
A1
A2
19
20
A3
A4
23
24
A5
A6
25
26
A7
A8
27
28
A9
2
DQ1
DQ10
34
35
DQ11
DQ12
T95
VCC
DR_A(0:10)
MD(0:31)
VCC
22PF
C175
0.1UF
C247
MD(14)
MD(15)
MD(16)
MD(17)
MD(18)
MD(19)
MD(30)
MD(31)
RAS(1)
DR_RAS1*
RAS(2)
DR_RAS2*
MD(0)
MD(1)
MD(9)
MD(2)
MD(20)
MD(21)
MD(22)
MD(23)
MD(24)
MD(25)
MD(26)
MD(3)
MD(27)
MD(28)
MD(29)
MD(4)
MD(5)
MD(6)
MD(7)
MD(8)
DR_CAS3*
CAS(0:3)
RAS(0)
DR_RAS0*
RAS(3)
DR_RAS3*
RAS(0:4)
RAS(4)
DR_RAS4*
DR_A(0)
DR_A(1)
DR_A(2)
DR_A(3)
DR_A(4)
DR_A(5)
DR_A(6)
DR_A(7)
DR_A(8)
DR_A(9)
DR_A(10)
DR_CAS0*
DR_CAS1*
DR_CAS2*
DR_CAS3*
DR_RAS1*
DR_RAS2*
DR_WR*
MD(10)
MD(11)
MD(12)
MD(13)
MA(2) DR_A(2)
MA(3) DR_A(3)
MA(4) DR_A(4)
MA(5) DR_A(5)
MA(6) DR_A(6)
MA(7) DR_A(7)
MA(8) DR_A(8)
MA(9) DR_A(9)
MA(10) DR_A(10)
MA(0:10)
WE* DR_WR*
CAS(0)
DR_CAS0*
CAS(1)
DR_CAS1*
CAS(2)
DR_CAS2*
CAS(3)
DR_A(2)
DR_A(3)
DR_A(4)
DR_A(5)
DR_A(6)
DR_A(7)
DR_A(8)
DR_A(9)
MD(0)
MD(9)
MD(10)
MD(11)
MD(12)
MD(13)
MD(14)
MD(15)
MD(1)
MD(2)
MD(3)
MD(4)
MD(5)
MD(6)
MD(7)
MD(8)
DR_CAS0*
DR_RAS0*
DR_CAS1*
DR_WR*
MA(0) DR_A(0)
MA(1) DR_A(1)
DR_A(0)
DR_A(1)
DR_A(2)
DR_A(3)
DR_A(4)
DR_A(5)
DR_A(6)
DR_A(7)
DR_A(8)
DR_A(9)
MD(16)
MD(25)
MD(26)
MD(27)
MD(28)
MD(29)
MD(30)
MD(31)
MD(17)
MD(18)
MD(19)
MD(20)
MD(21)
MD(22)
MD(23)
MD(24)
DR_CAS2*
DR_RAS0*
DR_CAS3*
DR_WR*
DR_A(0)
DR_A(1)
2E4
5E3
9C2
5C3,5E3
9C1
9C2
2B1
2D7
12
11
B8
DIR
1
10
GND
20
VCC
2E1
5C5
2A1
2E4
19
*G
2
A1
A2
3
4
A3
A4
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
CONN8
J12
1
2
3
4
5
6
7
8
U6
74ACT245
C14
1000PF
VCC
DO
GND
5
6
NC1
NC2
7
SK
2
8
VCC
T111
0.1UF
C33
2
VCC
KM93C66GD
U1
1
CS
DI
3
4
U9
74F14
11 10
74F14
U9
1
C16
1000PF
VCC
9 8
C303
1000PF 1000PF
C304 C305
1000PF
T29
U35
74F32
12
13
11
U9
74F14
U9
13 12
0.1UF
C35
R13
10K
R20
10K
3
T109
74F14
VCC LF1
FILTER_150PF
1
2
VCC
33
R30
VCC
10K
R8
4.7K
R7
T27
T25
R31
33
VCC
VCC
T28
74F32
U35
9
10
8
VCC
10K
R10
T26
T99
R18
10K
10K
R310
10K
R301
C301
1000PF
T31
T1
10K
R16
VCC
1000PF
C21
C289
100PF
VCC
C34
0.1UF
VCC
100PF
C288
10K
R19
VCC
R38
33
1000PF
C63
D4
13
14
D5
D6
17
18
D7
10
GND
2
Q0
Q1
5
6
Q2
Q3
9
12
Q4
Q5
15
16
Q6
Q7
19
20
VCC
0.1UF
C9
U4
74HCT273
CLK
11
1
CLR
D0
3
4
D1
D2
7
8
D3
100PF
C29
T2
R11
10K
C18
1000PF
1000PF
C23 C28
100PF
GND
10
Q0
2
5
Q1
Q2
6
9
Q3
Q4
12
15
Q5
Q6
16
19
Q7
VCC
20
C15
1000PF
74HCT273
U3
11
CLK
CLR
1
3
D0
D1
4
7
D2
D3
8
13
D4
D5
14
17
D6
D7
18
C20
1000PF
T30
C24
1000PF
T3
10
GND
20
VCC T
3
3
C30
100PF
VCC
A2
3
4
A3
A4
5
6
A5
A6
7
8
A7
A8
9
B1
18
17
B2
B3
16
15
B4
B5
14
13
B6
B7
12
11
B8
DIR
1
1000PF
C25
U5
74ACT245
19
*G
2
A1
C36
0.1UF
J2
CONN2
1
2
R9
10K
T
4
T108
C293
100PF
18
19
2
20
3
4
5
6
7
8
9
10K
R12
T349
J8
CONN20
1
10
11
12
13
14
15
16
17
C302
10K
R17
C22
1000PF
T348
1000PF
C19
R302
10K
1000PF
C100
0.1UF
1000PF
C17
LCD_D4
LCD_D6
LCD_D5
LCD_E
LCD_D7
P_SW2
LCD_RS
P_SW8
P_SW6
P_SW1
P_SW3
P_SW5
P_SW7
P_SW7
P_SW8
LCD_DRV_E
LED1
LCD_DRV_E
LCD_E
LCD_RS
AD(2)
AD(3)
AD(6)
AD(7)
RY_BY1*
RY_BY2*
PSYNC*
RDY*
AD(11)
AD(15)
AD(14)
AD(13)
AD(12)
AD(10)
AD(9)
AD(8)
AD(0:18)
AD(11)
AD(12)
IRQ1*
LED3
LED1
LED2
LED4
LED3
FLASH_WR_E
EXITP*
LED2
LED4
P_SW4
RST*
AD(0)
AD(1)
AD(4)
AD(5)
AD(8)
AD(9)
AD(10)
AD(13)
IOCS2*
WR0*
AD(0)
AD(1)
AD(2)
AD(3)
AD(4)
AD(5)
RD0*
AD(14)
AD(15)
AD(6)
AD(7)
P_SW1
P_SW2
P_SW3
P_SW4
P_SW5
P_SW6
LCD_D4
LCD_D5
LCD_D6
LCD_D7
2D1
2D1
2D1
2D1
2D1
2D1
2D1
2D1
2D1
2D1
C115
470PF
100
R137
5.1K
R127
R141
1K 1K
R136
T12
R138
1K
C116
470PF
FILTER_22NF
1
2
3
R139
1K
1K R164
R140
1K
33 R27
5V2 LF5
1K
R22
R128
5.1K
R24
1K
C114
470PF
1000PF
C141
C117
470PF
33 R122
VCC
C118
470PF
1K
R144
C152
220PF 220PF
C144
5V1
R126
5.1K
35
36
A36
A4
4
5
A5
A6
6
7
A7
A8
8
9
A9
1K
R123
A20
A21
21
22
A22
A23
23
24
A24
A25
25
26
A26
A27
27
28
A28
A29
29
3
A3
30
A30
A31
31
32
A32
A33
33
34
A34
A35
J11
CENT36
1
A1
A10
10
11
A11
A12
12
13
A13
A14
14
15
A15
A16
16
17
A17
A18
18
A19
19
A2
2 20
R28 33
1K
R147
SEN_5V
FGND
R26 33
R146
1K
470PF
C119
5.1K
R25
R23 33
33 R29
5V2
C150
220PF
SEN_5V
T11
220PF
C143
220PF
C151
SEN_5V
100PF
C121
T9
C149
220PF
R163 1K
C142
220PF
R125 33
C9
10
6 GND1
GND2
16
5V1
R124 33
11
C10 C11
12 13
C12 C13
14 15
C14 C15
17 18
C16 C17
19 20
C18
2
C2 C3
3 4
C4 C5
5 7
C6 C7
8 9
C8
5.1K
R129
1K
R145
U15
74F1071
C1
1
220PF
C145
C120
100PF
PD(0:7)
STROBE*
ACK*
BUSY
PERROR
SELECT
AUTOFD*
SELIN*
INIT*
PD(4)
PD(3)
PD(2)
PD(0)
FAULT*
PD(5)
PD(7)
PD(6)
PD(1)
2C1,7D4
2C1
2C1
2C1
2C1
2C1
T48
2C1
2C1
2C1
470PF
C291
R287 100
10K
R286
470PF
C292 C255
470PF
C253
1000PF
C284
470PF
R278 100
R284 100
100 R282
470PF
C282
10K
R285
10K
C280
470PF
B107 1 2
C285
470PF
R280
10K
R276
VCC
T347
T350
R283
10K
T98
10K
R279
3.3K
R311
LF10
FILTER_150PF
1
2
3
470PF
C254
R312
3.3K
B103
1 2
VCC
470PF
C281
VCC
100 R281
1000PF
C283
1000PF
C295 HEADER4
J6
1
2
3
4
24
3
4
5
6
7
8
9
C294
1000PF
1
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
100 R277
33UF/16V
C60
J7
CONN24
LSYNC*
PSYNC*
RDY*
EMSG*
EXITP*
EBSY*
PRINT*
VIDEO*
CMSG*
CCLK*
B108 1 2
0
R1
8-3 Panel Board
8-4 Flash SIMM
8-5 LocalTalk
(N.A)
33
U4
74LS74
1
C
L
3
CLK
D
2
P
R
4
5
Q
Q_
6
VCC
U6
74LS14
11 10
T17
R3
R15
74LS14
U6
13 12
VCC
C18
0.1UF
6
C5
1UF
1K
T33
33
R4
74F32
U5
4
5
26
13
RTXCA*
RTXCB*
32
RXDA
14
31
RXDB
SYNCA*
12
33
SYNCB*
TRXCA*
15
30
TRXCB*
16
TXTA
TXTB
29
10
VCC
WE*
40
11
W_REQA*
W_REQB*
34
D6
5
D7
22
DCDA
DCDB
24
DTRA*
19
27
DTRB*
37
D_C*
35
GND1 GND2
36
IEI
8
7
IEO
INT*
6
9
INTACK*
23
PCLK
RD*
41
20
RTSA*
RTSB*
Z85230
U1
39
A_B*
CE*
38
CTSA*
21
25
CTSB*
1
D0
D1
2
44
D2
D3
3
43
D4
D5
4
42
R12 27
74LS14
U6
9 8
T7
C2
1UF
0.1UF
C22
68
R2
J2
DIN-8P
1
2
3
4
5
6
7
8
R7 27
3
MAX488
U2
8
7
3
4
2
1
5
6
27 R8
B3 BEAD 1 2
VCC
C15
100PF
FILTER-150PF
LF1
1
2
68
R1
T32
T34
1UF
C4
1 2
C10
330PF
330PF
C6
BEAD B6
2
U5
74F32
1
2
3
74LS14
U6
3 4
VCC
33
R5
B21 2
C7
330PF
U6
74LS14
1
1 2
33UF
C1
U6
74LS14
5 6
BEAD
VCC
B5 BEAD
0.1UF
C20
27 R9
C16
0.1UF
330PF
C12
330PF
C9
B7 BEAD 1 2
DESUB-9P
J1
1
2
3
4
5
6
7
8
9
1UF
C3
0.1UF
C17
VCC
R16
10K
C21
0.1UF
C13
330PF
330PF
C11
BEAD B81 2 27 R14
BEAD B41 2
7.3728MHZ
OSC1
CLK
3
2
GND NC
1
4
VCC
R10 27
C8
330PF
27 R11
T35
T36
B1 BEAD 1 2
R6
33
VCC
R13 27
T5
0.1UF
C19
100PF
C14
T3
T2_IN T2_OUT
7
16
VCC
Y+
2
Y-
6
VCC
MAX232
U3
1
C1+
C1-
3
4
C2+
C2-
5
15
GND
R1_IN
13 12
R1_OUT
R2_IN
8
R2_OUT
9
11
T1_IN T1_OUT
14
10
25
26
27
28
29
3
30
4
5
6
7
8
9
VCC
10
11
12
13
14
15
16
17
18
19
2
20
21
22
23
24
GRAUND
D(0:7)
+5v
D(2)
D(3)
D(4)
D(5)
D(6)
D(7)
D(0)
D(1) D(7)
D(6)
D(5)
D(4)
D(3)
D(2)
D(1)
D(0)
SCC_CS* SCC_CS*
SCC_CS*
J3
CON30
1
8-6 Cleaning Board
1K
VR1
100K
ZD1
5.6V
33NF
C3
50V
2K
C4
68PF
1/8
R5
10
2
4
5
6
THV_PORT
HP1 1
D2
ESJA57-04
150K
R4
1/8
470PF
C1
3K
TRANS10P
T1
1
KSD526
Q1
B
C
E
SLCON3P
CN1
1
2
3
+24V
BR
R1
30M
Q2
KSC1008
B
C
E
1/8
R2
10K
1/8
R3
10K
+24V
+24V
470PF
C2
3K
ESJA57-04
D1
8-7 Motor-SUB Board Diagram
MP_PAPER
FAN_E
MP_CLUTCH
NOT USED
1
2
3
+5V
FB1
BDCORE
2W
R2
0.33
50V
C5
330PF
DIODE_3P
D1
+24V
1/8
R11
15K
+24V
R6
1K
5.6K
R13
1/8
R4
56K
50V
C2
47UF
1N4003
D8
Q2
KSC1008
B
C
E
R9 5101/8
R3
+24V
SLCON3P
CN5
1
2
3
1
10
2
3
4
5
6
7
8
9
50V
C11
10NF
56K
+5V
SLCON2P
CN4
1
2
DLCON_10P
CN1
Q1
KSC1008
B
C
E
330PF
C7
50V
1K
R5
CN3
SLCON4P
1
2
3
4
+24V
SLCON2P-FAN
CN2
1
2
DIODE_3P
D3
1
2
3
D2
DIODE_3P
1
2
3
R7
1K
50V
C9
10NF
330PF
C8
50V
5.6K
R8
+5V
50V
C10
10NF
C4
820PF
+5V
C1
10UF
50V
1/8
R12
5.6K
3
E
2
G
N
D
1
0
5
L
O
A
D
1
1
L
O
G
I
C
1
OUT1
OUT2
2
OUT3
4
17
OUT4
13
PHASE1
8
PHASE2
R
C
1
1
29
R
C
2
1
5
R
E
F
E
S
E
N
S
E
6
S
E
N
S
E
1
1
6
50V
0.33
R1
2W
+5V
A2918SWV
U1
*ENABLE1
14
7
*ENABLE2
E
1
1
8
150
R10
1/8
50V
C6
330PF
820PF
C3
50V
MOTOR_EA
MOTOR_PA
MOTOR_PB
D7
1N4003
+5V
8-8 PTL Diagram
L
D
1
8
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
1
0
L
D
9
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
1
2
L
D
1
1
S
R
3
3
1
2
-
V
L
D
1
5
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
1
4
L
D
1
7
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
1
6
L
D
1
3
S
R
3
3
1
2
-
V
L
D
7
S
R
3
3
1
2
-
V
VCC
CONN2
CN1
1
2
S
R
3
3
1
2
-
V
L
D
4
L
D
3
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
2
L
D
1
S
R
3
3
1
2
-
V
S
R
3
3
1
2
-
V
L
D
8
S
R
3
3
1
2
-
V
L
D
6
L
D
5
S
R
3
3
1
2
-
V

SVC6000 Service Manual

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

SVC6000 Service Manual

Uploaded by

Copyright:

Available Formats

SERVICE

You might also like
