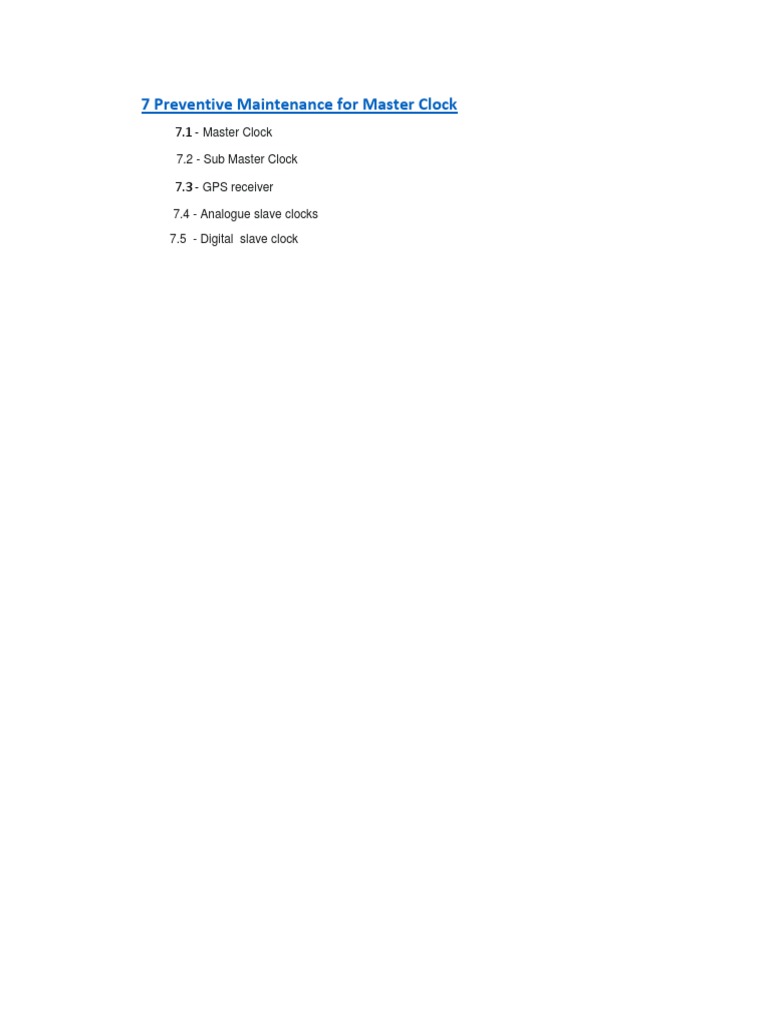

7.2 - Sub Master Clock 7.3 - GPS receiver 7.4 - Analogue slave clocks 7.5 - Digital slave clock
7.1 Master clock
1-PL-TP
The Time Base Module PL-TB is microprocessor controlled and is intended for time synchronisation, parameterisation and supervision in a Time Central with multiple modules.
2-PL-SYNC Supported sync. sources: GPS radio receiver, PPS output, Art. no. 122980-01. Accuracy locked to GPS: 1x10-11 MTBF: 261,020 hours Operating temperature: 0C up to +40C Dimensions: W=20 (4TE) H=128.4 D=160 mm. Weight: 0.15 kgs
4-RL-ETR
3-PL-RS Baudrate up to 38400 Bits/Second. Hot swap and Plug and Play Functions. Automatical take-over function. Real time clock (RTC). Serial bus connection (2-wire) for communication with Master Clock/Time Base Module (PL-TB). Flash for program and parameters stores all datas in case of a power failure. Super capacitor for real time clock function (RTC) during a power failure.
5-PL-FR Supports protocols: (For time distribution) NTP version 1, 2 and 3, RFC1305 SNTP, RFC 1769 Other supported protocols: SNMP v1 Enterprise MIB (RFC 1155 - 1157) HTTP Transport protocol: TCP/IP IP-address assignment Dynamic, using DHCP, or fixed IP-address Compatibility: Ethernet version 2/IEEE 802.3 Ethernet: Supports 10/100BASE-T (RJ45) connections Ambient temperature: 0C up to +55C LEDs: Link, Activity, Time server, Status, and Alarm. MTBF 222,700 hours Measurements: Width = 20 mm. (4TE), Height = 128.4 mm, Depth = 160 mm. Weight: 0.15 kgs Device Management: Web-Based (requires web browser) or via Telnet
Hot swap and Plug and Play Functions. Automatic take-over function. Integrated real time clock (RTC). Serial bus connection (2-wire) for communication with the Master Clock/Time Base Module (PL-TB). Flash and EEPROM memory for program and parameters stores all data in case of a power failure. Super capacitor for real time clock function (RTC) during a power failure. Operating temperature: 0C up to +40C
6-7-8 COVER Spear slot.
9-PL-IMP/TC Fully automatic time correction from the superior Master Clock/Time Base (PL-TB). Serial bus connection (2-wire) for communication with the Master Clock/Time Base Module (PLTB). Flash for program and parameters stores all datas in case of power failure. Super capacitor for real time clock function (RTC) during a power failure. Hot swap and Plug and Play Functions. Transistor output protected against overload and short circuit. Programmable alarm limits. OFF-Function in case of low voltage. Integrated real time clock (RTC).
10 COVER Spear slot.
11-PL-AC/DC Short circuit and overload protection. Power failure alarm. Low/missing voltage alarm. Automatic measurement of Voltage (Volt), Current (Ampere) and temperature. Serial bus connections (2-wire) for communication with the Master Clock/ Time Base Module (PL-TB). Programmable alarm limits*. Low voltage cut off function Temperature range 0C to +40C
12- 19Casing
Westerstrand time centrals are built around a 19 modular concept where the backbone is closed or open casings for mounting in stand or cabinet. A time central can consist of up to 8 casings. Different types of modules, batteries and power supplies are available.
7.3 GPS receiver
The GPS-receiver is intended for outdoor mounting and the antenna needs clear view up wards. The receiver can be mounted on a mast by using a clamp or directly to a wall by using the enclosed aluminum bracket. It is also possible to remove the aluminum bracket and mount the enclosure directly to a roof. A built in LED indicates the signal reception. Connection to the master clock is done with 3 wires.
Operating temp: -40C to +85C. Prime power: +8V to 35V (Power supply from Master Clock / Time Central).
Replacement of GPS backup battery
Battery: Lithium 3V type CR1632
Instruction
Open the GPS lide Unplug the cable connector Remove the old battery Insert the new battery Plug in the cable connector again Close the lid
7.4 - Analogue slave clocks
1- Cleaning the clock exterior. 2- Replace backup battery. 3- check of time uniformity
7.5 - Digital slave clock
The display shows time, temperature and date alternately (via set up function). Red diodes. The light intensity is adjusted via dimmer(built in). 48 hours memory backup. After a mains failure correct time is automatically displayed. Including Air-temperature sensor. Automatic summer/winter time change. The front cover can be opened (equipped with hinges).
