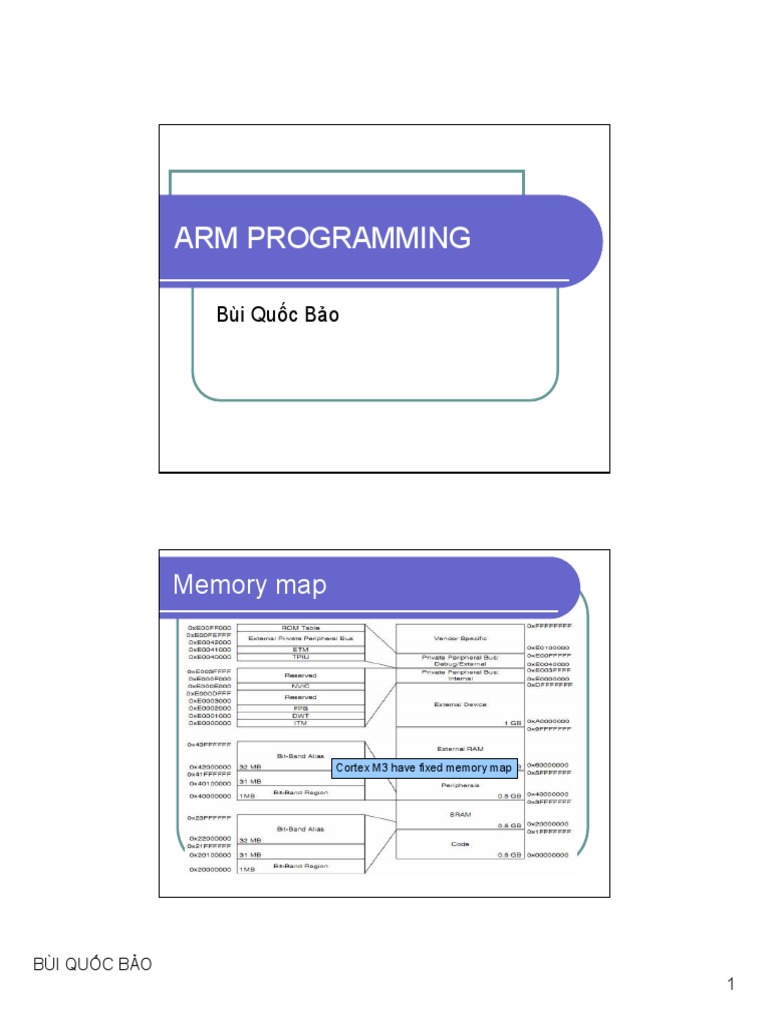

ARM PROGRAMMING

Bi Quc Bo

Memory map

Cortex M3 have fixed memory map

BI QUC BO
1

System control space

Can be accessed in privileged mode only

Code memory region

Address: 0x000000000x1FFFFFFF

Executable

BI QUC BO
2

SRAM memory region

Address: 0x200000000x3FFFFFFF

Intended for on-chip RAM

Executable

Program code can be copied here
executed.

Peripheral region
Address: 0x400000000x5FFFFFFF

Intended for peripherals

Cannot execute instruction code in this
region

BI QUC BO
3

External RAM region

Address: 0x600000000x7FFFFFFF

Intended for either on-chip or off-chip
memory.

Program code can be copied here
executed.

External devices
Address: 0xA00000000xDFFFFFFF

intended for external devices and/or
shared memory that needs ordering /
nonbuffered accesses

Cannot execute instruction code in this
region

BI QUC BO
4

System region
Address: 0xE00000000xFFFFFFFF

for private peripherals and vendorspecic devices

Nonexecutable

Default memory Access Permission

BI QUC BO
5

Default memory Access Permission

Bit-band Operation
Bit-band operation support allows a
single load/store operation to access
(read/write) to a single data bit.

Supported in two predened memory
regions called bit-band regions

BI QUC BO
6

Bit-band regions
Can be accessed like normal memory

Each individual bit can be accessed
separately via a separate memory region
called the bit-band alias

Bit-band regions

The rst 1 MB of the SRAM region:

Address: 0x200000000x200FFFFF

The rst 1 MB of the peripheral region:

0x400000000x400FFFFF

BI QUC BO
7

Bit-band alias

Write to bit-band alias

BI QUC BO
8

Write to bit-band alias

LDR R0,=0x20000000 ; Setup address
LDR R1, [R0]
; Read
ORR.W R1, #0x4
; Modify bit
STR R1, [R0] ; Write back result

LDR R0,=0x22000008 ; Setup address

MOV R1, #1
; Setup data
STR R1, [R0]
; Write

Read from bit-band alias

BI QUC BO
9

Read from bit-band alias

LDR R0,=0x20000000 ; Setup address
LDR R1, [R0]
; Read
UBFX.W R1,R1, #2, #1 ; Extract bit[2]

LDR R0,=0x22000008
LDR R1, [R0]

; Setup address
; Read

Remapping of SRAM bit-band

region

BI QUC BO
10

Remapping of Bit-Band
Addresses in Peripheral Memory Region

Bit-band operation in C
#define DEVICE_REG0 ((volatile unsigned long *) (0x40000000))
#define DEVICE_REG0_BIT0 ((volatile unsigned long *) (0x42000000))
#define DEVICE_REG0_BIT1 ((volatile unsigned long *) (0x42000004))
...
*DEVICE_REG0 = 0xAB; // Accessing the hardware register by normal
// address
...
*DEVICE_REG0 = *DEVICE_REG0 | 0x2; // Setting bit 1 without using
// bitband feature
*DEVICE_REG0_BIT1 = 0x1;
// Setting bit 1 using bitband feature
// via the bit band alias address

BI QUC BO
11

// Convert bit band address and bit number into bit

band //alias address
#define BITBAND(addr,bitnum) ((addr &
0xF0000000) + 0x2000000+((addr & 0xFFFFF) <<5) +
(bitnum <<2))
// Convert the address as a pointer
#define MEM_ADDR(addr) *((volatile unsigned long *)
(addr))
#define DEVICE_REG0 0x40000000

// Accessing the hardware register by normal address

MEM_ADDR(DEVICE_REG0) = 0xAB;
// Setting bit 1 without using bitband feature
MEM_ADDR(DEVICE_REG0) =
MEM_ADDR(DEVICE_REG0) | 0x2;

// Setting bit 1 with using bitband feature

MEM_ADDR(BITBAND(DEVICE_REG0,1)) = 0x1;

BI QUC BO
12

Semaphore

To use shared resource, semaphore are

used to manage access.

Atomic access
In order to implement a reliable
semaphore, we must guarantee atomic
access.

Reading the semaphore value, checking
it and writing the modified value back
must occur in an uninterruptible
sequence

BI QUC BO
13

Exclusive Load and Store

LDREX

loads data from memory and tag the

memory location

STREX
store data to memory if the memory location
is tagged, return 0. Otherwise, return 1.

Every access to this memory location will
clear the tag

Syntax
 LDREX{cond}
 STREX{cond}
 LDREXB{cond}
 STREXB{cond}
 LDREXH{cond}
 STREXH{cond}
 LDREXD{cond}
 TREXD{cond}

Rt, [Rn {, #offset}]

Rd, Rt, [Rn {, #offset}]
Rt, [Rn]
Rd, Rt, [Rn]
Rt, [Rn]
Rd, Rt, [Rn]
Rt, Rt2, [Rn]
Rd, Rt, Rt2, [Rn]

BI QUC BO
14

cond

Rd

Rt

is an optional condition code.

is the destination register for the returned status.
is the register to load or store.

Rt2

Rn

offset

is the second register for doubleword loads or stores.

is the register on which the memory address is based.
is an optional offset applied to the value in Rn
