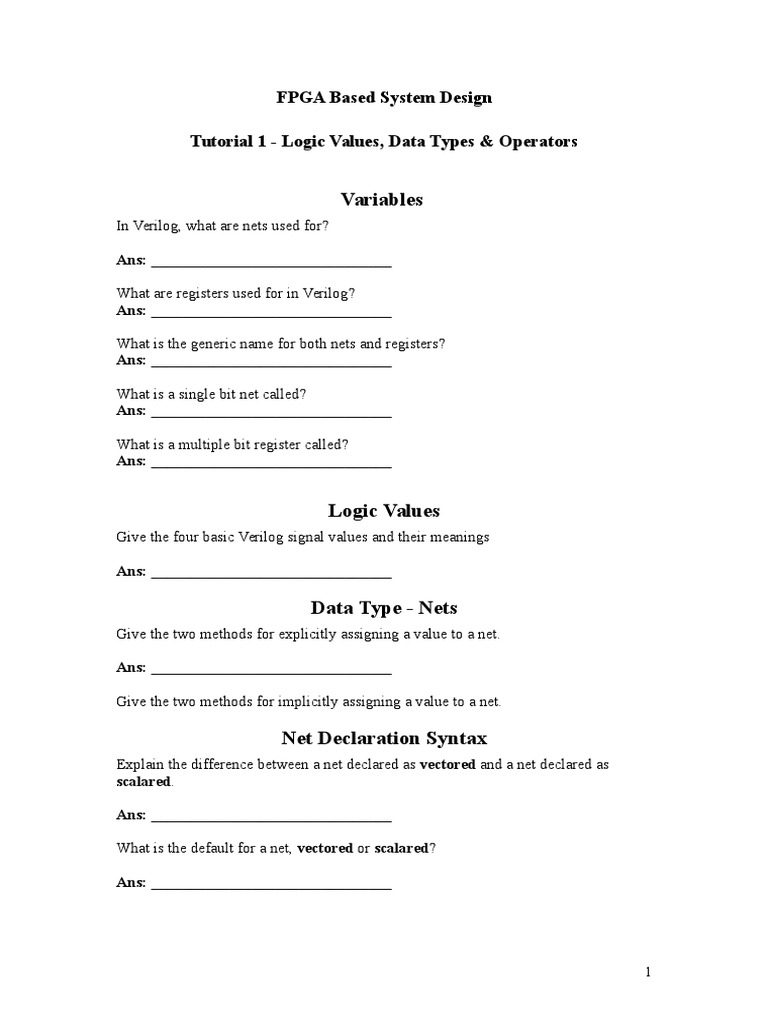

FPGA Based System Design

Tutorial 1 - Logic Values, Data Types & Operators

Variables
In Verilog, what are nets used for?
Ans: _______________________________
What are registers used for in Verilog?
Ans: _______________________________
What is the generic name for both nets and registers?
Ans: _______________________________
What is a single bit net called?
Ans: _______________________________
What is a multiple bit register called?
Ans: _______________________________

Logic Values
Give the four basic Verilog signal values and their meanings
Ans: _______________________________

Data Type - Nets

Give the two methods for explicitly assigning a value to a net.
Ans: _______________________________
Give the two methods for implicitly assigning a value to a net.

Net Declaration Syntax

Explain the difference between a net declared as vectored and a net declared as
scalared.
Ans: _______________________________
What is the default for a net, vectored or scalared?
Ans: _______________________________

Initial Value & Undeclared Nets

What is the default initial value of a net at tsim = 0?
Ans: _______________________________
What is the default type for a net that is not declared?
Ans: _______________________________
How can the default type for a net that is not declared be changed?
Ans: _______________________________

Data Type Register

Register Semantics
Give the function that each of the following register types performs.
reg
: Ans: _______________________________
integer : Ans: _______________________________
time : Ans: _______________________________
real : Ans: _______________________________
realtime: Ans: _______________________________

Register Assignment
List four Verilog constructs within which a register can be assigned.
Ans: _______________________________
List two Verilog constructs by which a register can never be assigned.
Ans: _______________________________

Strings
What is the data type for a string?
Ans: _______________________________
A string must be stored in reg (or array). Describe a register with identifier buffer
for storing in a string of 32 8-bit characters.

Ans: _______________________________
2

Constants
Declaration of parameters
A sequential circuit has three states A, B, and C with state codes 00, 01, and
10, respectively. Write a parameter statement assigning these codes to their
respective states.
Ans: _______________________________

The following gives a parameter regsize and its instantiation. If n = 8, how

many bits are in reg R and how are they numbered?
parameter regsize = n;
reg R[0: n - 1];

Ans: _______________________________
Operators
Give the function that each of the operators listed performs:
Arithmetic (binary)
+
A:
A:
*
A:
/
A:
%
A:
Arithmetic (unary)
+
A:
A:
Bitwise
~
A:
&
A:
|
A:
^
A:
~^ or ^~

A:

Reduction
&
A:
~&
A:
|
A:
~|
A:
^
A:
~^ or ^~ A:
Logical
!
&&
||

A:
A:
A:
3

==
!=
===
!==
Relational
<
>=
>
<=

A:
A:
A:
A:

A:
A:
A:
A:

Shift
>>
<<

A:
A:

Conditional
?:
A:
Concatenation and Replications
{,}
A:
{int{ }}A:

Expression Bit Widths

Depends on:
widths of operands and
types of operators
Verilog fills in smaller-width operands by using zero extension.
Final or intermediate result width may increase expression width
Width (Unsized constant number) = same as integer (usually 32)
Width (Sized constant number) = number of bits specified.
Arithmetic binary and bitwise
x op y where op is +, -, *, /, %, &, |, ^, ^~:
Bit width = max (width(x), width(y))
What is the width of A + B for reg[7:0] A; reg[15:0] B;?
Ans: _______________________________
Will the assignment statement assign result = (A+B) >> 1; work properly for all
possible pairs of 16-bit operands for reg[15:0] A, B;?
Ans: _______________________________

Arithmetic unary
op x where op is +, Bit width = width(x)
Bitwise negation
op x where op is ~
Bit width = width(x)
Logical, relational and reduction
x op y where op is = =, !=, = = =, != =, &&, ||, >, >=, <, <= or op y where op is !, &, |,
^, ~&, ~|, ~^
Bit width = 1
What is the bit width of (X && (A + B)) for wire X; wire[7:0] A, B;?
Ans: _______________________________
Shift
x op y where op is <<, >>
Bit width = width(x)
Conditional
x?y:z
Bit width = max(width(y), width(z))
What is the bit width of assign result = X ? A:B; for wire X; reg[9:0] A; reg[18:10]
B;
Ans: _______________________________
Concatenation
{x, , y}
Bit width = width(x) + + width(y)
What is the bit width of {A, B, C} for wire A; reg[7:0] B; reg [15:0] C;?
Ans: _______________________________
Replication
{x{y, , z}}
Bit width = x * (width(y) + + width(z))

Expressions with Operands Containing x or z

Arithmetic
If any bit is x or z, result is all xs.
Divide by 0 produces all xs.
What is the result of assign result = A + B; for A = 4'b1100; B = 2'b11?
Ans: _______________________________
What is the result of assign result = A + B; for A = 4'b1100; B = 4'bx11?
Ans: _______________________________
Relational
If any bit is x or z, result is x.
Logical
= = and != If any bit is x or z, result is x.
= = = and != = All bits including x and z values must match for equality;
otherwise unequal. Lengths of operands must be equal.
Operands are reduced to bit 0 or 1, respectively, based on zero or nonzero
value
What is the value of (4'b0011) = = (2'b11)?
Ans: _______________________________
Can (4'b0011) = = = (2'b11)? be evaluated? Explain your answer.
Ans: _______________________________
&&, || combines logical values 0,1, x according to:
Bitwise
Defined by tables for 0, 1, x, z operands.
Reduction
Defined by tables as for bitwise operators.
Shifts
z changed to x.
Vacated positions zero filled.
Conditional
If conditional expression is ambiguous (e.g., x or z), both expressions are
evaluated and bitwise combined as follows: f(1,1) = 1, f(0,0) = 0, otherwise x.
What is the value of result in assign result = (2'b1x)? 4'b0011: 4'b0101;
Ans: _______________________________
