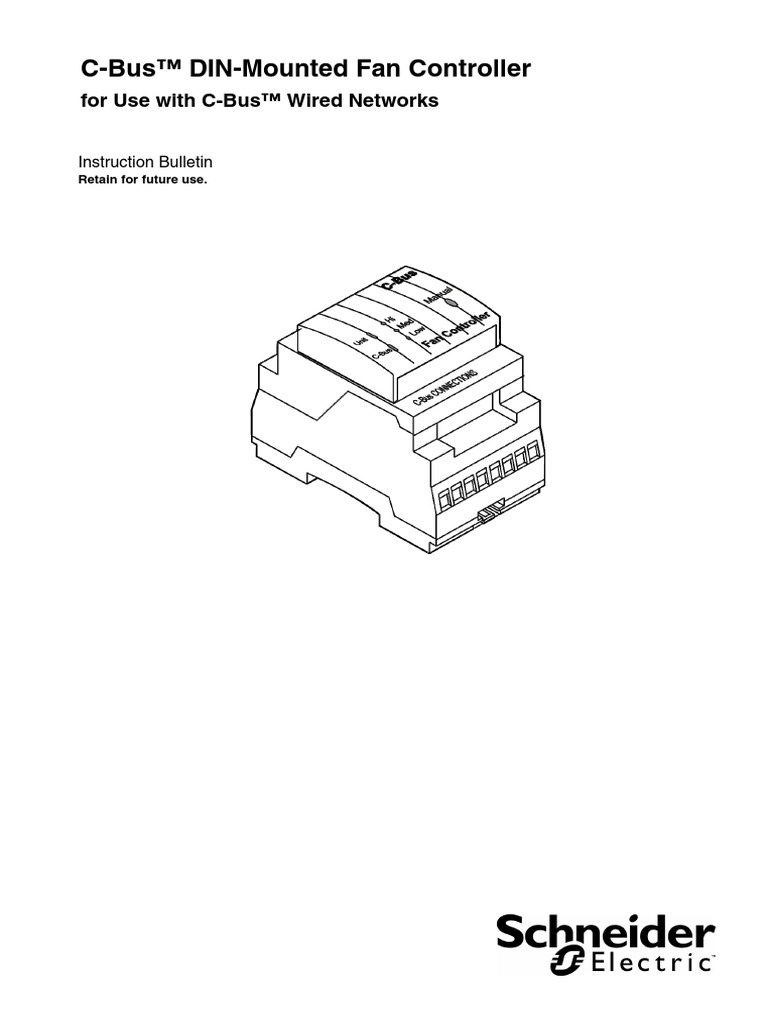

C-Bus™ DIN-Mounted Fan Controller

C-Bus DIN-Mounted Fan Controller
for Use with C-Bus Wired Networks

Instruction Bulletin
Retain for future use.

63249-420-332A2
07/2012
HAZARD CATEGORIES AND SPECIAL SYMBOLS

Read these instructions carefully and look at the equipment to become
familiar with the device before trying to install, operate, service, or maintain
it. The following special messages may appear throughout this bulletin or on
the equipment to warn of potential hazards or to call attention to information
that clarifies or simplifies a procedure.
The addition of either symbol to a Danger or Warning safety label
indicates that an electrical hazard exists which will result in personal injury if
the instructions are not followed.
This is the safety alert symbol. It is used to alert you to potential personal
injury hazards. Obey all safety messages that follow this symbol to avoid
possible injury or death.
Danger indicates an immediately hazardous situation which, if not

avoided, will result in death or serious injury.
Warning indicates a potentially hazardous situation which, if not

avoided, can result in death or serious injury.
Caution indicates a potentially hazardous situation which, if not

avoided, can result in minor or moderate injury.
Caution, used without the safety alert symbol, indicates a potentially

hazardous situation which, if not avoided, can result in property
damage or improper operation.
NOTE: Provides additional information to clarify or simplify a procedure.
2012 Schneider Electric. All Rights Reserved.
63249-420-332A2
07/2012

PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained
only by qualified personnel. This document is not intended as an instruction
manual for untrained persons. No responsibility is assumed by Schneider
Electric for any consequences arising out of the use of this manual.
FCC CLASS B
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this device that are not expressly

approved by Schneider Electric could void the user's authority to
operate this equipment.

63249-420-332A2
07/2012
INTRODUCTION
The SLC5501RFCP C-Bus Fan Controller unit is a DIN rail mounted
C-Bus output device that provides speed control for a ceiling fan.
The Fan Controller uses multiple relays and a dual capacitor block
for speed selection.
The Fan Controller can be installed in a standard C-Bus enclosure,
or in an optional enclosure, such as SLC5501FRE plastic enclosure,
on a wall or in a ceiling space.
The SLC5501RFCP Fan Controller provides C-Bus control of a
ceiling fan for up to three speeds (Low, Medium and High) and Off.
The unit uses double pole latching relays that switch both the active
and neutral inputs. For the High speed, the active line and neutral
are connected direct on-line (DOL) to the fan motor using the screw
terminal connections (no capacitor in the circuit).
A dual speed-control block capacitor is conveniently located inside
the Fan Controller body. The capacitor is a non-serviceable part
provided by Schneider Electric.
The unit is for indoor use only. The fan controller must be mounted
in an enclosure that is properly-rated for the application. A qualified
person must install the electrical connections.
The Fan Controller has a non-illuminated local override 'Manual'
pushbutton that has similar functions to other C-Bus output devices,
including Learn mode. The local override button can override the
output. Each press cycles the speed of the fan in the following
order: Off > Low > Medium > High
The unit has orange Unit and C-Bus LED indicators. In addition,
there are orange indicators for each of the three selectable fan
speeds. The fan speed indicators tell you the current speed
selection (Low-Med-Hi). When no relay is energized, all of the fan
speed indicators are off.
There are two RJ45 connectors for C-Bus. The C-Bus Remote
Override On and Off functions are not used in Fan Controller. For
DIN rail mounting, use the standard 400 mm RJ45-RJ45 C-Bus
network cable. A bootlace cable is provided for ceiling mounting
inside the SLC5501FRE enclosure.
63249-420-332A2
07/2012

Before You Begin

Before installing a C-Bus ceiling fan DIN Controller, verify that your
order is complete by comparing the contents of the package with the
appropriate items in the table below. Also verify that the catalog
number on the box label matches your order.
Table 1 Contents of the Box
Part Number
Description
Qty
SLC5501RFCP
C-Bus output unit for controlling a ceiling fan

using capacitor control (DIN-rail version for
switchboard installation)
Enclosure to accommodate a C-Bus ceiling fan

controller output unit
SLC5501FRE*
*NOTE: *The SLC5501FRE is optional equipment and not UL certified or rated for
plenum use. Use an enclosure that is properly-rated for your application.
NOTE: Refer to the instruction bulletin shipped with SLC5501FRE

enclosures for full safety precautions, installation instructions and
enclosure dimensions.
Network Considerations
The DIN Fan Controller can draw mA from the C-Bus network.
Determine the total network current load and verify that there will be
enough C-Bus power to support all connected devices. Also verify
that the amount of available power per C-Bus network is no more
than 2A.
NOTE: The C-Bus network voltage can vary from 15V to 36V d.c. If
the C-Bus network is disconnected or if the C-Bus voltage drops
below 15V d.c. the fan speed will be set to Off. The unit does not
derive power from the mains, nor does it require a mains connection
to operate.

63249-420-332A2
07/2012
COMPONENTS AND OPERATION

The indicator LEDs show unit status and fan speed. The
non-illuminated Local Override 'Manual' pushbutton provides 'Local
Toggle' and Learn Mode functions. See the figure below.
Figure 1: DIN Fan Controller Indicator LEDS and Local Override Maual
Pushbutton
KEY:
A. Unit indicator
B. C-Bus indicator
C. Fan speed indicators
D. Local Override "Manual" Toggle Button
Unit Status Indicator

This indicator shows the following information about the status of
the unit:
if line voltage is connected
if Local Override or Remote Override has been activated
if the unit is in Learn mode
The table explains the meaning of each type of LED activity.
63249-420-332A2
07/2012

Table 2: Unit Indicator Status LED

LED Activity
Meaning
On (continuous light)
Normal operation
Connected to functioning C-Bus network and external
power source
Flashing (Unit indicator only)
One or more channels has been overridden, at a Local

Override button or with a Remote Override.
Flashing (Unit alternately flashing with C-Bus

indicator)
The unit is in Learn mode when the flashing alternates

regularly between the Unit and C-Bus indicators.
Flashing
If both indicators flash but do not alternate regularly, the

network voltage is marginal and the unit's output is in
override. See the section C-Bus Status Indicator.
Off
No external power source connected. E.g., during

configuration, when unit is powered only by C-Bus network.
C-Bus Status Indicator

This indicator shows the status of the C-Bus network at the unit. The
table explains the meaning of each type of LED activity.
NOTE: The C-Bus indicator functions only when an external power
source is connected. It does not function during the initial
configuration when the unit is powered only by the C-Bus network.

63249-420-332A2
07/2012
Table 3: C-Bus Indicator Status LEDS

LED Activity
Meaning
On (continuous light)
Power on and C-Bus network functional and C-Bus

network clock on network
Flashing (C-Bus indicator

only)
Insufficient power to support network
Flashing (C-Bus indicator

alternately flashing with
Unit indicator)
The unit is in Learn mode when the flashing alternates

regularly between the Unit and C-Bus indicators.
Flashing (C-Bus and Unit

indicators flash irregularly)
If both indicators flash but do not alternate regularly, the

network voltage is marginal and the unit's output is in
override. See the section Unit Status Indicator.
Off
No C-Bus network connection or

No C-Bus network clock on the network or
No external power source, e.g., during configuration, when
unit is powered only by C-Bus network.
Fan Speed LED Indicators

The Fan Controller activates the corresponding orange indicator
when the output is set to Low, Medium or High. All fan speed
indicators are off when the fan speed is set to Off.
The local fan speed control sequence is Off-Low-Medium-High-Off.
When switching from "High" or "Med" speed to "Low" speed, the unit
will automatically switch to "High" for a few seconds before going to
"Low" speed. This allows the fan motor to turn prior to switching to
"Low" (lower current) speed setting. Higher current is required to
start motors from stand still.
63249-420-332A2
07/2012

Local Override Manual Pushbutton (non-illuminated)

Local Toggle Mode
Local Toggle Mode allows manual cycling of the fan through the
speed control sequence. This feature is most often used during
testing and commissioning. The Local Toggle feature can be
disabled using Toolkit software.
With all relays OFF, use a short press to start Local Toggle Mode if
the Fan Controller is not already in Local Toggle mode and if the
software allows the feature.
Subsequent button presses step the Fan Controller relays through
the speed control sequence: Low-Med-Hi-Off, etc.
Use a long press to exit Local Toggle Mode and return the Fan
Controller to normal C-Bus control.
Learn Mode
Learn mode is most often used to assign the Fan Controller to a
lighting group. The Learn Mode feature can be disabled using
Toolkit software.
If the Fan Controller is not in Local Toggle Mode and if the software
allows Learn Mode, use a long press (10 seconds) to start Learn
Mode. A subsequent long press exits Learn Mode.

63249-420-332A2
07/2012
SAFETY PRECAUTIONS
This section contains important safety precautions that must be
followed before attempting to install or maintain electrical
equipment. Carefully read and follow the safety precautions below.
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Apply appropriate personal protective equipment (PPE) and

follow safe electrical work practices. See NFPA 70E.
This equipment must be installed and serviced by qualified

electrical personnel.
Turn off all electrical power supplying this equipment before

working on or inside the equipment.
Always use a properly rated voltage sensing device to confirm

that power is off.
Replace all devices, doors, and covers before turning on power

to this equipment.
Failure to follow these instructions will result in death or
serious injury.
10
63249-420-332A2
07/2012

INSTALLATION
Follow the procedures in this section to mount the DIN Fan
Controller units and to make electrical and C-Bus network wiring
connections.
Mounting onto the DIN Rail
The DIN-rail units are designed to be installed onto a standard 1.38
in. (35 mm) DIN rail.
Figure 2: Mounting the DIN Unit onto the DIN Rail
KEY:
A. DIN rail
B. DIN-rail unit
1. Hook the unit onto
the top of the DIN rail
2. Swing the bottom of
the unit down
3. Mounted unit
Removing from the DIN Rail

Figure 3: Removing the DIN Unit form the DIN Rail
KEY:
A. DIN rail
B. Unit
1. Pull out the slide
release
2. Pull the unit away
from the DIN rail
3. Lift the unit away
from the rail
11

63249-420-332A2
07/2012
Figure 4: DIN Unit Release Clip

KEY:
A. DIN rail
B. DIN unit release
clip
Using the Optional Enclosure

The optional SLC5501FRE enclosure may be used when the Fan
Controller is installed on a wall or in a ceiling space.
Read the following guidelines when mounting the enclosure,
installing DIN hardware or making wiring connections.
In some locations it is advisable to cut or drill the holes for cable

entry and exit before you permanently mount the back piece of
the enclosure.
The enclosure can be mounted horizontally or vertically. Be sure
to use mounting screws that are correct for the mounting
surface, usually drywall or wood.
Keep the C-Bus network cables separate from the power input
and fan wires. The C-Bus Cat.5e cabling enters from one end of
the enclosure and the power and fan (load) wires enter from the
opposite end.
Be sure to secure the cables at the anchor points to prevent
accidental disconnection of the wires from the unit.
NOTE: Placing the fan controller inside the enclosure creates a
physical barrier between the C-Bus and the electrical power cabling
and fan control areas of the enclosure. Mount the controller only in
the orientation shown below.
12
63249-420-332A2
07/2012

Figure 5: Mounting the DIN Unit in the Optional DIN fan Controller Enclosure
KEY:
A. Cable anchor points
B. C-Bus network
cable entry
C. Input power and fan
(load) wire entry
NOTE: The SLC5501FRE is not UL certified or rated for plenum

use. Use an enclosure that is properly-rated for your application.
13

63249-420-332A2
07/2012
WIRING
This section contains important safety precautions and guidelines
that must be followed before attempting to install or maintain
electrical equipment. Carefully read and follow the safety
precautions below.
Apply appropriate personal protective equipment (PPE) and

follow safe electrical work practices. See NFPA 70E.
This equipment must be installed and serviced by qualified

electrical personnel.
Turn off all electrical power supplying this equipment before

working on or inside the equipment.
Always use a properly rated voltage sensing device to confirm

that power is off.
Replace all devices, doors, and covers before turning on power

to this equipment.
serious injury.
Properly connect fan wires to the DIN Fan Controller.
Verify that all wiring connections are made according to the

wiring diagrams and instructions.
serious injury.
14
63249-420-332A2
07/2012

Wiring Diagrams
Figure 6: DIN Fan Controller Wiring Connections
KEY:
A. Line-In/Positive (+)
B. Line-In/Neutral (-)
C. Load (Fan) Output Motor N
D. Load (Fan) Output Motor
E. RJ-45 type connector to C-Bus port
F. C-Bus network cable (CAT5e)
Figure 7: Wiring the unit inside the Optional DIN Fan Controller Enclosure
(SLC5501FRE)
KEY:
A. CAT5e wiring
terminal (optional-not
provided)
B. RJ-45 type
connector to C-Bus
port
C. Line-In/Positive (+)
D. Line-In/Neutral (-)
E. Load (Fan) Output
Motor N
F. Load (Fan) Output
Motor
15

63249-420-332A2
07/2012
Wiring Guidelines
Follow the guidelines below when working with the DIN Fan Controller.
Verify that the power supplying the system is turned OFF before handling
electrical power conductors.
Observe national and local electrical codes.
Isolate the DIN Fan Controller from the Class 1 wiring. Consult your national and
local electrical codes for requirements about isolating Class 1 wiring and Class 2
wiring terminals.
Prevent wire cuttings and debris from entering the unit.
Consider the total current consumption when designing the power feed and
selecting the cables. Also verify that the load supply has been protected by an
appropriately rated circuit breaker.
Follow the wiring diagrams.
The supply circuit for the fan motor must be protected by a circuit breaker or fuse.
Be sure to provide a separate earth (ground) wire for the fan motor body. The Fan
Controller does not have an earthing terminal.
Install the Fan Controller in an indoor location protected from moisture and direct
sunlight.
The Fan Controller relays are rated at 1.5A FLA for an inductive load only. Do not
exceed the rated value.
The double pole relays in the Fan Controller switch the neutral as well as the
active line. Do not use the fan motor output terminals as a connection point for
any other device.
Use only copper and aluminum wire and solid conductor or stranded network
cable.
Keep the C-Bus network cabling segregated from Class 1 electrical power and fan
motor wiring in accordance with local wiring regulations.
When using the enclosure, the C-Bus Cat.5e cables must exit from one end of the
enclosure and the power and fan connections must exit from the opposite end.
Provide strain relief for cables and seal the cable entry holes when using the
optional enclosure.
A Cat 5 UTP patch cord is included with the unit to facilitate easy interconnection of
units. Always verify that the network current load and available power are within limits
before adding units to the network.
16
63249-420-332A2
07/2012

Megger Testing Guidelines

Do not Megger test C-Bus data cabling or terminals. Megger
testing of data cabling or terminals can degrade the performance of
the C-Bus network.
It will not harm the units if electrical power terminals only are
Megger tested. But because units contain electronic components,
the Megger readings will not be correct. To obtain valid readings,
disconnect the power lines from the units.
HAZARD OF NETWORK OVERVOLTAGE

Do not Megger test C-Bus data cabling or terminals as it can
degrade the performance of the C-Bus network.
Failure to follow this instruction will result in damage to the
equipment.
Connection to the C-Bus Network

The C-Bus network is connected to the through two polarity
sensitive RJ45 inputs located on the . Connect the unit to the C-Bus
network with Category 5 unshielded twisted pair C-Bus network
cable, and a wired RJ45 plug. Refer to the "Wiring Connections Key
Diagram" and the "RJ45 Pin Connections" table for wiring and pin
connection information.
NOTE: To clearly distinguish C-Bus from other UTP Cat5 cables, it
is recommended to use a different colored cable, or clearly label the
C-Bus UTP Cat5 cable.
NOTE: The Category 5 unshielded twisted pair C-Bus network cable
and the wired RJ45 plug are provided by the installer.

Do not connect line voltage to any C-Bus terminal.
Failure to follow this instruction can result in personal injury or
equipment or property damage.
17

63249-420-332A2
07/2012
Figure 8: Wiring Connections Key Diagram

KEY:
A. C-Bus positive (+):
blue + orange
B. C-Bus negative (-):
blue/white +
orange/white
C. Remote OFF:
brown + brown/white*
D. Remote ON: green
+ green/white*
Table 4: RJ45 Pin Connections

RJ Pin
C-Bus Connection
Color
Remote ON*
Green/White
Remote ON*
Green
C-Bus Neg (-)
Orange/White
C-Bus Pos (+)
Blue
C-Bus Neg (-)
Blue/White
C-Bus Pos (+)
Orange
Remote OFF*
Brown/White
Remote OFF*
Brown
*Not internally connected.

NOTE: The Remote On and Remote OFF features are not
implemented on the Fan Controller.
18
63249-420-332A2
07/2012

CONFIGURATION
Before a DIN Fan Controller can operate on the C-Bus network, the
C-Bus Toolkit software must be used to assign a unique
identification (unit address) and mode of operation on the network.
When the units are being installed as part of a large or complex
network, it is most efficient to perform the basic configuration before
the units are physically installed. However, the units can be
configured before or after physical installation.
Voiding the C-Bus Software Warranty
Using software not provided or approved by Schneider Electric
could void the hardware warranty.
Configuring, Labeling, and Recording the Locations of C-Bus Units
C-Bus units must be configured, at a minimum, with the unit address
and part name before being physically installed on the network.
Each unit is identified by a unique serial number found on the box
label (see the figure Example of a Box Label with Lift-and-Peel
Section). The serial number provides important information for
recording a unit's location. An infrared barcode scanner may be
used to read the box label's bar code for the serial number and unit
information.
Use the C-Bus Toolkit to assign the unit a unique address, and then
mark the address and part name directly onto the unit before
physical installation. You can use the lift-and-peel label from the unit
box, or write the unit address and part name directly on the unit.
After marking the unit, record each unit's physical location onto a
site plan or panel schedule.
19

63249-420-332A2
07/2012
Figure 9: Example of a Box Label with Lift-and-Peel Section

KEY:
A. Serial number
B. Bar code
C. Lift-and-peel
section
HAZARD OF UNEXPECTED OR UNINTENDED OPERATION
Properly configure, label, and record the location of each unit.
Retain location records and provide them to the person(s)

responsible for configuring and commissioning the network.
Failure to follow these instructions can result in unintended
C-Bus network operation.
Network Burden
One network burden is required for proper C-Bus operation, network
termination, and biasing.
HAZARD OF IMPROPER OR UNSTABLE OPERATION

C-Bus networks require only one burden.
Failure to follow this instruction can result in improper C-Bus
network operation.
The C-Bus system clock must be enabled in order to apply the
network burden.
20
63249-420-332A2
07/2012

Software Burden
The DIN Fan Controller incorporates a software-selectable network
burden. To enable a software-selectable burden, first install a
hardware burden on the network and then enable the software
burden using C-Bus Toolkit software. After the software burden is
enabled, remove the hardware burden.
C-Bus System Clock
The DIN Fan Controller has a software-selectable C-Bus system
clock with the capability to synchronize data communication on the
C-Bus network. Typically the clock is disabled: Successful C-Bus
network communications require only one active clock. A maximum
of three C-Bus units per network can have the clock enabled. Refer
to the C-Bus Toolkit software for additional information and to
enable the DIN Fan Controller system clock.
POWER OUTAGES AND RESTORATION

All C-Bus units have on-board non-volatile memory that stores the
operating state of the unit in the event of a power outage. When
power is restored, the units carry out a diagnostic that lasts a few
seconds.
The DIN Fan Controller loads will remain OFF while the unit
restores the channels to their previous states, according to the units
recovery settings. The load status will be displayed on the channels'
status indicator LEDs.
21

63249-420-332A2
07/2012
STANDARDS
Table 5 U.S. and Canadian Product Safety Standards and U.S.
FCC Regulations
22
Standards/Regulations
Title
UL508
Industrial Control Equipment
UL916
Energy Management Equipment
CSA C22.2 No. 14
Complies with cUL Standards for Industrial

Control Equipment
CSA C22.2 No. 205
Signal Equipment
FCC Part 15
Complies with FCC Standards for Home or

Office Use
63249-420-332A2
07/2012

SPECIFICATIONS
C-Bus input voltage
15-36 V d.c.
C-Bus current requirement
18 mA, powered from C-Bus network, does not provide

power for the C-Bus network
Maximum units per network
100
Network clock
Software selectable
Network burden
Software selectable when Unit Address is 001
AC input impedance
100 k @ 1 kHz
Warm-up time
10 seconds
Electrical isolation
3.75 kV from C-Bus to mains
Input voltage for fan motor
120 VAC; input circuit must have a suitable circuit

breaker
Fan load rating
1.5 A FLA
Motor load rating
1.5 FLA, 9 LRA
Switch duty type (S1)
Continuous duty. Line and neutral are switched. Fan

motor and neutral are switched.
Speed control
Non-serviceable capacitor block for Low and Medium

speeds. High speed uses direct on-line (no capacitor in
the circuit). Three unique fan speeds Low, Med, and Hi
and Off.
Connectors
C-Bus: 2 x RJ-45
Fan: 2 x screw type for one 16 AWG (1.5 mm) wire
Input Power: 2 x screw type for up to two 16 AWG (1.5
mm)
Indicators
Unit, C-Bus, 3 x Fan speed
Control
Local override pushbutton, not illuminated
Rated impulse withstand

voltage
4 kV
Mounting type
DIN rail, or wall or ceiling space mounting in the optional

plastic enclosure; For indoor use only
Weight
Fan Controller Relay Unit: 5.11 oz (145 g)

Optional plastic enclosure: 7.76 oz (220 g)
Operating temperature
32F to 149F (0C to 65C)
Humidity
10 to 95% RH, non condensing
NOTE: There are no user-serviceable parts.

NOTE: The unit draws no power from mains and requires no line connection to operate.
23

DIMENSIONS
Figure 10: C-Bus 6M DIN Unit Dimensions
2.1 in.
2.6 in.
53 mm
65 mm
3.4 in.
85 mm
SUPPORT AND SERVICE

Contact the Customer Information Center for technical support by
phone at 1-888-778-2733 or e-mail at
lightingcontrol.support@us.schneider-electric.com.
Contact your local Schneider Electric service representative or
C-Bus system certified installer for repairs or service to your
network.
You may also find helpful information on our web site at
www.Schneider-Electric.us.
Schneider Electric, USA

320 Tech Park Drive, Suite 100
La Vergne, TN, 37086
1-888-778-2733
www.schneider-electric.us
Schneider Electric, logo, and C-Bus are trademarks or registered

trademarks of Schneider Electric and/or its affiliates in the United States
and/or other countries.
Electrical equipment should be installed, operated, serviced, and
maintained only by qualified personnel. No responsibility is assumed by
Schneider Electric for any consequences arising out of the use of this
material.
63249-420-332A2
07/2012

C-Bus™ DIN-Mounted Fan Controller

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

C-Bus™ DIN-Mounted Fan Controller

Uploaded by

Copyright:

Available Formats

C-Bus DIN-Mounted Fan Controller

for Use with C-Bus Wired Networks
