JURUSAN TEKNIK MESIN

FAKULTAS TEKNOLOGI INDUSTRI

INSTITUT TEKNOLOGI SEPULUH NOPEMBER
SURABAYA

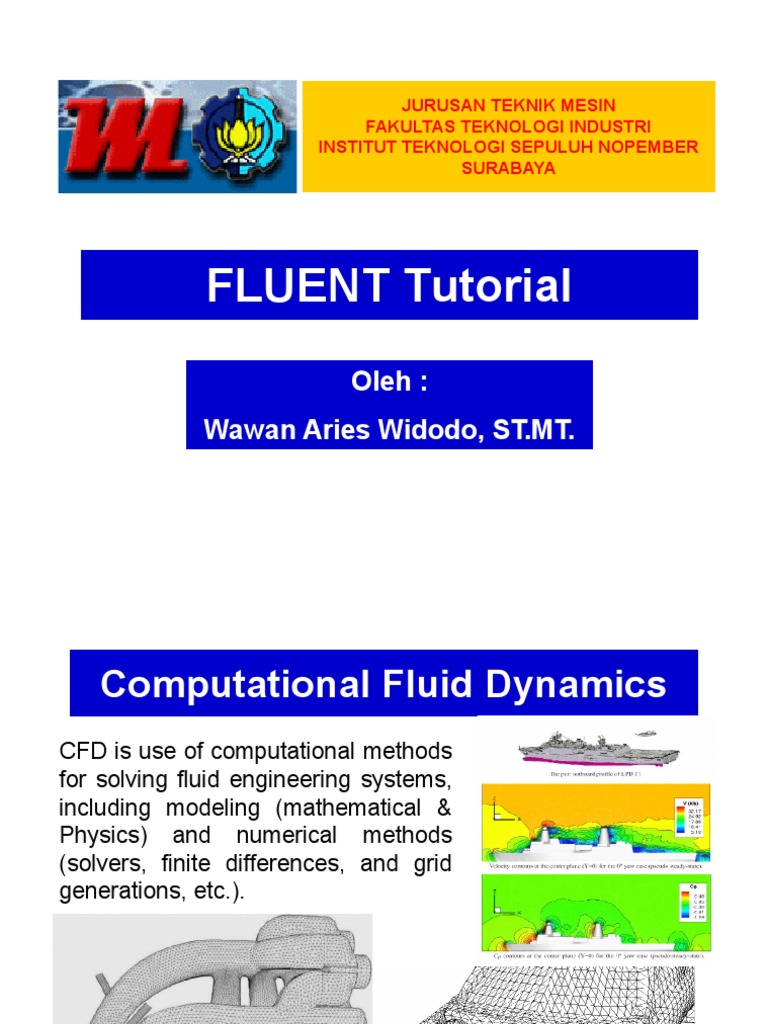

FLUENT Tutorial
Oleh :
Wawan Aries Widodo, ST.MT.

Computational Fluid Dynamics

CFD is use of computational methods
for solving fluid engineering systems,
including modeling (mathematical &
Physics) and numerical methods
(solvers, finite differences, and grid
generations, etc.).

Purpose of CFD
The objective of CFD is to model the continuous
fluids with Partial Differential Equations (PDEs) and
discretize PDEs into an algebra problem, solve it,
validate it and achieve simulation based design
instead of build & test.
Simulation of physical fluid phenomena that are
difficult to be measured by experiments: scale
simulations (full-scale ships, airplanes), hazards
(explosions, radiations, pollution), physics (weather
prediction, planetary boundary layer, stellar
evolution).

Numerical Modeling
Mathematical physics problem formulation of fluid
engineering system
Governing
equations:
Navier-Stokes
equations
(momentum), continuity equation, pressure Poisson
equation, energy equation, ideal gas law, combustions
(chemical reaction equation), multi-phase flows(e.g.
Rayleigh equation), and turbulent models (RANS, LES,
DES).
Coordinates: Cartesian, cylindrical and spherical
coordinates result in different form of governing
equations
Initial conditions (initial guess of the solution) and
Boundary Conditions (no-slip wall, free-surface, zerogradient, symmetry, velocity/pressure inlet/outlet)
Flow conditions: Geometry approximation, domain,
Reynolds Number, and Mach Number, etc.

CFD process
CFD process is the steps to set up a problem and run the code
1. Geometry : Create the geometry you want
2. Physics : fluid properties, viscous modeling and boundary conditions
3. Mesh : coarse, medium and fine meshes
4. Solve : different solvers and numerical methods
5. Report : time history of convergence of
6. Post-Processing : visualizations (contours, vectors), validation and verification

Perangkat Lunak FLUENT

FLUENT
adalah
paket
perangkat
lunak
computational fluid dynamics (CFD) yang
digunakan untuk mensimulasikan kasus-kasus
aliran fluida.
FLUENT menggunakan metoda finite-volume
method untuk menyelesaikan persamaan yang
dibangun untuk fluida. Hal tersebut mencakup
penggunaan
berbagai
model
fisis
seperti
incompressible atau compressible, inviscid atau
viscous, laminar atau turbulent, dll.
Geometri dan pembuatan grid dibuat dengan
software GAMBIT yang merupakan pemroses awal
yang merupakan bagian dari software FLUENT.

Struktur Program FLUENT

GAMBIT

Other CAD/CAE
Packages

Geometry setup

Pre PDF
Calculation of PDF
look-up tables
PDF
Files

2D/3D Mesh

Boundary
Mesh

2D/3D mesh generation

Boundary and/or
Volume Mesh

T Grid
2D Triangular mesh

FLUENT

3D Tetrahedral mesh

Mesh import & adoption

Phyisical models
Boundary conditions

Mesh

Material Properties
PDF :

Calculation

Probability Density
Function

Postprocessing

Mesh

2D or 3D hybrid mesh

Tahapan dalam Penggunaan

Software FLUENT
1. Buat Geometri dengan GAMBIT
2. Mesh Geometri dengan GAMBIT
3. Tetapkan Tipe-Tipe Boundary dengan
GAMBIT
4. Tetapkan Problem tersebut dengan
FLUENT
5. Selesaikan dengan FLUENT
6. Analisa Hasilnya dengan FLUENT
7. Perbaiki/Rapatkan Mesh-nya dengan
FLUENT

Buat Geometri dengan GAMBIT

Geometry Command Button

Icon untuk membuat dan modifikasi geometri

Meshing Command Button

Icon untuk membuat dan modifikasi mesh

Zones Command Button

Icon untuk menentukan boundary dan continuum

Tools Command Button

Icon untuk membuat dan modifikasi sistem koordinat

Buat Geometri dengan GAMBIT

Vertex Command Button

Membuka sub- perintah operasi pada suatu vertex (titik)

Edge Command Button

Membuka sub-perintah operasi pada suatu edge (garis)

Face Command Button

Membuka sub-perintah operasi pada suatu face (bidang)

Volume Command Button

Membuka sub-perintah operasi pada suatu volume

Group Command Button

Membuka sub-perintah operasi pada suatu group

Buat Geometri dengan GAMBIT

Volume

Face (Luasan)

Edge (Garis)

Vertex (Titik)
Bottom-Up Method

Top-Down Method
Volume

Face (Luasan)

Edge (Garis)

Vertex (Titik)

BENTUK GEOMETRI 2 DIMENSI

FLOW AROUND A CIRCULAR CYLINDER 2D (MIDSPAN OF A CIRCULAR CYLINDER)

BENTUK GEOMETRI 2 DIMENSI

FLOW AROUND A CIRCULAR CYLINDER 2D (MIDSPAN OF A CIRCULAR CYLINDER)

Mesh Geometry in GAMBIT

BENTUK MESH 2 DIMENSI

FLOW AROUND A CIRCULAR CYLINDER 2D Face Meshing (quadrilateral map)

BENTUK MESH 2 DIMENSI

FLOW AROUND A CIRCULAR CYLINDER 2D (MIDSPAN OF A CIRCULAR CYLINDER)

BENTUK MESH 2 DIMENSI

FLOW AROUND A CIRCULAR CYLINDER 2D (MIDSPAN OF A CIRCULAR CYLINDER)

Set Boundary Types in GAMBIT

Set Boundary Types in GAMBIT

Setup Problem in FLUENT

Setup Problem in FLUENT

Setup Problem in FLUENT

Solve in FLUENT

Analyze Results in FLUENT

Analyze Results in FLUENT

Analyze Results in FLUENT

2D Steady Flow -Turbulence Viscous

k-epsilon Standard

Analyze Results in FLUENT

FLOW AROUND A CIRCULAR CYLINDER 2D (MIDSPAN OF A CIRCULAR CYLINDER)

Re = 5,4 x 104

EXPERIMENTAL RESULTS

NUMERICAL MODELING RESULTS

SOFTWARE FLUENT

Refine Mesh
Refine Mesh dengan Software FLUENT :

APLIKASI CFD

Gerakan Sudu (Impeller) pada

Proses Pencampuran

Aliran partikel melalui

saluran pernapasan

Commercial software

CFD software
1. FLUENT: http://www.fluent.com
2. CFDRC: http://www.cfdrc.com
3. STAR-CD:http://www.cd-adapco.com
4. CFX/AEA: http://www.software.aeat.com/cfx
Grid Generation software
1. Gridgen: http://www.pointwise.com
2. GridPro: http://www.gridpro.com
Visualization software
1. Tecplot: http://www.amtec.com
2. Fieldview: http://www.ilight.com
